◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10885 - LV423(THAI)BMTA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#14008) — 33 parça

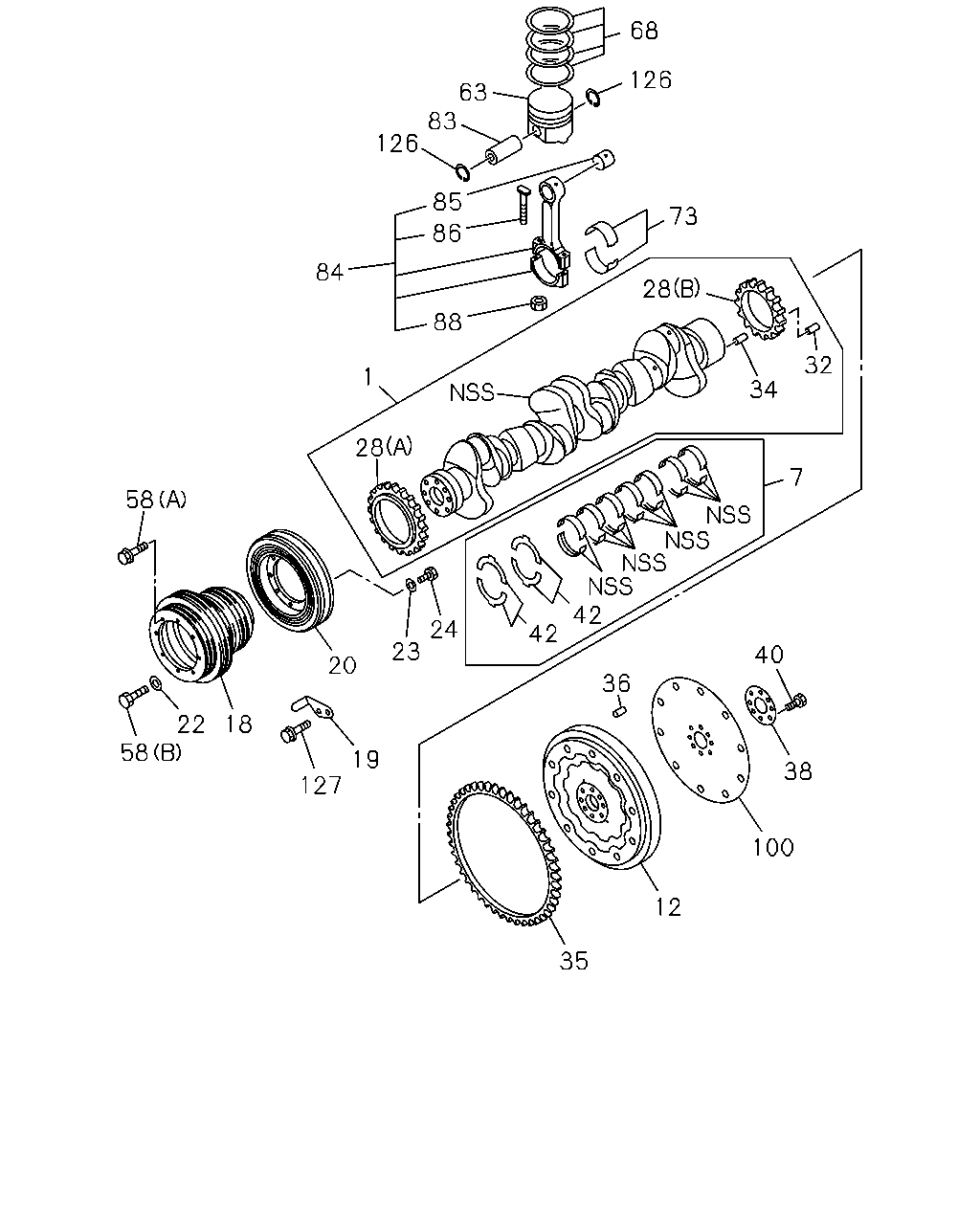

çizim 82551
68 126 63 83 126 85 73 86 84 28 88 32 1 34 28 7 58 42 24 23 42 40 20 36 22 58 18 19 38 127 100 12 35
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT 1-12310-668-0 01 1 0105-
7 METAL KIT; CRANKSHAFT,STANDARD 1-11510-108-3 01 1 0105-
12 FLYWHEEL 1-12331-358-0 01 1 0105-
18 PULLEY; CR/SHF
8-GROOVE 		1-12371-440-0 01 1 0105-
19 POINTER; TIMING 1-11327-026-0 01 1 0105-
20 DAMPER; CR/SHF 1-12375-201-1 01 1 0105-
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 08 1 0105-
23 WASHER; DAMPER
ID=12.5 		9-09851-682-0 08 1 0105-
24 BOLT; DAMPER 9-02361-220-0 08 1 0105-
28 GEAR; CR/SHF
(A) Z=53 		1-12521-027-1 01 1 0105-
28 GEAR; CR/SHF
(B) Z=46 		1-12521-053-1 01 1 0105-
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 01 1 0105-
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0105-
35 GEAR; RING
Z=160 		1-12333-011-3 01 1 0105-
36 PIN; FLYWHEEL
ID=6 L=12 		9-08160-612-0 01 1 0105-
38 WASHER; FLYWHEEL 1-12336-020-0 01 1 0105-
40 BOLT; FLYWHEEL 1-09070-149-0 08 1 0105-
42 WASHER; THRUST,CR/SHF 1-11599-007-1 02 1 0105-
58 BOLT; CR/SHF PULLEY
(A) 		1-09029-073-0 08 1 0105-
58 BOLT; CR/SHF PULLEY
(B) M16X45 		9-92061-645-0 08 1 0105-
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX 		1-12111-842-0 06 1 0105-
63 PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX 		1-12111-843-0 06 1 0105-
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		1-12121-137-1 06 1 0105-
73 METAL SET; CONN ROD,STANDARD 1-12271-084-0 06 1 0105-
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		1-12211-022-0 06 1 0105-
84 ROD ASM; CONN 1-12230-097-1 06 1 0105-
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-021-1 06 1 0105-
86 BOLT; CONNROD 1-12235-025-1 12 1 0105-
88 NUT; CONNROD 1-09840-003-1 12 1 0105-
100 PLATE; FLEX 1-32213-070-0 04 1 0105-
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-065-0 12 1 0105-
127 BOLT; POINTER
M6X12 FLANGE 		0-28080-612-0 02 1 0105-0512
127 BOLT; POINTER
M6X12 FLANGE 		0-28050-612-0 02 1 0601-
