8-73 — BLOWER UNIT (#140013) — 19 parça

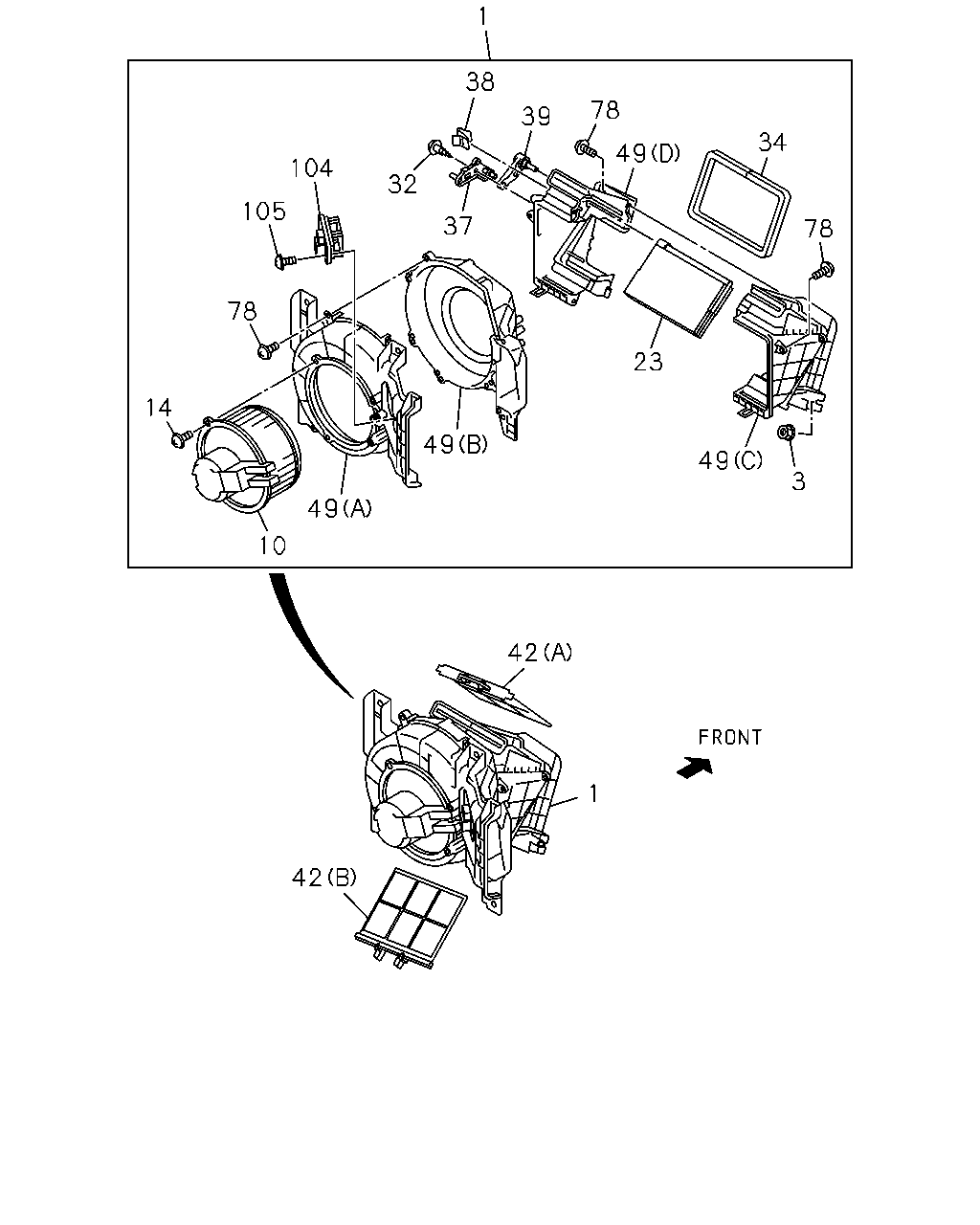

çizim 421944
1 38 78 34 78 3 49 1 42 42 10 14 49 78 49 104 105 32 39 37 23 49
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-589-0 01 1 1405-
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		1-83539-354-0 02 1 1405-
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-924-0 01 1 1405-
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 MAL 		8-98047-448-0 03 1 1405-
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-437-0 01 1 1405-
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 01 1 1405-
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-430-0 01 1 1405-
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-436-0 01 1 1405-
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1405-
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-435-0 01 1 1405-
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98025-006-1 01 1 1405-
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97387-096-1 01 1 1405-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-440-0 01 1 1405-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-441-0 01 1 1405-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) MAL 		8-98047-442-0 01 1 1405-
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) MAL 		8-98047-443-0 01 1 1405-
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 15 1 1405-
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-113-0 01 1 1405-
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 02 1 1405-
