◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#140010) — 177 parça

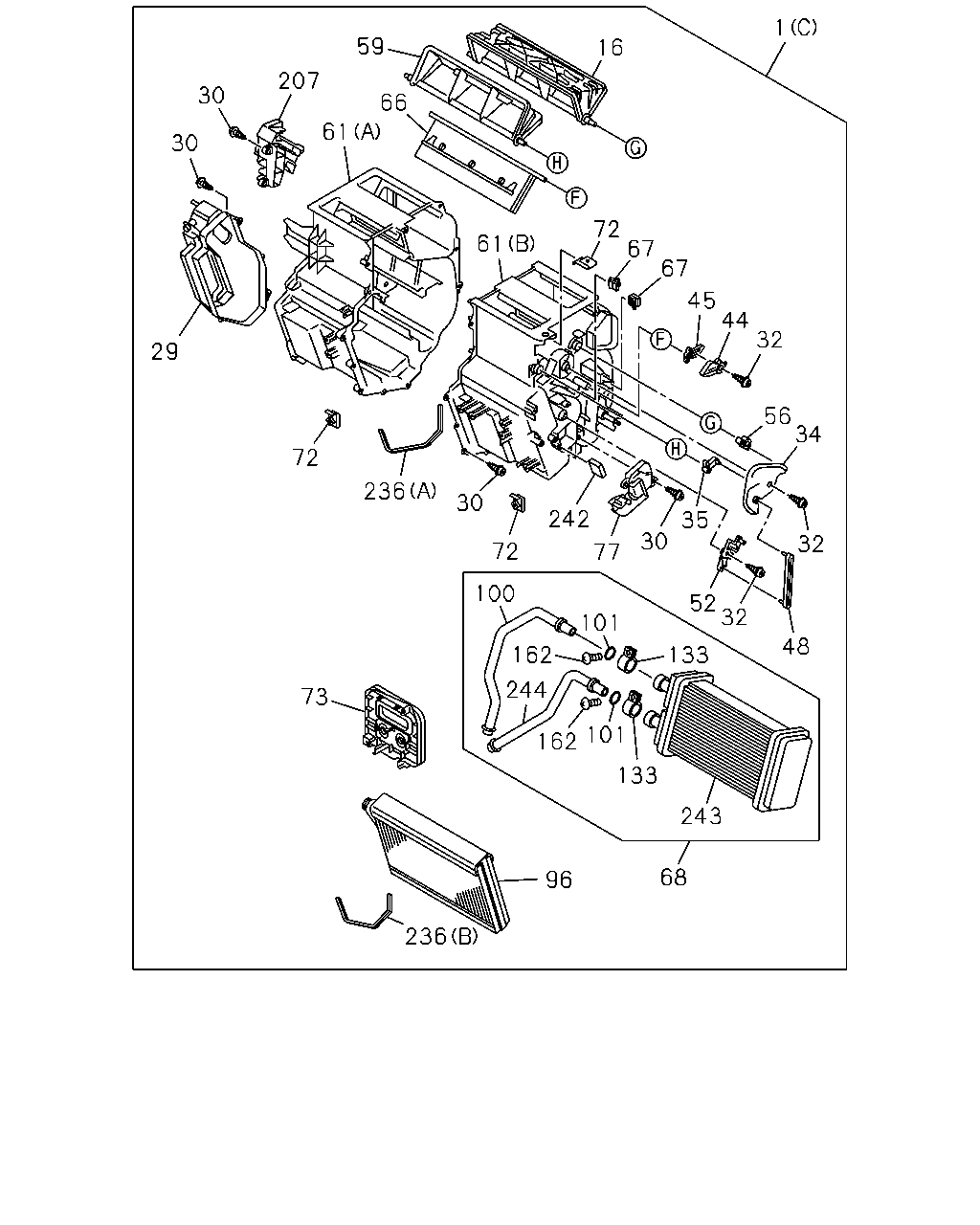

çizim 420991
1 16 72 67 67 45 44 32 56 34 32 48 32 52 35 30 77 242 101 133 133 243 68 96 73 236 101 162 244 162 100 72 30 236 72 29 30 30 207 59 61 66 61
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1405-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1405-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1405-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1405-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1405-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1405-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1405-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1405-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1405-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1405-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 MAL 		8-98047-416-0 02 1 1405-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-98047-416-0 03 1 1405-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1405-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1405-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1405-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1405-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1405-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1405-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1405-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1405-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1405-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1405-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1405-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1405-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1405-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1405-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1405-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1405-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1405-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1405-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1405-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1405-
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1405-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1405-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1405-
242 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1405-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1412-
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1405-
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1405-

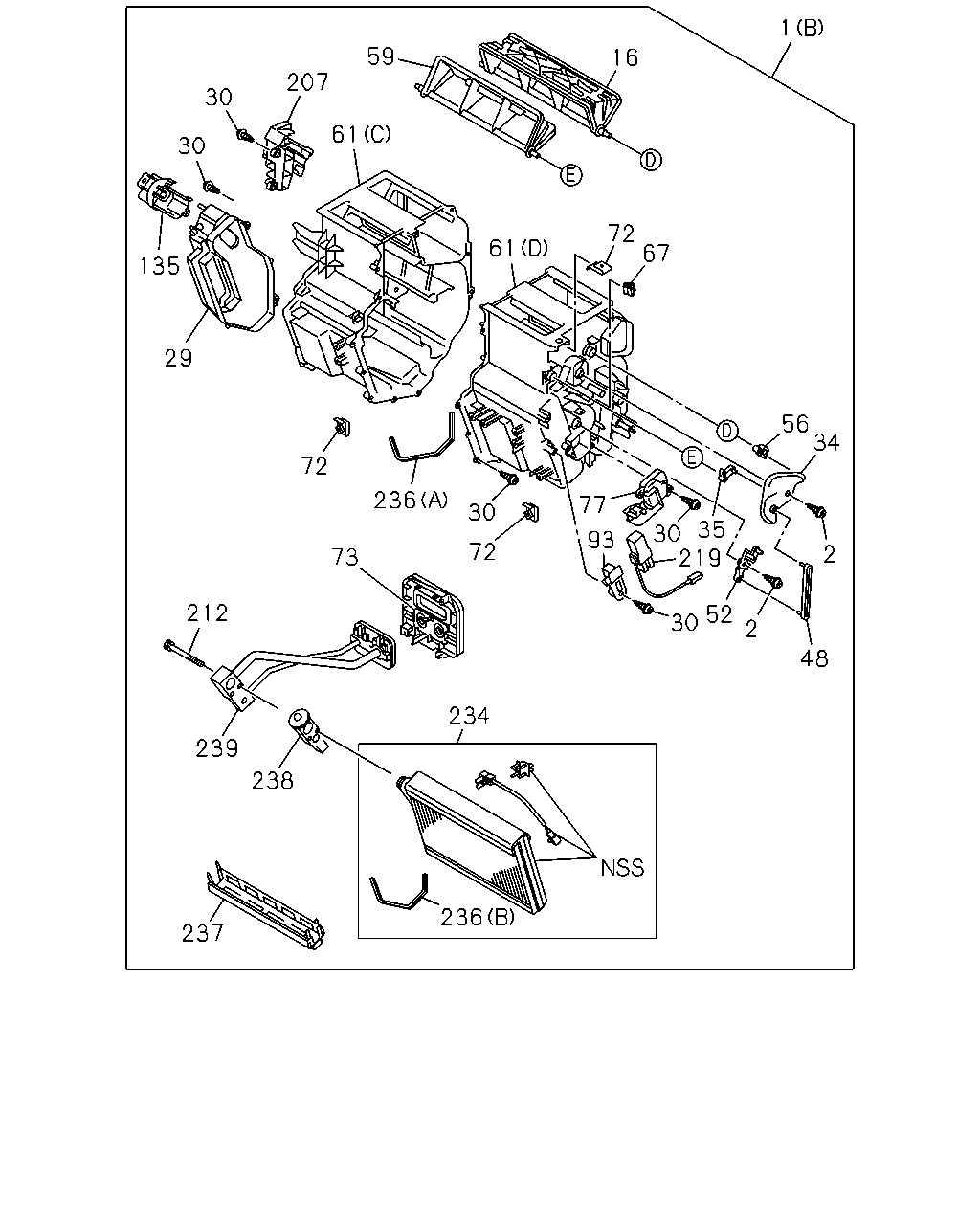

çizim 421062
1 16 67 72 56 34 2 48 2 52 30 219 30 35 93 77 234 236 237 238 239 212 73 72 30 236 72 29 135 30 30 207 61 59 61
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1405-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1405-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1405-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1405-
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL 		8-98047-416-0 03 1 1405-
2 SCREW; LEVER
COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 02 1 1405-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1405-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1405-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1405-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1405-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1405-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1405-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1405-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1405-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1405-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1405-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1405-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1405-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1405-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1405-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1405-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1405-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1405-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1405-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1405-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1405-
135 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1405-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1405-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1405-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1405-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1405-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1405-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1405-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1405-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1405-
çizim 421432
1 2 56 34 2 48 133 243 68 236 235 235 133 101 162 244 162 100 101 30 52 2 219 35 30 93 77 44 45 67 67 72 61 72 30 236 155 234 238 237 239 240 240 212 73 72 29 135 30 30 207 59 61 66 16
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1405-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1405-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1405-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1405-
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL 		8-98047-416-0 03 1 1405-
2 SCREW; LEVER
COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 02 1 1405-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1405-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1405-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1405-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1405-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1405-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1405-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1405-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1405-
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1405-
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1405-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1405-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1405-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1405-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1405-
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1405-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1405-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1405-
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1405-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1405-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1405-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1405-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1405-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1405-
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1405-
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1405-
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1405-
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1405-
135 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1405-
155 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1405-
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1405-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1405-
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1405-
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1405-
219 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1405-
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1405-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7 		8-97095-907-0 01 1 1405-
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5 		8-97095-908-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1405-
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1405-
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1405-
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1405-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4 		8-97095-906-0 01 1 1405-
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5 		8-97095-908-0 01 1 1405-
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1405-
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1405-

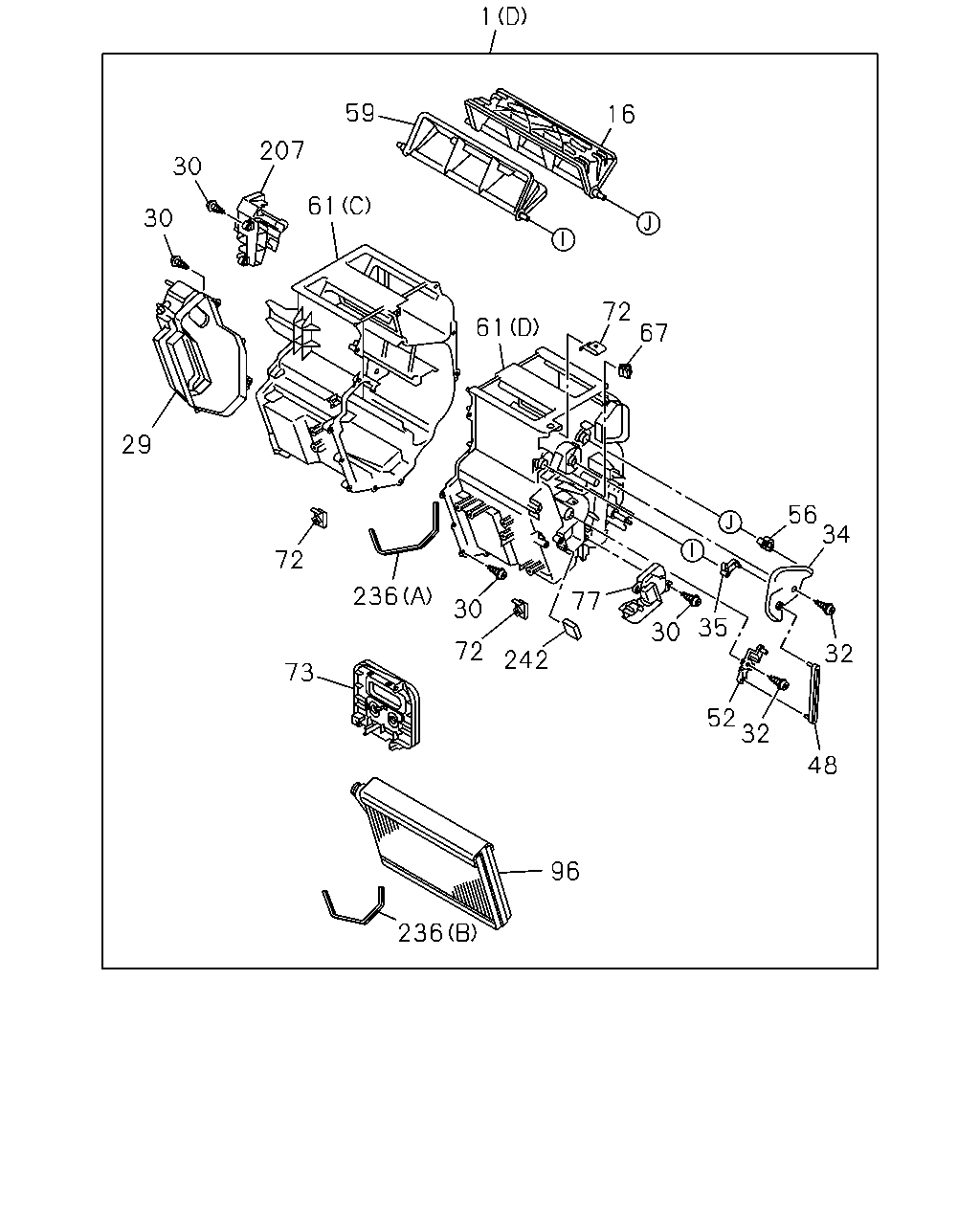

çizim 421818
1 16 72 67 56 34 32 48 32 52 35 30 77 242 96 236 73 236 30 72 72 29 30 30 207 61 61 59
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) MAL 		8-98214-400-1 01 1 1405-
1 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1405-
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1405-
1 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1405-
16 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-387-0 01 1 1405-
29 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) MAL 		8-98231-367-0 01 1 1405-
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1405-
30 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL 		8-97957-708-0 20 1 1405-
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING MAL 		8-97957-708-0 25 1 1405-
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 27 1 1405-
32 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 MAL 		8-98047-416-0 02 1 1405-
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 MAL 		8-98047-416-0 03 1 1405-
34 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-389-0 01 1 1405-
35 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-392-0 01 1 1405-
48 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-391-0 01 1 1405-
52 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-390-0 01 1 1405-
56 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-393-0 01 1 1405-
59 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-386-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL 		8-98077-422-0 01 1 1405-
61 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL 		8-98077-423-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1405-
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1405-
67 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1405-
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL 		8-98047-417-0 02 1 1405-
72 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		8-98047-428-0 03 1 1405-
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1405-
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1405-
73 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1405-
77 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-414-0 01 1 1405-
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1405-
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-420-0 01 1 1405-
236 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-421-0 01 1 1405-
242 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1405-1411
242 GASKET; CASE
HEATER & DEFROSTER(C41) MAL 		8-98048-816-0 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
