Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#140000) — 82 parça
◀

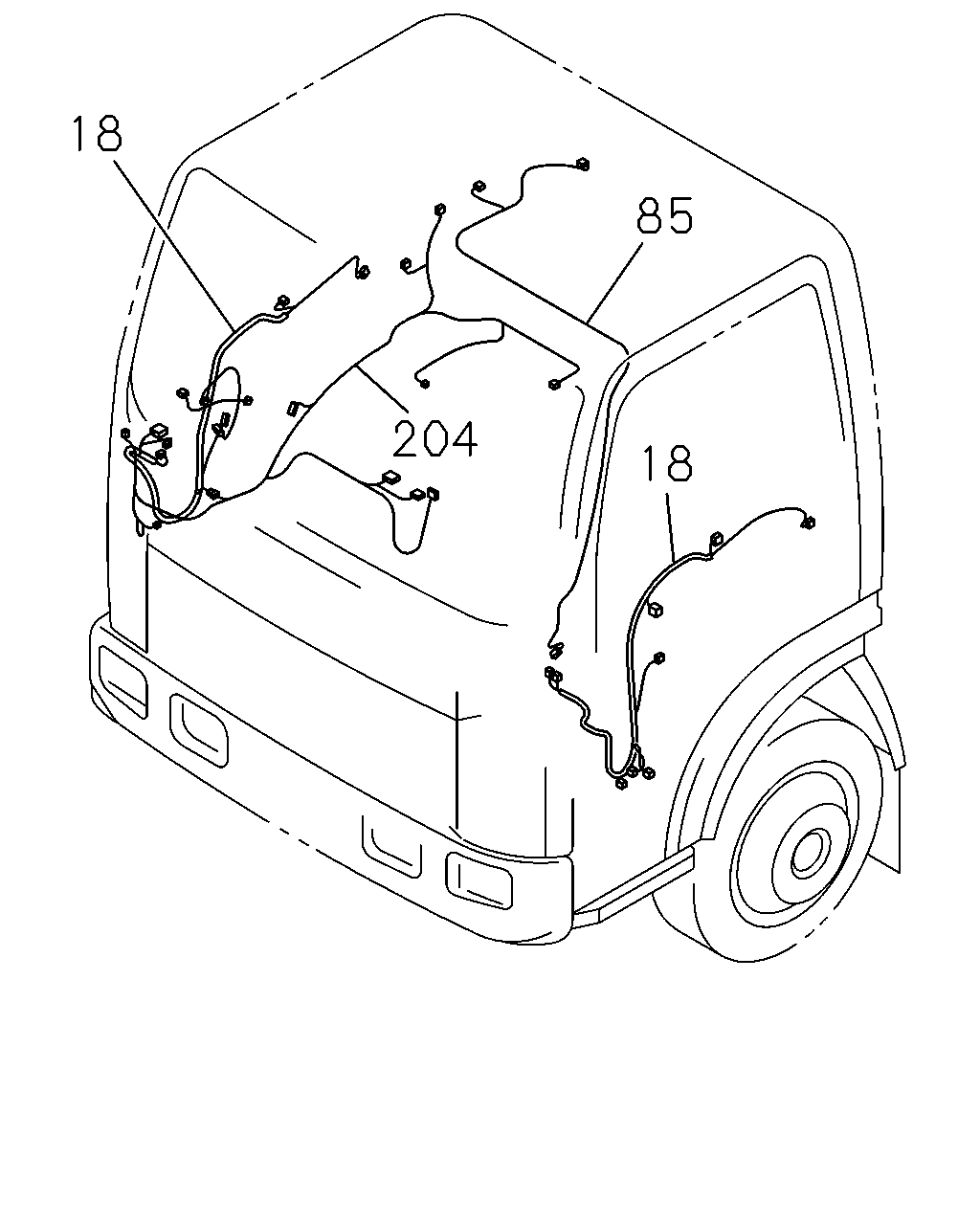

[810A] DOOR,ROOM LAMP AND FLOOR HARNESS (6 parça)

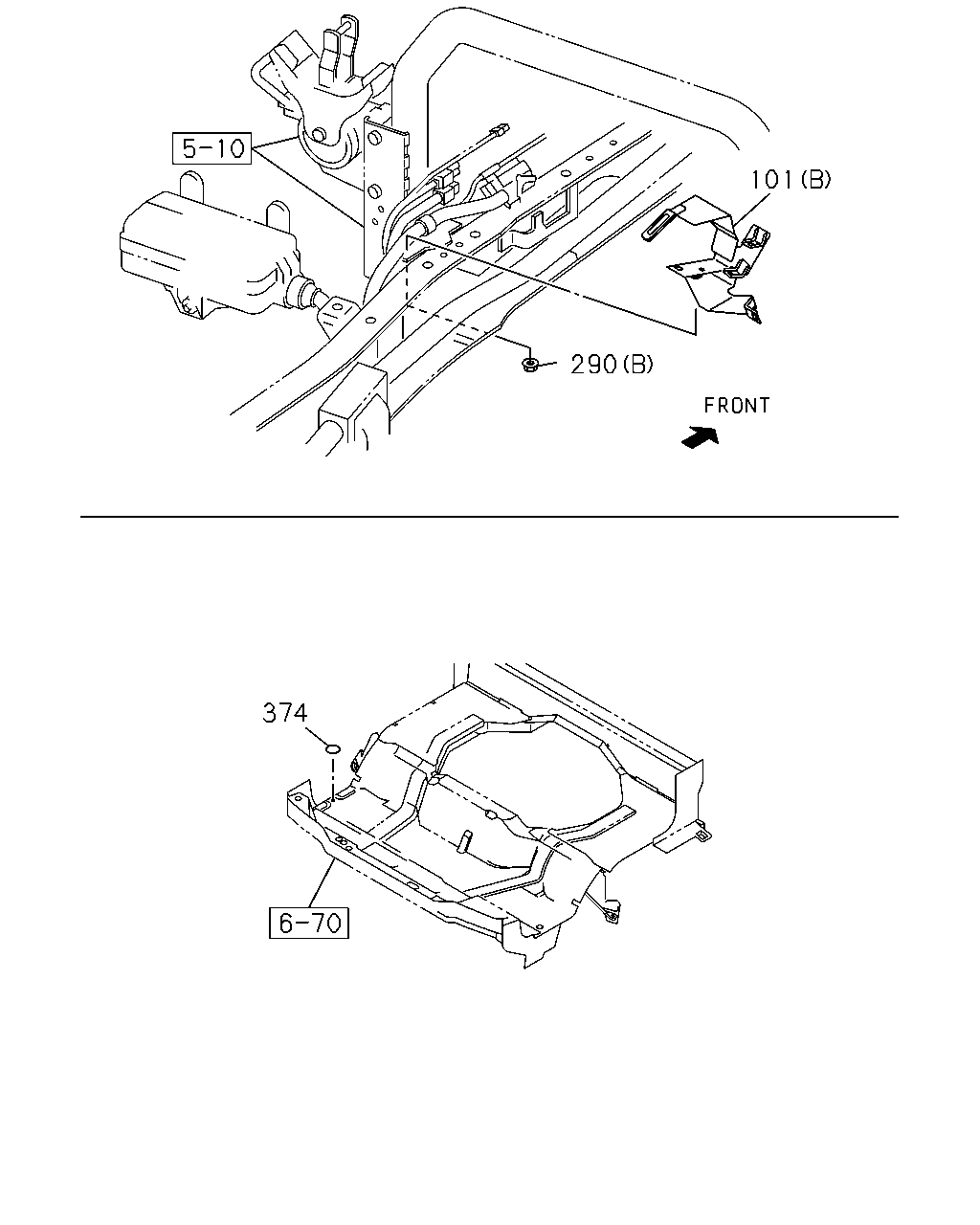

[810A] OTHER PARTS(NO.2) (5 parça)

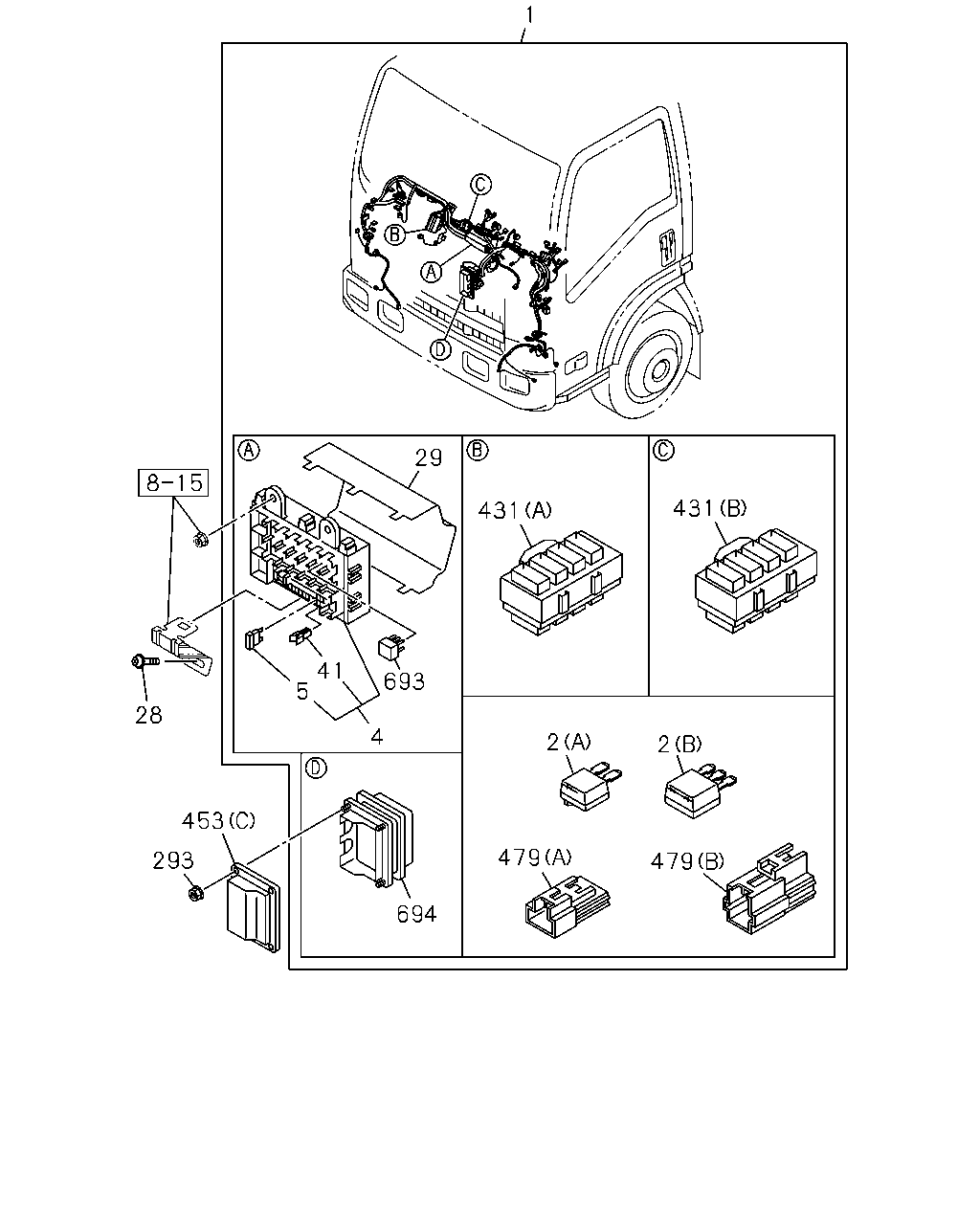

[810A] CAB HARNESS (20 parça)

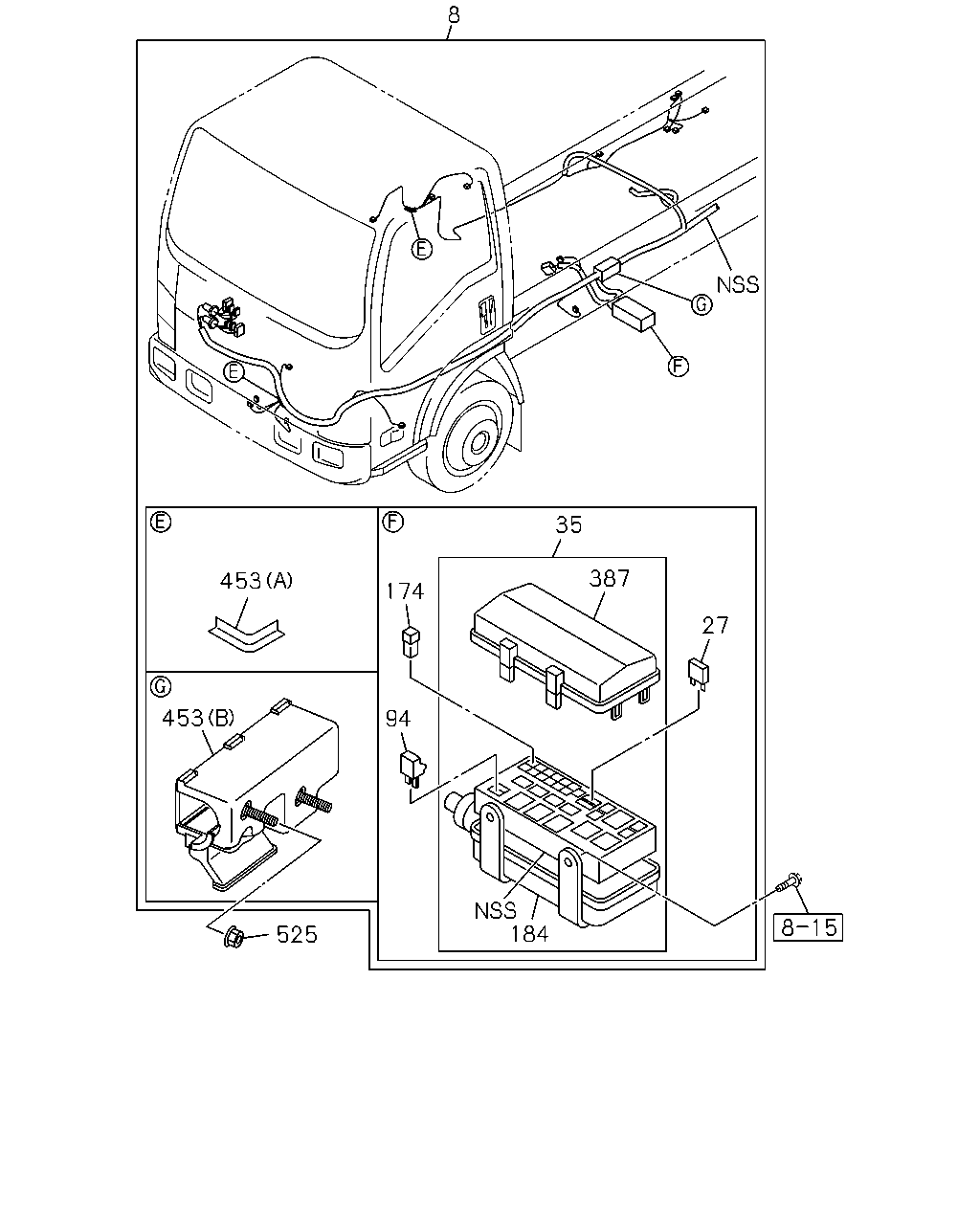

[810A] FRAME HARNESS (15 parça)

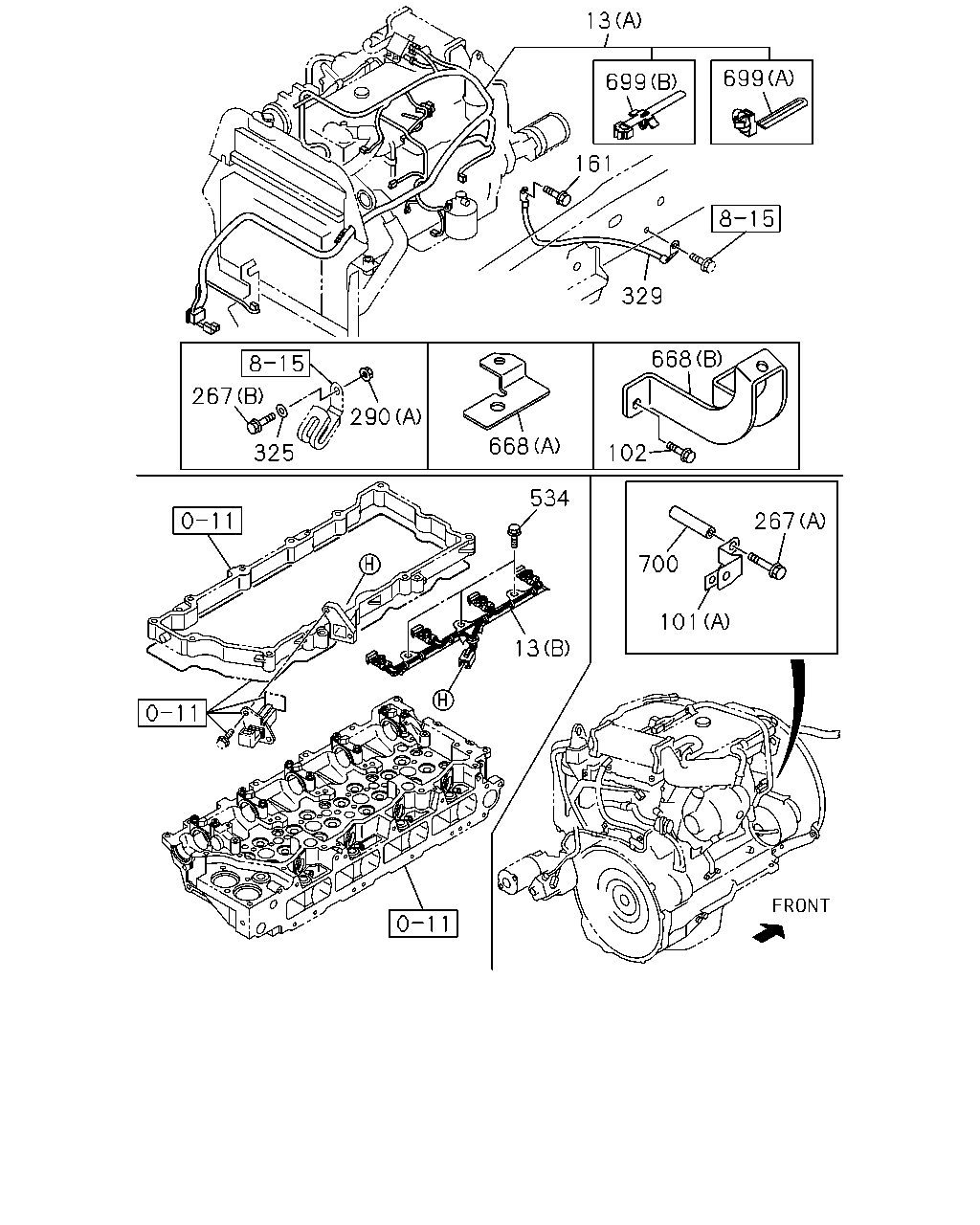

[810A] ENG HARNESS (20 parça)

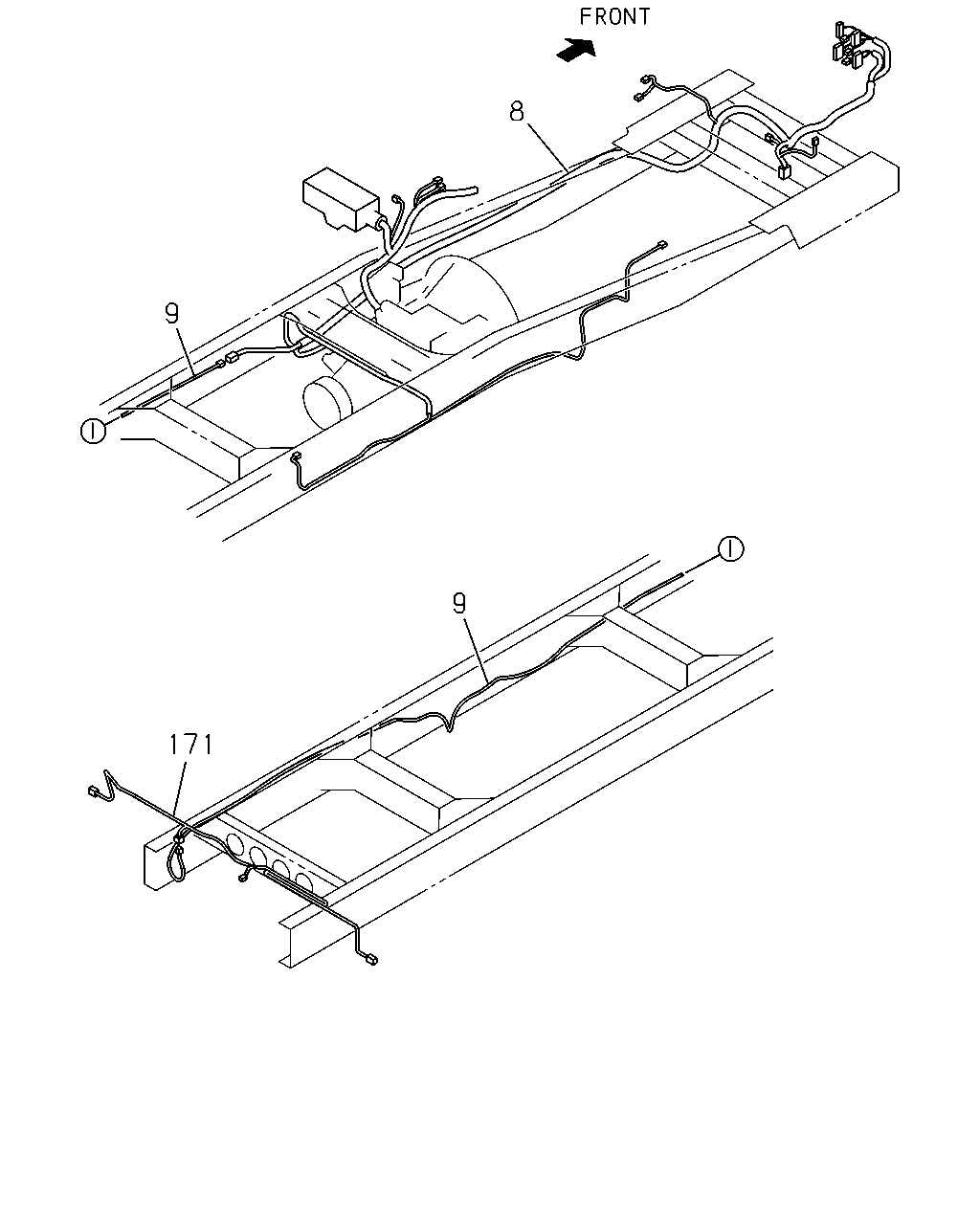

[810A] OTHER HARNESS (5 parça)

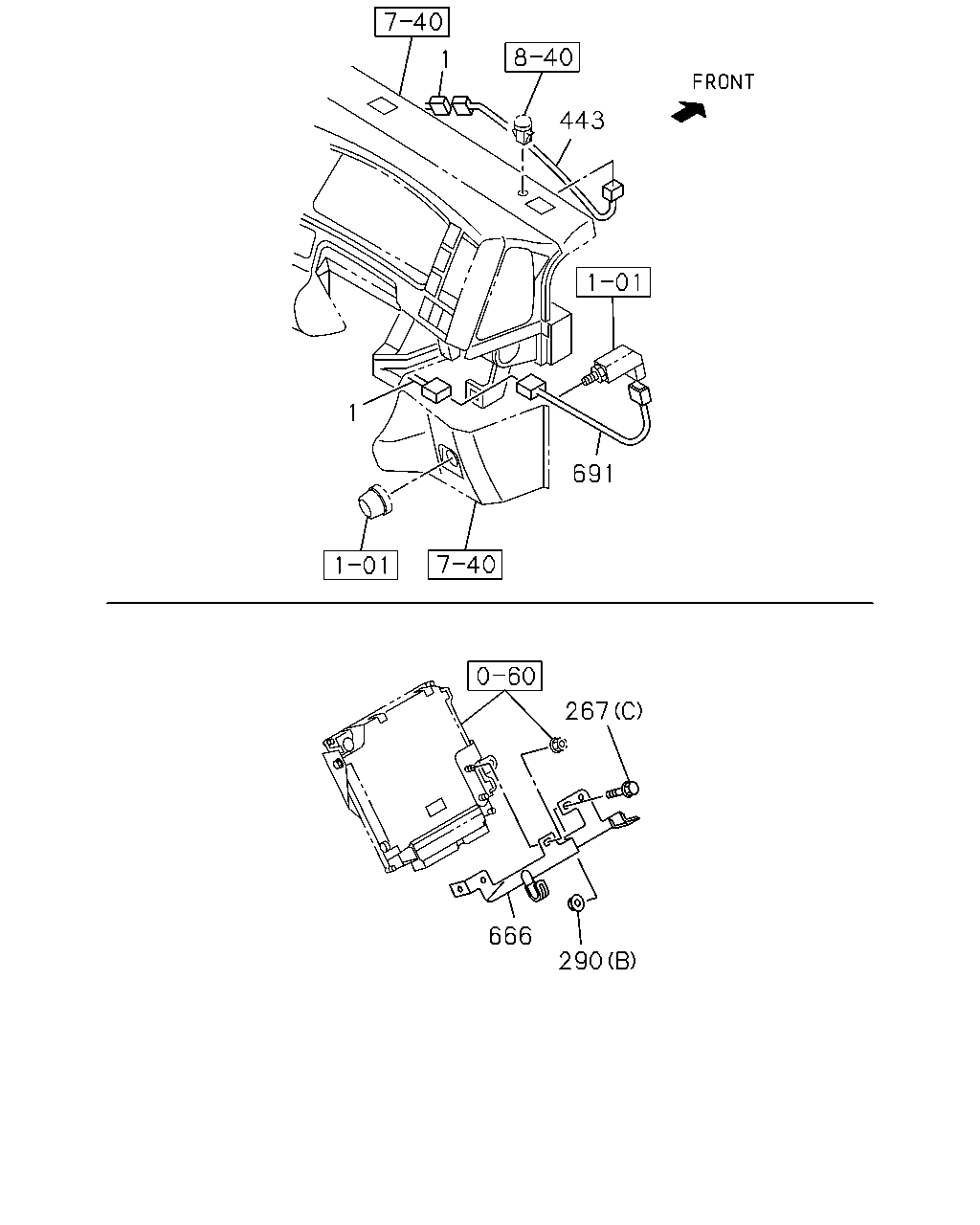

[810A] OTHER PARTS(NO.1) (9 parça)

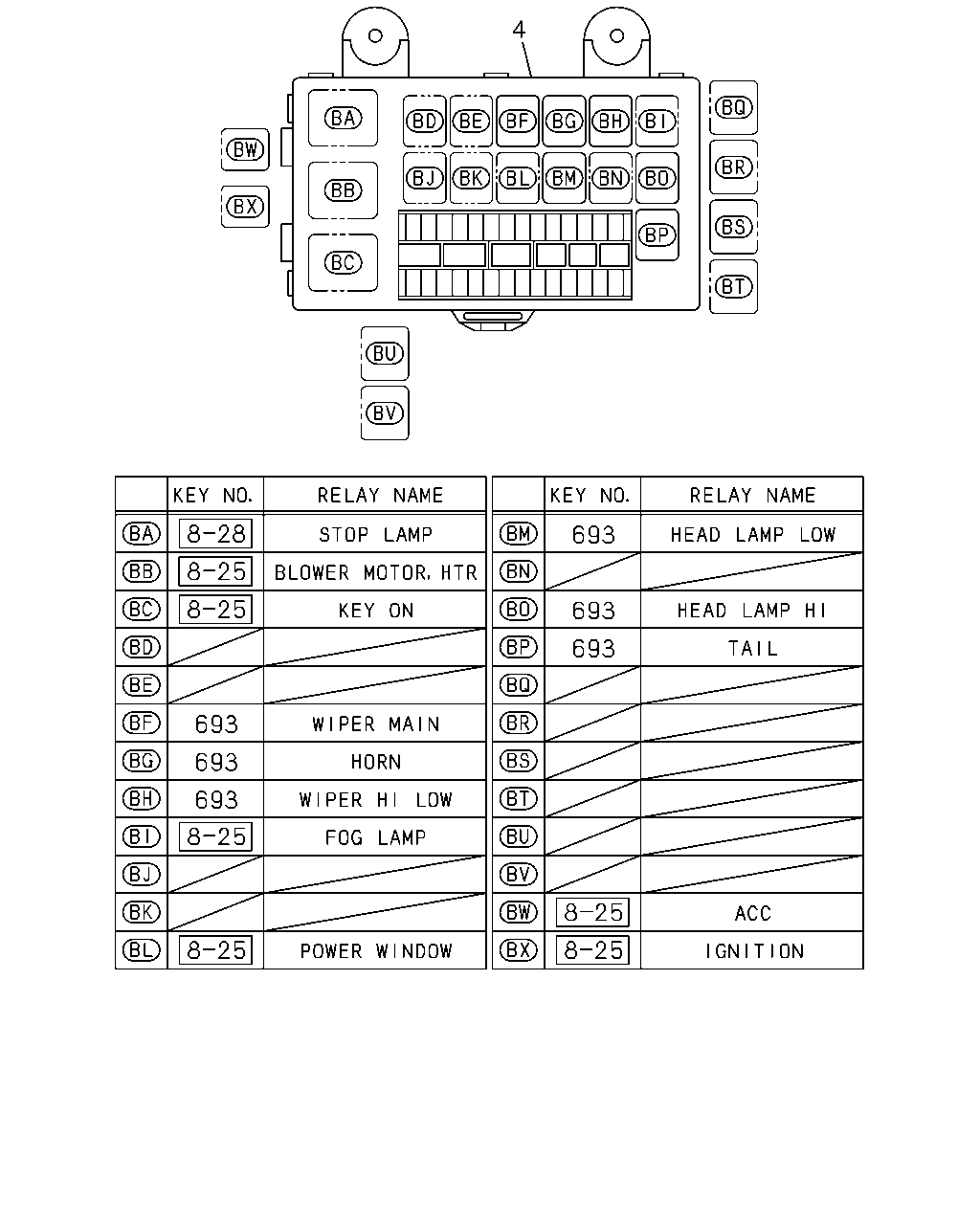

[810A] RELAY;CAB HARNESS (2 parça)
▶
18
204
85
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> MAL
8-98071-076-2
01
1
1405-
18
HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> MAL
8-98071-084-3
01
1
1405-
18
HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> MAL
8-98071-075-2
01
1
1405-
18
HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> MAL
8-98071-083-2
01
1
1405-
85
HARNESS; ROOM LAMP
MAL
8-98047-149-3
01
1
1405-
204
HARNESS; CABLE,FLOOR
MAL
8-98070-787-4
01
1
1405-
374
101
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BRACKET; HARNESS CONNECTOR
(A)
8-98052-805-0
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
(B)
8-98094-483-1
01
1
1405-
290
NUT; BRKT
(B) M6 FLANGE MAL
0-91180-106-0
02
1
1405-
290
NUT; BRKT
(A) M8 FLANGE MAL
0-91180-108-0
01
1
1405-
374
PLUG; HARNESS CONNECTOR
OD=32 BLACK MAL
8-98031-126-0
01
1
1405-
1
28
293
694
479
479
2
2
431
431
29
5
4
693
453
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
MAL
8-98207-655-0
01
1
1405-
2
DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A MAL
8-94422-639-1
AR
1
1405-
2
DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A MAL
8-94422-640-1
AR
1
1405-
4
BOX ASM; FUSE,HARNESS
MAL
8-98067-619-1
01
1
1405-
5
FUSE; FACIA HARNESS
10A RED MAL
8-98054-257-0
AR
1
1405-
5
FUSE; FACIA HARNESS
15A BLUE MAL
8-98054-258-0
AR
1
1405-
5
FUSE; FACIA HARNESS
20A YELLOW MAL
8-98054-259-0
AR
1
1405-
28
SCREW; FUSE BOX
M5X16 TAPPING HEXALOBULAR MAL
0-72180-516-0
01
1
1405-
29
COVER; FUSE BOX
MAL
8-98056-968-0
01
1
1405-
41
PULLER; FUSE
MAL
8-98054-260-0
01
1
1405-
293
NUT
M6 FLANGE MAL
0-91180-106-0
04
1
1405-
431
CONNECTOR; JOINT
(A) MAL
8-98046-205-0
01
1
1405-
431
CONNECTOR; JOINT
(B) MAL
8-98046-206-0
01
1
1405-
453
PROTECTOR; HARNESS
(A) MAL
8-94417-716-0
02
1
1405-
453
PROTECTOR; HARNESS
(B) MAL
8-98031-620-1
01
1
1405-
453
PROTECTOR; HARNESS
(C)
8-98034-039-1
01
1
1405-
479
CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)
8-98108-678-0
01
1
1405-
479
CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)
8-98108-679-0
01
1
1405-
693
RELAY; FUSE BOX
24V 10A PANASONIC MAL
8-97173-035-1
AR
1
1405-
694
BOX ASM; CONNECTOR
MAL
8-98057-772-0
01
1
1405-
8
453
453
525
174
35
387
27
94
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
MAL
8-98115-312-4
01
1
1405-1409
8
HARNESS; FRAME,FRT
MAL
8-98294-279-0
01
1
1410-
27
FUSE UNIT
10A RED MAL
8-98054-257-0
AR
1
1405-
35
BOX; RELAY & FUSE
MAL
8-98030-763-0
01
1
1405-
94
DIODE; FRAME HARNESS
BLACK 2P-1.5A MAL
8-94422-639-1
AR
1
1405-
174
FUSE; SLOW BLOW
30A PINK MAL
8-98079-191-0
AR
1
1405-
174
FUSE; SLOW BLOW
40A GREEN MAL
8-98079-192-0
AR
1
1405-
174
FUSE; SLOW BLOW
50A RED MAL
8-98079-193-0
AR
1
1405-
174
FUSE; SLOW BLOW
60A YELLOW MAL
8-97219-407-0
AR
1
1405-
184
COVER; RELAY & FUSE BOX
MAL
8-98030-766-0
01
1
1405-
387
COVER; RELAY BOX
8-98081-367-0
01
1
1405-
453
PROTECTOR; HARNESS
(A) MAL
8-94417-716-0
02
1
1405-
453
PROTECTOR; HARNESS
(B) MAL
8-98031-620-1
01
1
1405-
453
PROTECTOR; HARNESS
(C)
8-98034-039-1
01
1
1405-
525
NUT; CLIP
M8 FLANGE MAL
0-91180-108-0
02
1
1405-
13
699
699
161
329
267
325
290
668
102
668
267
700
101
13
534
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
GENERATOR 24V50A(6QN) (A)
8-98209-819-0
01
1
1405-
13
HARNESS; ENG
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)
8-98171-638-0
01
1
1405-
13
HARNESS; ENG
GENERATOR 24V80A(7YN) (A)
8-98209-820-0
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
(A)
8-98052-805-0
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
(B)
8-98094-483-1
01
1
1405-
102
BOLT; BRKT,HARNESS CONNECTOR
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M10X16 FLANGE
0-28151-016-0
02
1
1405-
161
BOLT; GROUND,HARNESS
M8X16 FLANGE MAL
0-28050-816-0
01
1
1405-
267
BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE
0-28050-812-0
01
1
1405-
267
BOLT; BRKT
(C) M6X12 FLANGE MAL
0-28050-612-0
02
1
1405-
267
BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE
0-28156-012-0
01
1
1405-
290
NUT; BRKT
(B) M6 FLANGE MAL
0-91180-106-0
02
1
1405-
290
NUT; BRKT
(A) M8 FLANGE MAL
0-91180-108-0
01
1
1405-
325
WASHER; PL,BRKT
AIR CONDITIONER MANUAL CONT(C60) ID=8.4 OD=18
0-91610-608-0
01
1
1405-
329
CABLE; ENG TO FRAME
8-98102-465-0
01
1
1405-
534
BOLT
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M10X55 FLANGE
8-97365-449-0
03
1
1405-
668
BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B)
8-98011-484-0
01
1
1405-
668
BRACKET; HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A)
8-98205-089-0
01
1
1405-
699
CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) L=213.5
8-98000-506-1
01
1
1405-
699
CLIP; ENG HARNESS
GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (A) L=146.2
8-98052-677-0
01
1
1405-
700
TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONT(C60) L=105
8-98084-726-0
01
1
1405-
171
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
MAL
8-98115-312-4
01
1
1405-1409
8
HARNESS; FRAME,FRT
MAL
8-98294-279-0
01
1
1410-
9
HARNESS; FRAME,RR
WHEEL BASE 3800MM(38W) MAL
8-98117-249-0
01
1
1405-
9
HARNESS; FRAME,RR
WHEEL BASE 4100MM(41W) MAL
8-98117-250-0
01
1
1405-
171
HARNESS; CABLE,TAIL LAMP
MAL
8-98156-027-0
01
1
1405-
443
691
1
267
666
290
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
MAL
8-98207-655-0
01
1
1405-
267
BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (B) M8X12 FLANGE
0-28050-812-0
01
1
1405-
267
BOLT; BRKT
(C) M6X12 FLANGE MAL
0-28050-612-0
02
1
1405-
267
BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M10X120 FLANGE
0-28156-012-0
01
1
1405-
290
NUT; BRKT
(B) M6 FLANGE MAL
0-91180-106-0
02
1
1405-
290
NUT; BRKT
(A) M8 FLANGE MAL
0-91180-108-0
01
1
1405-
443
HARNESS; EXT,A/C
COOLER WO/HEATER(C65) MAL
8-98103-712-0
01
1
1405-
666
BRACKET; CLIP
8-98110-213-0
01
1
1405-
691
HARNESS; IDLE CONT
MAL
8-98049-014-2
01
1
1405-
4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
MAL
8-98067-619-1
01
1
1405-
693
RELAY; FUSE BOX
24V 10A PANASONIC MAL
8-97173-035-1
AR
1
1405-
