0-60 — ENGINE ELECTRICAL CONTROL PARTS (#1400) — 46 parça

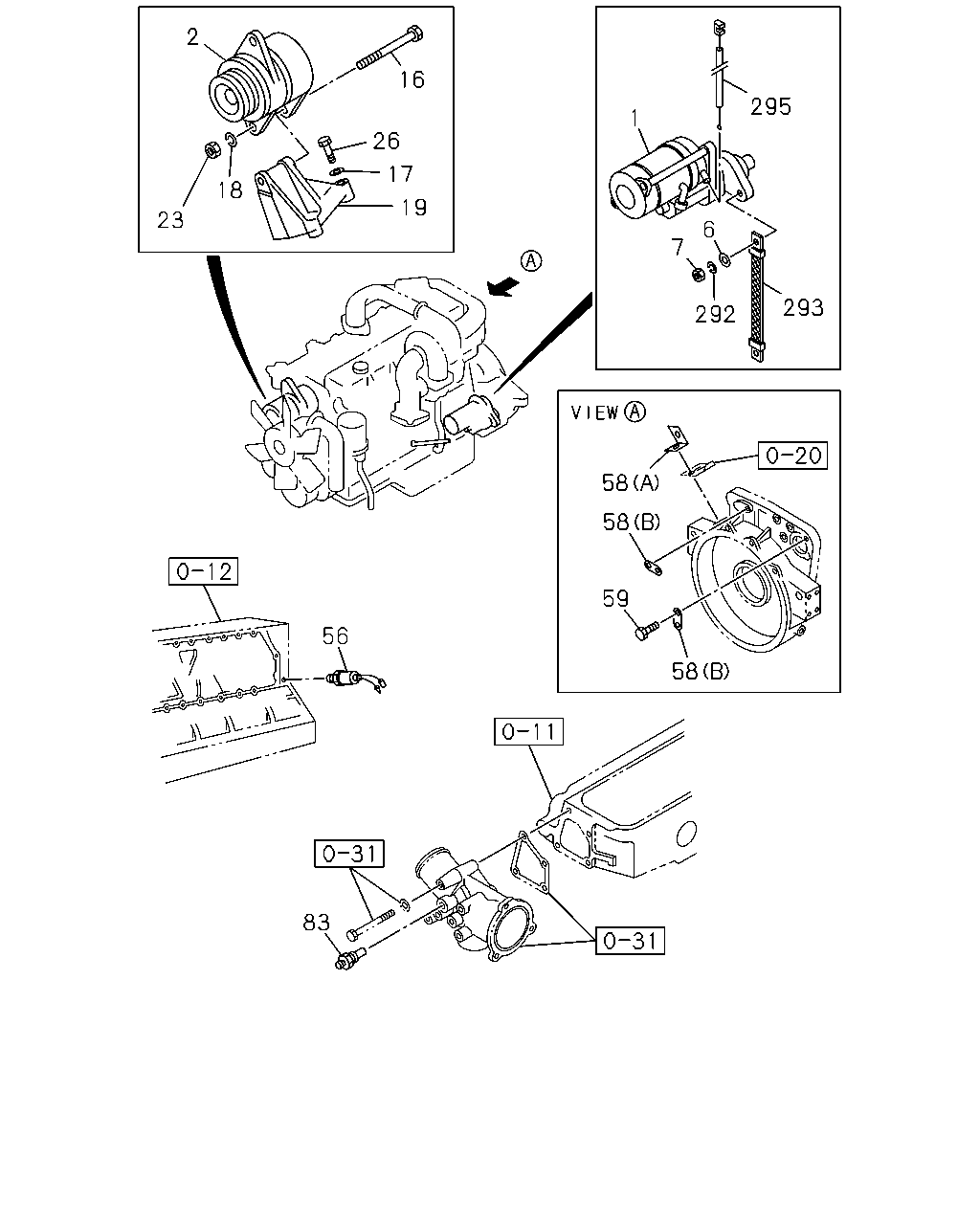

2 16 295 1 26 17 18 19 23 6 7 293 292 58 58 59 56 58 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-1	01	1	9203-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO 24V-40A 1KW(SC4) 24V 40A 1KW	1-81200-320-4	01	1	9203-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR DENSO 24V-40A 1KW(SC4) 24V30A 700W	1-81200-321-4	01	1	9203-	●	●
6	WASHER; PL,STARTER ID=15	9-09160-514-0	02	1	9203-	●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9203-	●	●
16	BOLT; GEN M14X128	9-09801-203-0	01	1	9203-	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	02	1	9203-	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9203-	●	●
19	BRACKET; GEN	1-19711-033-2	01	1	9203-	●	●
23	NUT; GEN M14	9-99110-414-0	01	1	9203-	●	●
26	BOLT; GEN BRKT M10X45 W/LK&PL WASHER	0-50151-045-0	03	1	9203-	●	●
56	SWITCH; OIL PRESSURE WARNING PT1/8	1-82410-091-2	01	1	9203-9502	●
56	SWITCH; OIL PRESSURE WARNING EXC. AUSTRALIA EQUIPMENT(RR3) PT1/8	1-82410-091-2	01	1	9203-9502		●
56	SWITCH; OIL PRESSURE WARNING PT1/8	1-82410-160-0	01	1	9503-	●
56	SWITCH; OIL PRESSURE WARNING EXC. AUSTRALIA EQUIPMENT(RR3) PT1/8	1-82410-160-0	01	1	9503-		●
56	SWITCH; OIL PRESSURE WARNING AUSTRALIA EQUIPMENT(RR3) PT1/8	8-94178-003-1	01	1	9203-		●
58	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9203-	●	●
58	BRACKET; CLIP (B) L=30	1-82699-178-0	01	1	9203-	●	●
58	BRACKET; CLIP (B) ID=12.5 & 9	1-82699-179-0	01	1	9203-	●	●
59	BOLT; BRKT,HARNESS CLIP EXC. CAB BACK OIL FILLER<E2J> M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9203-	●	●
83	THERMOMETER UNIT	1-83161-019-1	01	1	9203-	●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9203-	●	●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	9203-	●	●
295	HARNESS; STARTER	1-82640-527-0	01	1	9203-	●	●

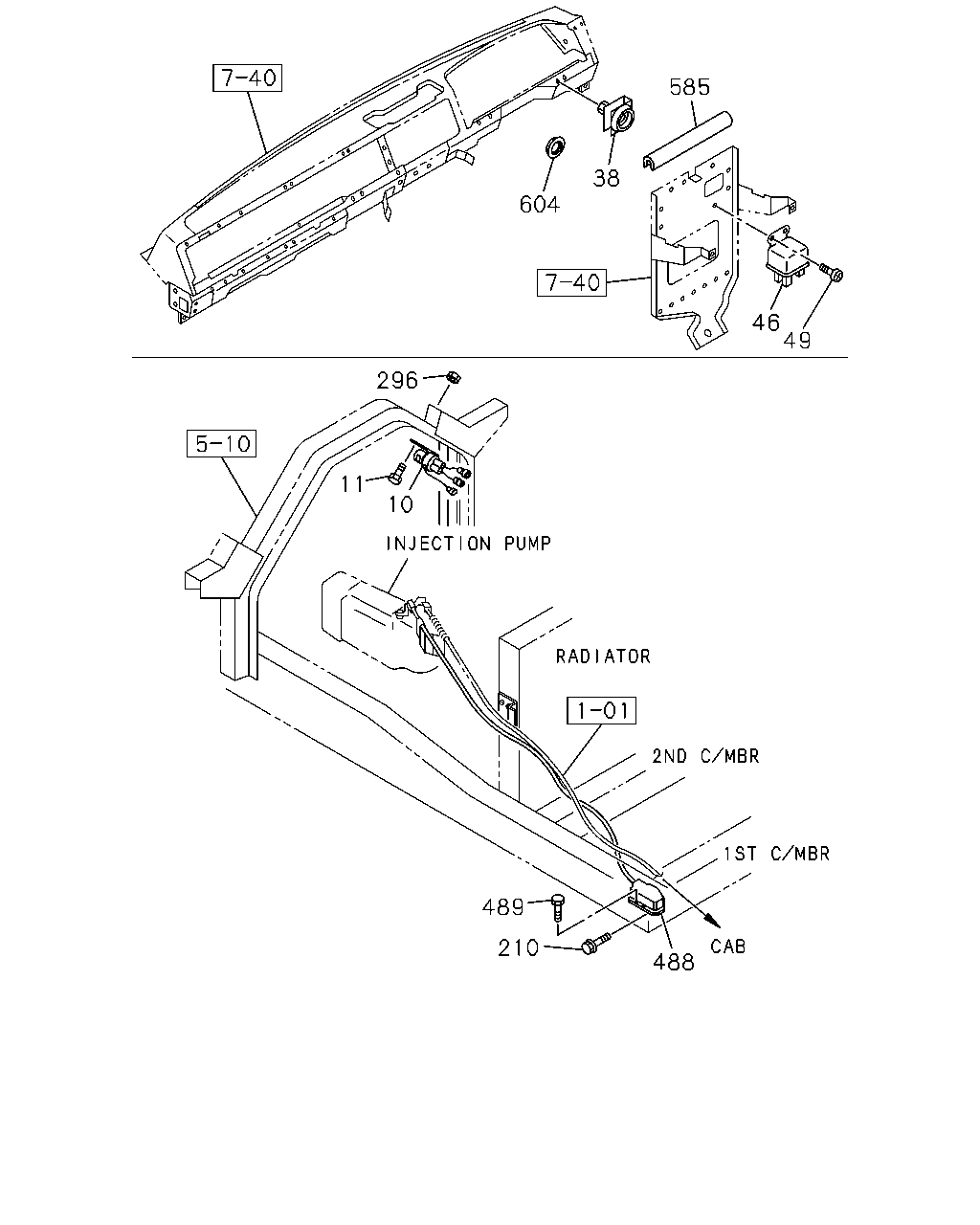

585 38 604 46 49 296 11 10 489 210 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9203-	●	●
11	BOLT; RELAY STARTER M8X18	0-28010-818-0	02	1	9203-9204	●	●
11	BOLT; RELAY STARTER M8X18 FLANGE	0-28080-818-0	02	1	9205-	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9203-	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9203-	●	●
49	SCREW; GLOW PLUG RELAY M5X14 TAPPING W/PL WASHER	0-74100-514-0	01	1	9203-	●	●
210	BOLT; CABLE FIX M8X20	0-28410-820-0	01	1	9203-9204	●	●
210	BOLT; CABLE FIX M8X20 FLANGE	0-28480-820-0	01	1	9205-9212	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9301-9304	●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9305-	●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9203-	●	●
488	STOPPER; ENG AUTO ENG SHUTOFF<KB6> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-82840-084-0	01	1	9203-9207	●	●
488	STOPPER; ENG INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-82840-084-0	01	1	9208-9211	●	●
488	STOPPER; ENG	1-82840-084-2	01	1	9212-	●	●
488	STOPPER; ENG AUTO ENG SHUTOFF<KB6> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-82840-065-0	01	1	9203-9207	●	●
488	STOPPER; ENG EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-82840-065-0	01	1	9208-9211	●	●
489	BOLT; ENG STOPPER AUTO ENG SHUTOFF<KB6> M8X20 W/LK WASHER	9-01900-820-0	02	1	9203-9204	●	●
489	BOLT; ENG STOPPER AUTO ENG SHUTOFF<KB6> M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9205	●	●
489	BOLT; ENG STOPPER AUTO ENG SHUTOFF<KB6> M8X20 FLANGE	0-28080-820-0	02	1	9206-9207	●	●
489	BOLT; ENG STOPPER M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
585	FINISHER; QOS L=2040	1-71997-513-1	01	1	9203-	●	●
604	GROMMET; CONT RESISTANCE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) OD=30	8-94107-655-0	01	1	9203-	●	●
