2-53 — TRANSMISSION OIL COOLER SYSTEM (#14) — 49 parça

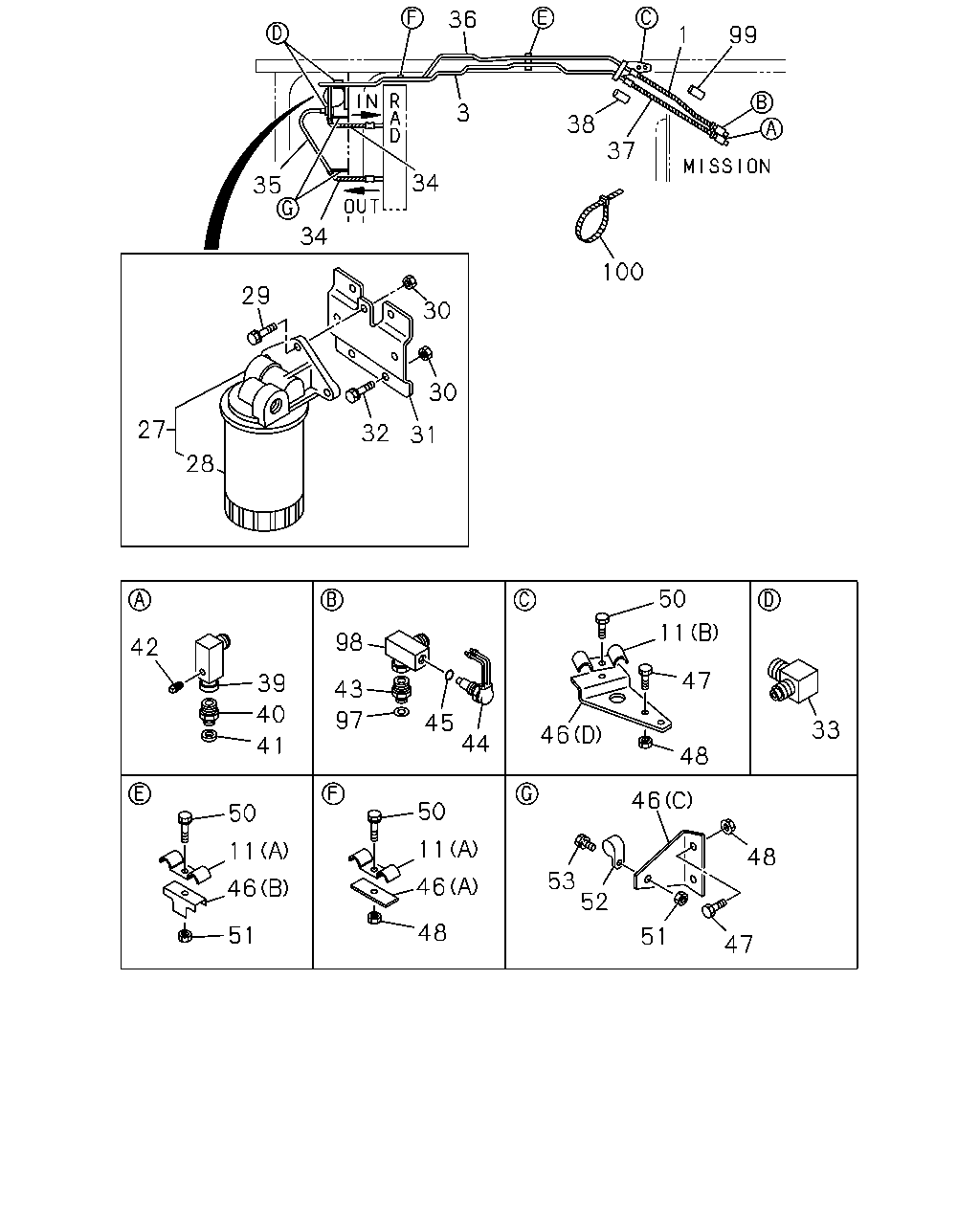

çizim 27632
36 99 1 3 38 37 34 35 34 100 29 30 30 27 32 31 28 50 11 98 42 47 39 43 40 97 45 44 33 46 41 48 46 50 50 11 11 48 53 52 46 46 48 51 51 47
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; ATF 1-09364-749-1 01 1 9202- ● ●
3 PIPE; OIL,A/T TO OIL COOLER 1-21113-634-0 01 1 9202- ● ●
11 CLIP; PIPE
(A) 		1-09700-674-0 02 1 9202- ● ●
11 CLIP; PIPE
(B) 		1-21439-013-0 01 1 9202- ● ●
27 FILTER ASM; OIL 1-32569-024-0 01 1 9202- ● ●
28 CARTRIDGE; OIL FILTER 1-32569-025-0 01 1 9202- ● ●
29 BOLT; FILTER TO BRKT
M8X25 FLANGE 		0-28010-825-0 03 1 9202-9204 ● ●
29 BOLT; FILTER TO BRKT
M8X25 FLANGE 		0-28080-825-0 03 1 9205- ● ●
30 NUT; BRKT
M8 		9-09110-408-0 07 1 9202- ● ●
31 BRACKET; OIL FILTER 1-32569-027-0 01 1 9202- ● ●
32 BOLT; BRKT
M8X20 FLANGE 		0-28010-820-0 04 1 9202-9204 ● ●
32 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 04 1 9205- ● ●
33 UNION; OIL FILTER 1-09650-208-2 02 1 9202- ● ●
34 HOSE; FLEX,RAD TO OIL COOLER PIPE 1-09364-748-1 02 1 9202- ● ●
35 PIPE; OIL,OIL COOLER TO FILTER 1-21113-633-0 01 1 9202- ● ●
36 PIPE; OIL,FILTER TO A/T 1-21113-450-0 01 1 9202- ● ●
37 HOSE; FLEX,OIL COOLER PIPE TO A/T 1-09364-750-1 01 1 9202- ● ●
38 SLEEVE; RUBBER,FLEX HOSE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 9202- ● ●
39 CONNECTOR; FLEX HOSE,A/T 1-09660-059-0 01 1 9202- ● ●
40 CONNECTOR; FLEX HOSE,A/T
M27 & SAE3/4 		1-09654-063-0 01 1 9202- ● ●
41 GASKET; FLEX HOSE,A/T 9-09562-217-0 01 1 9202- ● ●
42 PLUG; CONNECTOR,A/T
PT1/4 		9-99204-513-0 01 1 9202- ● ●
43 CONNECTOR; FLEX HOSE,A/T
M27 & SAE3/4 		1-09654-063-0 01 1 9202- ● ●
44 SWITCH; OIL THERMO 1-82450-035-0 01 1 9202-9312 ● ●
44 SWITCH; OIL THERMO 1-82450-052-0 01 1 9401- ● ●
45 GASKET; OIL THERMO SW
ID=26.8 		1-09623-058-0 01 1 9202- ● ●
46 BRACKET; OIL PIPE
(D) 		1-21439-057-0 01 1 9202- ● ●
46 BRACKET; OIL PIPE
(C) 		1-21439-085-0 02 1 9202- ● ●
46 BRACKET; OIL PIPE
(A) 		1-47475-299-2 01 1 9202- ● ●
46 BRACKET; OIL PIPE
(B) 		1-47475-427-1 01 1 9202- ● ●
47 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28010-820-0 04 1 9202-9204 ● ●
47 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28080-820-0 04 1 9205- ● ●
47 BOLT; BRKT TO FRAME
M10X25 W/LK WASHER 		0-50041-025-0 02 1 9202- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9202- ● ●
48 NUT; BRKT
M8 		9-09110-408-0 01 1 9202- ● ●
48 NUT; BRKT
M10 		9-09110-510-0 02 1 9202- ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
50 BOLT; CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
50 BOLT; CLIP
M8X40 		0-28010-840-0 01 1 9202-9204 ● ●
50 BOLT; CLIP
M8X40 FLANGE 		0-28080-840-0 01 1 9205- ● ●
50 BOLT; CLIP
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9202- ● ●
51 NUT; CLIP TO BRKT
M8 		9-09110-408-0 03 1 9202- ● ●
52 CLIP; FLEX HOSE,A/T
ID=18 L=28 		1-09701-067-0 02 1 9202- ● ●
53 BOLT; CLIP,FLEX HOSE,A/T
M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
53 BOLT; CLIP,FLEX HOSE,A/T
M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
97 GASKET; CONNECTOR 9-09562-217-0 01 1 9202- ● ●
98 CONNECTOR; HOSE & SW 1-09664-034-0 01 1 9202- ● ●
99 SLEEVE; RUBBER,FLEX HOSE
ID=29 OD=39 L=40 		1-09337-013-0 01 1 9202- ● ●
100 CLIP; BAND,RUBBER SLEEVE
L=250 		5-09707-030-0 01 1 9202- ● ●
