◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#139996) — 18 parça

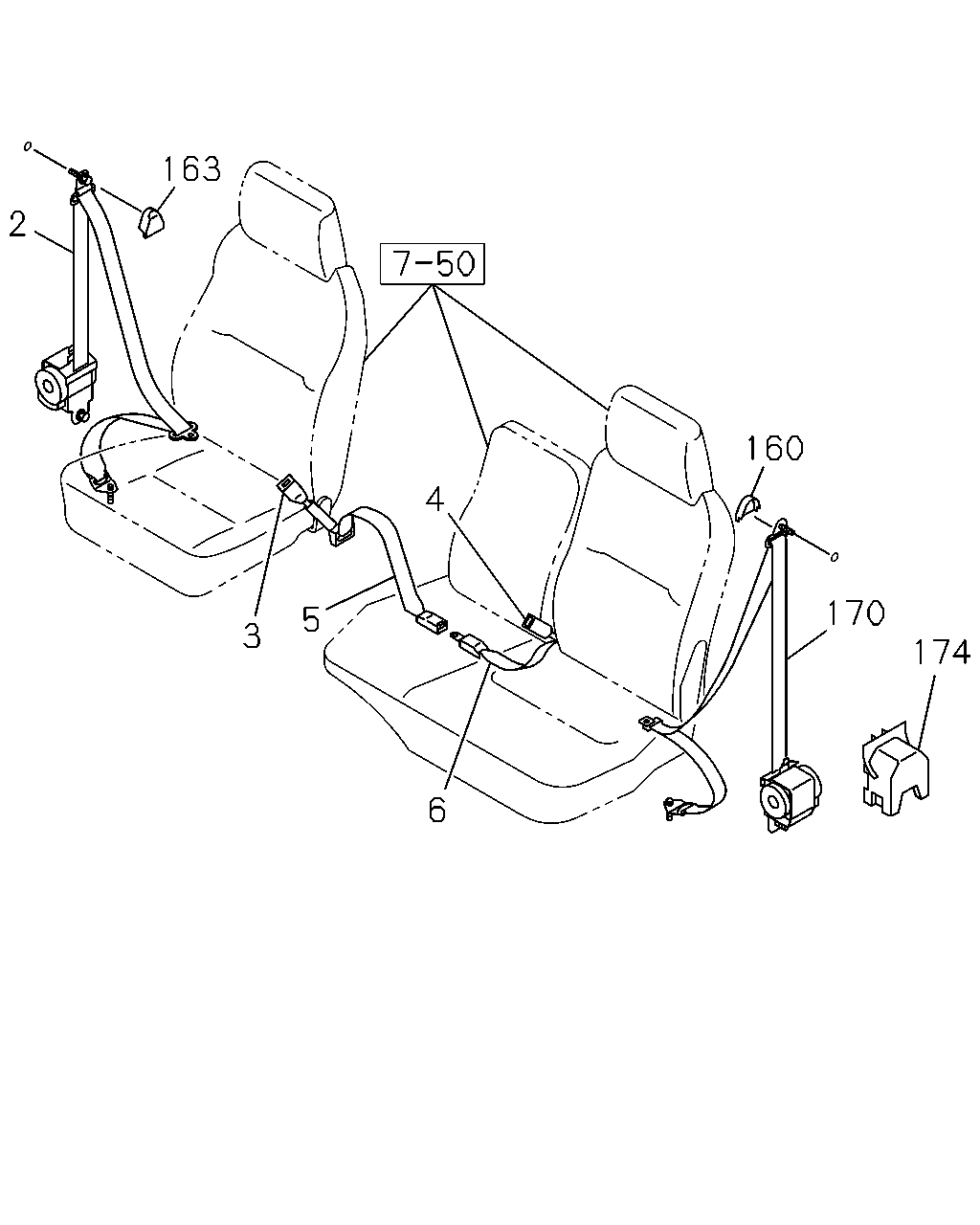

çizim 421961
6 5 3 4 160 170 174 163 2
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1405-1406
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 1405-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 1405-
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 1405-
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 1405-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1405-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1405-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97405-180-7 01 1 1405-1406
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-457-1 01 1 1407-
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 1405-
çizim 421982
166 165 166 161 167 168 166
BalonParca AdiParca NoAdetTipApplied Date
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98015-216-2 01 1 1405-
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 1405-
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 04 1 1405-
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE MAL 		0-28650-825-0 05 1 1405-
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE MAL 		0-28050-820-0 02 1 1405-
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 1405-
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE MAL 		0-91180-108-0 02 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
