◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#139995) — 80 parça

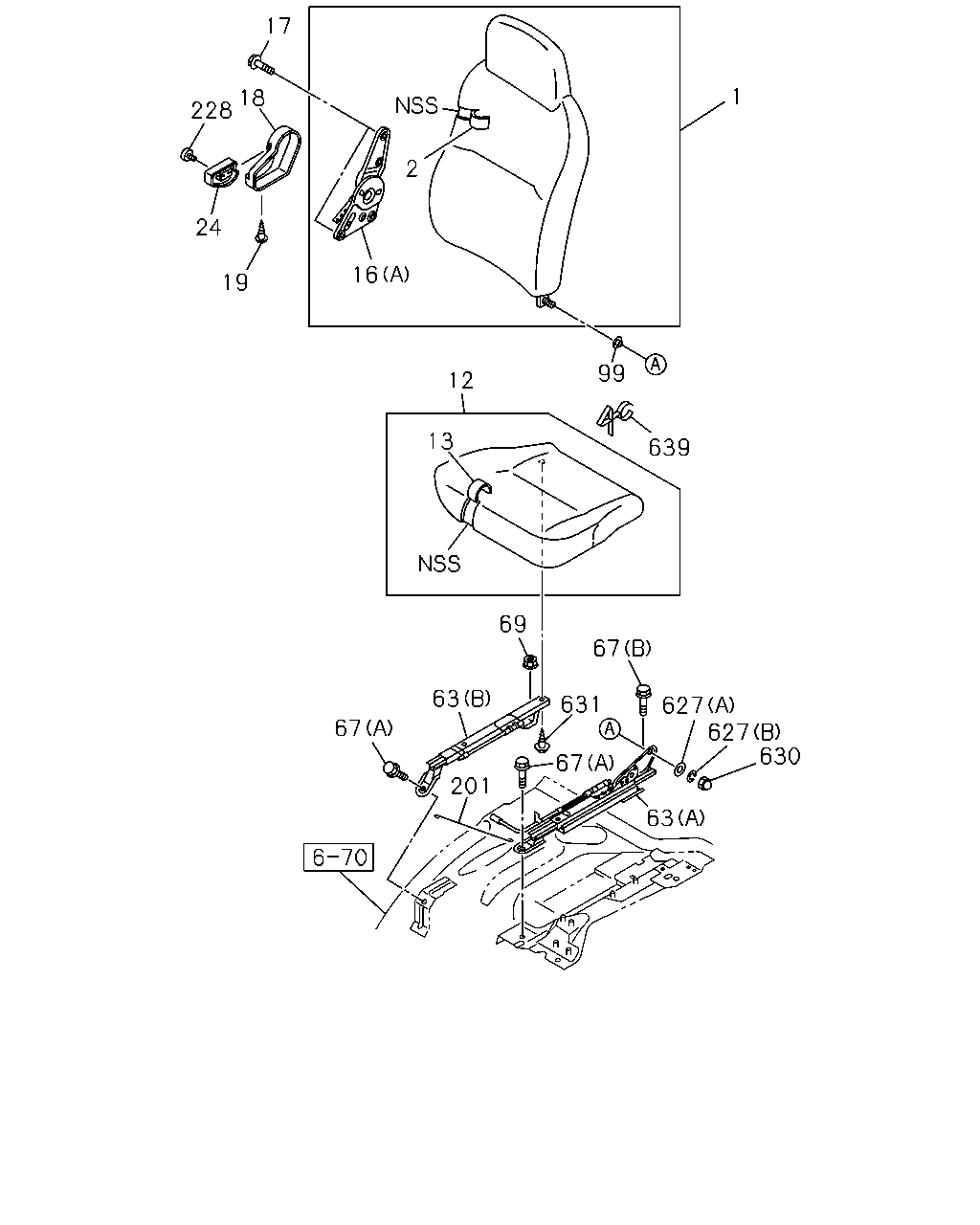

çizim 421744
1 17 18 228 24 19 16 2 12 99 639 13 69 67 631 627 627 630 63 67 63 67 201
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-142-7 01 1 1405-
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97409-312-7 01 1 1405-
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1405-
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97421-234-1 01 1 1405-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97411-910-2 01 1 1405-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97409-318-2 01 1 1405-
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1405-
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97421-253-0 01 1 1405-
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-149-0 01 1 1405-
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-143-4 01 1 1405-
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 1405-
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97409-322-4 01 1 1405-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-248-1 01 1 1405-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1405-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97421-247-1 01 1 1405-
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-240-1 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-860-0 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-144-2 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97409-328-2 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-268-1 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY MAL 		8-97421-267-1 01 1 1405-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-259-1 01 1 1405-
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB MAL 		8-97859-273-3 01 1 1405-
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB MAL 		8-97859-274-3 01 1 1405-
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL 		8-98003-087-1 01 1 1405-
17 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20 MAL 		8-98062-661-0 04 1 1405-
18 COVER; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY MAL 		8-97409-332-0 01 1 1405-
19 SCREW; COVER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5 MAL 		8-98062-663-0 01 1 1405-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY MAL 		8-97409-333-0 01 1 1405-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL 		8-97382-800-2 01 1 1405-
63 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) MAL 		8-97382-801-1 01 1 1405-
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1405-
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1405-
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1405-
99 BUSHING; SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL 		8-98112-751-0 01 1 1405-
201 CABLE; ADJ
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL 		8-98003-086-1 01 1 1405-
228 SCREW; KNOB
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4 MAL 		8-98062-662-0 01 1 1405-
627 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL 		8-98063-223-0 01 1 1405-
627 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) MAL 		8-98063-224-0 01 1 1405-
630 NUT; CAP
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8 MAL 		8-98063-225-0 01 1 1405-
631 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER MAL 		8-98062-658-0 02 1 1405-
631 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER MAL 		8-98062-659-0 02 1 1405-
639 CLIP; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> MAL 		8-98097-693-0 01 1 1405-
çizim 421808
460 361 368 141 16 160 161 126 139 139 139 478 460 114 16 361 126 139 368
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB MAL 		8-97859-273-3 01 1 1405-
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB MAL 		8-97859-274-3 01 1 1405-
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) MAL 		8-98003-087-1 01 1 1405-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-276-1 01 1 1405-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97418-720-0 01 1 1405-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-291-0 01 1 1405-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-292-0 01 1 1405-
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> MAL 		8-98069-558-0 02 1 1405-
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1405-
141 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-336-2 01 1 1405-
141 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97418-726-0 01 1 1405-
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-305-1 01 1 1405-
141 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-306-0 01 1 1405-
160 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY MAL 		8-97405-361-1 01 1 1405-
161 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12 MAL 		8-94279-351-0 04 1 1405-
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 MAL 		8-94279-109-1 04 1 1405-
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X24.5 W/LK&PL WASHER MAL 		8-94279-217-0 02 1 1405-
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97405-334-4 01 1 1405-
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97405-337-4 01 1 1405-
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY MAL 		8-97418-691-0 01 1 1405-
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY MAL 		8-97418-697-2 01 1 1405-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY MAL 		8-97421-278-0 01 1 1405-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY MAL 		8-97421-299-1 01 1 1405-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY MAL 		8-97421-279-0 01 1 1405-
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY MAL 		8-97421-300-1 01 1 1405-
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-98002-092-0 01 1 1405-
çizim 421826
115 116 480
BalonParca AdiParca NoAdetTipApplied Date
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97405-346-5 01 1 1405-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97418-705-2 01 1 1405-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-321-2 01 1 1405-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-320-2 01 1 1405-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97409-290-3 01 1 1405-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97418-734-1 01 1 1405-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-341-1 01 1 1405-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY MAL 		8-97421-340-1 01 1 1405-
480 CLIP; CUSHION
MAL 		8-94279-977-0 05 1 1405-
