◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#139991) — 112 parça

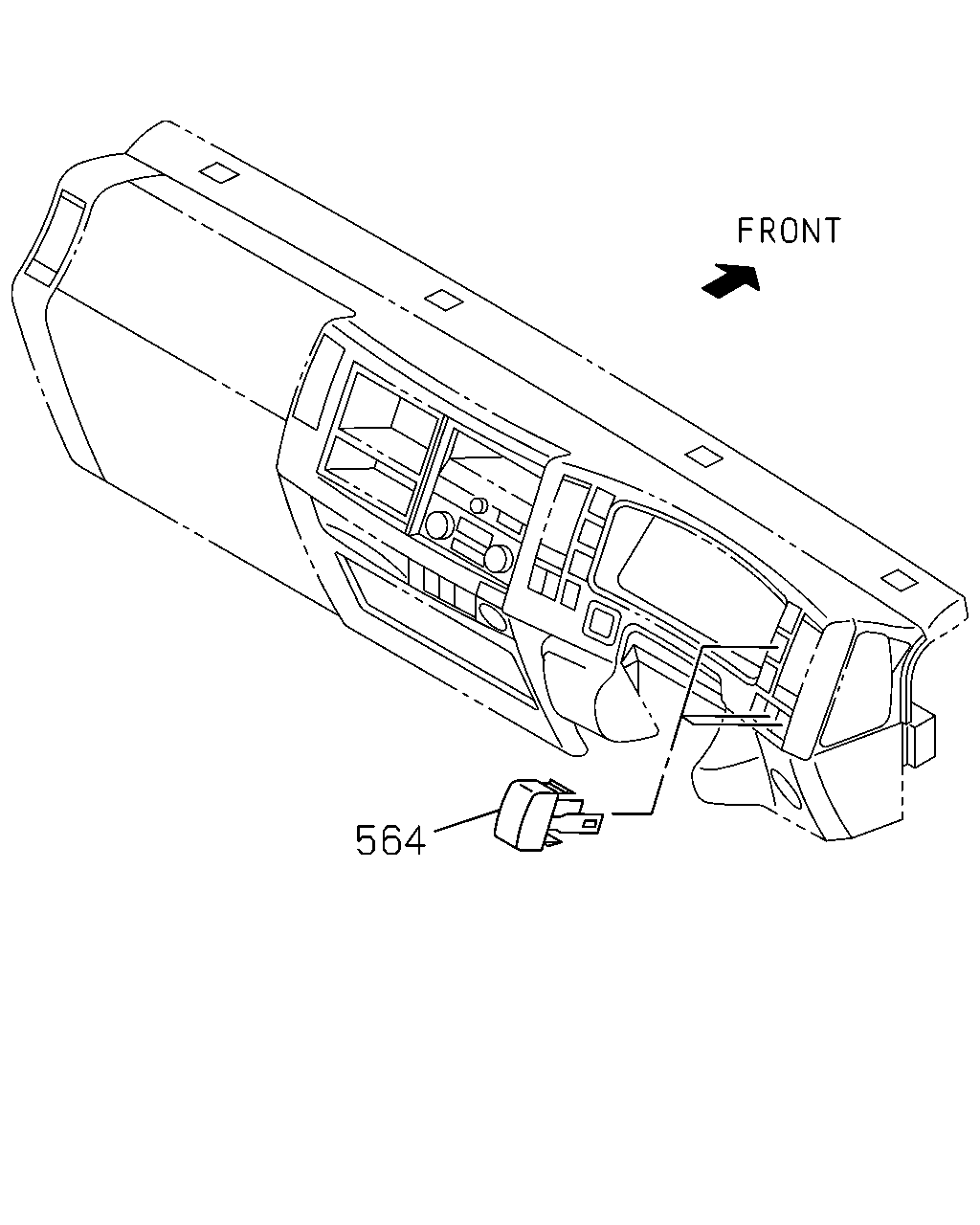

çizim 421066
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW 8-98025-954-1 03 1 1405-

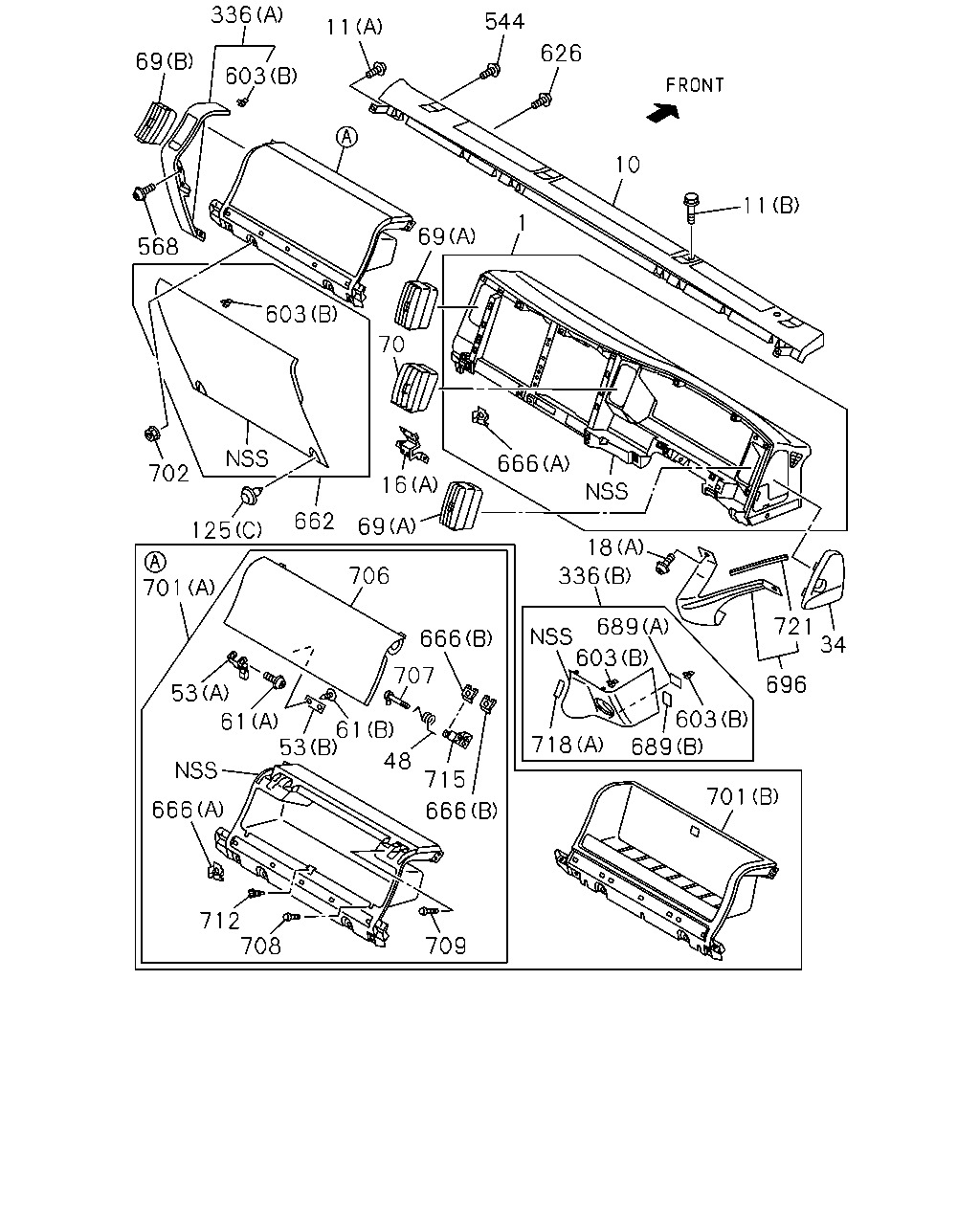

çizim 421069
336 69 568 603 702 701 53 61 53 666 48 666 718 715 61 712 708 709 707 706 666 125 662 69 70 69 666 16 18 336 689 603 689 696 603 701 721 34 1 11 10 626 544 11 603
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1405-
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1405-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 08 1 1405-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1405-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1405-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1405-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1405-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1405-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1405-
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1405-
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1405-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1405-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1405-1405
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1405-1405
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1405-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1405-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1405-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1405-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1405-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1405-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1405-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1405-
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1405-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1405-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1405-
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1405-
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1405-
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1405-
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1405-
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1405-
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1405-
696 BRACKET; KNEE 8-98199-366-0 01 1 1405-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1405-1405
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406-
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1405-
702 NUT; TRAY
M6 FLANGE MAL 		0-91180-106-0 02 1 1405-
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1405-1405
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1405-
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1405-
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1405-
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1405-
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1405-
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1405-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405-
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1405-

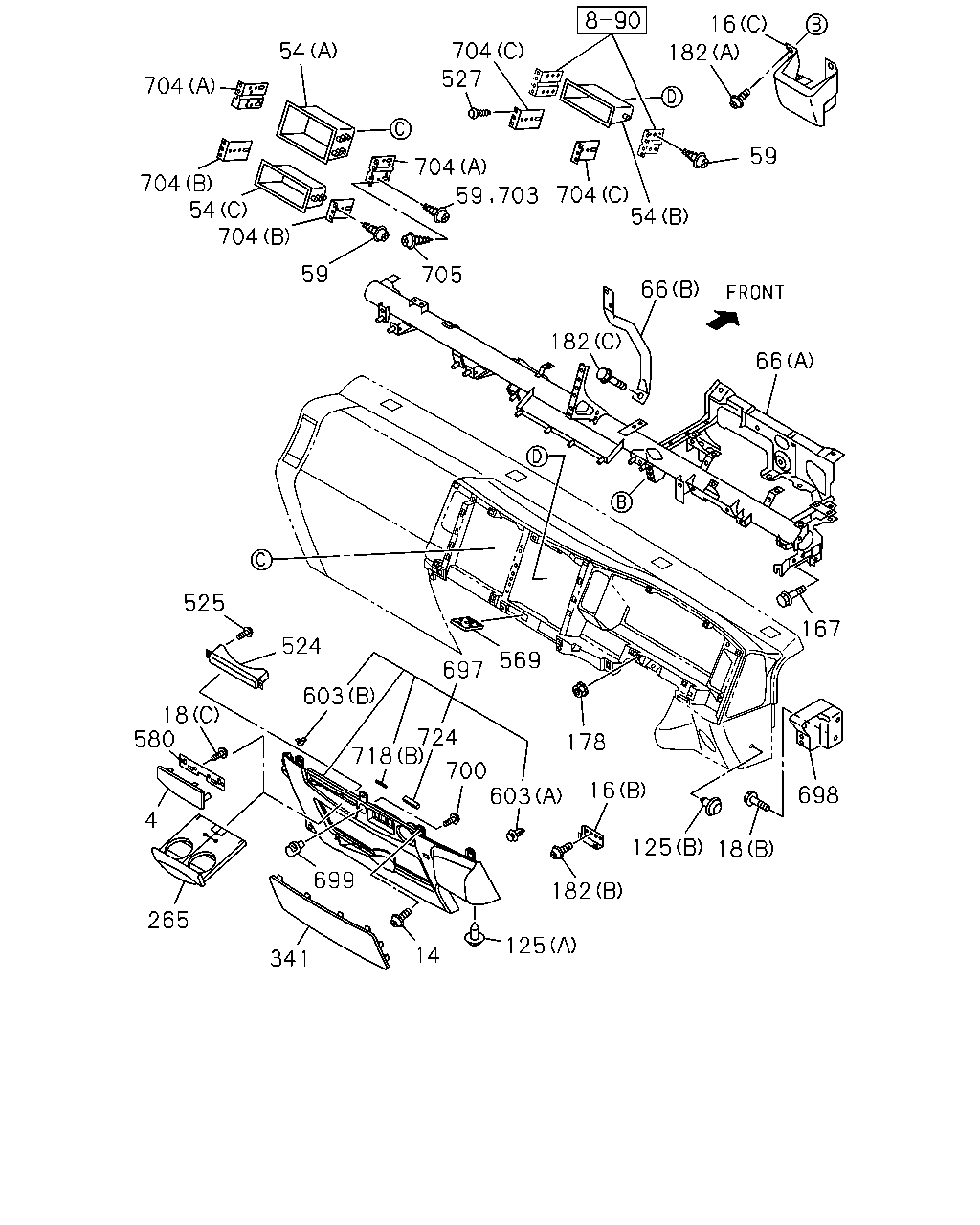

çizim 421223
16 182 59 704 704 527 54 704 704 54 704 59 705 704 59 703 54 66 66 182 167 698 18 125 16 178 569 697 524 525 18 580 4 265 341 14 125 699 603 718 700 724 603 182
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1405-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 04 1 1405-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1405-
16 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1405-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1405-
18 BOLT; BRKT
(B) M8X16 FLANGE MAL 		0-28050-816-0 04 1 1405-
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1405-
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1405-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1405-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1405-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1405-
54 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1405-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405-
59 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1405-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1405-
66 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1405-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1405-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1405-
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1405-
167 BOLT; REINF TO INST
M8X23 FLANGE MAL 		8-97264-766-0 04 1 1405-
178 NUT; INST PANEL
M6 FLANGE MAL 		0-91180-106-0 03 1 1405-
182 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) ,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 02 1 1405-
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1405-
182 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER MAL 		8-97359-709-0 01 1 1405-
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1405-
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1405-
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1405-
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 03 1 1405-
527 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL 		8-97098-326-0 01 1 1405-
569 HOLDER; CARD 8-97410-276-1 01 1 1405-
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1405-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1405-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1405-
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1405-
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1405-
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1405-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1405-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR MAL 		0-72180-516-0 01 1 1405-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1405-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1405-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1405-
704 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1405-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1405-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 04 1 1405-
705 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL 		0-72180-520-0 01 1 1405-
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1405-
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1405-
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1405-
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1405-
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1405-
