6-80 — BACK PANEL (#139983) — 14 parça

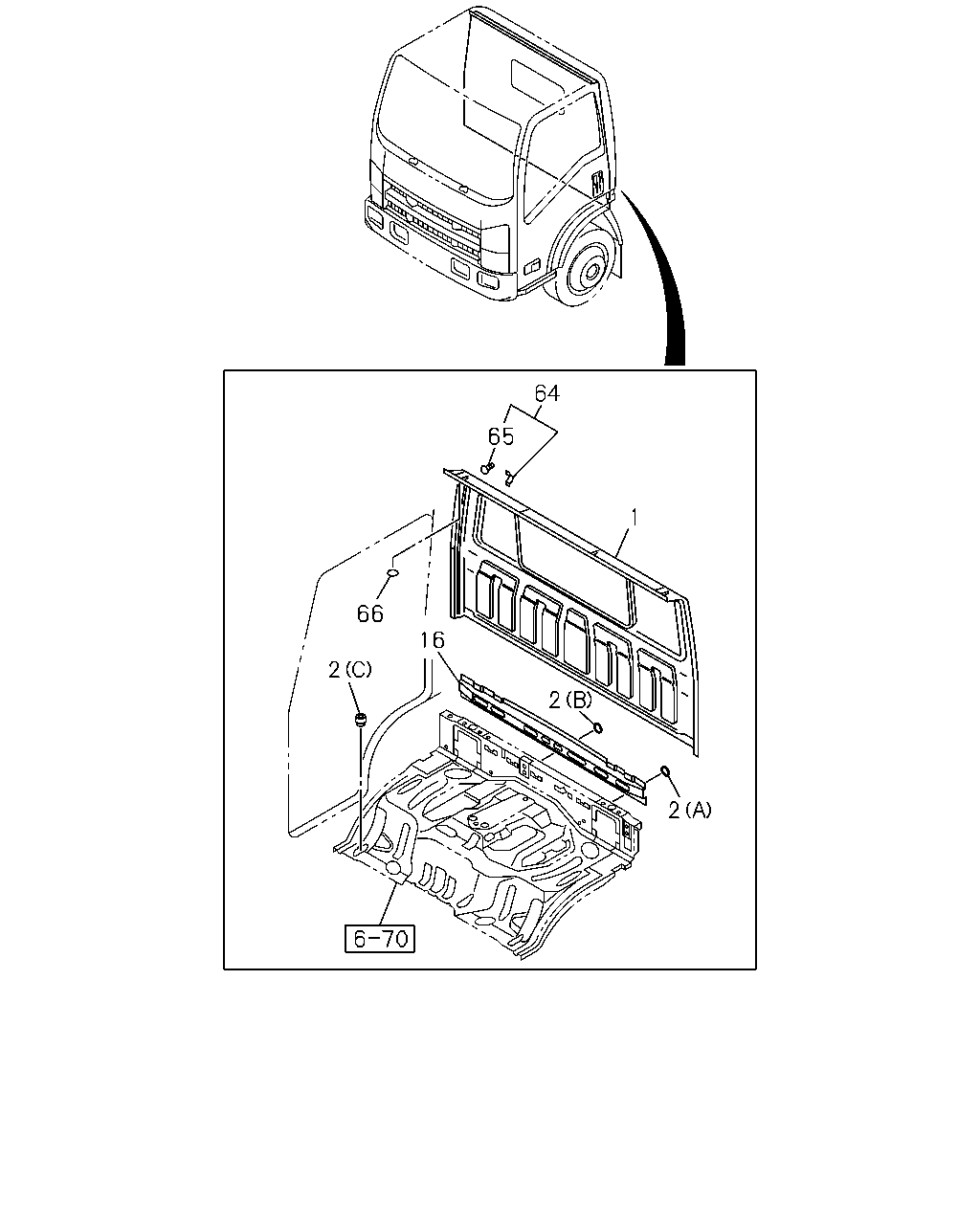

çizim 421004
64 65 1 66 16 2 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; BACK OUTER
GLASS BACK LIGHT DELETE<8CA> 		8-97584-311-4 01 1 1405-
1 PANEL; BACK OUTER
EXC. GLASS BACK LIGHT DELETE<8CA> 		8-97584-304-3 01 1 1405-
2 GROMMET; LOCATION HOLE,BACK PANEL
INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 10 1 1405-
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK MAL 		1-76798-019-0 02 1 1405-
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=12.1 MAL 		8-97898-423-0 04 1 1405-
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=32 BLACK MAL 		8-98031-126-0 02 1 1405-
2 GROMMET; LOCATION HOLE,BACK PANEL
EXC. INSPECTION ENGINE COVER<8GA> (B) OD=32 BLACK MAL 		8-98031-126-0 06 1 1405-
16 REINFORCEMENT; BACK OUTER PNL 8-97584-608-2 01 1 1405-
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 1405-
65 STUD; BACK PANEL
MAL 		8-94389-701-0 01 1 1405-
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 04 1 1405-
66 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. COAT HOOK<S9M> OD=20 T=0.05 WHITE MAL 		8-98059-421-0 05 1 1405-
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 04 1 1405-
66 SEAL; BACK PANEL
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVERMET(998),BODY COLOR TRANS BLUE(999) EXC. COAT HOOK<S9M> OD=20 T=0.05 BLACK MAL 		5-76777-036-0 05 1 1405-
