6-01 — FRONT BUMPER (#139966) — 20 parça

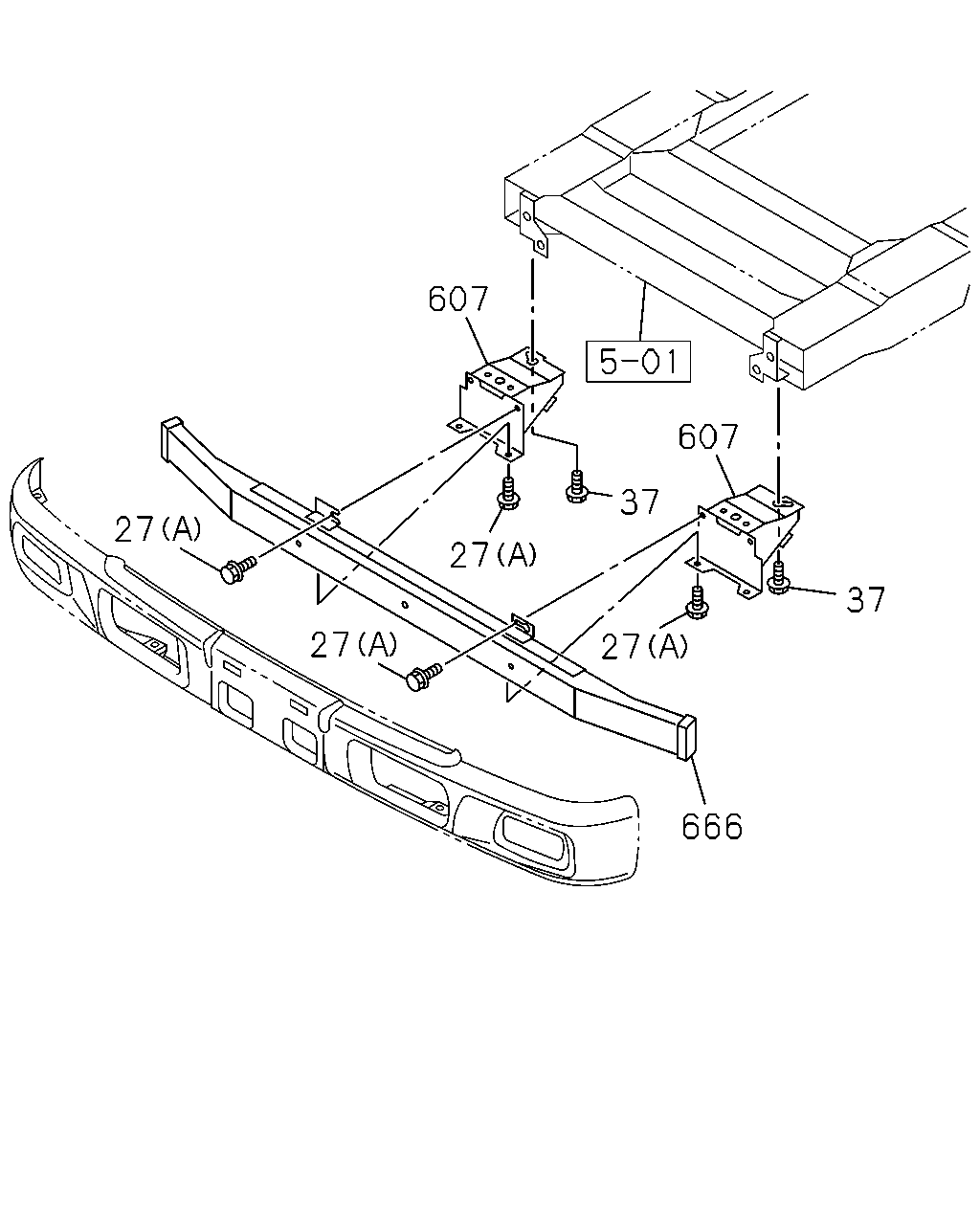

çizim 421205
607 607 37 27 37 666 27 27 27
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUMPER TO BACK BAR
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1405-
27 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1405-
37 BOLT; BRKT TO BUMPER LWR
M12X35 FLANGE 		0-28651-235-0 06 1 1405-
607 BRACKET 8-98199-135-0 01 1 1405-
607 BRACKET 8-98232-027-0 01 1 1405-
666 PROTECTOR; UNDER 8-98232-025-0 01 1 1405-

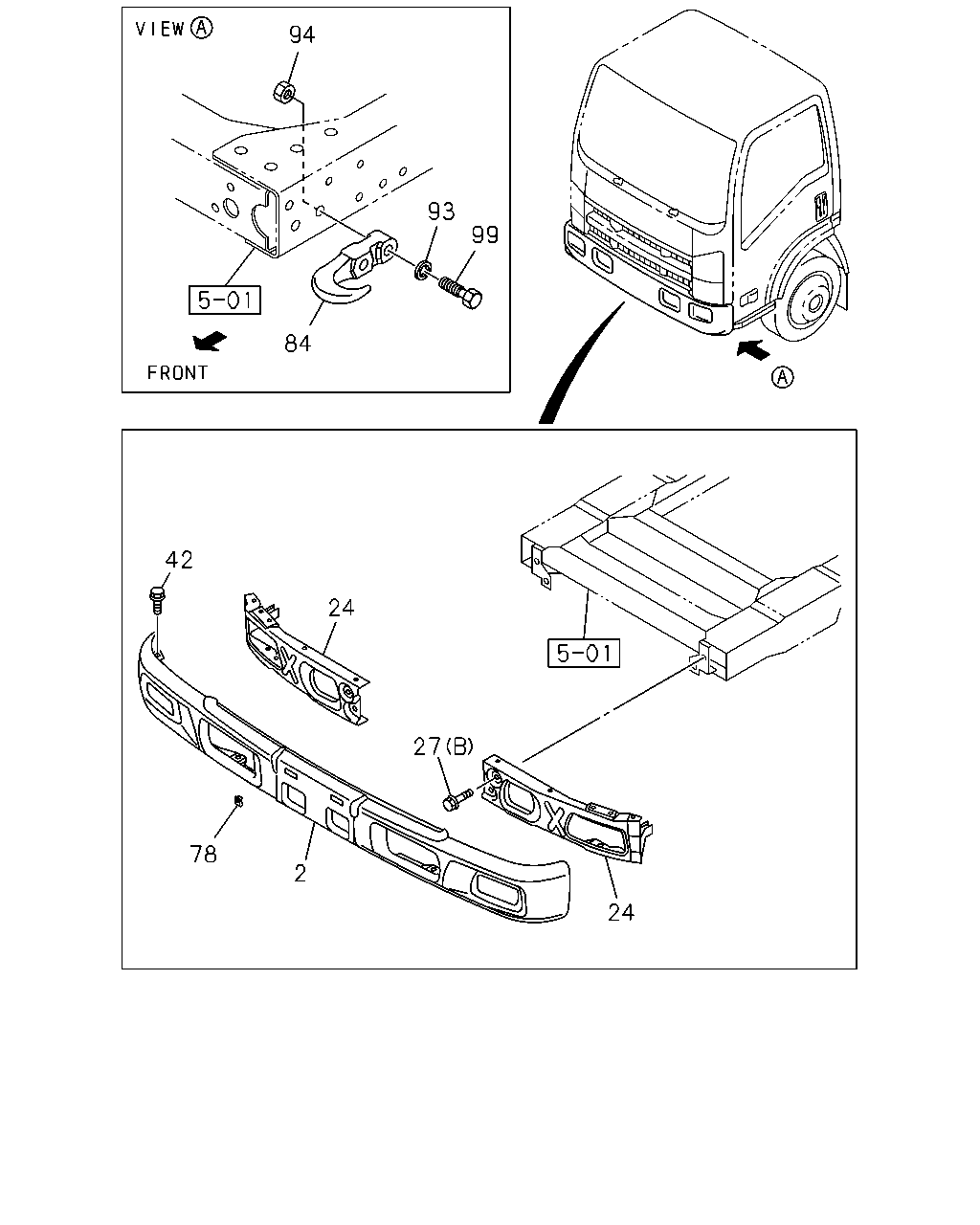

çizim 421527
94 93 84 99 27 24 78 2 24 42
BalonParca AdiParca NoAdetTipApplied Date
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-079-2 01 1 1405-
2 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97405-627-5 01 1 1405-
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97405-628-5 01 1 1405-
2 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97405-629-5 01 1 1405-
24 BAR; FRT BUMPER 8-98025-184-5 01 1 1405-
24 BAR; FRT BUMPER 8-98025-185-5 01 1 1405-
27 BOLT; BUMPER TO BACK BAR
(A) M10X30 FLANGE 		0-28651-030-0 06 1 1405-
27 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 1405-
42 BOLT; BUMPER
M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 1405-
78 NUT; SPIRE
M6 		8-98029-416-0 02 1 1405-
84 HOOK 8-97387-665-0 01 1 1405-
93 WASHER; LK,HOOK
ID=14.2 MAL 		0-91510-814-0 02 1 1405-
94 NUT; HOOK
M14 MAL 		0-91110-514-0 01 1 1405-
99 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1405-
