Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#139962) — 50 parça

140 141 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
140	NUT; BRKT MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1405-
141	BOLT; BRKT MANUAL TILT CAB<RWZ> M8X20 FLANGE MAL	0-28650-820-0	04	1	1405-
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ>	8-97857-422-4	01	1	1405-
419	BRACKET; HOOK,SEAT BELT ANCHOR MANUAL TILT CAB<RWZ>	8-97857-423-4	01	1	1405-

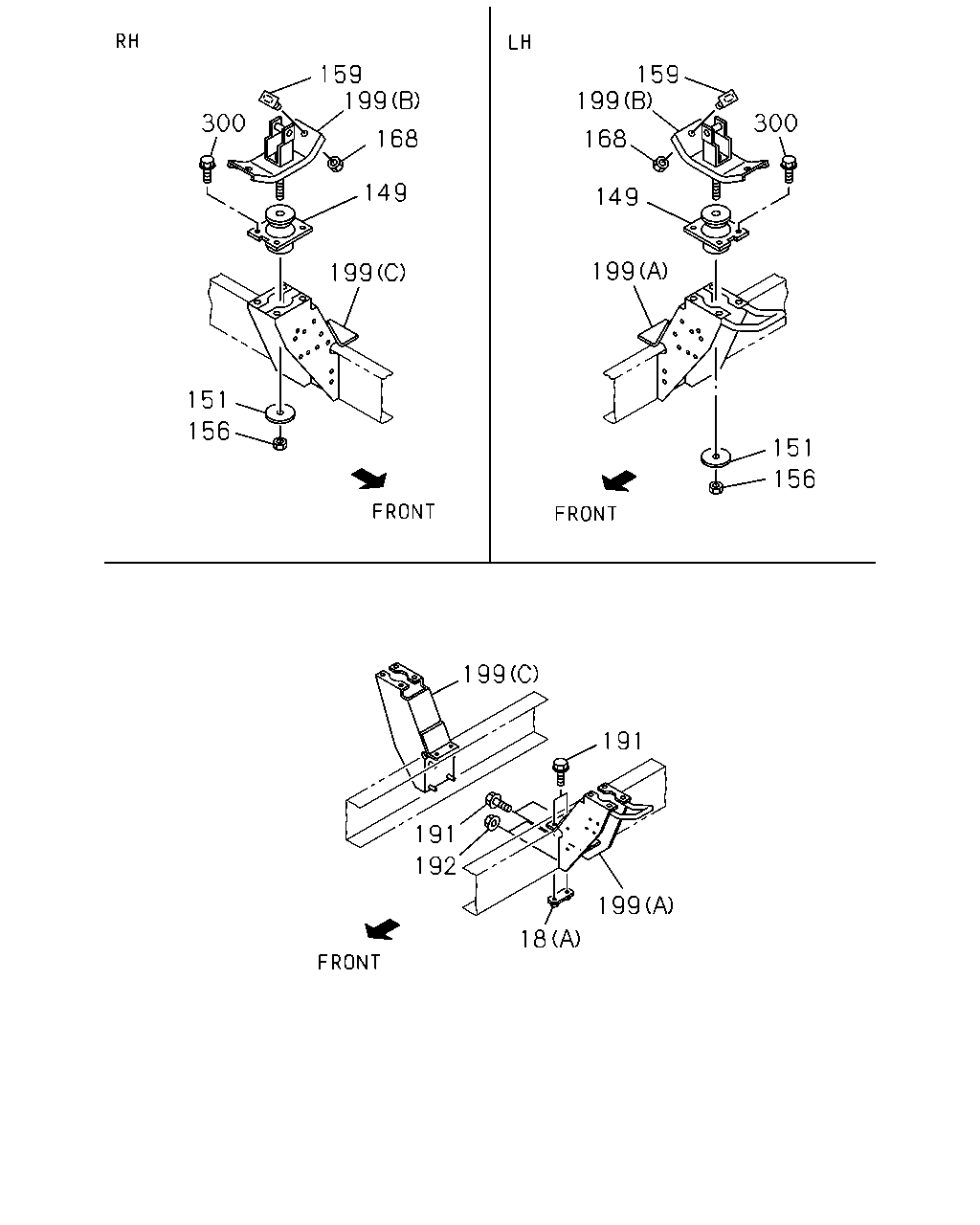

300 159 168 199 149 199 151 156 199 168 159 300 149 199 151 156 18 192 199 191 191 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1405-
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1405-
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> H=62 MAL	8-98021-561-1	02	1	1405-
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> H=94	8-98038-868-0	02	1	1405-
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62 MAL	8-97359-042-1	02	1	1405-
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97359-040-1	02	1	1405-
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> M16 MAL	0-91111-516-0	02	1	1405-
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	1405-
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ> MAL	8-97113-340-0	04	1	1405-
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE MAL	0-91180-108-0	04	1	1405-
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1405-
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1405-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	1405-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1405-
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1405-

156 151 300 149 199 156 300 151 149 199 191 191 192 18 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1405-
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1405-
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> H=62 MAL	8-98021-561-1	02	1	1405-
149	RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> H=94	8-98038-868-0	02	1	1405-
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62 MAL	8-97359-042-1	02	1	1405-
151	WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97359-040-1	02	1	1405-
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> M16 MAL	0-91111-516-0	02	1	1405-
156	NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	1405-
191	BOLT; BRKT FIX M12X40 FLANGE MAL	0-28651-240-0	08	1	1405-
192	NUT; BRKT FIX M12 FLANGE MAL	0-91180-112-0	08	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98024-776-4	01	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98024-777-4	01	1	1405-
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-98036-883-0	02	1	1405-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (D)	8-98024-778-1	01	1	1405-
199	BRACKET; CAB RR MTG EXC. MANUAL TILT CAB<RWZ> (E)	8-98099-144-1	01	1	1405-
300	BOLT; MTG RUBBER M10X20 FLANGE MAL	0-28651-020-0	08	1	1405-

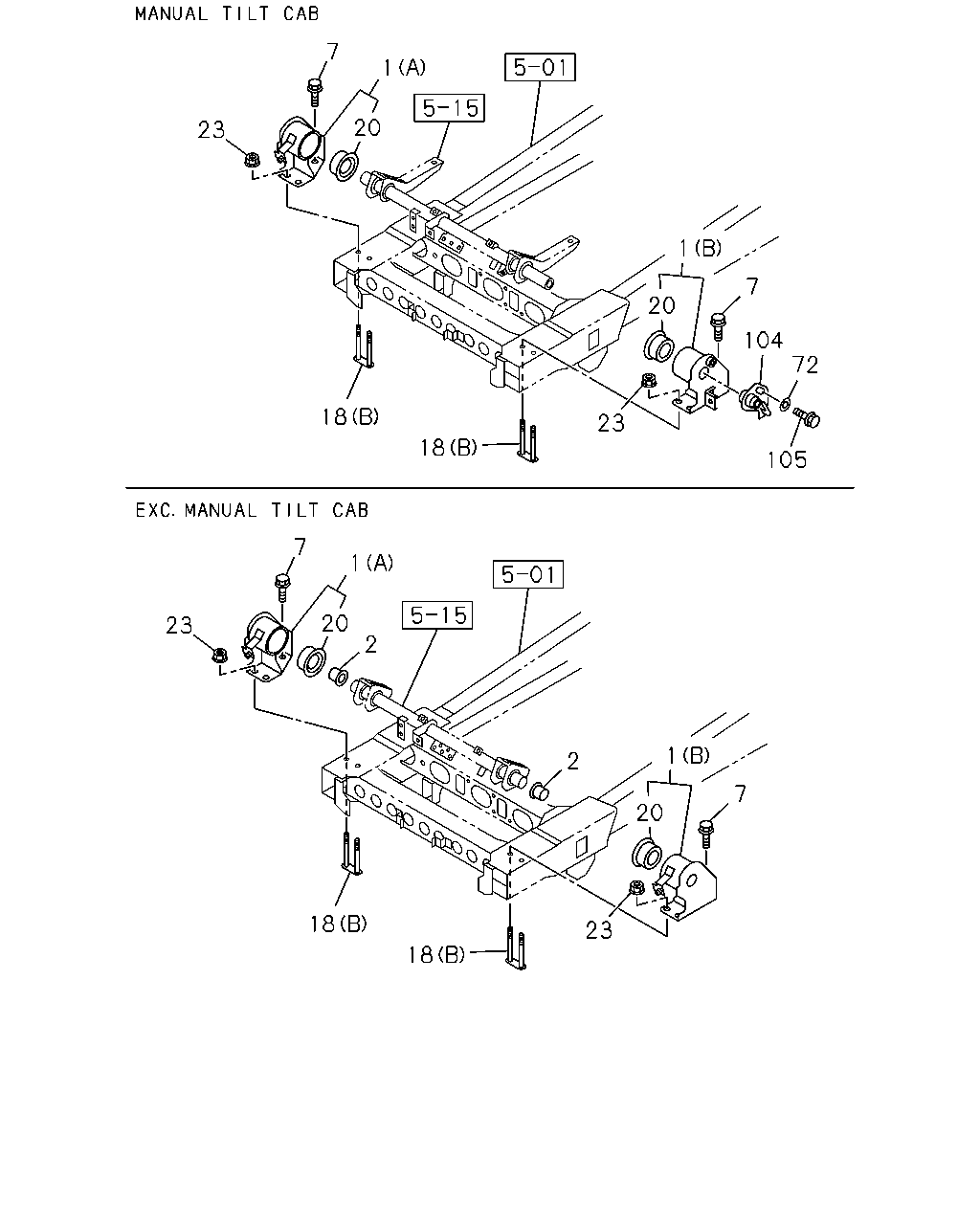

7 23 20 1 18 18 23 20 1 104 105 72 7 7 23 20 1 2 2 1 20 7 23 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ> (B)	8-98020-467-5	01	1	1405-
1	BRACKET; CAB MTG (A)	8-98074-798-2	01	1	1405-
1	BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ> (B)	8-98074-800-2	01	1	1405-
2	BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	1405-
7	BOLT; BRKT,CAB TILT M14X40 FLANGE	0-28661-440-0	02	1	1405-
18	PLATE; MTG BRKT FIX (A) MAL	8-97034-139-2	02	1	1405-
18	PLATE; MTG BRKT FIX (B)	8-98029-285-1	02	1	1405-
20	RUBBER; MTG,CAB BRKT	8-98007-037-1	01	1	1405-
23	NUT; MTG BRKT M14	8-98039-989-0	04	1	1405-
72	WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	1405-
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97383-788-1	01	1	1405-
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M14X35 FLANGE	0-28661-435-0	01	1	1405-
