Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

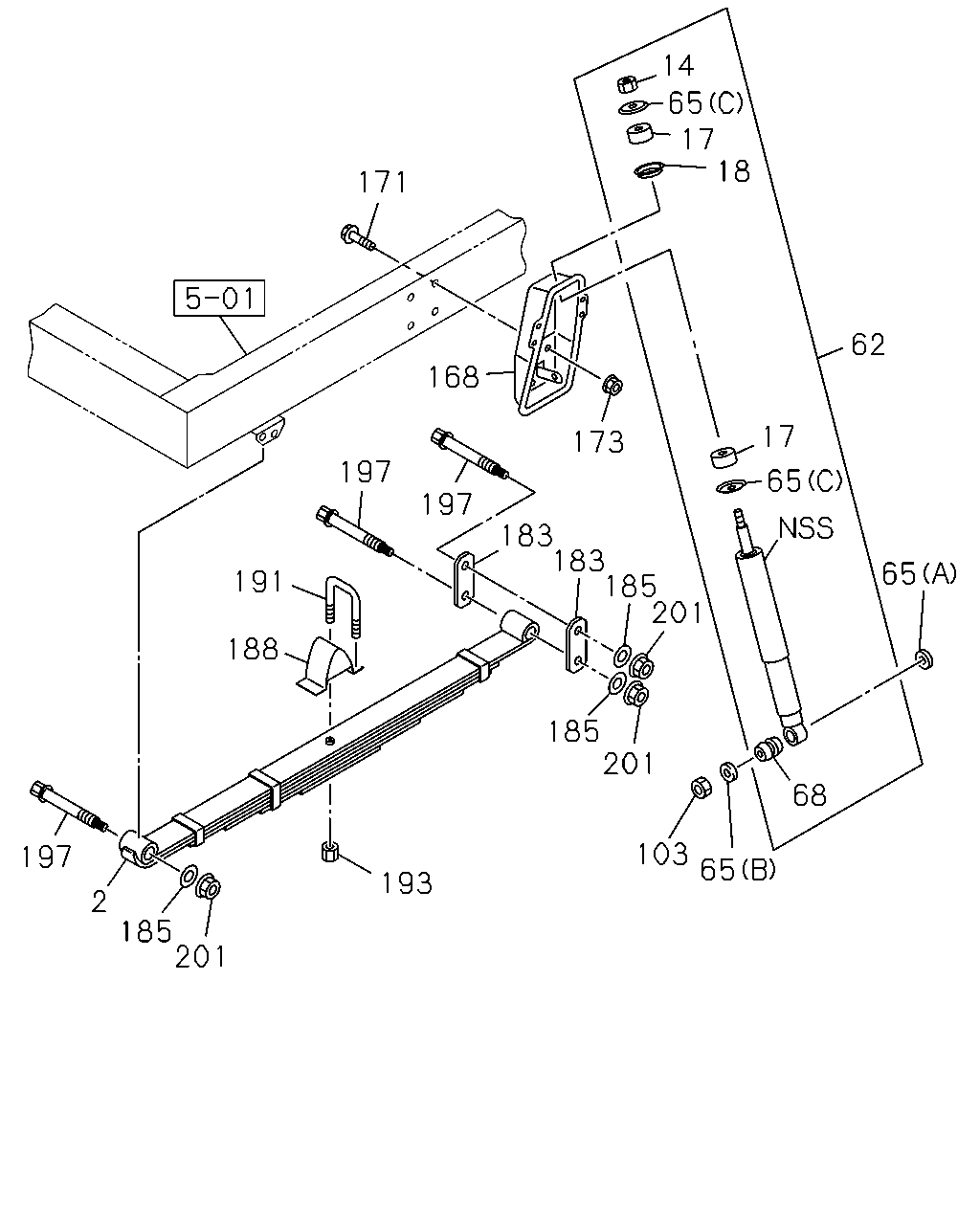

4-50 — FRONT SUSPENSION
(#139955) — 25 parça
171
14
65
17
18
62
17
65
65
68
65
103
201
201
185
185
183
183
197
173
168
197
191
188
193
201
185
2
197
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF MAL
8-98079-923-0
01
1
1405-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF MAL
8-98079-924-0
01
1
1405-
14
NUT; S/ABS,UPR
M10 T=8 MAL
9-09640-020-0
02
1
1405-
17
BUSHING; RUBBER,S/ABS
TOKICO MAL
9-51631-603-0
04
1
1405-
18
WASHER; CENTERING,S/ABS
TOKICO MAL
8-94412-791-0
02
1
1405-
62
ABSORBER ASM; SHOCK,FRT
8-98080-129-1
02
1
1405-
62
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
5-87610-153-0
02
1
1405-
65
WASHER; S/ABS
(A) ID=21 OD=40
0-91614-620-0
02
1
1405-
65
WASHER; S/ABS
(B) ID=15
8-97360-056-0
02
1
1405-
65
WASHER; S/ABS
(C) OD=40 MAL
9-51631-614-0
04
1
1405-
68
BUSHING; S/ABS
TOKICO MAL
8-94382-149-0
02
1
1405-
103
NUT; S/ABS TO LWR LINK
M14 MAL
0-91110-514-0
02
1
1405-
168
BRACKET; S/ABS,FRT SUSP
8-98015-001-0
01
1
1405-
168
BRACKET; S/ABS,FRT SUSP
8-98015-002-0
01
1
1405-
171
BOLT; S/ABS BRKT
M12X35 FLANGE
0-28651-235-0
08
1
1405-
173
NUT; S/ABS
M12
8-97360-126-0
08
1
1405-
183
SHACKLE; FRT SUSP
MAL
8-94110-399-3
04
1
1405-
185
WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5
8-98011-489-0
06
1
1405-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
8-98033-516-0
02
1
1405-
191
U-BOLT; FRT SPR
L=165 MAL
9-51171-075-1
04
1
1405-
193
NUT; U BOLT
M16
8-97360-121-0
08
1
1405-
197
PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF> M16X122 MAL
8-98011-487-0
06
1
1405-
197
PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE
8-97360-110-0
06
1
1405-
201
NUT; PIN LK
KD PREPARATORY PACK<6HF> M16
0-91110-516-0
06
1
1405-
201
NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE
8-97360-125-0
06
1
1405-
