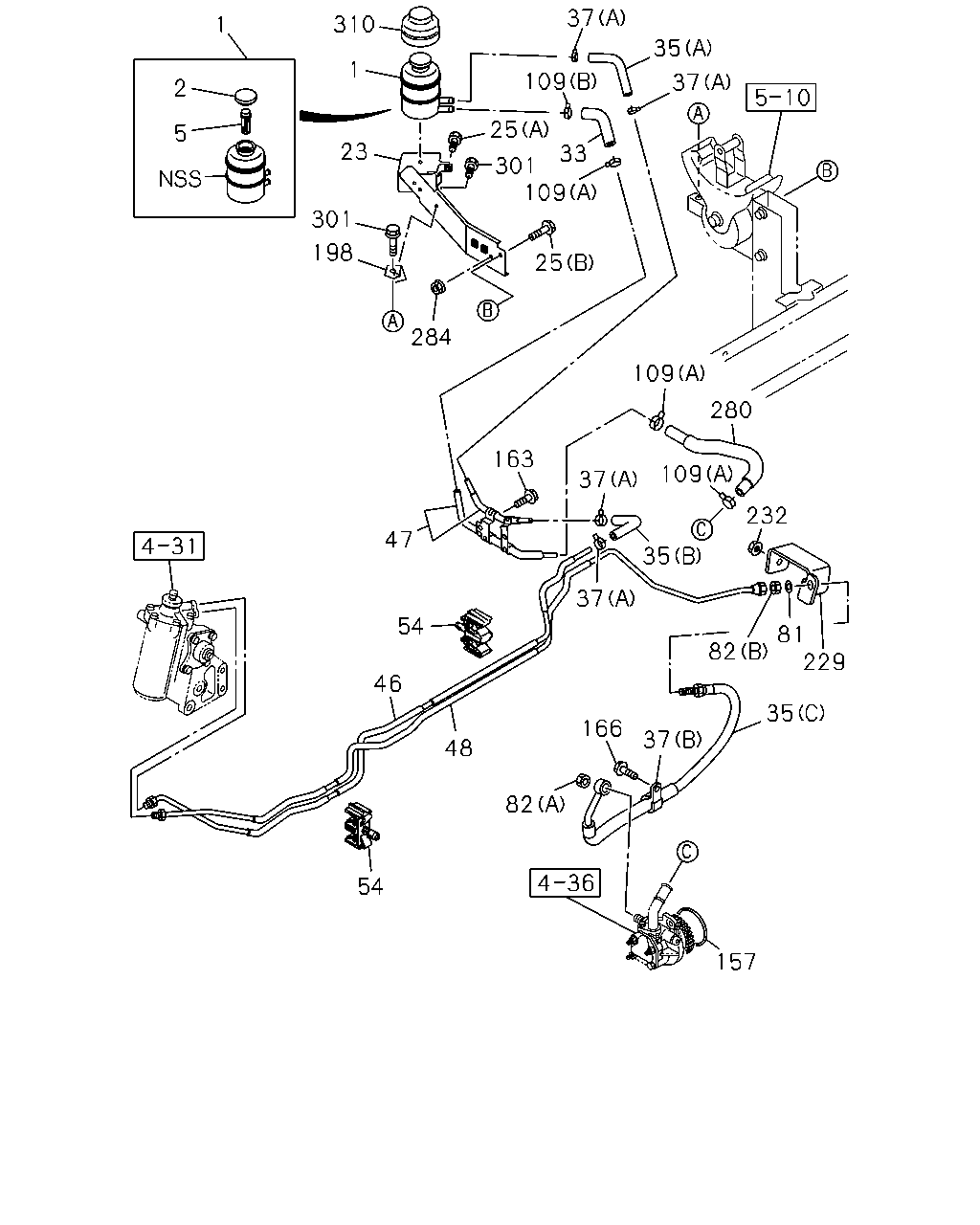

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#139951) — 32 parça

1 2 5 310 23 301 37 109 25 109 301 33 35 109 109 280 37 163 47 54 46 48 37 82 166 82 37 81 229 35 157 198 284 25 1 37 232 35 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1405-
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1405-
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1405-
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1405-
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE MAL	0-28450-620-0	01	1	1405-
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1405-
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1405-
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1405-
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1405-
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1405-
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1405-
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1405-
46	PIPE; OIL,P/S UNIT TO OIL TANK MAL	8-98041-184-3	01	1	1405-
47	PIPE; RETURN MAL	8-98083-166-1	01	1	1405-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT MAL	8-98041-185-4	01	1	1405-
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1405-
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1405-
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1405-
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1405-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1405-
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1405-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1405-
163	BOLT; OIL PIPE M8X25 FLANGE MAL	0-28650-825-0	02	1	1405-
166	BOLT; CLIP M8X25 FLANGE MAL	0-28650-825-0	01	1	1405-
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1405-
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1405-
232	NUT; BRKT M10 FLANGE MAL	0-91180-110-0	01	1	1405-
280	HOSE; P/S OIL PUMP,INL	8-98082-972-0	01	1	1405-
284	NUT; PIPE M8 FLANGE MAL	0-91180-108-0	01	1	1405-
301	BOLT; STAY,OIL TANK M8X25 FLANGE MAL	0-28650-825-0	02	1	1405-
310	COVER; OIL TANK	8-97103-394-0	01	1	1405-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
