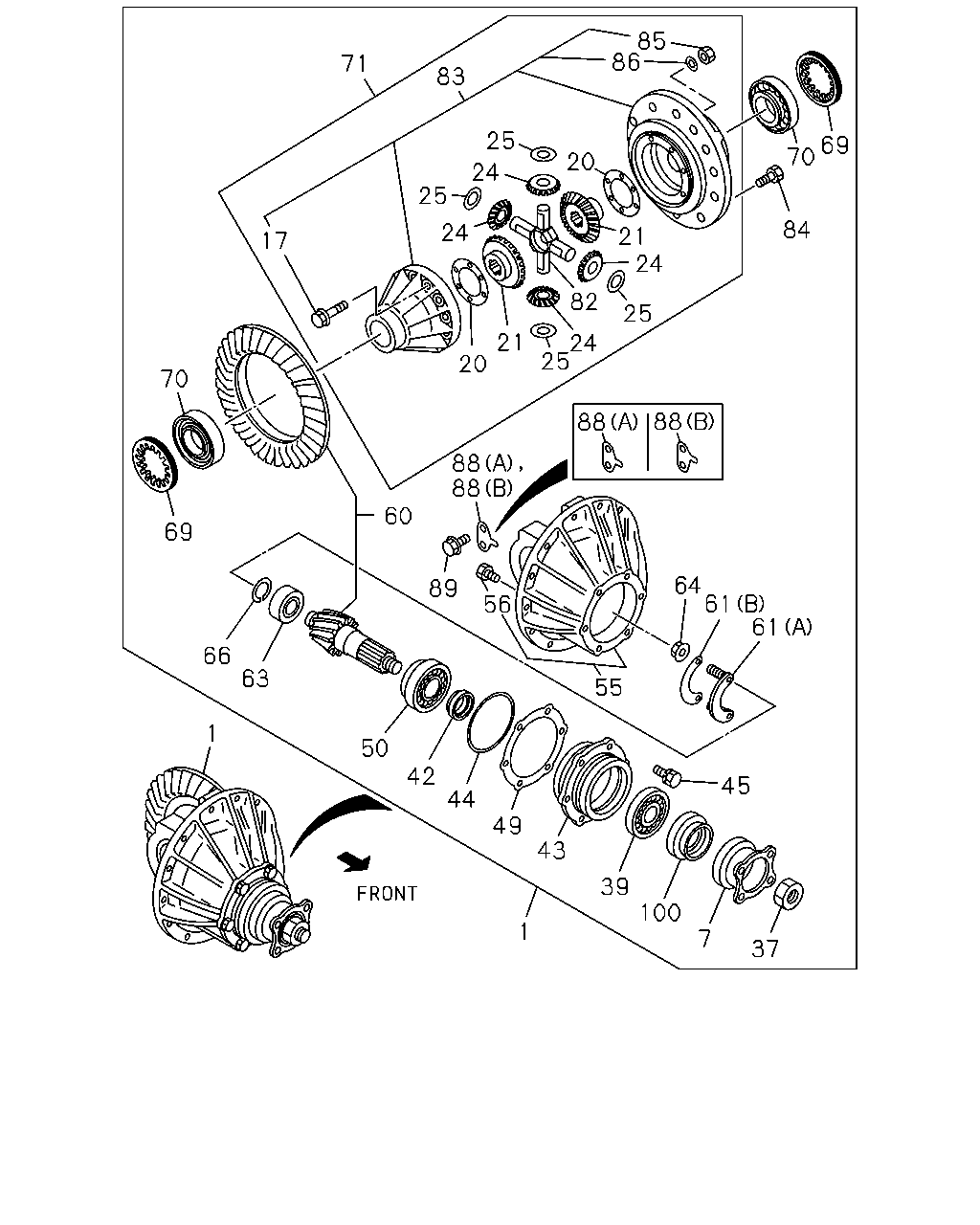

4-25 — REAR FINAL DRIVE (#139947) — 56 parça

69 70 84 85 86 83 71 17 25 24 25 20 21 25 24 82 25 24 21 20 88 61 61 64 45 55 88 60 89 56 88 37 7 100 39 43 49 44 42 50 63 66 1 1 69 70 88 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97388-702-0	01	1	1405-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97388-704-0	01	1	1405-
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97388-703-0	01	1	1405-
7	FLANGE; FINAL	8-97047-095-2	01	1	1405-
17	BOLT; DIFF CAGE SETTING M12X90	8-98219-448-0	12	1	1405-
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1405-
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1405-
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1405-
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1405-
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1405-
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1405-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1405-
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1405-
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1405-
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1405-
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1405-
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1405-
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1405-
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1405-
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1405-
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1405-
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1405-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1405-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1405-
55	CARRIER; DIFF	8-97094-637-0	01	1	1405-
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1405-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97078-635-1	01	1	1405-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1405-1505
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97061-850-0	01	1	1405-1505
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-98092-146-0	01	1	1506-
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1405-
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1405-
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1405-
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1405-
64	NUT; RET M6 FLANGE MAL	0-91180-106-0	02	1	1405-
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1405-
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1405-
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1405-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-97047-099-4	01	1	1405-
71	CAGE ASM; DIFF,FINAL DRIVE FINAL GEAR RATIO 41/8(RU1)	8-97047-100-4	01	1	1405-
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1405-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J)	8-98219-705-0	01	1	1405-
83	CAGE ASM; DIFF FINAL GEAR RATIO 41/8(RU1)	8-98219-707-0	01	1	1405-
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1405-
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	1405-
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1405-
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1405-
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1405-
89	BOLT; LK PLATE M8X16 FLANGE MAL	0-28050-816-0	04	1	1405-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1405-
