3-60 — BRAKE PIPING; VACUUM (#139942) — 116 parça

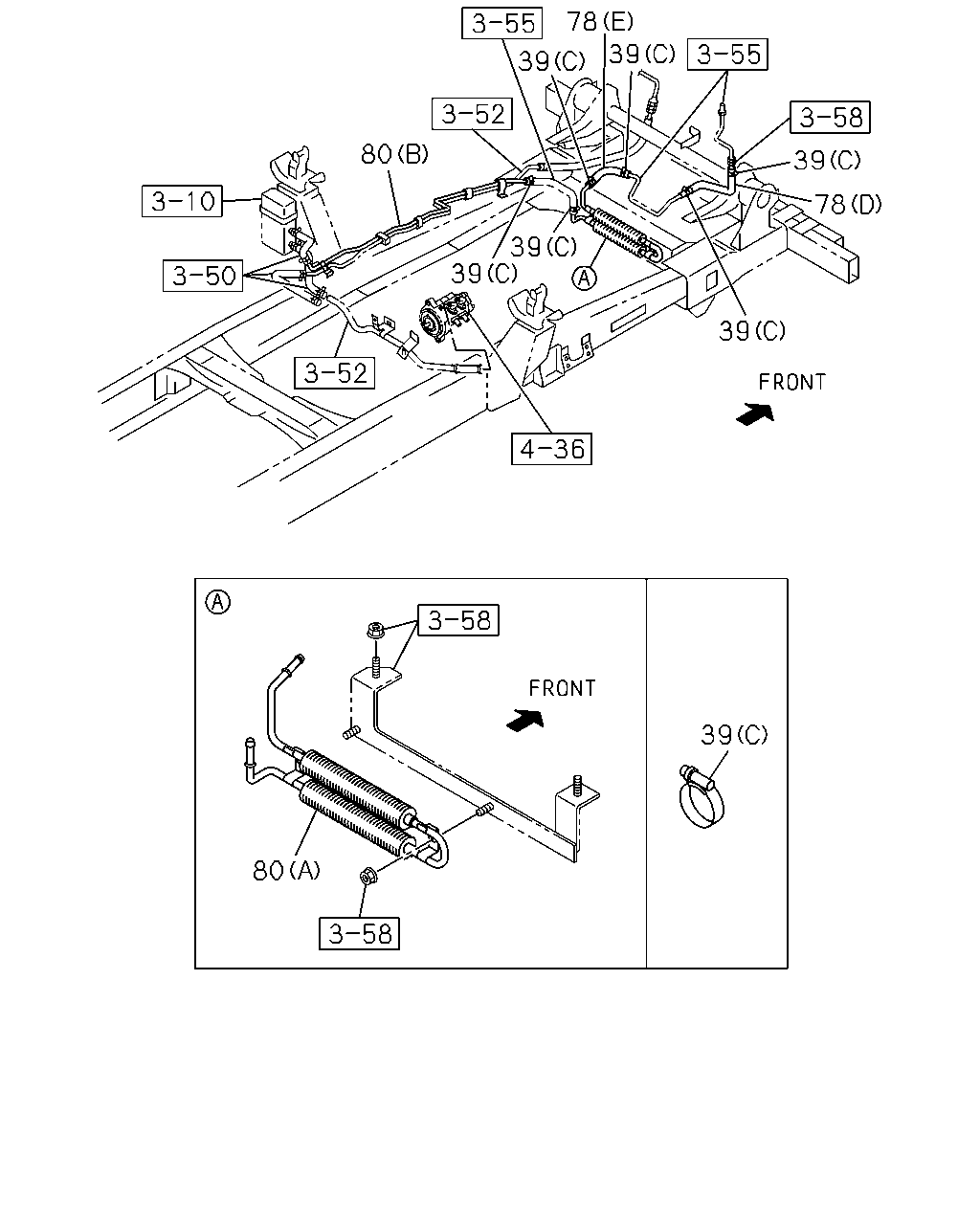

78 39 80 80 39 39 78 39 39 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1405-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1405-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (F)	8-98080-833-1	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98112-680-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98136-613-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (A)	8-98171-287-0	01	1	1405-
80	PIPE; VAC,ENG SIDE (A) MAL	8-97386-605-0	01	1	1405-
80	PIPE; VAC,ENG SIDE (B) MAL	8-98097-788-0	01	1	1405-

66 66 66 66 66 66 169 116 116 169 75 116 235 108 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	1405-
75	NUT; CLIP,VAC HOSE M8 FLANGE MAL	0-91180-108-0	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98067-702-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98081-002-2	01	1	1405-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C) MAL	8-98041-053-4	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE (B) MAL	8-98041-052-2	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C) MAL	8-98048-901-0	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D) MAL	8-98048-903-0	01	1	1405-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1405-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1405-

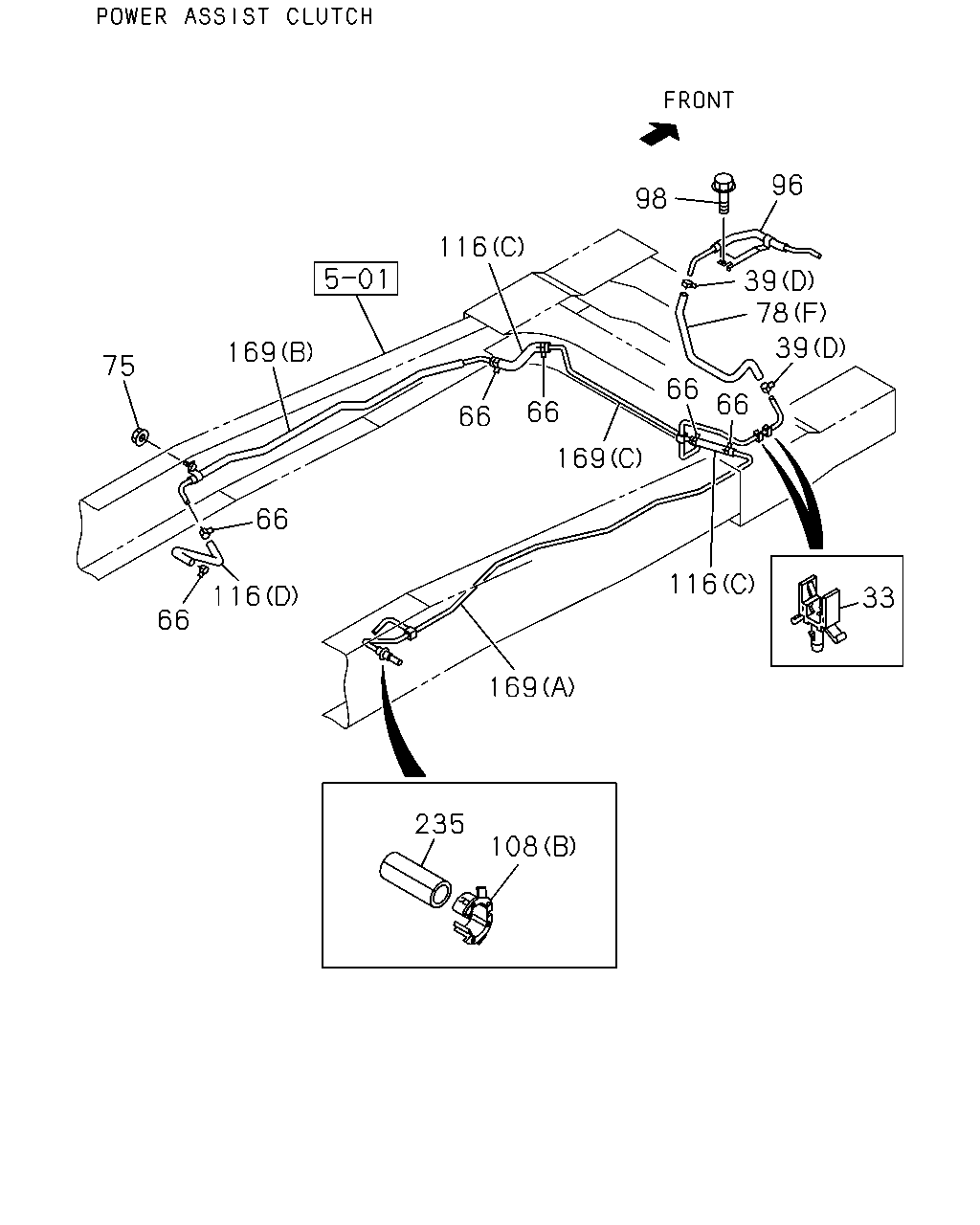

116 169 235 108 33 169 66 66 66 66 66 66 116 169 75 98 96 39 39 78 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1405-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1405-
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	06	1	1405-
75	NUT; CLIP,VAC HOSE M8 FLANGE MAL	0-91180-108-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (F)	8-98080-833-1	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98112-680-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98136-613-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (A)	8-98171-287-0	01	1	1405-
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) MAL	8-98220-579-0	01	1	1405-
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) M6X12 FLANGE MAL	0-28050-612-0	01	1	1405-
98	BOLT; VAC PIPE FIX M6X12 FLANGE MAL	0-28050-612-0	01	1	1405-
98	BOLT; VAC PIPE FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1405-
98	BOLT; VAC PIPE FIX M8X25 FLANGE MAL	0-28650-825-0	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98067-702-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98081-002-2	01	1	1405-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C) MAL	8-98041-053-4	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE (B) MAL	8-98041-052-2	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (C) MAL	8-98048-901-0	01	1	1405-
169	PIPE; VAC,BOOSTER SIDE EXC. POWER ASSIST CLUTCH(S2T) (D) MAL	8-98048-903-0	01	1	1405-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1405-
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1405-

122 136 136 136 158 236 78 136 44 136 78 136 78 136 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; VAC,MAG VLV (B) MAL	8-98057-425-1	01	1	1405-
44	PIPE; VAC,MAG VLV (A) MAL	8-98070-194-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (F)	8-98080-833-1	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (E)	8-97386-589-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (B)	8-98057-462-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (C)	8-98112-680-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (D)	8-98136-613-0	01	1	1405-
78	HOSE; VAC,PIPE TO PIPE (A)	8-98171-287-0	01	1	1405-
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1405-
136	CLIP; VAC HOSE ID=16	8-98008-098-0	02	1	1405-
136	CLIP; VAC HOSE ID=16	8-98008-098-0	06	1	1405-
158	CLIP; HOSE ID=14-20	8-97061-603-0	01	1	1405-
236	BOLT; PIPE M8X25 FLANGE MAL	0-28650-825-0	01	1	1405-

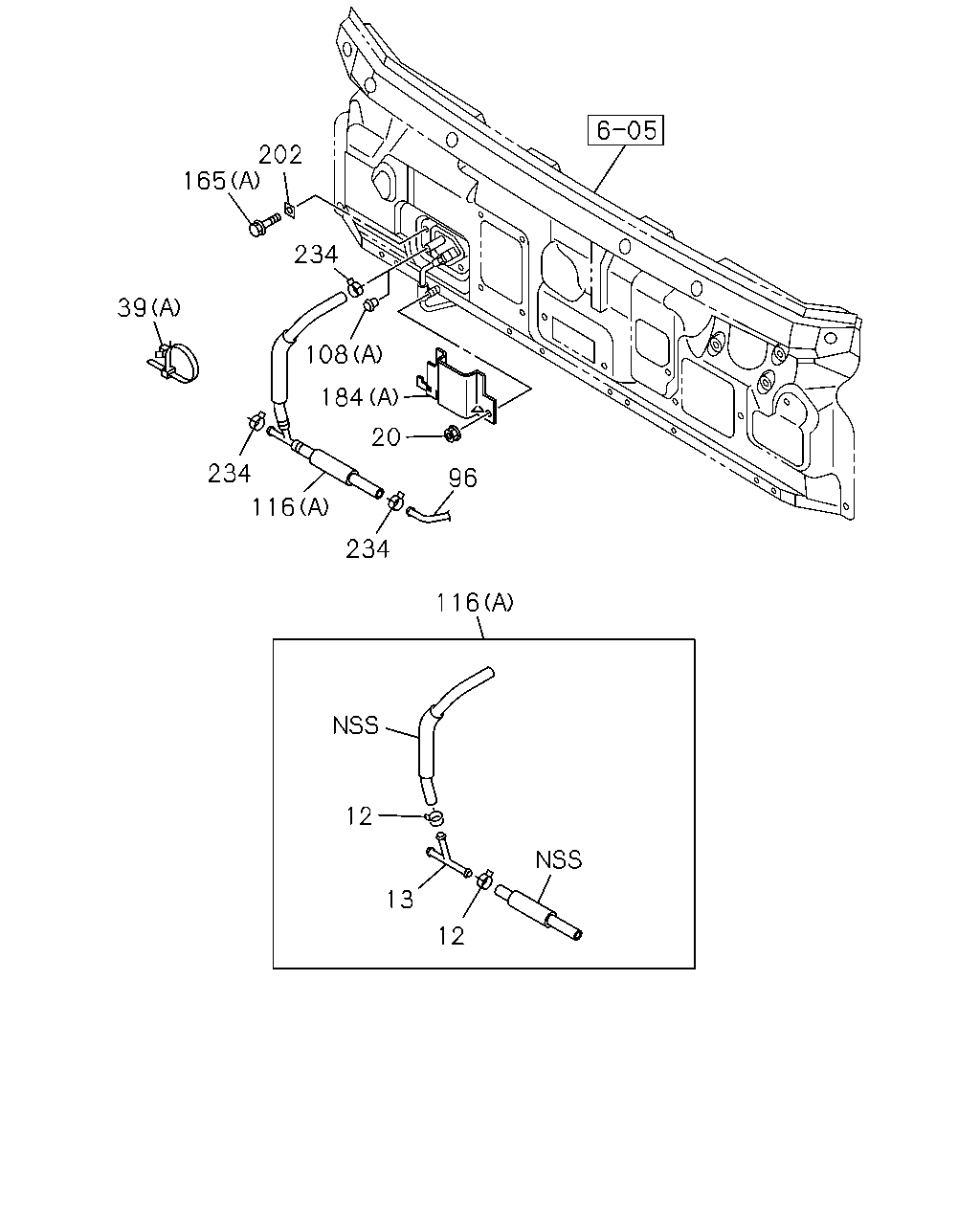

202 165 39 234 234 116 96 20 184 108 234 12 13 12 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1405-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1405-
20	NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) M6 FLANGE MAL	0-91180-106-0	01	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1405-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1405-
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) MAL	8-98220-579-0	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1405-
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98067-702-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98081-002-2	01	1	1405-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
165	BOLT; BRKT (B) M6X16 FLANGE MAL	0-28650-616-0	01	1	1405-
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1405-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1405-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-145-0	01	1	1405-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98017-628-1	01	1	1405-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-539-0	01	1	1405-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1405-
202	SEAL MAL	8-97856-616-0	02	1	1405-
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	03	1	1405-

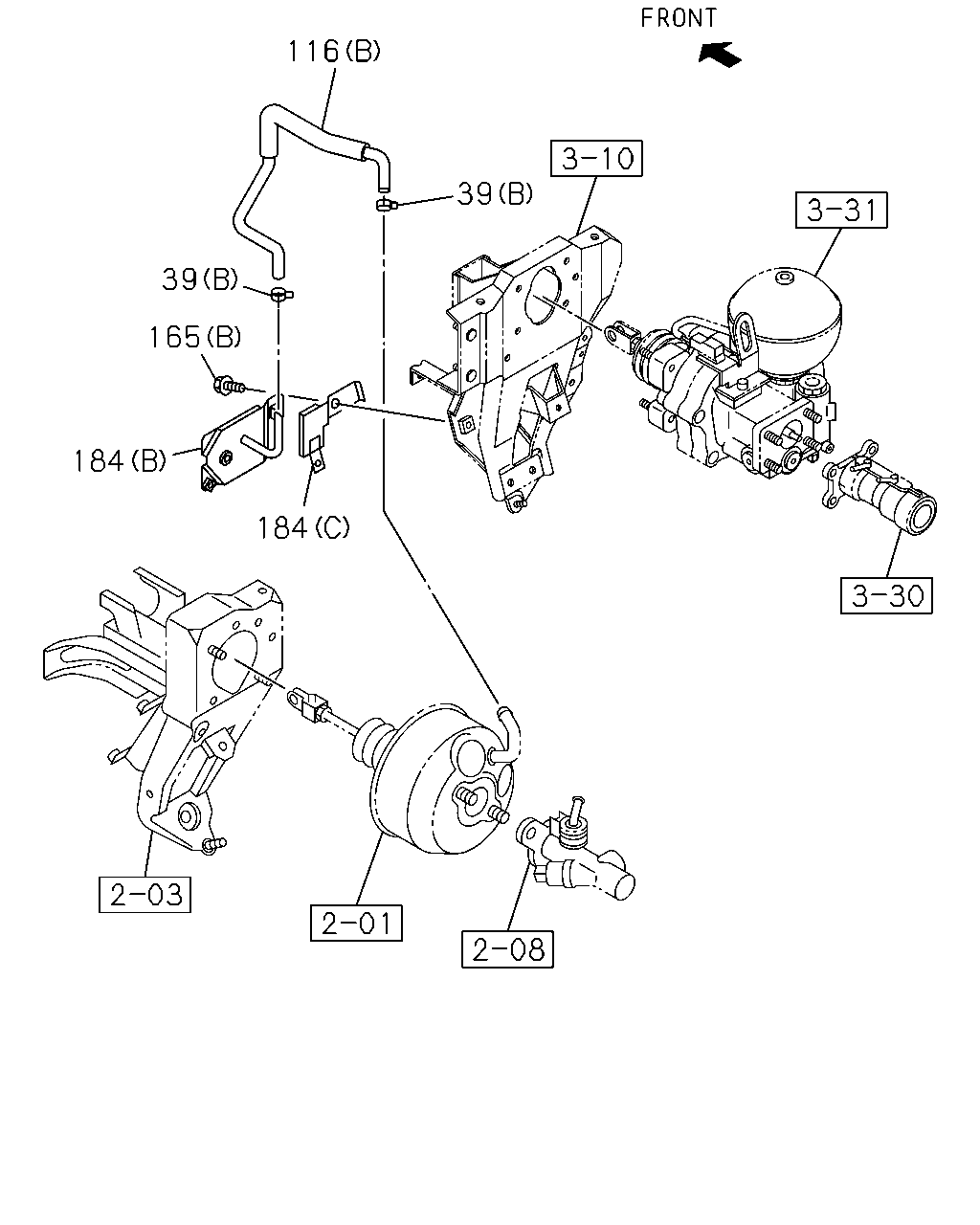

116 39 184 165 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) L=170.3	1-09987-182-0	01	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16	8-94238-568-0	02	1	1405-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (D) ID=16	8-97329-628-0	02	1	1405-
39	CLIP; HOSE,VAC (C) ID=11-17	8-98173-762-1	08	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-98067-702-0	01	1	1405-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98081-002-2	01	1	1405-
116	HOSE; VAC,M/VAC (D)	8-98158-378-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
116	HOSE; VAC,M/VAC (C) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1405-
165	BOLT; BRKT (B) M6X16 FLANGE MAL	0-28650-616-0	01	1	1405-
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER MAL	8-98031-842-0	02	1	1405-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98156-526-0	01	1	1405-
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (B)	8-98193-145-0	01	1	1405-
184	BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98017-628-1	01	1	1405-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98255-539-0	01	1	1405-
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (C)	8-98255-541-0	01	1	1405-
