◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#139940) — 15 parça

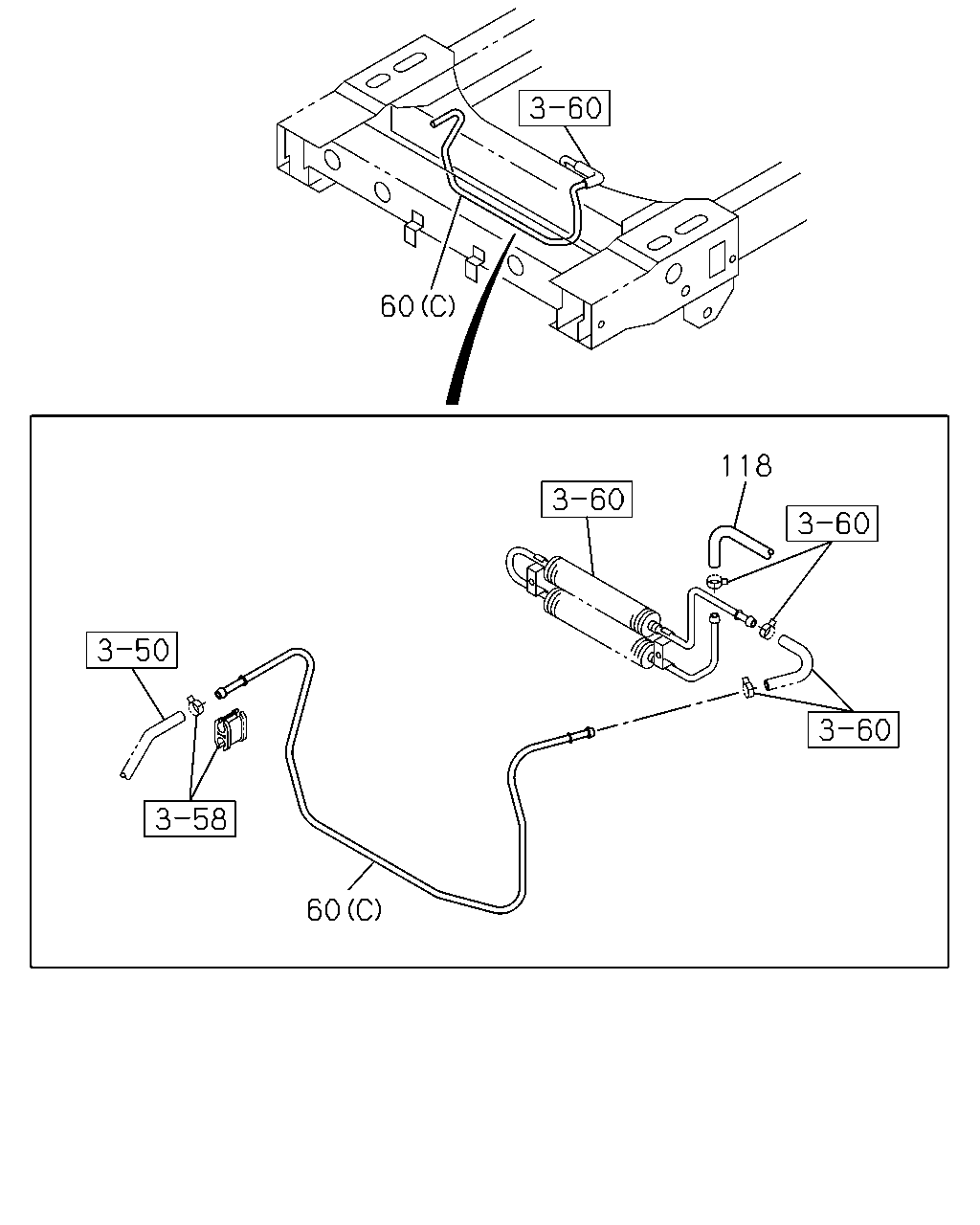

çizim 420750
60 60 118
BalonParca AdiParca NoAdetTipApplied Date
60 PIPE ASM; BRK
(C) MAL 		8-98041-326-1 01 1 1405-
60 PIPE ASM; BRK
(A) MAL 		8-98080-549-0 01 1 1405-
60 PIPE ASM; BRK
(B) MAL 		8-98088-313-1 01 1 1405-
118 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1405-

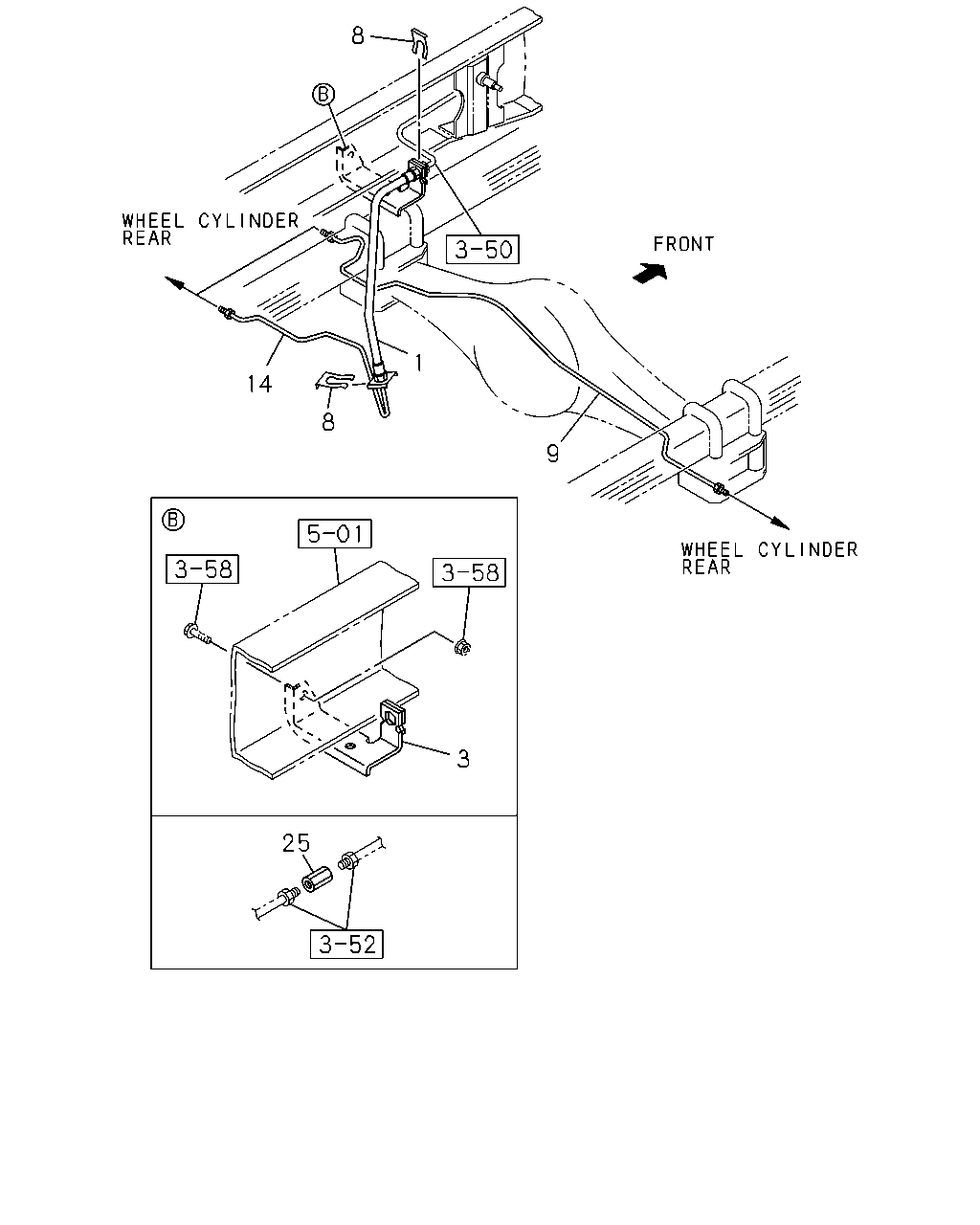

çizim 421153
8 14 1 8 9 25 3
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=405 		8-97089-061-0 01 1 1405-
3 BRACKET; FLEX HOSE,RR BRK 8-97205-714-1 01 1 1405-
8 CLIP; RR BRK 8-97360-054-0 02 1 1405-
9 PIPE; BRK,RR AXLE
MAL 		8-98026-057-0 01 1 1405-
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL
MAL 		8-97359-748-0 01 1 1405-
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1405-
25 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1405-

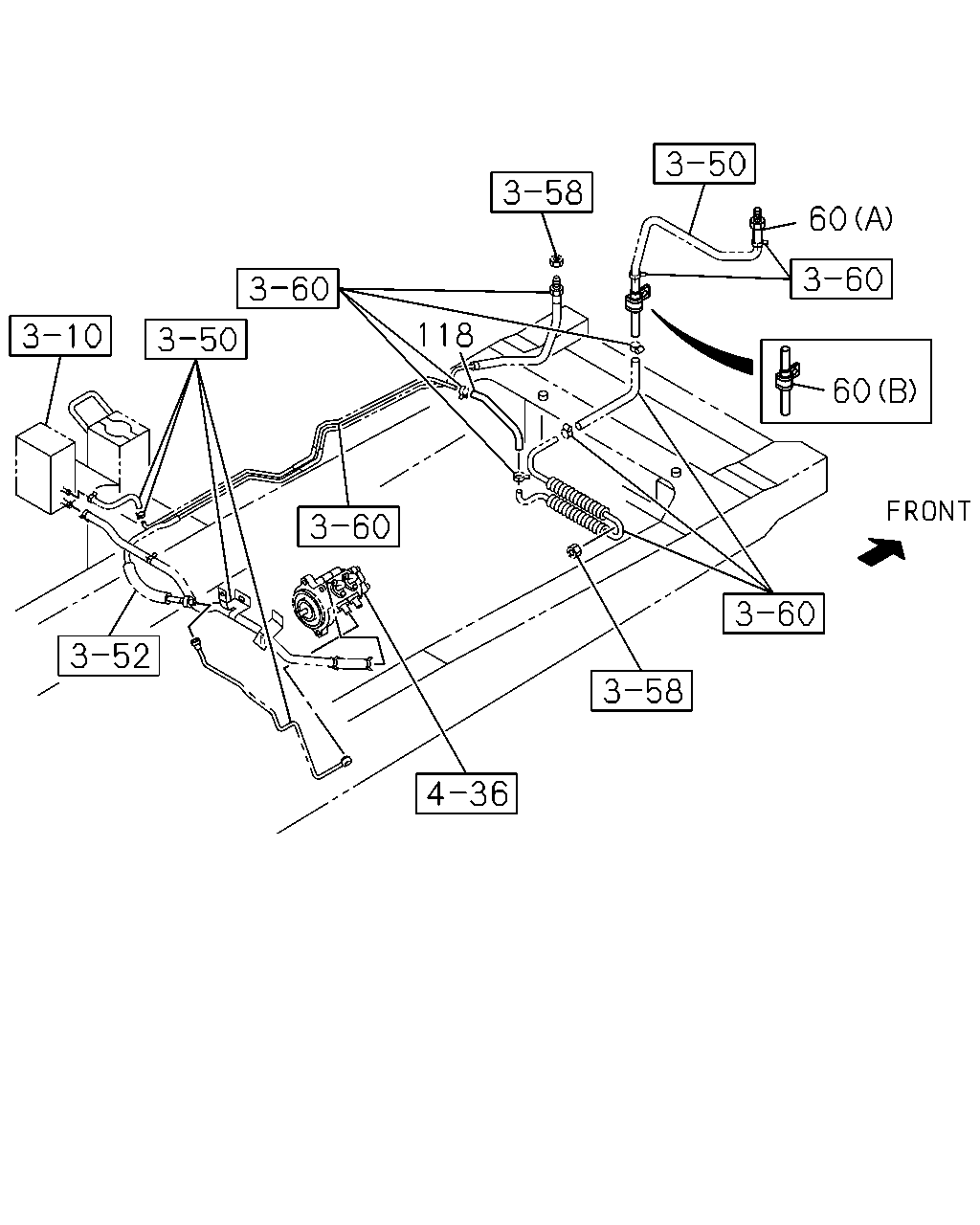

çizim 421233
60 60 118
BalonParca AdiParca NoAdetTipApplied Date
60 PIPE ASM; BRK
(C) MAL 		8-98041-326-1 01 1 1405-
60 PIPE ASM; BRK
(A) MAL 		8-98080-549-0 01 1 1405-
60 PIPE ASM; BRK
(B) MAL 		8-98088-313-1 01 1 1405-
118 HOSE; PIPE TO PIPE 8-98158-200-0 01 1 1405-
