Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

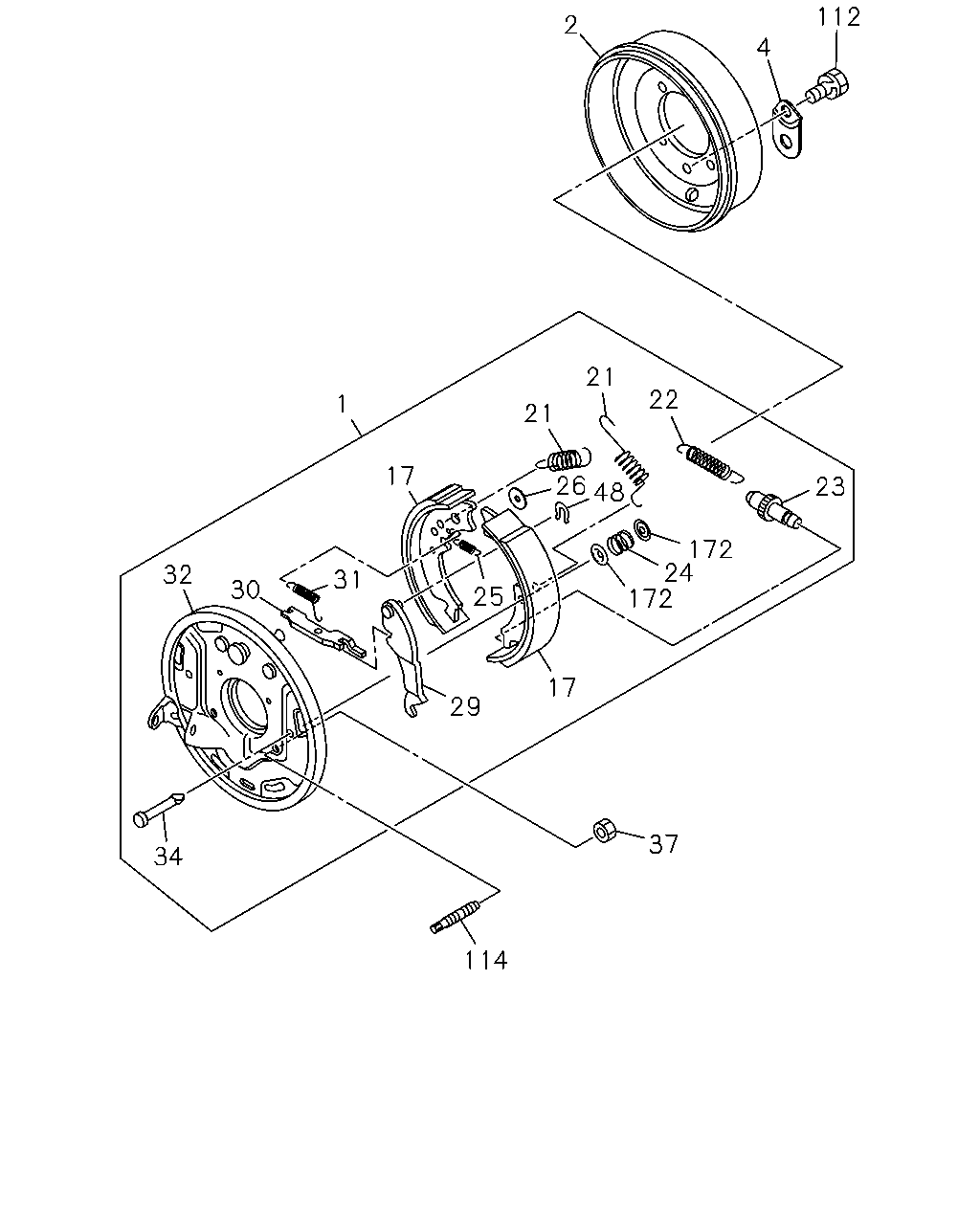

3-08 — PARKING BRAKE
(#139931) — 21 parça
112
4
2
172
24
172
23
17
37
114
29
25
31
17
21
21
22
48
26
30
32
34
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRAKE ASM; CENTER,PARKING
8-98029-922-0
01
1
1405-
2
DRUM; PARKING BRK
8-97334-107-0
01
1
1405-1506
2
DRUM; PARKING BRK
8-98308-289-0
01
1
1507-
4
COVER; ADJ HOLE
8-98029-820-0
01
1
1405-
17
SHOE; PARKING BRK
8-97020-250-2
02
1
1405-
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
1405-
22
SPRING; ADJ SCREW,PARKING BRK
8-94107-618-0
01
1
1405-
23
SCREW; ADJ,PARKING BRK SHOE
8-98043-954-0
01
1
1405-
24
SPRING; BRK SHOE
8-94132-155-1
02
1
1405-
25
SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
1405-
26
PLATE; SHOE GUIDE
8-98043-959-0
01
1
1405-
29
LEVER; PARKING BRK
8-98043-949-0
01
1
1405-
30
STRUT; PARKING BRK
8-98043-953-0
01
1
1405-
31
SPRING; SHOE TO STRUT
8-94132-158-0
01
1
1405-
32
PLATE; SUPPORT,PARKING BRK
8-97308-176-0
01
1
1405-
34
PIN; BRK SHOE
8-98043-955-0
02
1
1405-
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-98029-927-0
04
1
1405-
48
RETAINER; PIN,PARKING BRK
8-98043-958-0
01
1
1405-
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER
0-50540-616-0
01
1
1405-
114
STUD; SUPPORT PLATE
8-98029-929-0
04
1
1405-
172
CUP; SHOE HOLD
8-98043-956-0
04
1
1405-
