Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

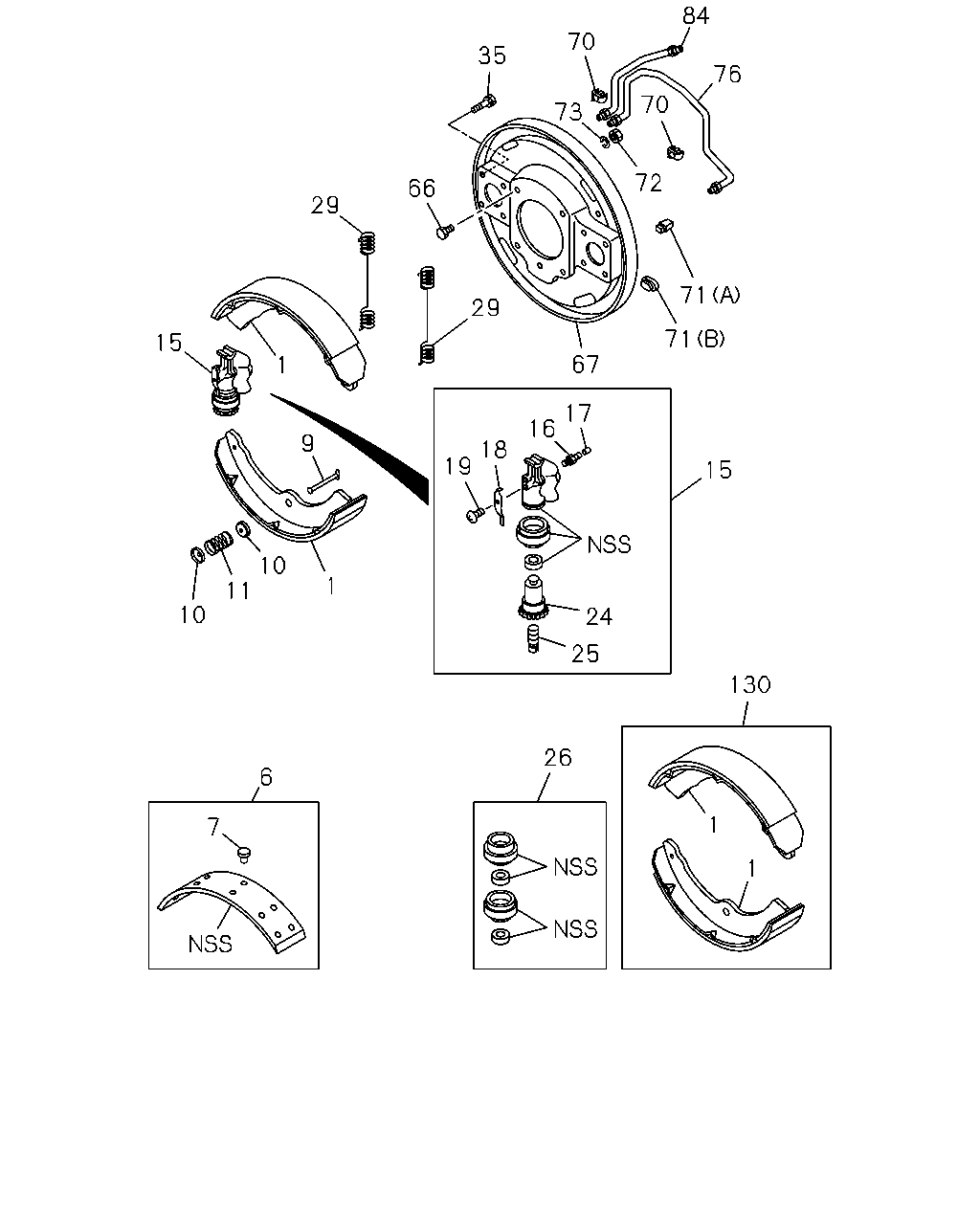

3-01 — FRONT WHEEL BRAKE
(#139929) — 32 parça
84
76
70
72
71
71
15
130
26
1
1
6
7
10
11
10
1
9
1
15
29
66
29
67
17
16
18
19
24
25
35
70
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
8-97188-455-0
04
1
1405-
6
LINING KIT; FRT BRK
5-87831-692-0
01
1
1405-
6
LINING KIT; FRT BRK
BEST VALUE PARTS
5-87610-119-0
01
1
1405-
7
RIVET; LINING,FRT BRK
1-09732-029-0
64
1
1405-
9
PIN; SHOE HOLDER
8-97122-870-0
04
1
1405-
10
CUP; SHOE HOLDING
9-47165-096-0
08
1
1405-
11
SPRING; SHOE HOLDING
5-09580-101-1
04
1
1405-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97353-573-0
01
1
1405-
15
CYLINDER; WHEEL,FRT BRK
FRONT
8-97353-574-0
01
1
1405-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97353-575-0
01
1
1405-
15
CYLINDER; WHEEL,FRT BRK
REAR
8-97353-576-0
01
1
1405-
16
SCREW; BLEEDER,FRT BRK
8-98050-477-0
02
1
1405-
17
CAP; BLEEDER,FRT WHEEL CYL
8-98050-479-0
02
1
1405-
18
STOPPER; ADJ SCREW
8-94128-486-0
04
1
1405-
19
SCREW; STOPPER SETTING
8-94128-727-0
04
1
1405-
24
PISTON; FRT WHEEL CYL
8-97353-579-0
04
1
1405-
25
SCREW; ADJ,FRT WHEEL CYL
8-94414-702-0
04
1
1405-
26
CUP SET; FRT WHEEL CYL
5-87832-080-0
01
1
1405-
29
SPRING; RETURN,FRT BRK SHOE
8-97122-869-0
04
1
1405-
35
BOLT; FRT WHEEL CYL
8-97081-305-0
16
1
1405-
66
BOLT; OIL SHIELD COVER
M14X40
8-98007-879-0
08
1
1405-
67
PLATE; BACK,FRT BRK
8-97160-410-0
01
1
1405-
67
PLATE; BACK,FRT BRK
8-97160-411-0
01
1
1405-
70
CLIP; PIPE HOLD
8-97022-086-0
04
1
1405-
71
GROMMET; CHECK HOLE
(B)
8-97017-507-0
02
1
1405-
71
GROMMET; CHECK HOLE
(A)
8-97044-742-1
04
1
1405-
72
NUT; OIL SHIELD COVER
M14 MAL
0-91110-514-0
08
1
1405-
73
WASHER; LK,OIL SHIELD COVER
ID=14.2 MAL
0-91510-814-0
08
1
1405-
76
PIPE; OIL,BACKWARD,FRT BRK
8-97079-847-0
02
1
1405-
84
PIPE; BRK,WHEEL CYL TO HOSE
MAL
8-97039-676-0
01
1
1405-
84
PIPE; BRK,WHEEL CYL TO HOSE
MAL
8-97039-677-0
01
1
1405-
130
SHOE KIT; BRK,FRT
5-87831-693-0
01
1
1405-
