Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#139928) — 60 parça
◀

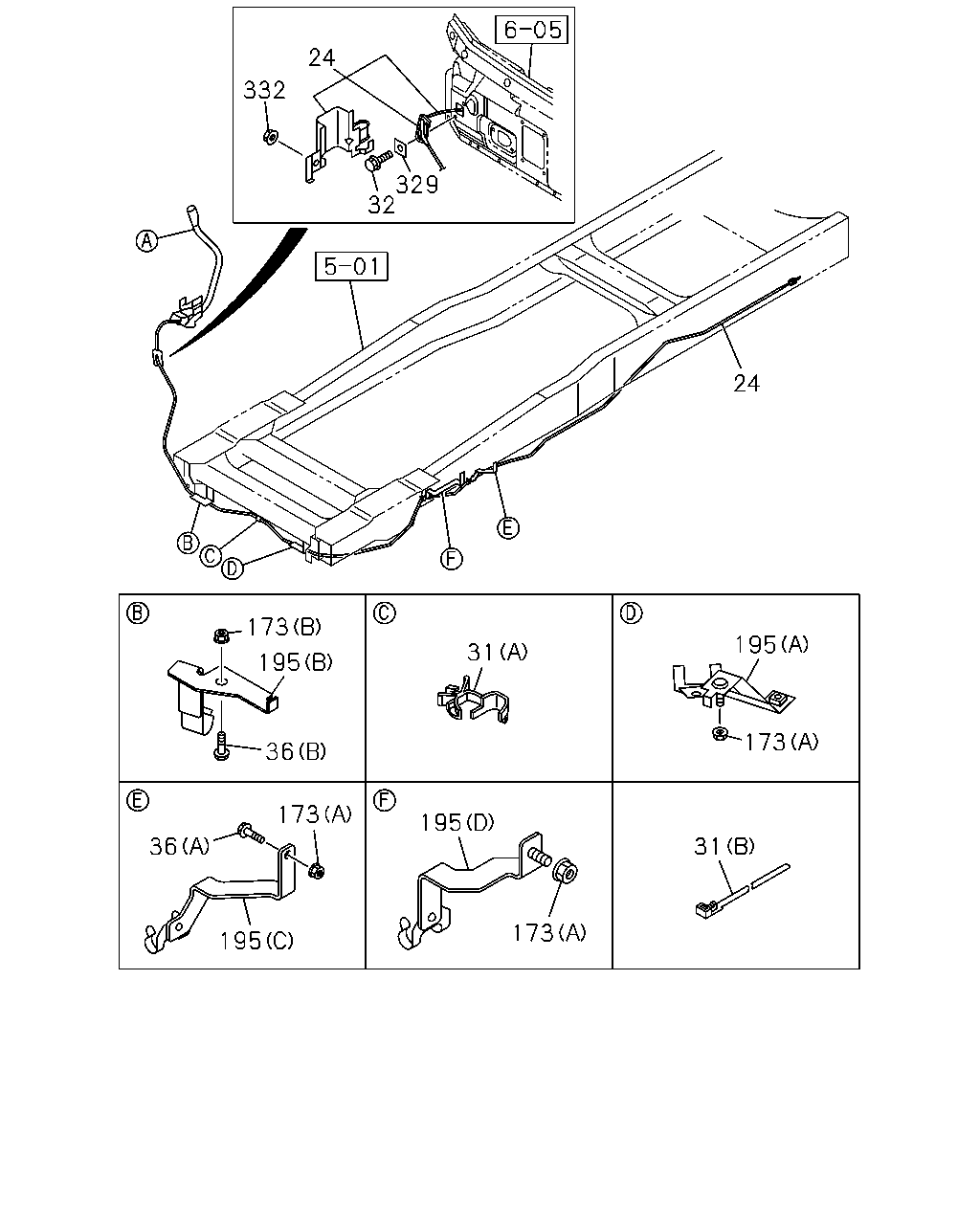

[285A] PTO CABLE (15 parça)

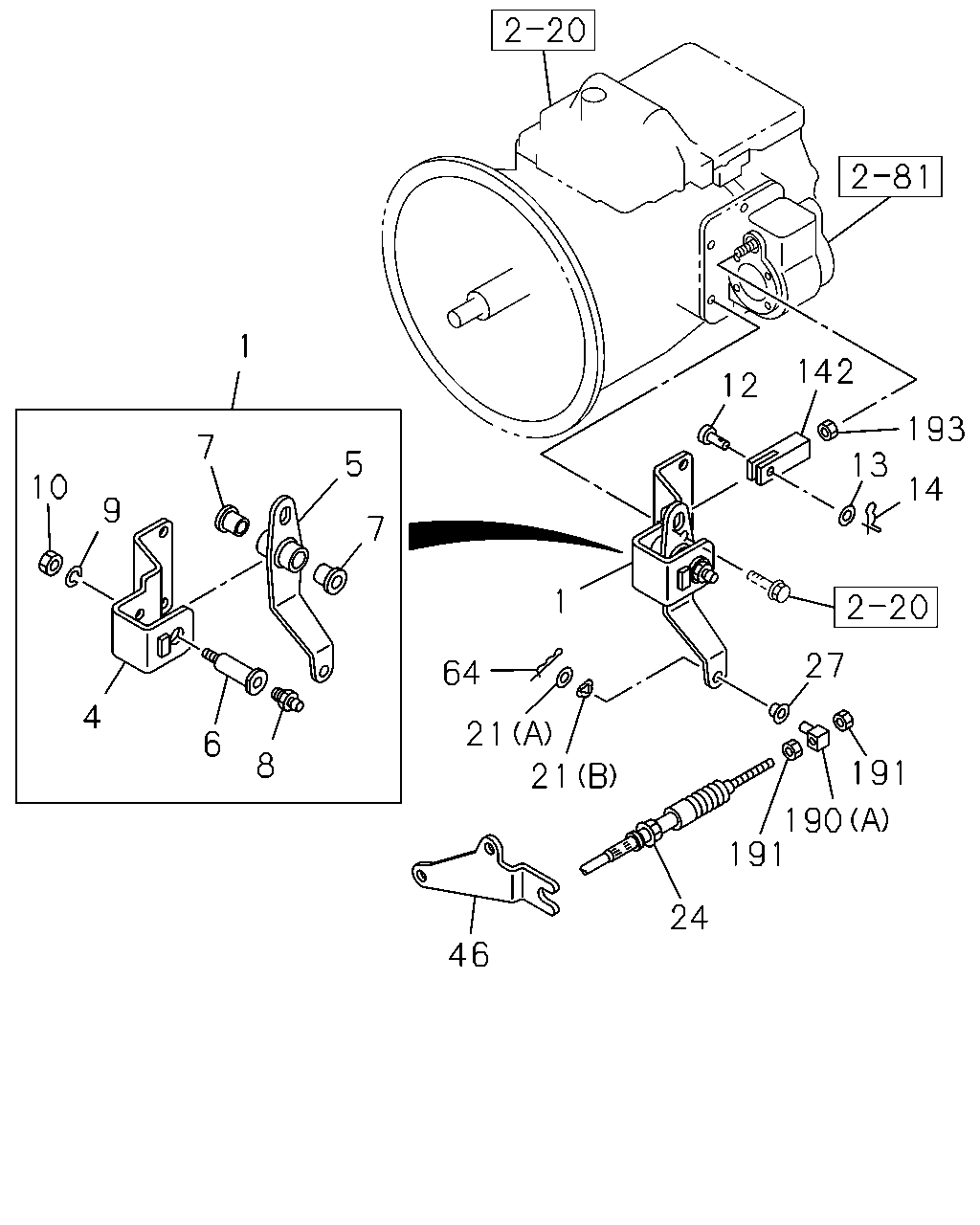

[285A] LEVER ASM;MISSION SIDE (22 parça)
[285A] LEVER ASM;PTO CONT (23 parça)
▶
24
332
32
329
24
195
173
31
173
195
31
173
195
36
173
36
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CABLE; PTO CONT
PTO MANUAL CONTROL(6WC) L=3597
8-98231-936-0
01
1
1405-
31
CLIP; BAND,CABLE
PTO MANUAL CONTROL(6WC) (B) L=250
5-09707-030-1
01
1
1405-
31
CLIP; BAND,CABLE
PTO MANUAL CONTROL(6WC) (A) ID=16
8-97040-812-0
01
1
1405-
32
BOLT; CLIP,CABLE
PTO MANUAL CONTROL(6WC) M6X16 FLANGE
0-28060-616-0
02
1
1405-
36
BOLT; PTO BRKT
PTO MANUAL CONTROL(6WC) (A) M8X25 FLANGE MAL
0-28650-825-0
01
1
1405-
36
BOLT; PTO BRKT
PTO MANUAL CONTROL(6WC) (B) M10X30 FLANGE
0-28651-030-0
01
1
1405-
173
NUT; BRKT
PTO MANUAL CONTROL(6WC) (A) M8 FLANGE MAL
0-91180-108-0
01
1
1405-
173
NUT; BRKT
PTO MANUAL CONTROL(6WC) (A) M8 FLANGE MAL
0-91180-108-0
02
1
1405-
173
NUT; BRKT
PTO MANUAL CONTROL(6WC) (B) M10 FLANGE MAL
0-91180-110-0
01
1
1405-
195
BRACKET; CONT CABLE
PTO MANUAL CONTROL(6WC) (A)
8-98049-570-1
01
1
1405-
195
BRACKET; CONT CABLE
PTO MANUAL CONTROL(6WC) (C)
8-98122-800-0
01
1
1405-
195
BRACKET; CONT CABLE
PTO MANUAL CONTROL(6WC) (D)
8-98124-679-1
01
1
1405-
195
BRACKET; CONT CABLE
PTO MANUAL CONTROL(6WC) (B)
8-98184-311-0
01
1
1405-
329
SEAL
PTO MANUAL CONTROL(6WC) MAL
8-97856-616-0
02
1
1405-
332
NUT; PTO CONT CABLE
PTO MANUAL CONTROL(6WC) M6 FLANGE MAL
0-91180-106-0
01
1
1405-
1
5
7
8
6
4
9
10
7
1
64
21
21
46
24
191
191
190
27
14
13
193
142
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER ASM; PTO & DUMP CONT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98150-089-1
01
1
1405-
4
BRACKET; PTO CONT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98150-099-1
01
1
1405-
5
LEVER; PTO SHIFT CONT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98032-718-0
01
1
1405-
6
SHAFT; PTO CONT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98150-101-0
01
1
1405-
7
BUSHING; LEVER,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
5-33659-053-0
02
1
1405-
8
NIPPLE; GREASE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT
0-90301-406-0
01
1
1405-
9
WASHER; LK,SHAFT,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2
0-91510-508-0
01
1
1405-
10
NUT; SHAFT,PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8
0-91110-508-0
01
1
1405-
12
JOINT; PIN,YOKE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98031-692-0
01
1
1405-
13
WASHER; PL,YOKE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22 MAL
0-91610-512-0
01
1
1405-
14
PIN; SPLIT,YOKE
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-97581-216-0
01
1
1405-
21
WASHER; PL,CONT LEVER
PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22
0-91614-708-0
01
1
1405-
21
WASHER; PL,CONT LEVER
PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3
5-09509-001-0
01
1
1405-
24
CABLE; PTO CONT
PTO MANUAL CONTROL(6WC) L=3597
8-98231-936-0
01
1
1405-
27
BUSHING; LEVER,PTO
PTO MANUAL CONTROL(6WC)
8-94367-367-0
01
1
1405-
46
BRACKET; PTO,TRANS SIDE
PTO MANUAL CONTROL(6WC)
8-98032-829-2
01
1
1405-
64
PIN; SNAP,CONT CABLE JOINT
PTO MANUAL CONTROL(6WC) L=27.7
8-94111-137-0
01
1
1405-
142
CLEVIS; CONT BOX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98031-691-0
01
1
1405-
190
BOSS; LEVER,PTO
PTO MANUAL CONTROL(6WC) (A)
8-94366-842-2
01
1
1405-
190
BOSS; LEVER,PTO
PTO MANUAL CONTROL(6WC) (B)
8-98029-878-0
01
1
1405-
191
NUT; BOSS
PTO MANUAL CONTROL(6WC) M6
0-91110-506-0
02
1
1405-
193
NUT
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12
0-91111-512-0
01
1
1405-
15
24
16
222
261
258
264
287
222
225
121
287
190
96
330
260
259
262
74
219
80
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
LEVER ASM; PTO CONT
PTO MANUAL CONTROL(6WC)
8-98199-362-0
01
1
1405-
16
CLIP; CABLE,PTO
PTO MANUAL CONTROL(6WC)
8-98050-126-0
01
1
1405-
24
CABLE; PTO CONT
PTO MANUAL CONTROL(6WC) L=3597
8-98231-936-0
01
1
1405-
74
SPRING; RETURN,CONT LEVER
PTO MANUAL CONTROL(6WC)
8-98029-874-0
01
1
1405-
80
COVER; CONT LEVER
PTO MANUAL CONTROL(6WC)
8-97122-741-0
01
1
1405-
96
NUT
PTO MANUAL CONTROL(6WC) M6
0-91110-506-0
01
1
1405-
121
RING; SNAP
PTO MANUAL CONTROL(6WC) ID=4 MAL
0-91805-504-0
01
1
1405-
190
BOSS; LEVER,PTO
PTO MANUAL CONTROL(6WC) (A)
8-94366-842-2
01
1
1405-
190
BOSS; LEVER,PTO
PTO MANUAL CONTROL(6WC) (B)
8-98029-878-0
01
1
1405-
219
KNOB; LEVER
PTO MANUAL CONTROL(6WC)
8-97122-736-0
01
1
1405-
222
BOLT; LEVER
PTO MANUAL CONTROL(6WC) (B) M8X60
0-10855-860-0
01
1
1405-
222
BOLT; LEVER
PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE MAL
0-28650-820-0
03
1
1405-
225
BRACKET; CONT LEVER
PTO MANUAL CONTROL(6WC)
8-98152-960-1
01
1
1405-
258
CABLE; DUMP CONT
PTO MANUAL CONTROL(6WC)
8-98029-877-1
01
1
1405-
259
GRIP; CONT LEVER
PTO MANUAL CONTROL(6WC)
8-97141-653-0
01
1
1405-
260
LEVER; DUMP CONT
PTO MANUAL CONTROL(6WC)
8-98030-057-2
01
1
1405-
261
SWITCH; DUMP CONT
PTO MANUAL CONTROL(6WC)
8-98081-918-0
01
1
1405-
262
RETAINER; SPRING
PTO MANUAL CONTROL(6WC)
8-97129-397-0
01
1
1405-
264
PROTECTOR; EDGE
PTO MANUAL CONTROL(6WC)
8-98211-652-0
01
1
1405-
287
NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL(6WC) (A) M6
0-91110-506-0
01
1
1405-
287
NUT; SWITCH,CONT LEVER
PTO MANUAL CONTROL(6WC) (B) M8 FLANGE
0-91180-208-0
01
1
1405-
300
CAP; KNOB
PTO MANUAL CONTROL(6WC)
8-97122-740-0
01
1
1405-
330
COLOR; DUMP CONT
PTO MANUAL CONTROL(6WC)
8-98049-802-0
01
1
1405-
