Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

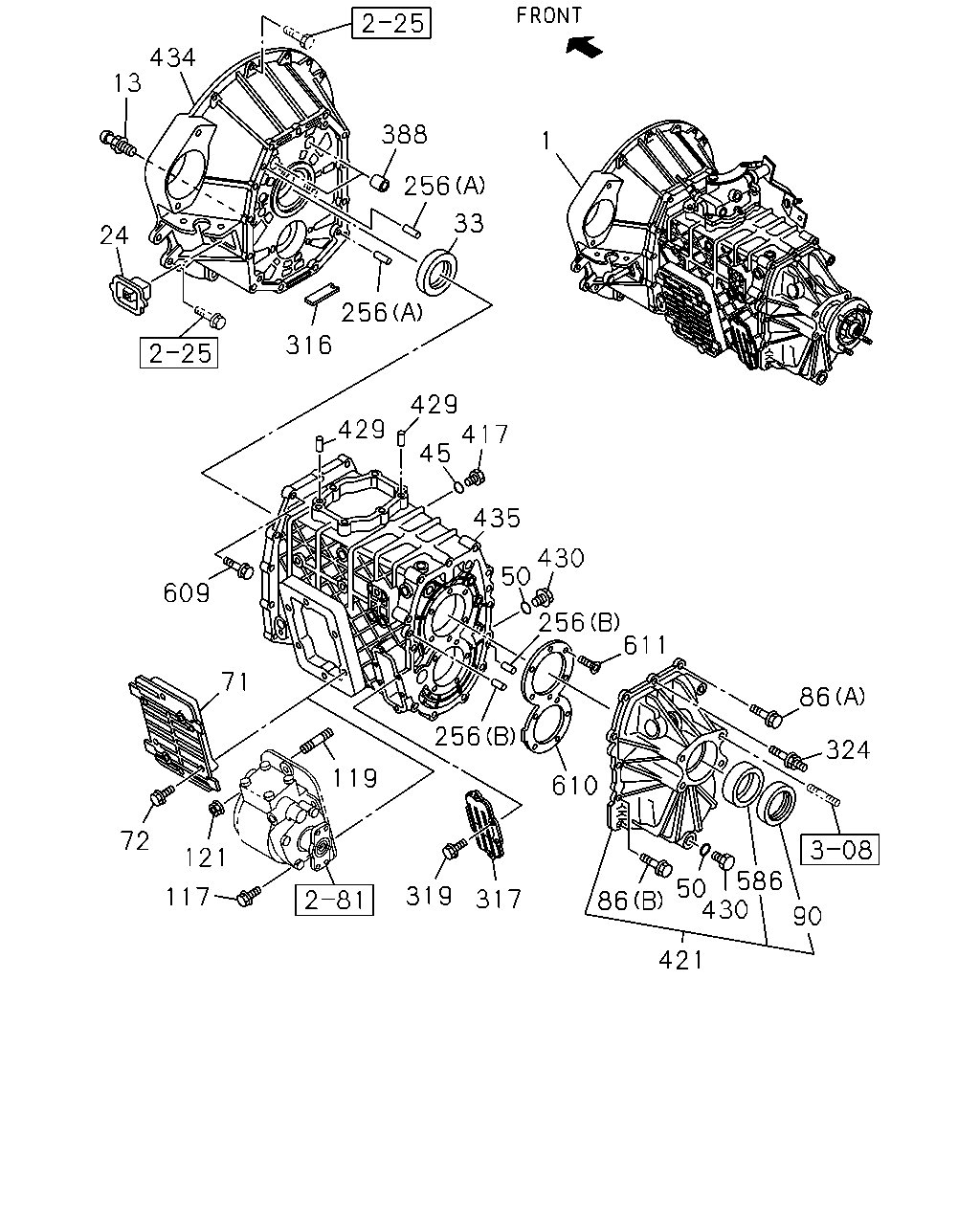

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#139921) — 35 parça
1
33
256
388
256
316
24
13
434
429
429
45
417
435
430
50
256
611
86
324
90
586
50
430
421
86
610
256
317
319
119
71
609
72
121
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)
8-98067-680-0
01
1
1405-
1
TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)
8-98067-680-0
01
1
1405-
13
SUPPORT; SHIFT FORK
8-97255-385-1
01
1
1405-
24
COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1405-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1405-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1405-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
02
1
1405-
71
COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC)
8-97252-625-0
01
1
1405-
72
BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X20 FLANGE
8-98014-142-0
06
1
1405-
86
BOLT; RR COVER
(A) M10X40 FLANGE
0-28151-040-0
10
1
1405-1405
86
BOLT; RR COVER
(A) M10X40 FLANGE
0-28151-040-0
09
1
1406-
86
BOLT; RR COVER
(B) M10X40 FLANGE
8-97365-377-0
02
1
1405-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
1405-
117
BOLT; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE
0-28751-030-0
02
1
1405-
119
STUD; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X25 L=40
0-44011-025-0
02
1
1405-
119
STUD; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 L=45
0-44011-030-0
02
1
1405-
121
NUT; PTO FIX
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10 FLANGE MAL
0-91180-210-0
04
1
1405-
256
PIN; KNOCK
(A) OD=10 L=20
8-97135-423-0
02
1
1405-
256
PIN; KNOCK
(B) ID=6 L=12
9-08160-612-0
02
1
1405-
316
MAGNET; TRANS CASE
8-94249-524-2
01
1
1405-
317
COVER; CASE
8-97252-626-0
01
1
1405-
319
BOLT; COVER
M8X20 FLANGE MAL
0-28050-820-0
06
1
1405-
324
STUD; RR COVER
M10X15,M10X40 L=65
8-97365-379-0
01
1
1405-1405
324
STUD; RR COVER
M10X15,M10X40 L=65
8-97365-379-0
02
1
1406-
388
BUSHING; CLU HSG
8-97241-326-2
02
1
1405-
417
PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
1405-
421
COVER; RR,TRANS
8-98020-028-0
01
1
1405-
429
PIN; STRAIGHT
OD=10 L=20
8-97135-423-0
02
1
1405-
430
PLUG; OIL DRAIN
8-97365-374-0
02
1
1405-
434
HOUSING; CLU
8-97237-099-5
01
1
1405-
435
CASE; TRANS
8-97379-374-0
01
1
1405-
586
BEARING; NEEDLE
8-97253-109-0
01
1
1405-
609
BOLT; HSG TO CASE
M10X40 FLANGE
0-28151-040-0
13
1
1405-
610
RETAINER; BRG
8-97241-315-1
01
1
1405-
611
SCREW
M10X27 TORQUES
8-97365-354-0
11
1
1405-
