8-52 — PIPING; AIR CONDITIONING (#13992) — 78 parça
çizim 23614
189 15
BalonParca AdiParca NoAdetTipApplied Date
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 0105-0105
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0105-
189 GROMMET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) 		9-09575-397-0 01 1 0105-

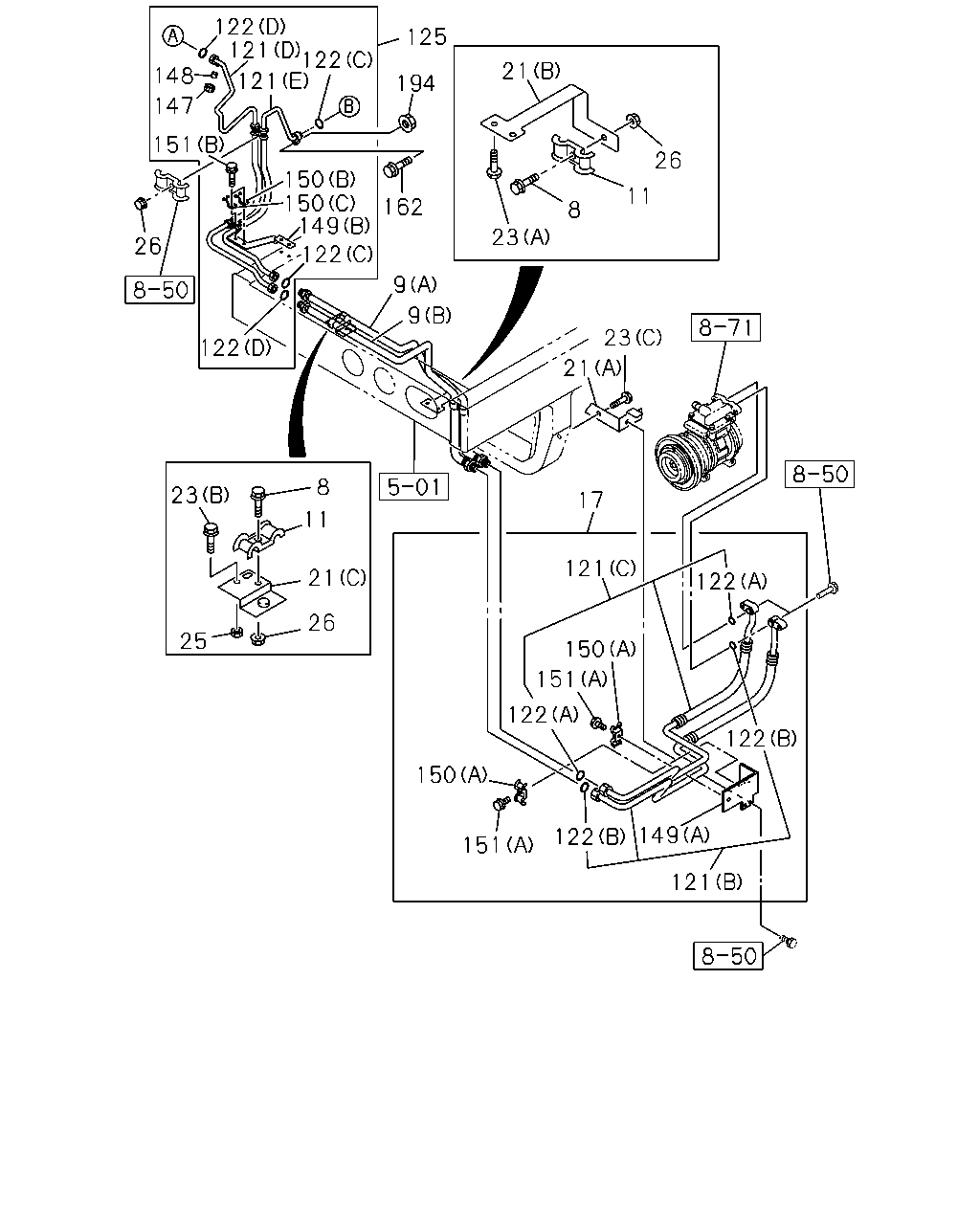

çizim 23731
122 121 122 121 125 21 148 194 147 151 26 150 150 149 122 11 162 8 23 26 9 9 23 21 122 8 23 17 11 121 21 122 26 25 150 151 122 122 150 149 122 151 121
BalonParca AdiParca NoAdetTipApplied Date
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105-
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE 		0-28080-818-0 01 1 0105-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-793-0 01 1 0105-0108
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-817-0 01 1 0109-
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-794-0 01 1 0105-0108
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83567-818-0 01 1 0109-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 0105-
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20 		1-83574-195-1 01 1 0105-
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-852-0 01 1 0105-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83571-777-1 01 1 0105-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83571-930-1 01 1 0105-
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-209-0 01 1 0105-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 FLANGE 		0-28080-816-0 02 1 0105-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-
25 NUT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M8 		9-09110-408-0 02 1 0105-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0105-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0105-
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-795-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-0 01 1 0105-0106
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-880-1 01 1 0107-0302
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-043-0 01 1 0303-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-0 01 1 0105-0106
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-881-1 01 1 0107-0302
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-044-0 01 1 0303-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-860-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-861-0 01 1 0105-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		8-97095-907-0 02 1 0105-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		8-97095-908-0 02 1 0105-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0105-
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0105-
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-704-0 01 1 0105-0106
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-864-0 01 1 0107-0107
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-870-1 01 1 0108-0302
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-969-0 01 1 0303-
147 CAP; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L 		8-97095-910-0 01 1 0107-
148 VALVE; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0107-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-0 01 1 0105-0106
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-227-0 01 1 0107-
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-223-0 01 1 0105-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-246-0 02 1 0105-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-254-0 01 1 0105-
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-255-0 01 1 0105-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83539-328-0 02 1 0105-
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0105-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28680-625-0 02 1 0105-0204
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0205-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-
194 NUT; HOSE
M6 FLANGE 		0-91150-106-0 01 1 0105-

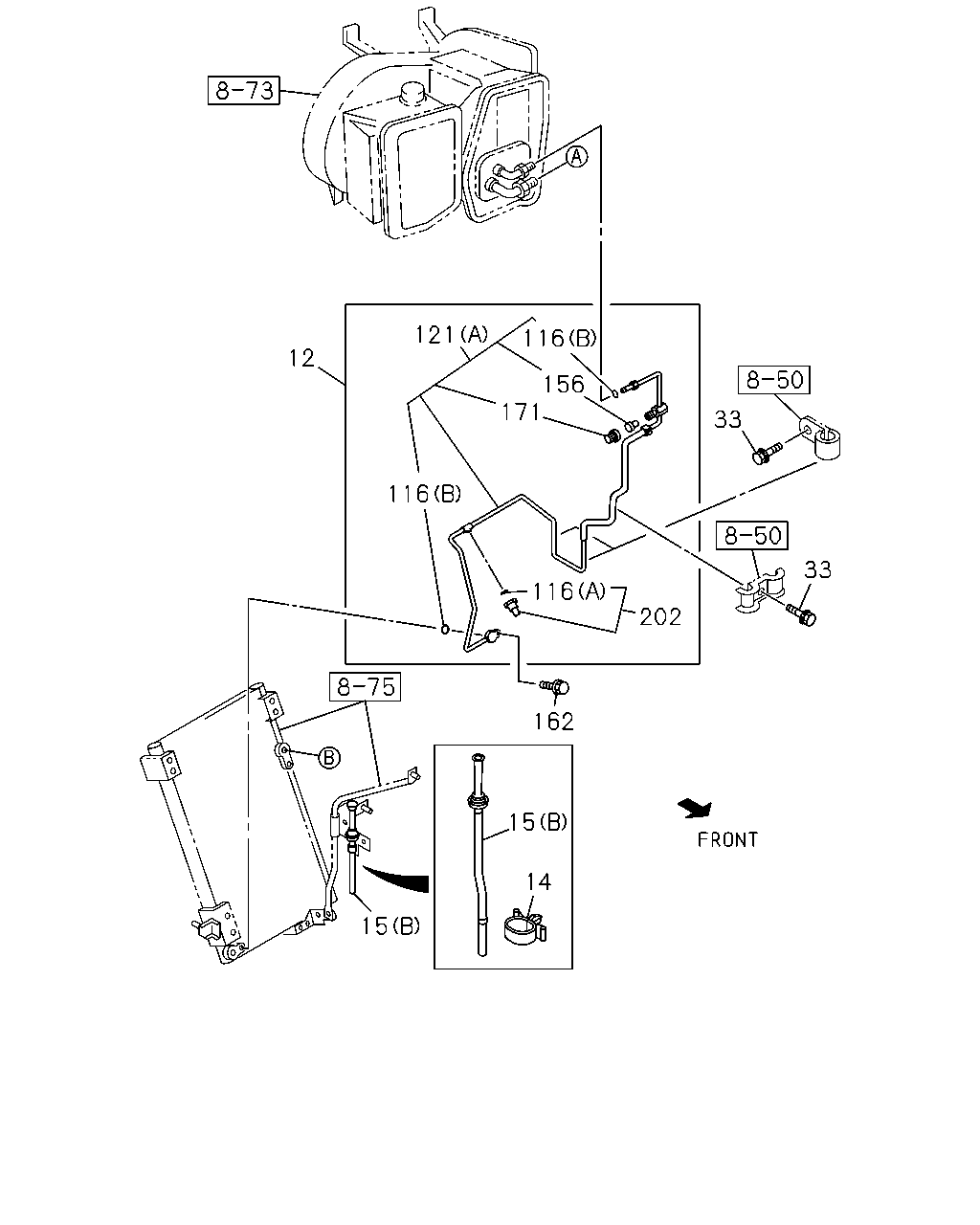

çizim 82554
121 116 12 156 171 33 116 33 116 202 162 15 14 15
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 0105-
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 02 1 0105-0105
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0106-
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-411-0 01 1 0105-0105
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0106-
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0105-
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0105-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4 		8-97095-906-0 02 1 0105-
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97178-772-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83567-795-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-0 01 1 0105-0106
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-880-1 01 1 0107-0302
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83577-043-0 01 1 0303-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-0 01 1 0105-0106
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-881-1 01 1 0107-0302
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83577-044-0 01 1 0303-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83572-860-0 01 1 0105-
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-861-0 01 1 0105-
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0105-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28680-625-0 02 1 0105-0204
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28680-625-0 02 1 0205-0409
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28080-625-0 02 1 0410-
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0105-
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0105-
