Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶

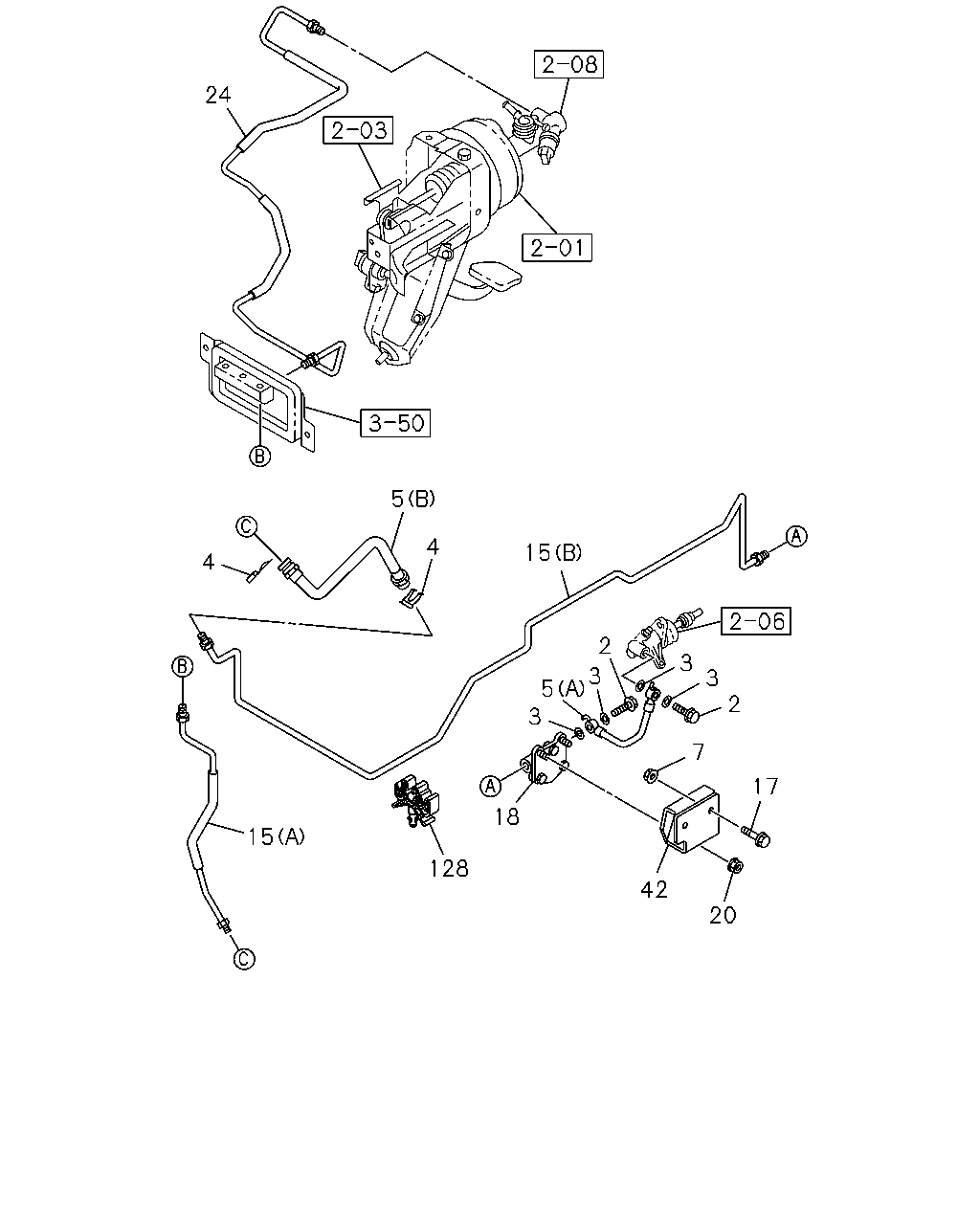

2-05 — CLUTCH PIPING
(#139916) — 16 parça
◀
[205A] NO.1 (15 parça)
[205A] NO.2 (1 parça)
▶
24
4
4
5
15
128
18
3
5
3
2
42
20
17
7
2
3
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,SLAVE CYL
M10X22
8-98014-005-0
02
1
1405-
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
04
1
1405-
4
CLIP; FLEX HOSE,CLU CONT
8-97365-304-0
02
1
1405-
5
HOSE; FLEX,CLU PIPE
(A)
8-98077-611-2
01
1
1405-
5
HOSE; FLEX,CLU PIPE
(B)
8-98083-907-0
01
1
1405-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE MAL
0-91180-108-0
02
1
1405-
15
PIPE; CLU,FLEX HOSE
(B) MAL
8-98041-742-3
01
1
1405-
15
PIPE; CLU,FLEX HOSE
(A) MAL
8-98043-499-3
01
1
1405-
17
BOLT; BRKT
M8X25 FLANGE MAL
0-28650-825-0
02
1
1405-
18
DAMPER ASM; CLU OIL
8-98077-610-1
01
1
1405-
20
NUT; CLU OIL DAMPER
M8 FLANGE MAL
0-91180-108-0
02
1
1405-
24
PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T)
8-98098-684-1
01
1
1405-
24
PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) MAL
8-98098-686-1
01
1
1405-
42
BRACKET; FLEX HOSE,CLU CONT
8-98100-943-1
01
1
1405-
128
CLIP; AIR PIPE
ID=12 & 6.35 & 4.76
8-97202-954-1
01
1
1405-
183
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
183
HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T)
8-98088-023-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
