2-03 — CLUTCH PEDAL AND CONTROL
(#139915) — 49 parça
◀

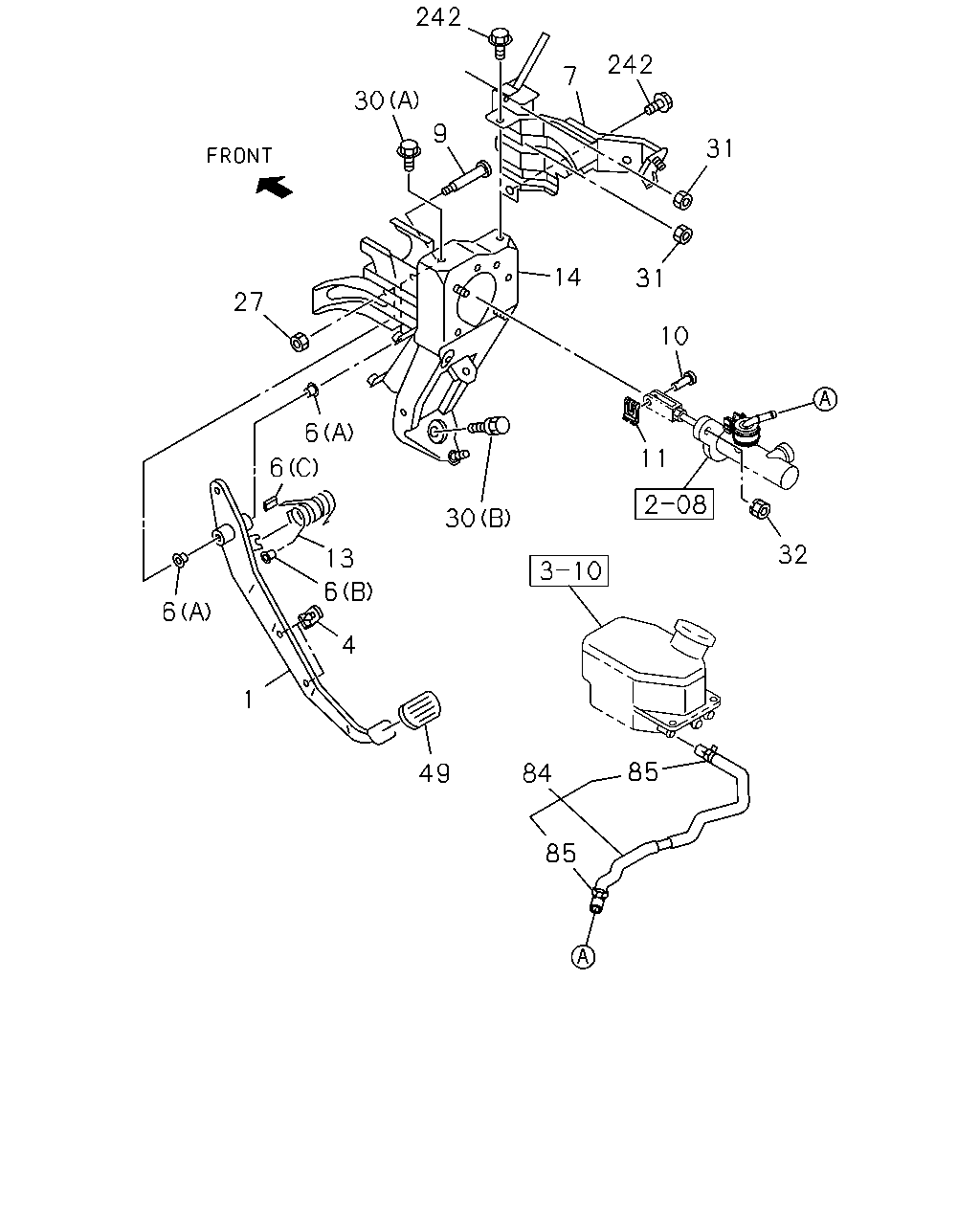

[203A] EXC.POWER ASSIST CLUTCH (24 parça)

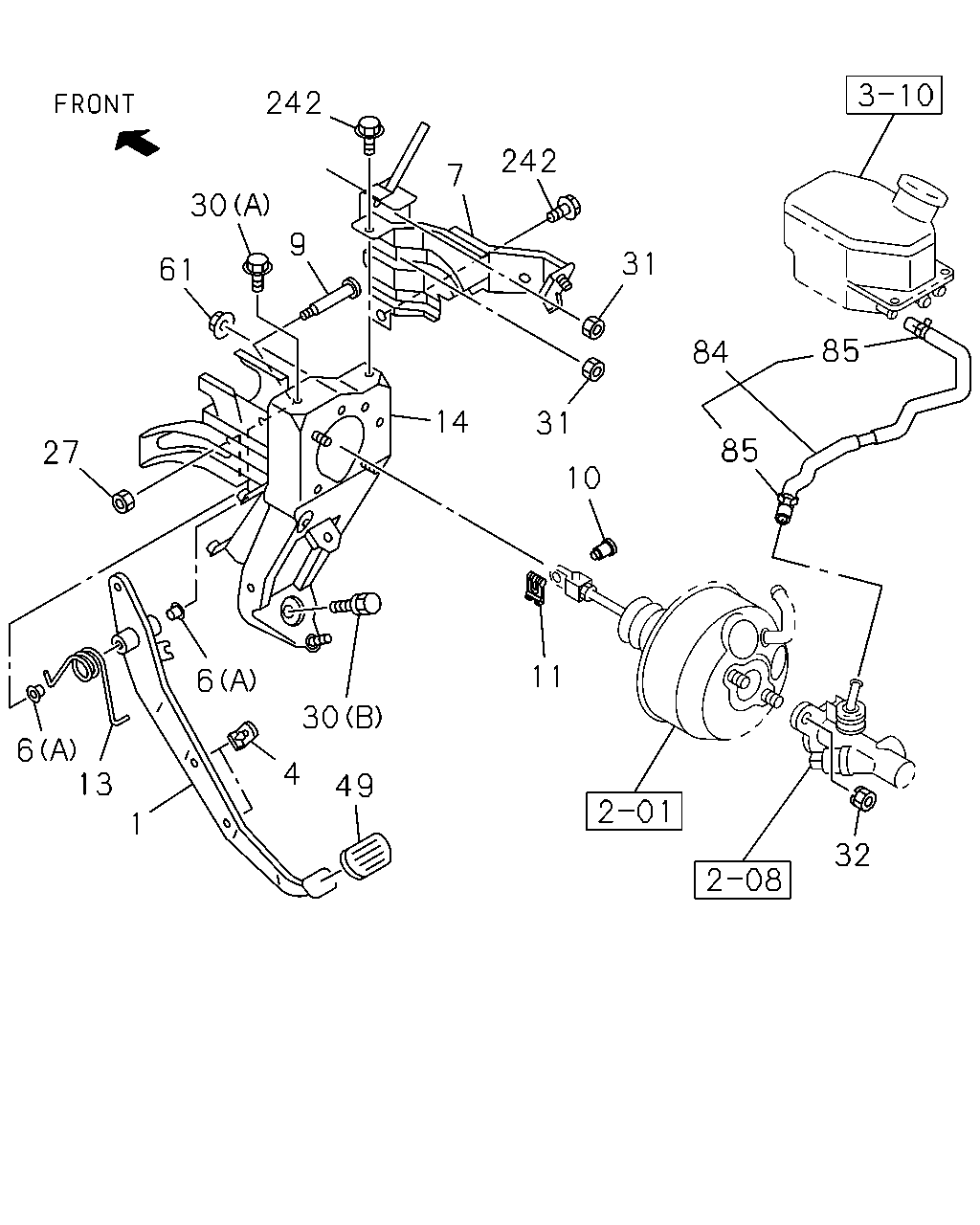

[203A] POWER ASSIST CLUTCH (25 parça)
▶
242
30
9
27
6
6
13
6
4
1
6
49
84
85
85
32
11
10
31
31
242
7
14
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
8-98002-484-0
01
1
1405-
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-754-0
01
1
1405-
4
STOPPER; CLU PEDAL
MAL
8-97853-534-1
02
1
1405-
6
BUSHING; CLU PEDAL
(A)
8-94238-596-0
02
1
1405-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97853-619-0
02
1
1405-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (C)
8-97853-620-0
01
1
1405-
7
BRACKET; CLU PEDAL
8-98029-186-4
01
1
1405-
9
PIN; CLU PEDAL
8-97866-667-0
01
1
1405-
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1405-
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1405-
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98023-621-1
01
1
1405-
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-014-0
01
1
1405-
14
BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T)
8-98002-482-4
01
1
1405-
14
BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-750-0
01
1
1405-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1405-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE MAL
0-28661-025-0
01
1
1405-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER MAL
8-97313-188-0
01
1
1405-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
1405-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1405-
49
RUBBER; PAD,CLU PEDAL
MAL
8-97853-413-2
01
1
1405-
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98218-205-1
01
1
1405-
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98218-207-1
01
1
1405-
85
CLIP; HOSE TO M/CYL
MAL
8-98168-080-0
02
1
1405-
242
BOLT; BRKT,CLUTCH
M8X16 FLANGE
0-28450-816-0
02
1
1405-
242
30
61
9
27
6
30
4
49
13
1
6
11
14
10
31
31
84
85
242
7
85
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
8-98002-484-0
01
1
1405-
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-754-0
01
1
1405-
4
STOPPER; CLU PEDAL
MAL
8-97853-534-1
02
1
1405-
6
BUSHING; CLU PEDAL
(A)
8-94238-596-0
02
1
1405-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97853-619-0
02
1
1405-
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (C)
8-97853-620-0
01
1
1405-
7
BRACKET; CLU PEDAL
8-98029-186-4
01
1
1405-
9
PIN; CLU PEDAL
8-97866-667-0
01
1
1405-
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1405-
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1405-
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98023-621-1
01
1
1405-
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-014-0
01
1
1405-
14
BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T)
8-98002-482-4
01
1
1405-
14
BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-750-0
01
1
1405-
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1405-
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE MAL
0-28661-025-0
01
1
1405-
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER MAL
8-97313-188-0
01
1
1405-
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
1405-
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1405-
49
RUBBER; PAD,CLU PEDAL
MAL
8-97853-413-2
01
1
1405-
61
NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER
8-94279-050-0
04
1
1405-
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98218-205-1
01
1
1405-
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98218-207-1
01
1
1405-
85
CLIP; HOSE TO M/CYL
MAL
8-98168-080-0
02
1
1405-
242
BOLT; BRKT,CLUTCH
M8X16 FLANGE
0-28450-816-0
02
1
1405-
