1-50 — EXHAUST PIPE AND SILENCER (#139911) — 93 parça
çizim 420034
2 44 143 1 8 36 385 172 532 38 25 562
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MAL 		8-98074-108-1 01 1 1405-
2 GASKET; PIPE TO MANIF
MAL 		8-97381-455-0 01 1 1405-
8 BRACKET; EXH PIPE 8-97365-228-0 01 1 1405-
25 PIPE; EXH,BRK VLV TO SILENCER
MAL 		8-98074-109-0 01 1 1405-
36 NUT; EXH PIPE
(B) M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1405-
38 NUT; SILENCER
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
44 BOLT; BRKT
M10X40 FLANGE 		0-28051-040-0 01 1 1405-
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1405-
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1405-
172 BOLT
M10X35 FLANGE MAL 		0-28651-035-0 02 1 1405-
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1405-
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1405-
532 NUT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
532 NUT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
562 PLATE; STUD,BOLT
M8X70 		0-10855-870-0 04 1 1405-

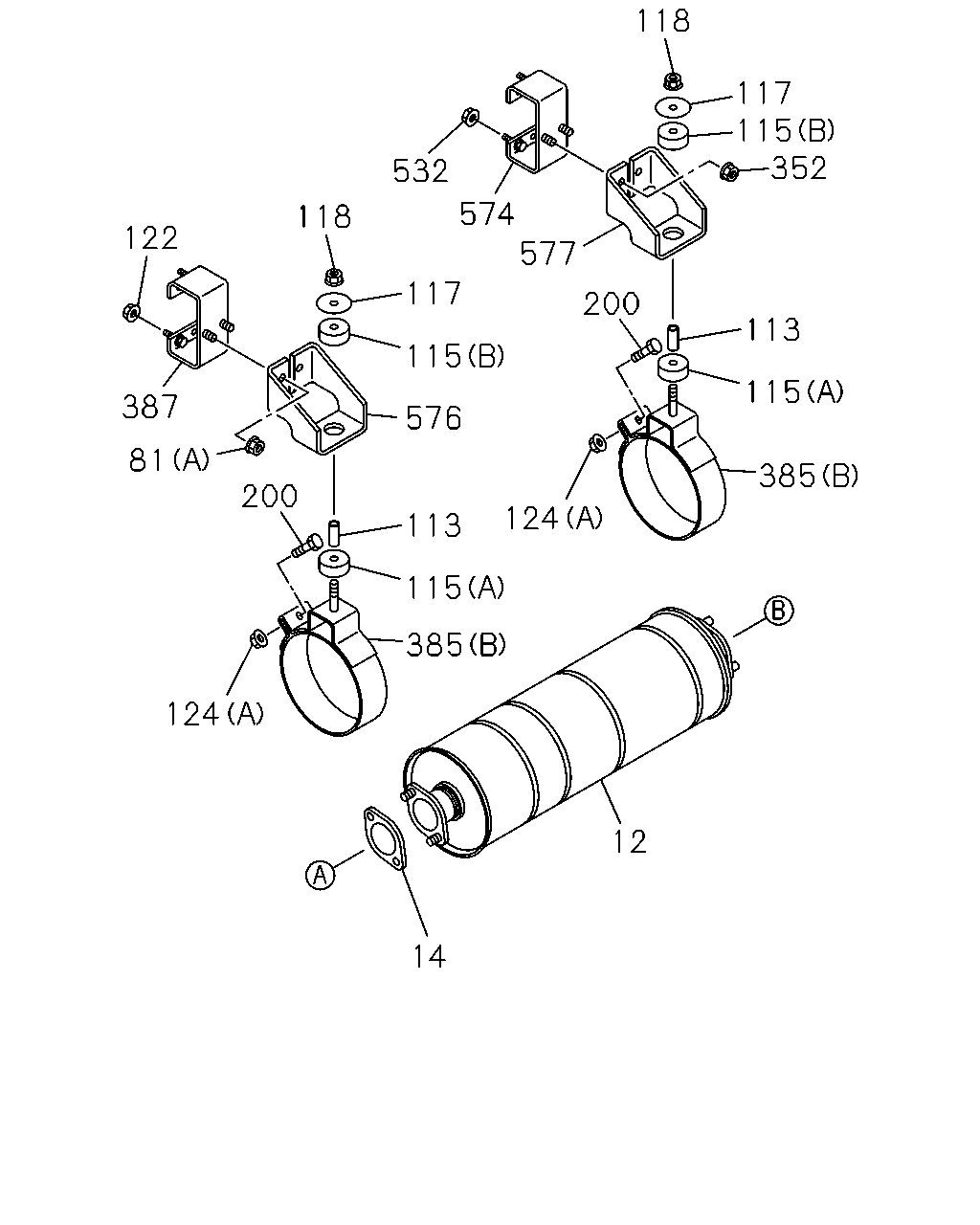

çizim 420340
14 12 124 385 115 113 200 81 387 122 118 532 117 115 576 124 385 115 113 352 115 117 118 200 577 574
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-98090-839-0 01 1 1405-
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 MAL 		8-94328-352-0 01 1 1405-
81 NUT; BRKT
(B) M8 FLANGE MAL 		0-91180-108-0 02 1 1405-
81 NUT; BRKT
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 02 1 1405-
115 RUBBER; MTG,SILENCER
(A) 		8-97379-882-0 02 1 1405-
115 RUBBER; MTG,SILENCER
(B) 		8-97379-927-0 02 1 1405-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 02 1 1405-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 02 1 1405-
122 NUT; HANGER BRKT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1405-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1405-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1405-
200 BOLT; SUPPORT RUBBER
M8X45 W/LK WASHER 		0-50540-845-0 02 1 1405-
352 NUT; BRKT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
385 BRACKET; SILENCER MTG
(B) 		8-97207-224-0 02 1 1405-
385 BRACKET; SILENCER MTG
(A) 		8-98074-495-1 01 1 1405-
387 SPACER; BRKT 8-98044-774-0 01 1 1405-
532 NUT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
532 NUT
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
574 SPACER; DPD 8-98044-774-0 01 1 1405-
576 BRACKET; DPD FRT TO FRAME 8-98074-124-1 01 1 1405-
577 BRACKET; DPD RR TO FRAME 8-98074-124-1 01 1 1405-

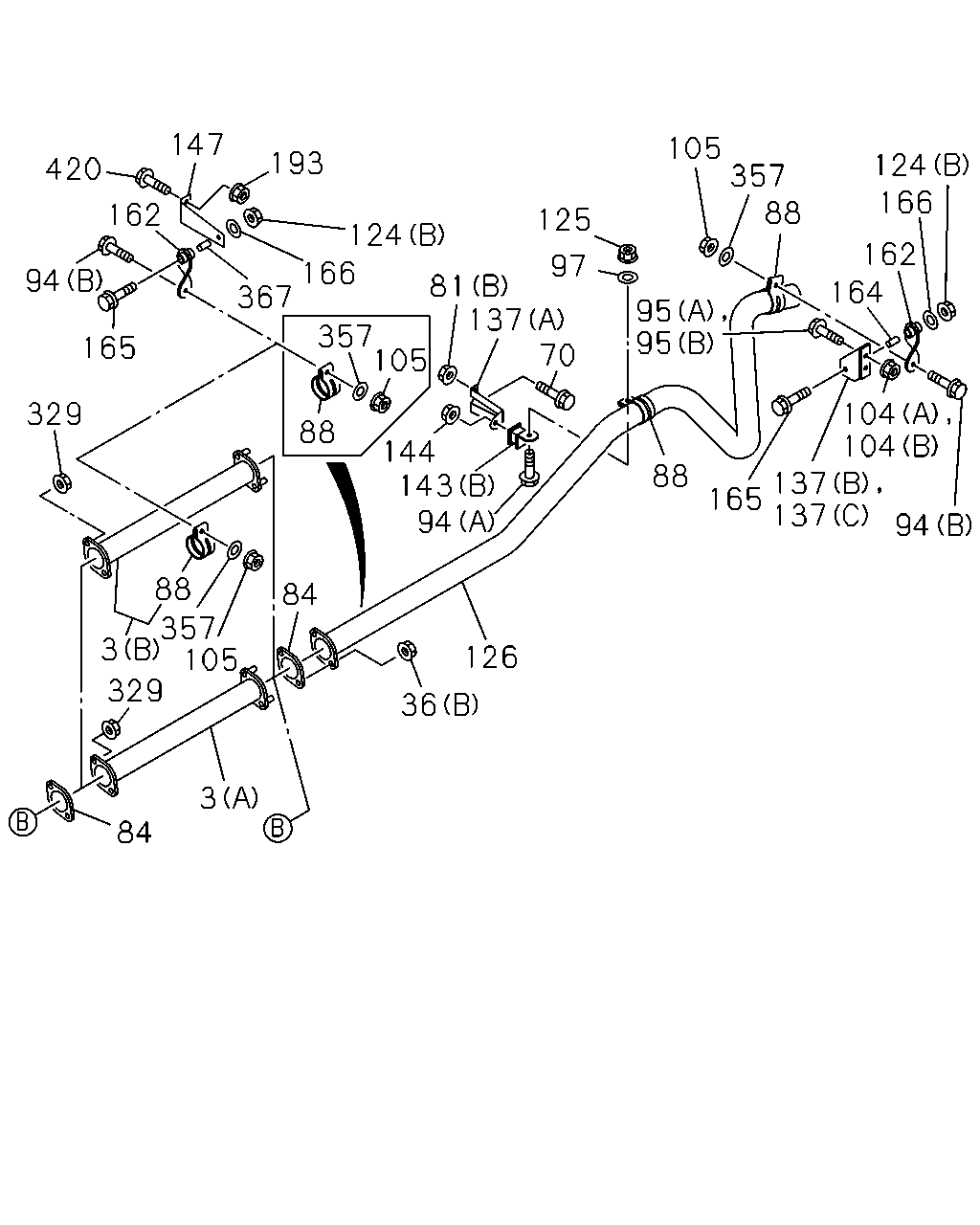

çizim 421294
147 420 162 94 165 329 88 357 3 329 84 3 105 84 36 126 94 143 144 88 105 357 367 166 124 193 125 81 137 70 97 88 95 95 105 357 88 124 166 162 164 104 104 137 165 137 94
BalonParca AdiParca NoAdetTipApplied Date
3 PIPE; EXH,CENTER
WHEEL BASE 3800MM(38W) (B) MAL 		8-98134-199-0 01 1 1405-
3 PIPE; EXH,CENTER
WHEEL BASE 4100MM(41W) (A) MAL 		8-97307-804-0 01 1 1405-1508
3 PIPE; EXH,CENTER
WHEEL BASE 4100MM(41W) (A) MAL 		8-98283-853-0 01 1 1509-
36 NUT; EXH PIPE
(B) M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1405-
70 BOLT; BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 1405-
81 NUT; BRKT
(B) M8 FLANGE MAL 		0-91180-108-0 02 1 1405-
81 NUT; BRKT
(A) M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
84 GASKET; EXH PIPE
ID=64.7 MAL 		8-94328-352-0 01 1 1405-
84 GASKET; EXH PIPE
ID=64.7 MAL 		8-94328-352-0 01 1 1405-
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1405-1508
88 CLAMP; EXH PIPE
WHEEL BASE 4100MM(41W) MAL 		8-97373-158-0 01 1 1405-1508
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1405-1508
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1405-1508
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1509-
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1509-
88 CLAMP; EXH PIPE
MAL 		8-97373-158-0 01 1 1509-
94 BOLT; CLAMP
(A) M10X50 FLANGE 		8-97301-165-0 01 1 1405-
94 BOLT; CLAMP
(B) M10X45 FLANGE MAL 		0-28051-045-0 01 1 1405-
94 BOLT; CLAMP
(B) M10X45 FLANGE MAL 		0-28051-045-0 01 1 1405-
95 BOLT; BRKT
WHEEL BASE 3800MM(38W) (B) M8X25 FLANGE MAL 		0-28650-825-0 02 1 1405-
95 BOLT; BRKT
WHEEL BASE 4100MM(41W) (A) M10X30 FLANGE 		0-28651-030-0 02 1 1405-
97 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1405-
104 NUT; BRKT
WHEEL BASE 3800MM(38W) (B) M8 FLANGE MAL 		0-91180-108-0 02 1 1405-
104 NUT; BRKT
WHEEL BASE 4100MM(41W) (A) M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 01 1 1405-
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 01 1 1405-
124 NUT; SUPPORT RUBBER
(A) M8 		0-91110-508-0 02 1 1405-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1405-
124 NUT; SUPPORT RUBBER
(B) M10 FLANGE MAL 		0-91180-110-0 01 1 1405-
125 NUT; CLAMP
M10 MAL 		0-91110-510-0 01 1 1405-
126 PIPE; EXH,RR
WHEEL BASE 3800MM(38W) MAL 		8-98134-798-0 01 1 1405-
126 PIPE; EXH,RR
WHEEL BASE 4100MM(41W) MAL 		8-98134-346-0 01 1 1405-1508
126 PIPE; EXH,RR
WHEEL BASE 4100MM(41W) 		8-98283-855-0 01 1 1509-
137 BRACKET; TAIL PIPE
WHEEL BASE 3800MM(38W) (B) 		8-97116-588-2 01 1 1405-
137 BRACKET; TAIL PIPE
WHEEL BASE 4100MM(41W) (C) 		8-97185-801-0 01 1 1405-
137 BRACKET; TAIL PIPE
(A) 		8-97096-651-0 01 1 1405-
143 RUBBER; SUPPORT
(A) 		8-97080-694-0 01 1 1405-
143 RUBBER; SUPPORT
(B) 		8-98034-767-0 01 1 1405-
144 NUT; MTG RUBBER
M8 FLANGE MAL 		0-91180-108-0 01 1 1405-
147 BRACKET; VERTICAL PIPE 8-98117-604-0 01 1 1405-
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1405-
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-98034-765-0 01 1 1405-
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 1405-
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE MAL 		0-28051-070-0 01 1 1405-
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE MAL 		0-28051-070-0 01 1 1405-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1405-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 1405-
193 NUT; BRKT,VERTICAL PIPE
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
329 NUT; EXH PIPE TO PIPE
M10 FLANGE MAL 		0-91180-110-0 02 1 1405-
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1405-
357 WASHER; PL,CLAMP
ID=10.5 OD=22 		0-91614-610-0 01 1 1405-
367 COLLAR; DIST,SUPPORT RUBBER
L=37.5 		9-22151-217-0 01 1 1405-
420 BOLT; BRKT,VERTICAL PIPE
M10X30 FLANGE 		0-28651-030-0 02 1 1405-
