Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#139904) — 22 parça
◀
[110A] NO.1 (10 parça)
[110A] NO.2 (12 parça)
▶

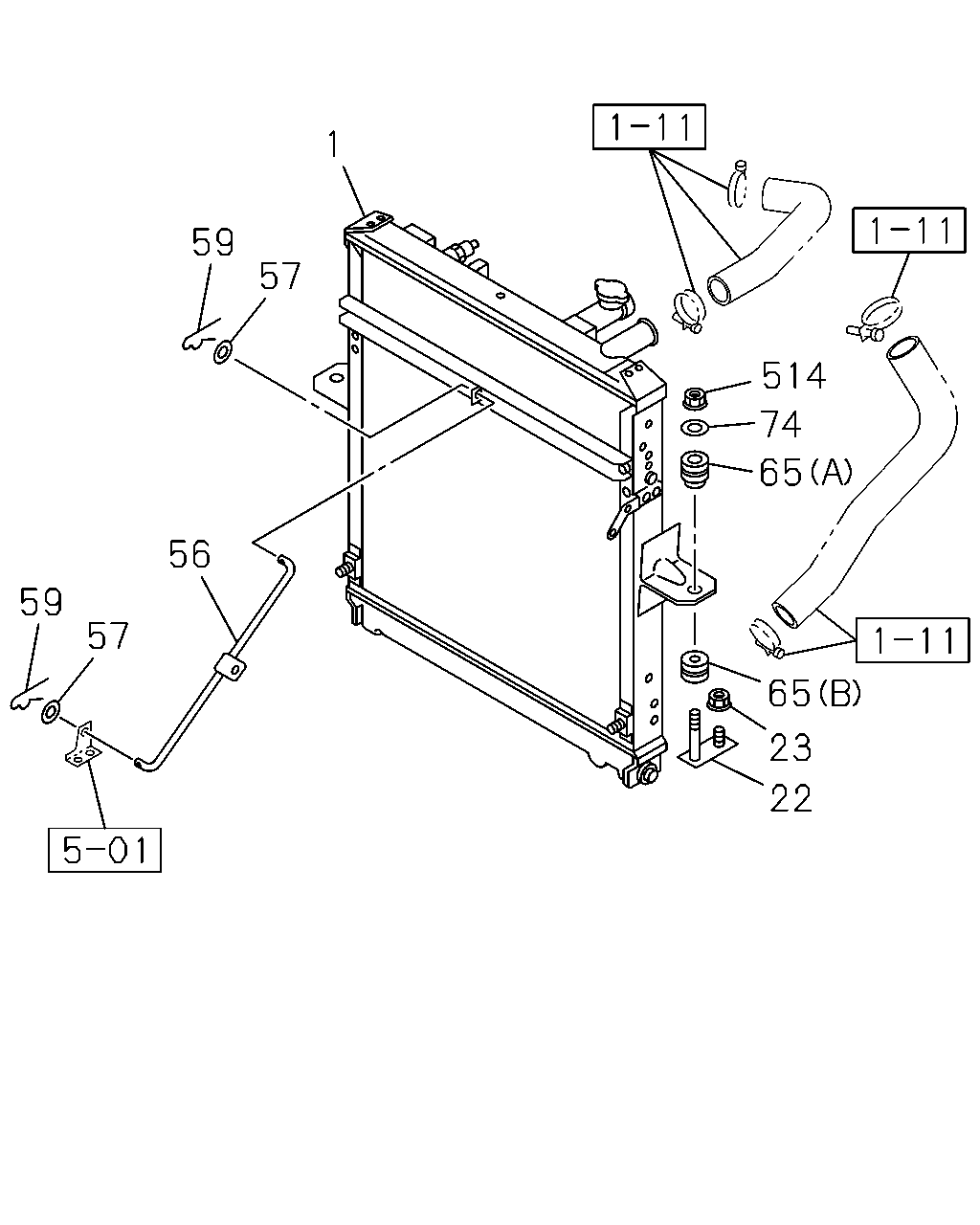

1
59
57
56
59
57
22
23
65
65
74
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98174-420-0
01
1
1405-
22
BRACKET; RAD MTG
8-97330-527-1
02
1
1405-
23
NUT; RAD MTG
M8 FLANGE MAL
0-91180-108-0
02
1
1405-
56
STAY; RAD
8-98006-490-2
01
1
1405-
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1405-
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1405-
65
INSULATOR; RAD
(A) MAL
8-94249-346-0
02
1
1405-
65
INSULATOR; RAD
(B) MAL
8-94249-347-0
02
1
1405-
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1405-
514
NUT; RAD
M8 FLANGE MAL
0-91180-108-0
02
1
1405-

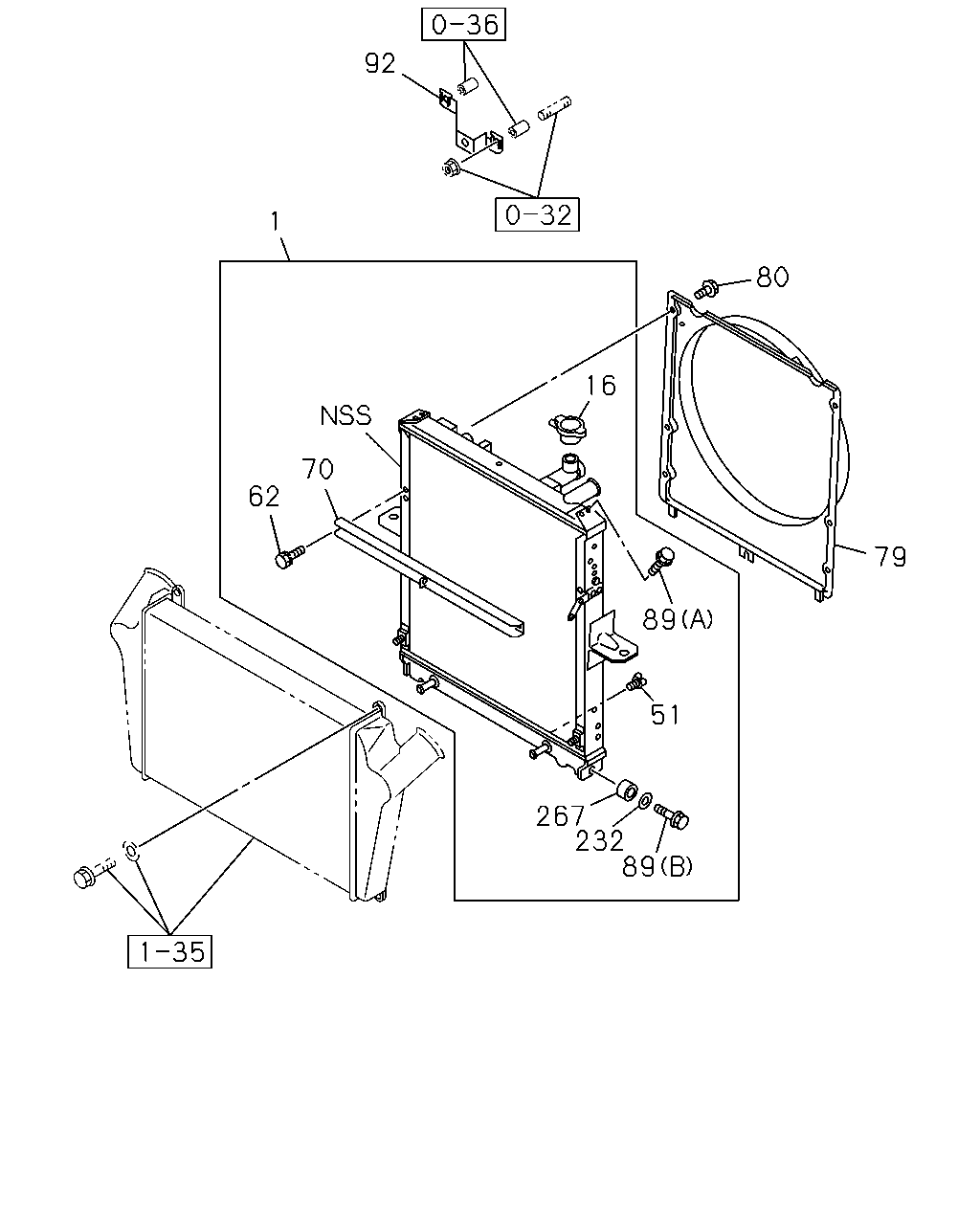

1
70
62
16
80
79
89
51
267
232
89
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98174-420-0
01
1
1405-
16
CAP; RAD
8-98096-226-0
01
1
1405-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1405-
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1405-
70
STAY; RAD
8-98018-941-0
01
1
1405-
79
GUIDE; FAN,RAD
8-98172-924-0
01
1
1405-
80
BOLT; FAN GUIDE
M6X16
1-21559-481-0
04
1
1405-
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1405-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1405-
92
BRACKET; FAN GUIDE
8-97382-827-2
01
1
1405-
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1405-
267
RUBBER; CUSHION
1-21467-023-0
02
1
1405-
