Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶
0-52 — OIL AND VACUUM PIPING; ENGINE
(#1399) — 51 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
◀

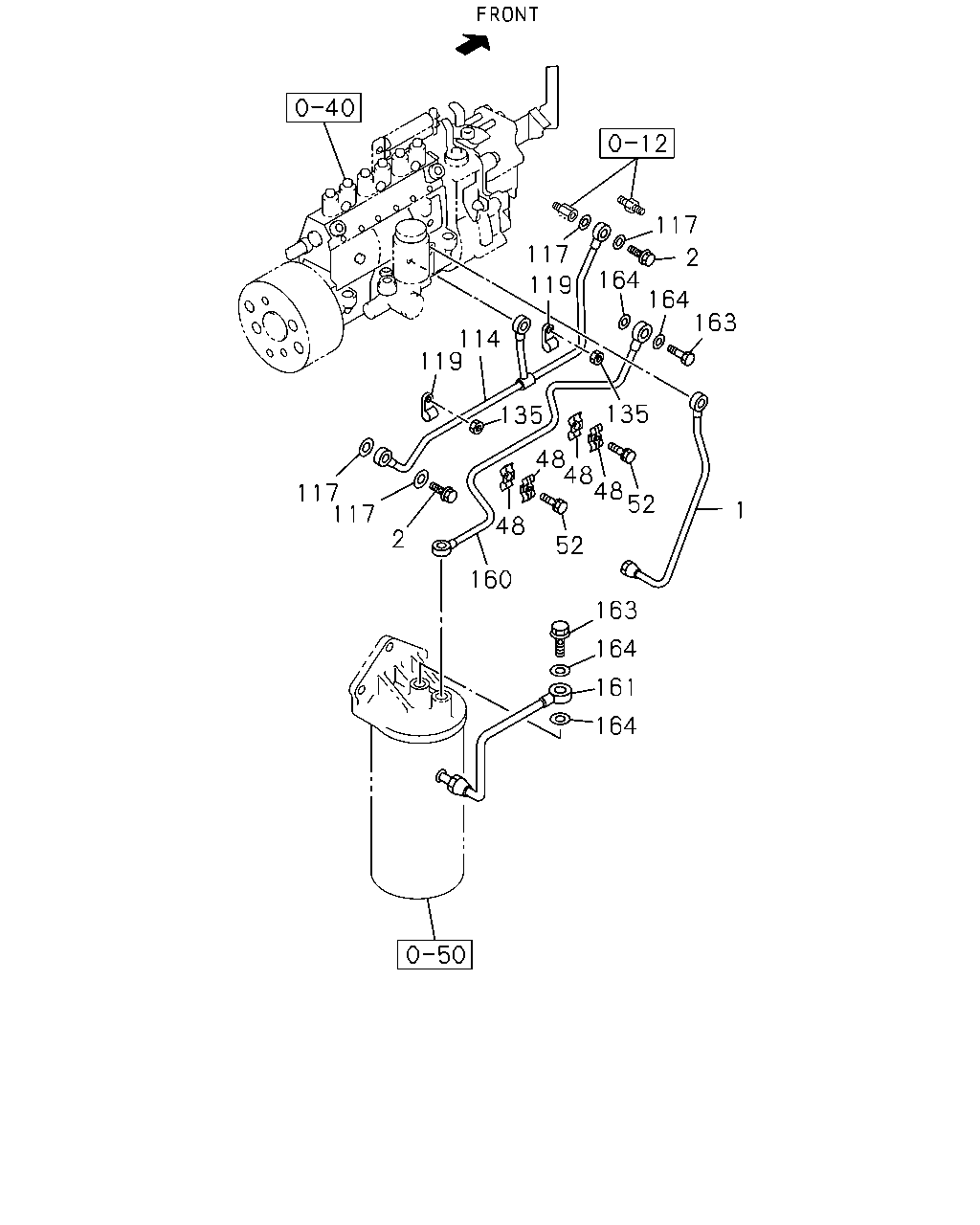

[052A] NO.1 (18 parça)
[052A] NO.3 (18 parça)
[052A] NO.2 (15 parça)
▶
117
117
2
164
164
163
119
114
119
135
135
48
48
48
2
117
117
1
48
2
52
160
163
164
161
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; OIL,INJ PUMP TO C/BL
1-13312-747-0
01
1
9203-9212
●
●
1
PIPE; OIL,INJ PUMP TO C/BL
1-13313-351-0
01
1
9301-
●
●
2
BOLT; EYE,OIL PIPE
M10X21 FLANGE
1-09675-077-0
02
1
9203-
●
●
48
CLIP; OIL PIPE
ID=10 & 6 L=20
1-09700-404-0
02
1
9203-
●
●
48
CLIP; OIL PIPE
ID=10 & 6 L=20 W/NUT
1-09700-405-0
02
1
9203-
●
●
52
BOLT; OIL PIPE CLIP
M6X20 W/LK WASHER
9-01900-620-0
02
1
9203-9204
●
●
52
BOLT; OIL PIPE CLIP
M6X20 W/LK WASHER
0-50040-620-0
02
1
9205-
●
●
114
PIPE ASM; OIL,BODY
1-13312-349-0
01
1
9203-
●
●
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2
1-09630-083-0
04
1
9203-
●
●
119
CLIP; OIL PIPE,BODY TO CMPR
ID=14.5
9-09917-208-1
02
1
9203-
●
●
135
NUT; CLIP
M6 FLANGE
0-91150-106-0
02
1
9203-
●
●
160
PIPE; OIL,PARTIAL FILTER FEED
1-13313-165-0
01
1
9203-
●
●
161
PIPE; OIL,PARTIAL FILTER RETURN
1-13312-265-0
01
1
9203-9212
●
●
161
PIPE; OIL,PARTIAL FILTER RETURN
1-13313-352-0
01
1
9301-
●
●
163
BOLT; EYE,OIL PIPE,PARTIAL FILTER
M14X27 FLANGE
1-09675-086-0
02
1
9203-
●
●
163
BOLT; EYE,OIL PIPE,PARTIAL FILTER
M12X27 FLANGE
1-09675-160-0
01
1
9203-
●
●
164
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
1-09630-084-0
02
1
9203-
●
●
164
GASKET; EYE BOLT,OIL PIPE,FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
1-09630-085-0
04
1
9203-
●
●
448
279
278
276
430
449
448
315
279
277
434
449
276
434
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
276
WASHER; PL,OIL FILTER
CAB BACK OIL FILLER<E2J> ID=8.4 OD=18
9-09160-608-0
04
1
9203-9312
●
277
CAP; OIL FILLER
CAB BACK OIL FILLER<E2J>
1-11750-020-0
01
1
9203-
●
278
HOSE; RUBBER,OIL FILLER
CAB BACK OIL FILLER<E2J>
1-09360-812-0
01
1
9203-
●
279
CLIP; RUBBER HOSE
CAB BACK OIL FILLER<E2J> ID=42
9-09915-042-1
02
1
9203-
●
315
GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). CAB BACK OIL FILLER<E2J> ID=35.7
1-09623-026-0
01
1
9203-
●
●
430
WASHER; LK,BRKT,OIL FILLER
CAB BACK OIL FILLER<E2J> ID=8.4 OD=18
9-09164-608-0
01
1
9203-
●
●
434
NUT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8
9-09110-408-0
02
1
9203-9204
●
434
NUT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8
9-09110-408-0
05
1
9205-9312
●
434
NUT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8 FLANGE
0-91150-108-0
05
1
9401-
●
●
448
FILLER; OIL
CAB BACK OIL FILLER<E2J> (B)
1-11741-108-0
01
1
9203-
●
●
448
FILLER; OIL
CAB BACK OIL FILLER<E2J> (A)
1-11741-143-1
01
1
9203-
●
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X50
0-10805-850-0
01
1
9203-
●
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X25 FLANGE
0-28080-825-0
04
1
9203-9204
●
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X25 FLANGE
0-28080-825-0
05
1
9205-9312
●
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X25 FLANGE
0-28080-825-0
02
1
9401-
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X25 W/LK&PL WASHER
0-50140-825-0
01
1
9203-
●
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X20 W/LK WASHER
0-50040-820-0
02
1
9203-9204
●
449
BOLT; OIL FILLER
CAB BACK OIL FILLER<E2J> M8X20 FLANGE
0-28080-820-0
03
1
9401-
●
40
147
63
147
35
78
40
149
78
40
147
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
35
VALVE ASM; DRAIN BACK
1-13260-086-0
01
1
9203-
●
●
40
BOLT; OIL PIPE
M8X25 W/LK WASHER
0-50040-825-0
02
1
9203-
●
40
BOLT; OIL PIPE
M8X32 W/LK WASHER
0-50040-832-0
02
1
9203-
●
40
BOLT; OIL PIPE
M10X35 W/LK WASHER
0-50051-035-0
02
1
9203-
●
62
PIPE; OIL,PUMP TO C/BL
1-13312-337-0
01
1
9203-
●
62
PIPE; OIL,PUMP TO C/BL
1-13312-338-0
01
1
9203-
●
63
PIPE; OIL,TURBOCHARGER FEED
1-13313-185-1
01
1
9203-9212
●
63
PIPE; OIL,TURBOCHARGER FEED
1-13313-389-0
01
1
9301-
●
78
BOLT; OIL PIPE,PUMP TO BODY
M8X20 W/LK WASHER
0-50040-820-0
02
1
9203-
●
●
78
BOLT; OIL PIPE,PUMP TO BODY
M8X100 W/LK&PL WASHER
0-50140-800-0
02
1
9203-
●
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-09623-297-0
01
1
9203-
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.3
1-09623-481-0
01
1
9203-
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
1-09637-055-0
01
1
9203-9510
●
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
1-09637-058-1
01
1
9511-
●
149
PIPE; OIL RETURN,TURBOCHARGER
1-13312-502-0
01
1
9203-
●
