◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#139899) — 28 parça
çizim 420197
51
BalonParca AdiParca NoAdetTipApplied Date
51 COVER SET; DUST ENGAGE SW STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97179-778-0 01 1 -

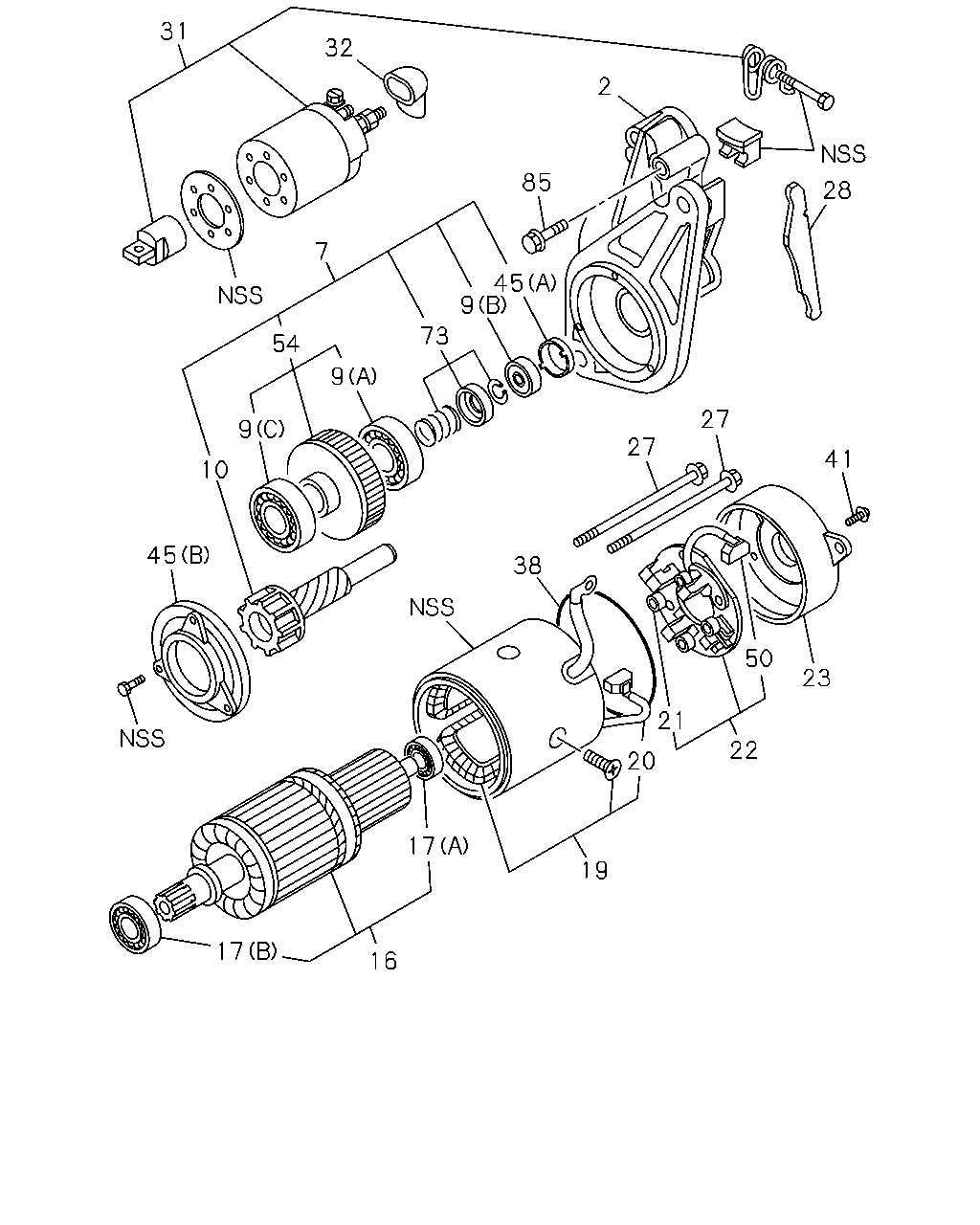

çizim 420262
17 16 17 19 20 21 22 50 23 41 27 27 38 45 10 9 54 9 73 9 7 45 85 2 28 32 31
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-98055-786-1 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-98222-018-2 		8-98222-100-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(C), MAL ASM PART: A = 8-98222-018-2 		8-97025-673-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(A), MAL ASM PART: A = 8-98222-018-2 		8-97025-674-0 01 1 -
9 BEARING; GEAR SHAFT STARTER
(B), MAL ASM PART: A = 8-98222-018-2 		8-97025-676-0 01 1 -
10 SHAFT; GEAR STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97179-772-0 01 1 -
16 ARMATURE; STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97192-299-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A), MAL ASM PART: A = 8-98222-018-2 		8-94228-436-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B), MAL ASM PART: A = 8-98222-018-2 		8-97030-387-0 01 1 -
19 COIL; FIELD,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-98055-295-0 01 1 -
20 BRUSH; (+),STARTER
MAL ASM PART: A = 8-98222-018-2 		8-98055-296-0 02 1 -
21 SPRING; BRUSH HOLDER STARTER
MAL ASM PART: A = 8-98222-018-2 		8-94152-972-0 04 1 -
22 HOLDER; BRUSH STARTER
MAL ASM PART: A = 8-98222-018-2 		8-98055-298-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-98222-018-2 		8-98246-185-0 01 1 -
27 BOLT; THROUGH,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97192-423-0 02 1 -
28 LEVER; SHIFT,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97179-776-0 01 1 -
31 SWITCH; ENGAGE STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97161-789-0 01 1 -1507
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-98222-018-2 		8-98322-549-0 01 1 1508-
32 COVER; RUBBER,STARTER
MAL ASM PART: A = 8-98222-018-2 		5-81129-069-0 01 1 -
38 GASKET; RR COVER,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97115-763-0 01 1 -
41 SCREW; RR COVER,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-97117-107-0 02 1 -
45 RETAINER; BEARING,STARTER
(A), MAL ASM PART: A = 8-98222-018-2 		8-94435-567-0 01 1 -
45 RETAINER; BEARING,STARTER
(B), MAL ASM PART: A = 8-98222-018-2 		8-97179-774-0 01 1 -
50 BRUSH; (-),STARTER
ASM PART: A = 8-98222-018-2 		8-98055-297-0 02 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-98222-018-2 		8-98222-101-0 01 1 -
73 STOPPER SET; PINION
MAL ASM PART: A = 8-98222-018-2 		8-97030-396-0 01 1 -
85 BOLT; ENGAGE SW FIX,STARTER
MAL ASM PART: A = 8-98222-018-2 		8-94408-500-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
