Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

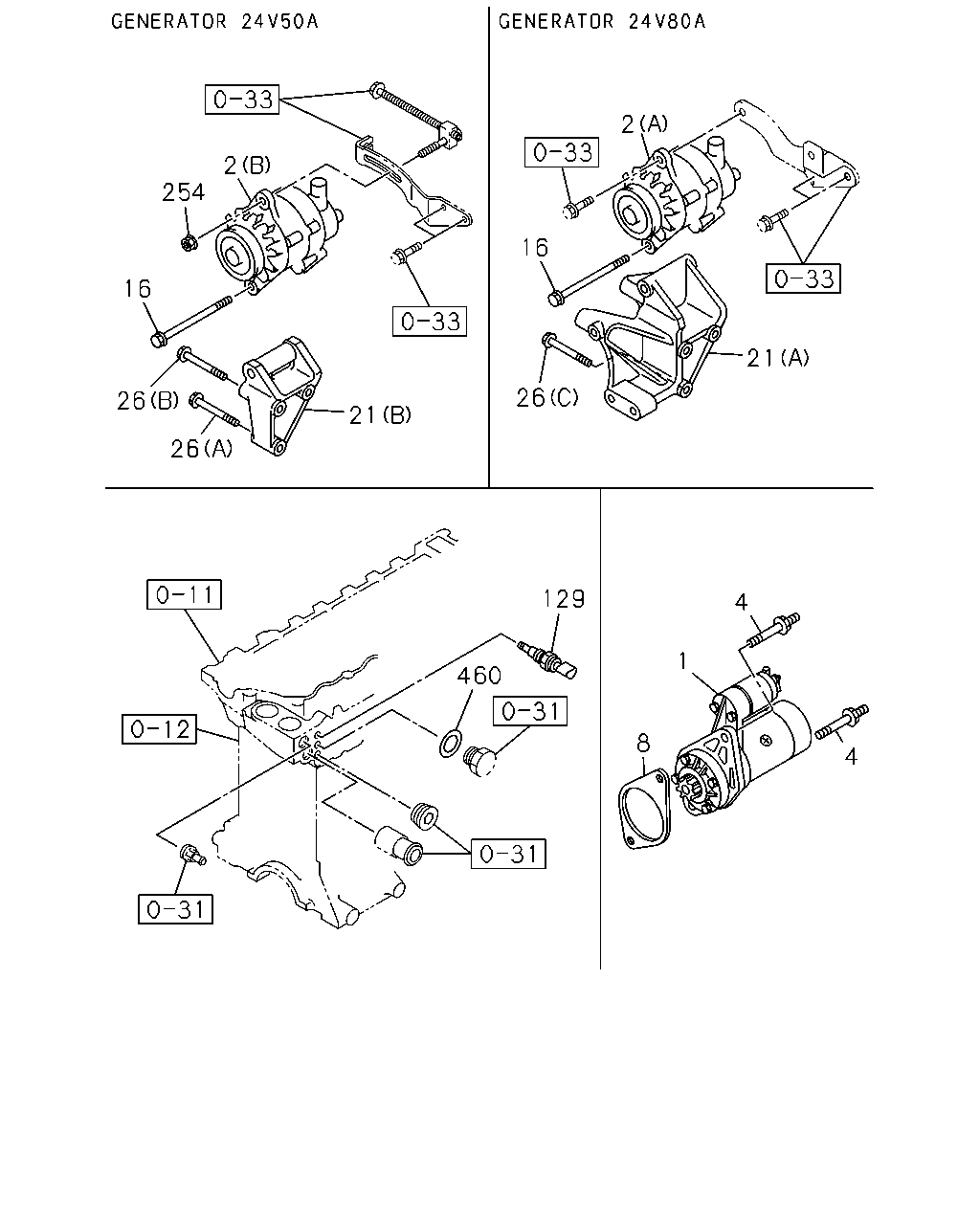

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#139897) — 36 parça
◀
[060A] BATTERY CABLE BRACKET (7 parça)
[060A] STARTER,GENERATOR AND OTHER PARTS (15 parça)
[060A] RELAY (3 parça)
[060A] ENG CONTROL UNIT AND DRM (7 parça)

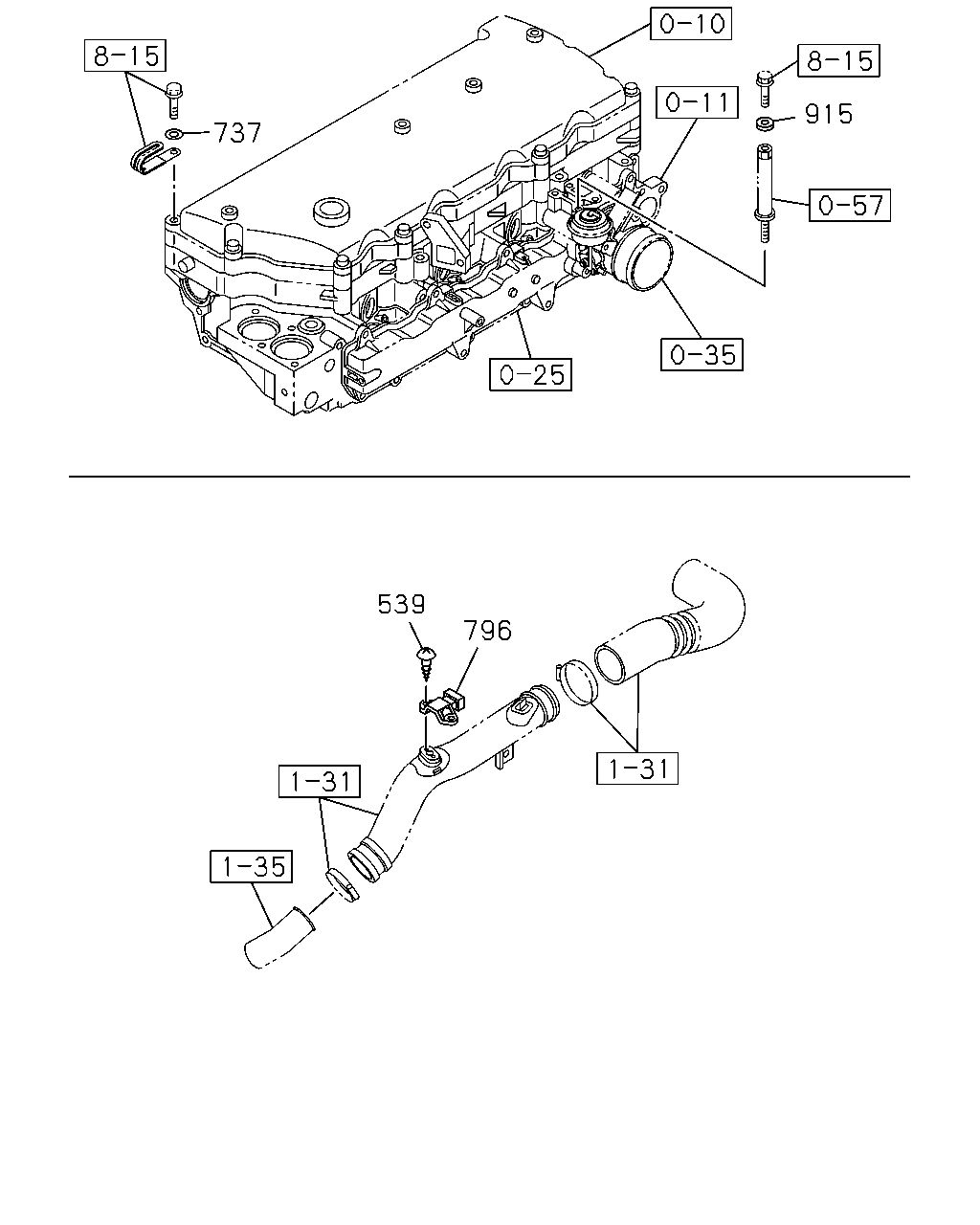

[060A] SENSOR AND OTHER PARTS (4 parça)
▶
1
395
393
393
395
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-2
01
1
1405-
393
BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (B)
8-98018-251-1
02
1
1405-
393
BRACKET; HARNESS TO BODY
BATTERY 115E41L<8MA> (C)
8-98018-894-1
01
1
1405-
393
BRACKET; HARNESS TO BODY
(A)
8-98041-946-1
01
1
1405-
393
BRACKET; HARNESS TO BODY
EXC. BATTERY 115E41L<8MA> (B)
8-98018-251-1
01
1
1405-
395
NUT; BRKT FIX
BATTERY 115E41L<8MA> M8 FLANGE MAL
0-91180-108-0
02
1
1405-
395
NUT; BRKT FIX
M8 FLANGE MAL
0-91180-108-0
01
1
1405-
2
254
16
26
26
21
129
460
16
26
21
4
1
8
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-2
01
1
1405-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A
8-98075-026-0
01
1
1405-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A
8-98029-892-2
01
1
1405-
4
BOLT; STARTER
M10X15,M14X75 L=103
8-97212-602-0
02
1
1405-
8
SPACER; STARTER
8-97350-947-0
01
1
1405-
16
BOLT; GEN
M10X120 FLANGE
0-28056-012-0
01
1
1405-
21
BRACKET; GEN
GENERATOR 24V50A(6QN) (B)
8-97075-884-2
01
1
1405-
21
BRACKET; GEN
GENERATOR 24V80A(7YN) (A)
8-98036-551-0
01
1
1405-
26
BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (A) M10X50 FLANGE
0-28151-050-0
01
1
1405-
26
BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE
0-28151-070-0
02
1
1405-
26
BOLT; GEN BRKT
GENERATOR 24V80A(7YN) (C) M10X90 FLANGE
0-28151-090-0
03
1
1405-
129
SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1405-1503
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1504-
254
NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) M8 FLANGE
0-91180-208-0
01
1
1405-
460
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
01
1
1405-
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
24V 50A
8-97264-947-0
01
1
1405-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1405-1501
46
RELAY; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 24V 50A
8-97173-947-0
01
1
1502-
748
613
601
897
606
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
601
NUT; UNIT
M6 W/DISHED WASHER
8-98029-921-0
04
1
1405-
606
BRACKET; CONT UNIT
8-98114-583-2
01
1
1405-
613
CONTROL UNIT; ENG
GLOW SYSTEM DELETE<7RK>
8-98299-047-0
01
1
1502-
613
CONTROL UNIT; ENG
8-98229-602-0
01
1
1405-1501
613
CONTROL UNIT; ENG
EXC. GLOW SYSTEM DELETE<7RK>
8-98229-602-0
01
1
1502-
748
BOLT; CONT UNIT
M6X12 FLANGE MAL
0-28050-612-0
03
1
1405-
897
DRM
8-98082-814-7
01
1
1405-
737
915
796
539
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
539
SCREW; SENSOR
M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1405-
737
WASHER; PL
ID=6.4
0-91610-606-0
01
1
1405-
796
SENSOR; MAP
8-98009-418-0
01
1
1405-
915
SPACER; HARNESS
ID=9 OD=18 T=5
9-14149-173-0
01
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
