◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51512 - NQR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#139890) — 20 parça

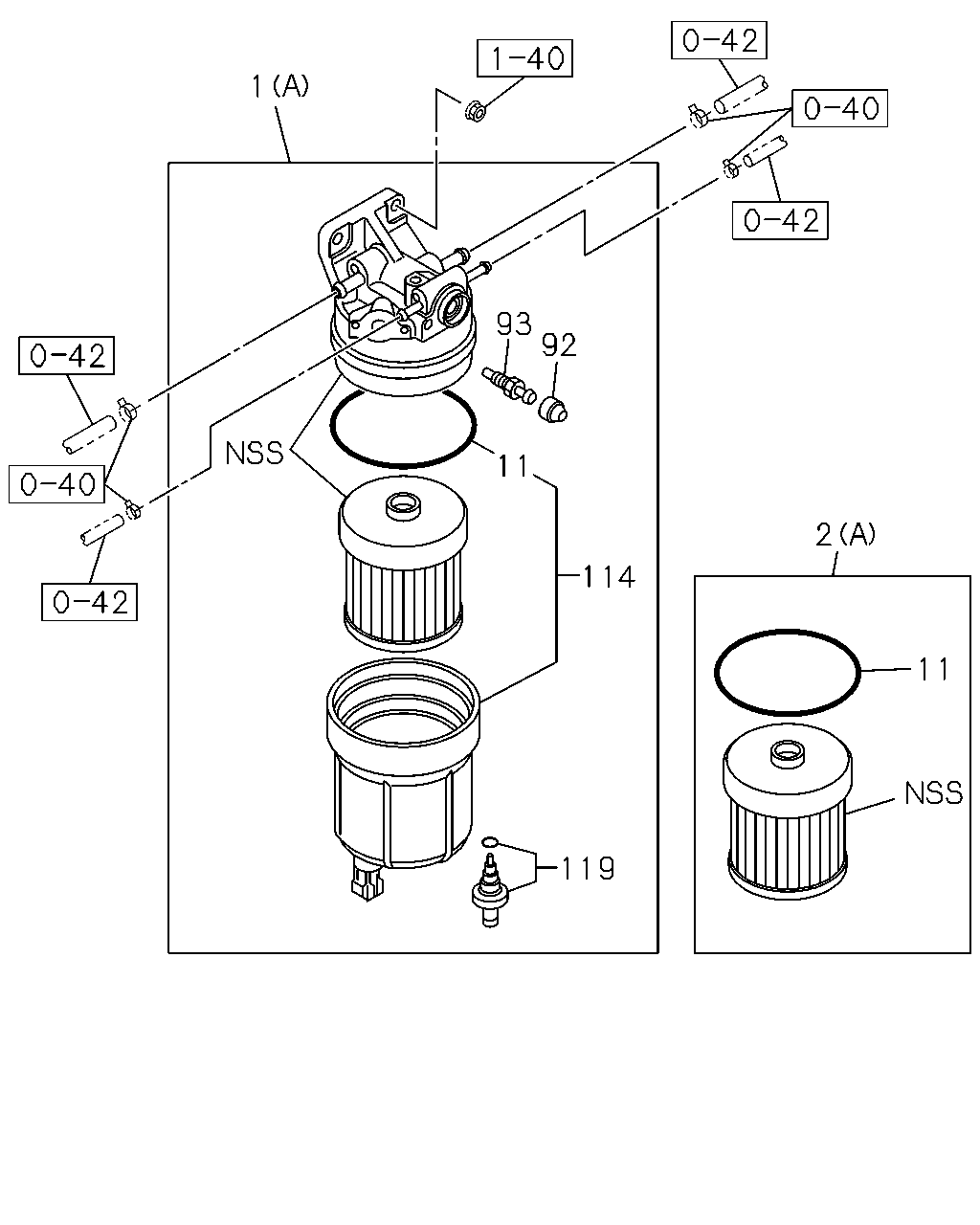

çizim 420172
1 93 92 11 114 119 2 11
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1405-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1405-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1405-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1405-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1405-
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1405-
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1405-

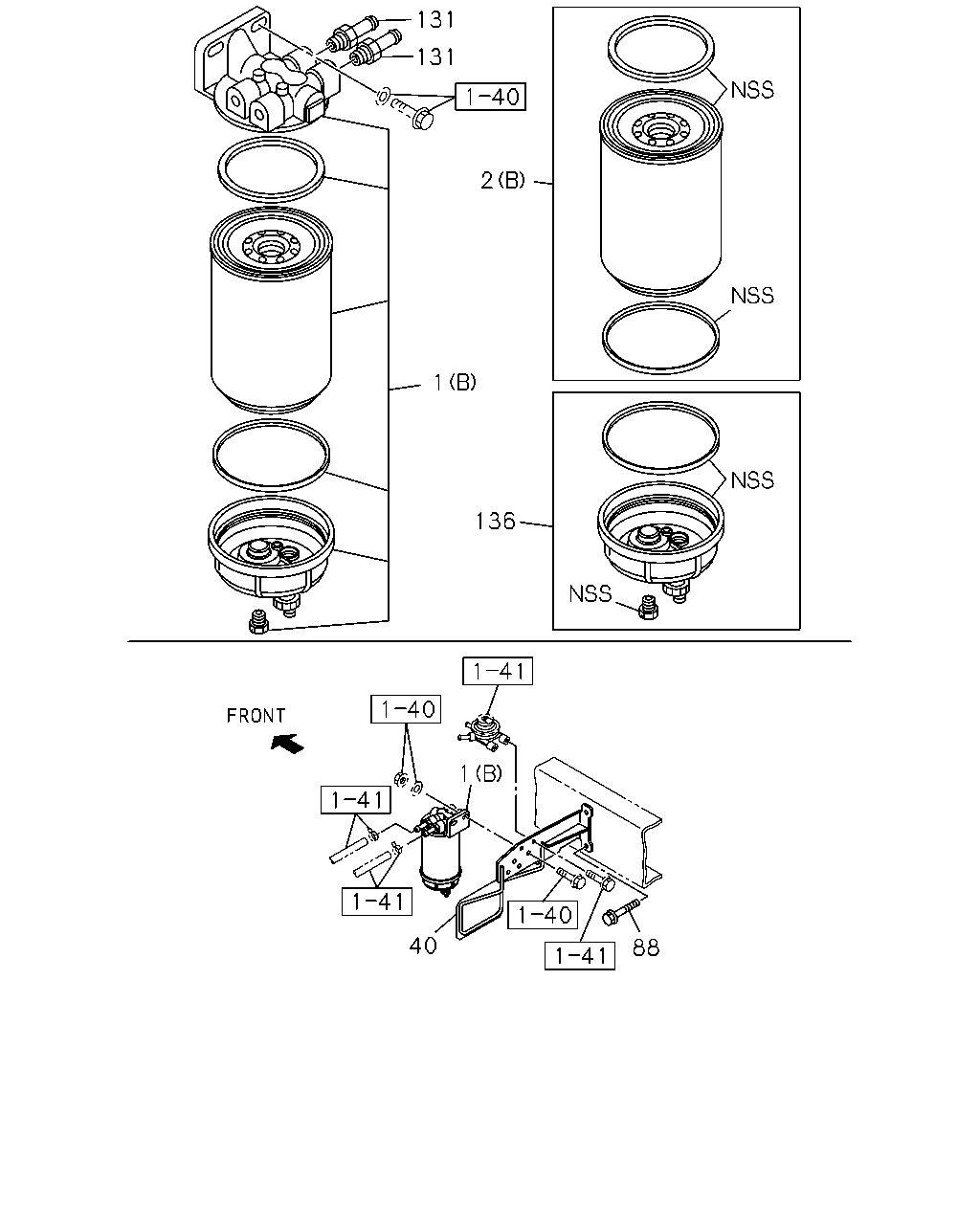

çizim 420189
131 131 2 1 136 1 40 88
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1405-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1405-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1405-
40 BRACKET; FUEL FILTER 8-98107-354-3 01 1 1405-
88 BOLT; BRKT,FUEL FILTER
M10X30 FLANGE 		0-28651-030-0 02 1 1405-
131 PIPE; FILTER
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1405-
136 CAP KIT; FUEL FILTER 8-98096-004-0 01 1 1405-1408
136 CAP KIT; FUEL FILTER 8-98279-324-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
