Sayfa 8-28 - Isuzu EPC

275 282 284 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-
283	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-
283	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0105-
284	BOLT; MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	0105-

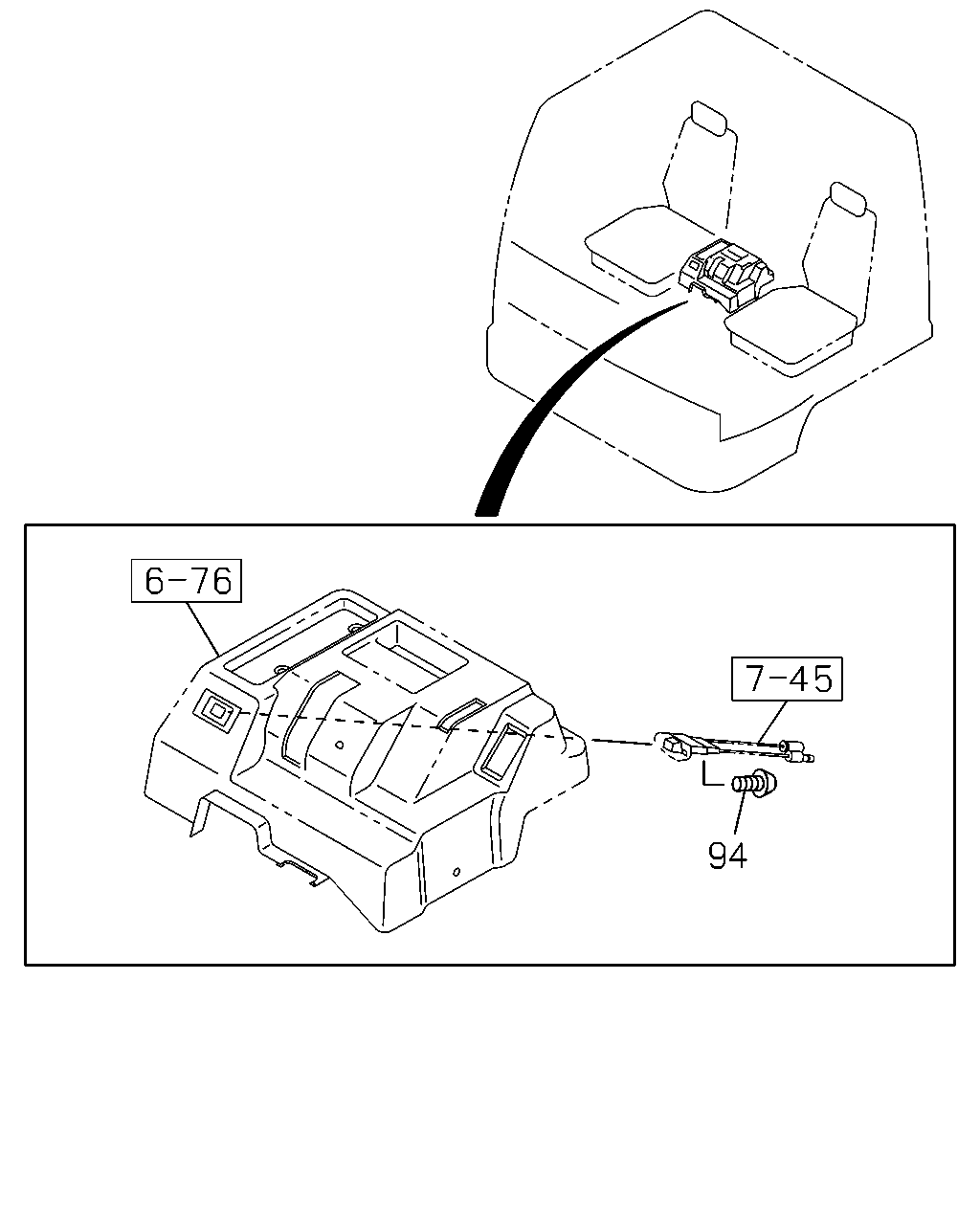

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0105-

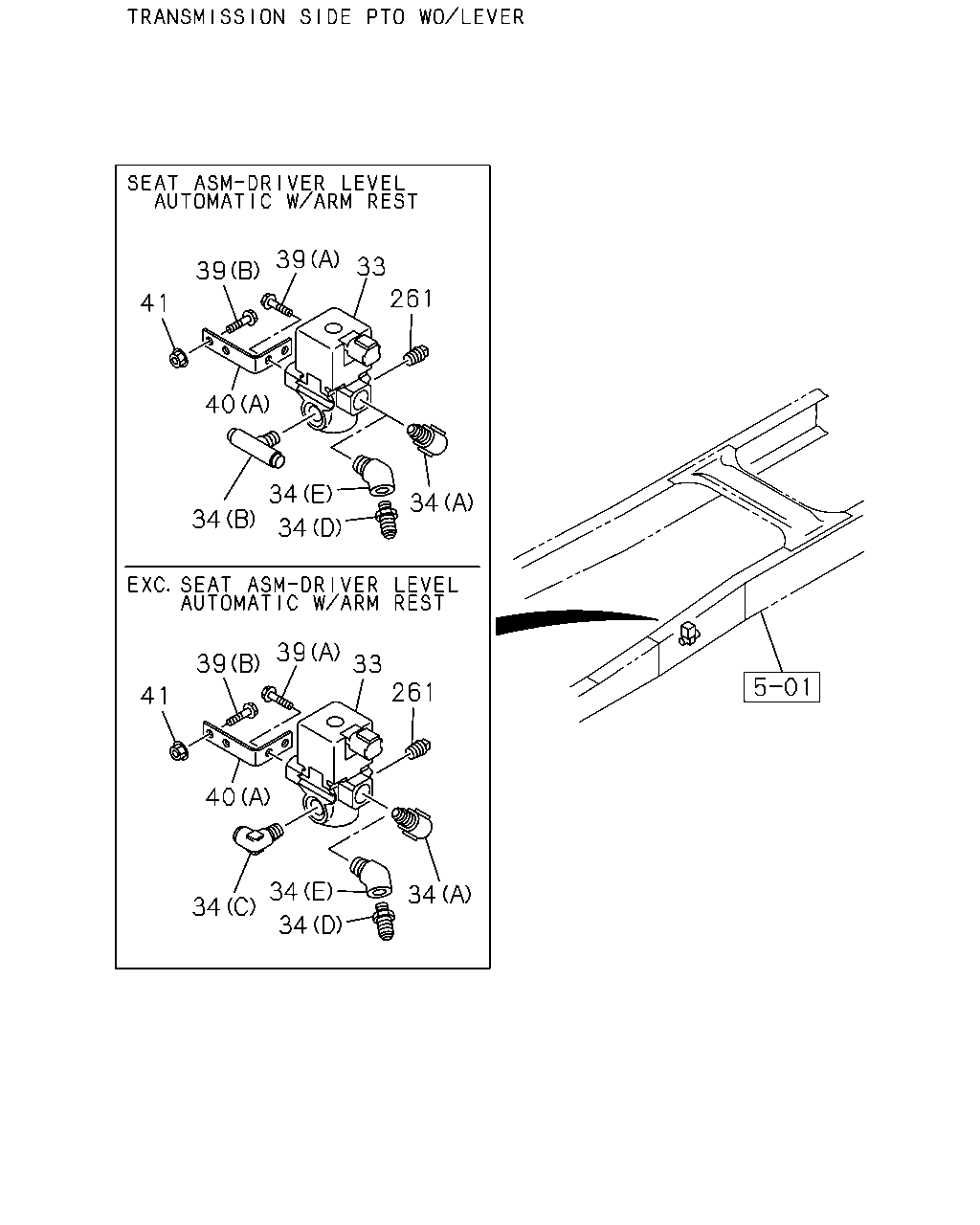

39 33 39 261 41 40 34 34 34 34 39 39 33 261 41 40 34 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-0106
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0105-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) PT1/4	1-09664-211-0	01	1	0107-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	0105-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-

89 261 90 88 88 52 312 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO	1-83460-088-1	01	1	0105-
58	BUZZER; AIR PRESSURE WARNING METRO	1-83460-074-1	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0105-
90	BOLT; MAG VLV FRAME EQUIPMENT HEAVY DUTY<F03> M8X35 FLANGE	0-28680-835-0	02	1	0105-
90	BOLT; MAG VLV EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0105-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0105-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-

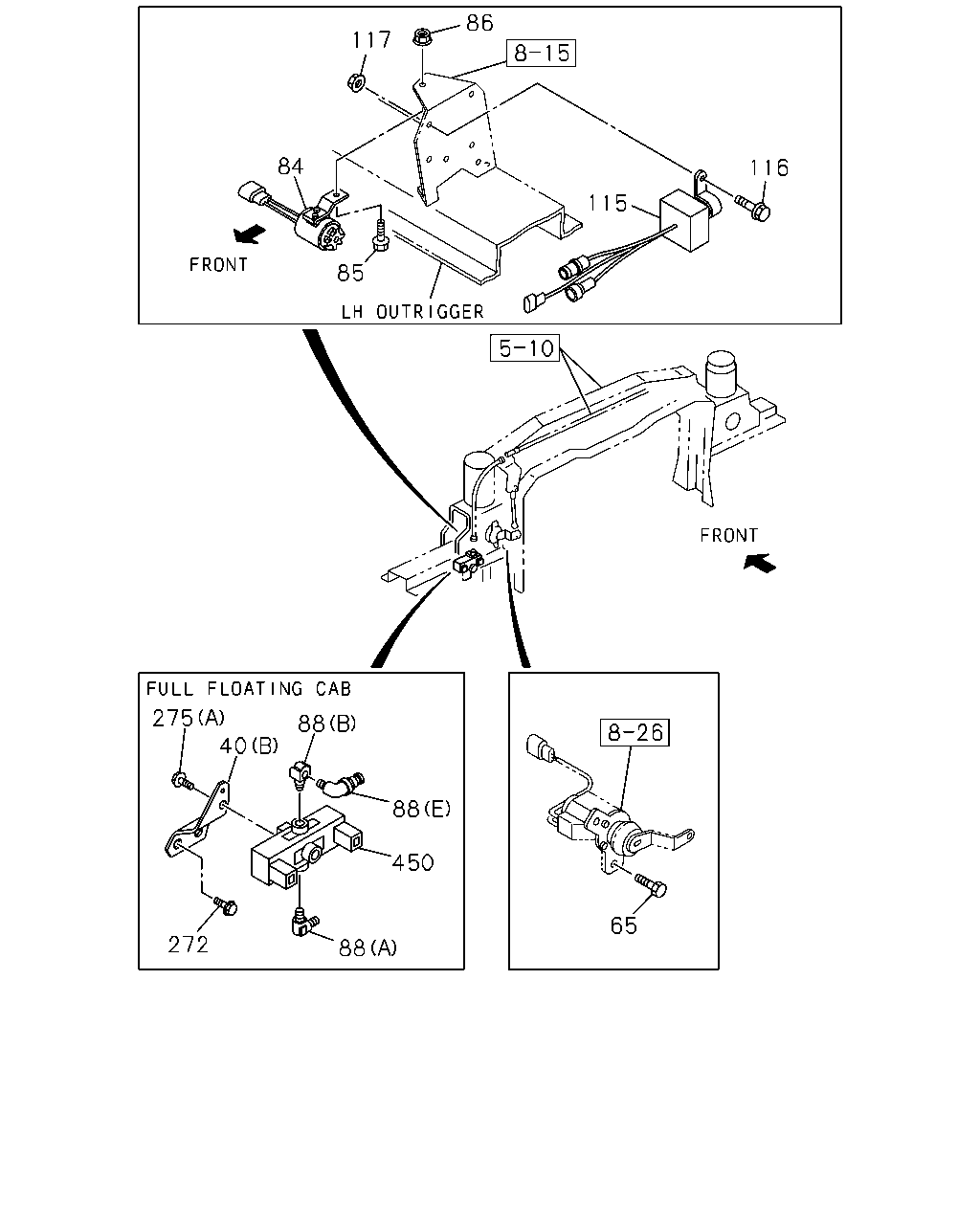

86 117 84 116 115 85 275 40 88 88 450 65 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-380-0	01	1	0105-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-279-0	01	1	0105-
65	BOLT; SOCKET FIX FULL FLOATING CAB(W16) M6X16 FLANGE	0-28080-616-0	02	1	0105-
84	BUZZER; POWER CAB TILT METRO	1-83460-096-2	01	1	0105-
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	0105-0201
85	BOLT; BUZZER,POWER CAB TILT M8X16 FLANGE	0-28080-816-0	01	1	0202-
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> HITACHI	1-81171-087-0	01	1	0105-0210
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> NIKKO	1-81171-075-1	01	1	0211-
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X16 FLANGE	0-28080-816-0	02	1	0105-
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE	0-91150-108-0	02	1	0105-
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X30 FLANGE	0-28681-030-0	02	1	0105-0201
272	BOLT; MAG VLV FULL FLOATING CAB(W16) M10X20 FLANGE	0-28681-020-0	02	1	0202-
275	BOLT; BRKT (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-
275	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-
275	BOLT; BRKT FULL FLOATING CAB(W16) (A) M8X14 FLANGE	0-28080-814-0	01	1	0105-
450	VALVE; MAG FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-

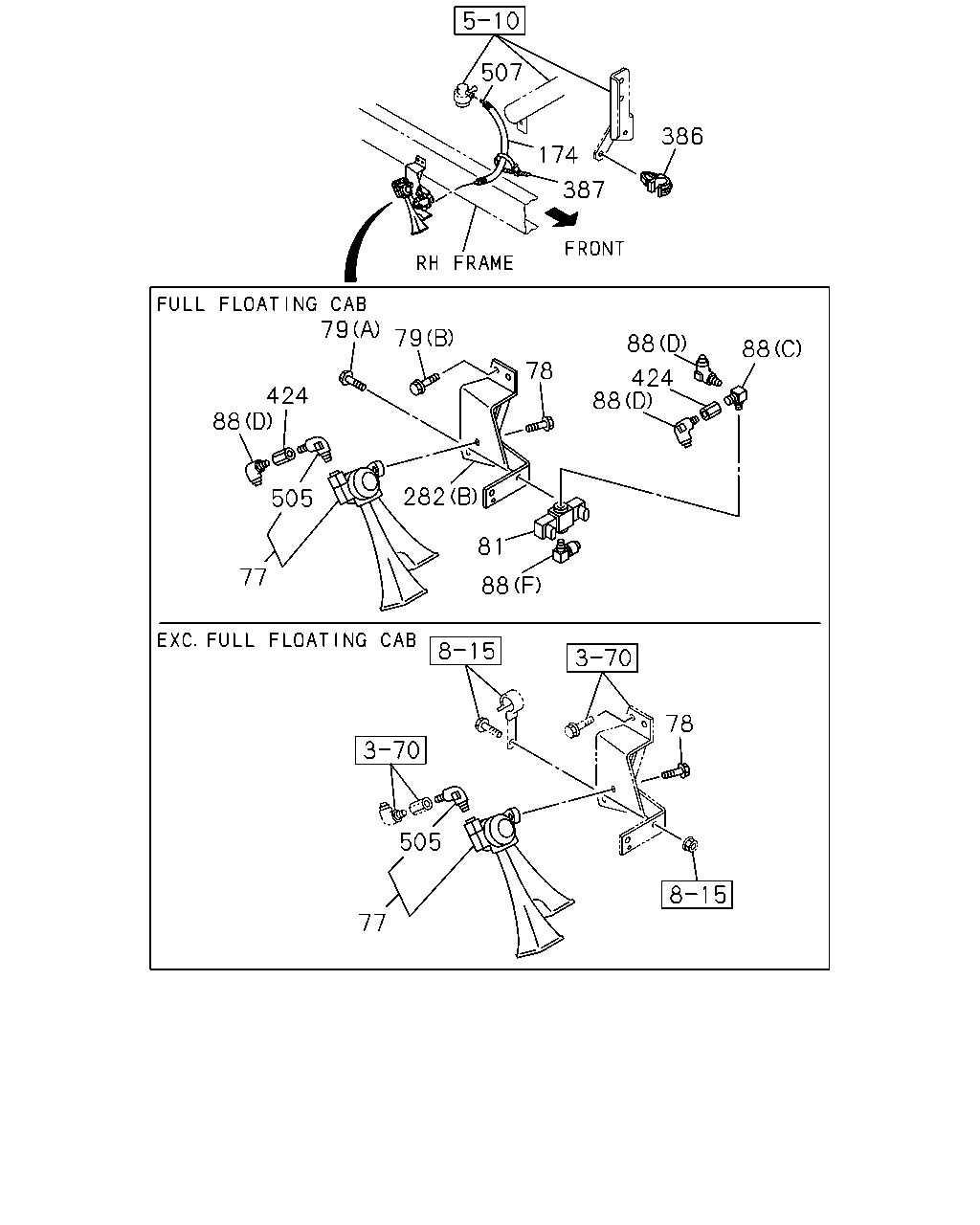

507 386 174 387 79 79 88 88 78 424 88 424 88 282 505 81 77 88 78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-3	01	1	0105-
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0105-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0105-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (A) M8X12 FLANGE	0-28080-812-0	01	1	0105-
79	BOLT; MAG VLV FULL FLOATING CAB(W16) (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-
81	VALVE; MAG,HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0105-
88	CONNECTOR; MAG VLV (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0105-
88	CONNECTOR; MAG VLV (H) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (C) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (E) TRI LC6X4-R1/8	1-09660-760-1	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (D) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0105-
88	CONNECTOR; MAG VLV FULL FLOATING CAB(W16) (B) PT1/8 ELBOW	8-94338-418-1	01	1	0105-
174	COVER FULL FLOATING CAB(W16) L=620 SERVICED BY L=800	1-83129-031-1	01	1	0105-
282	BRACKET; MAG VLV (A)	1-82569-277-2	01	1	0105-
282	BRACKET; MAG VLV FULL FLOATING CAB(W16) (B)	1-53458-742-2	01	1	0105-
386	CLIP; HARNESS FULL FLOATING CAB(W16) ID=9.5	5-09709-020-0	01	1	0207-
387	CLIP; BAND FULL FLOATING CAB(W16) L=250	5-09707-030-1	01	1	0105-0206
424	ADAPTER FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	0105-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0105-
507	TUBE; NYLON FULL FLOATING CAB(W16) L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0105-0212
507	TUBE; NYLON FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0301-

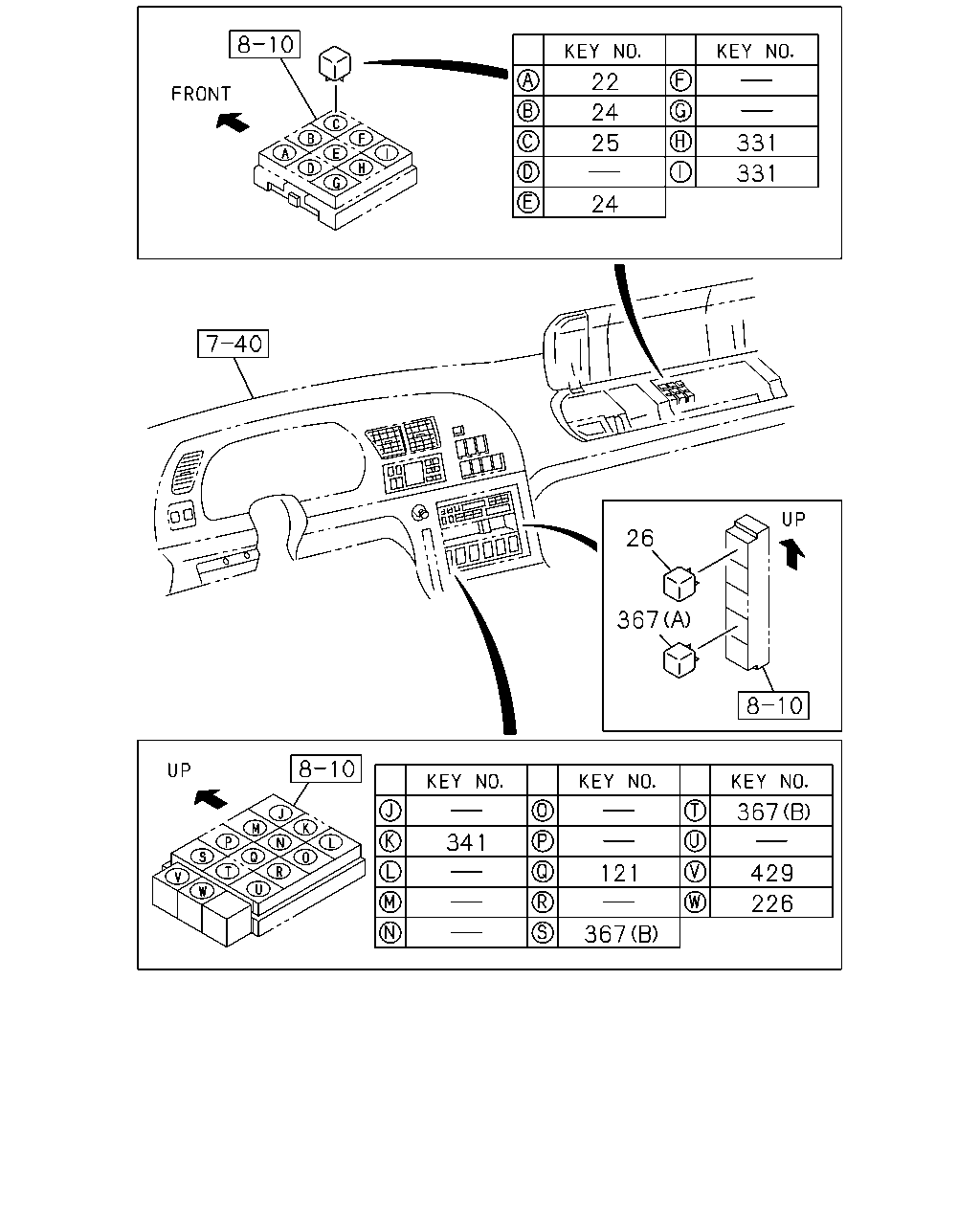

22 24 25 331 331 24 26 367 367 341 121 429 226 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
24	RELAY; LIGHTING 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111
24	RELAY; LIGHTING 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
25	RELAY; TAIL LAMP 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
25	RELAY; TAIL LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
26	RELAY; CONSENT 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
26	RELAY; CONSENT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
121	RELAY; PARKING BRK 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
226	RELAY; EXH BRK 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
226	RELAY; EXH BRK 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A JIDECO	8-97062-815-1	02	1	0105-0111
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A MATSUSHITA	8-97262-933-0	02	1	0112-
341	RELAY FULL FLOATING CAB(W16) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL FOOT BRAKE W/EXHAUST BRAKE<SJB> (A) 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0409-
367	RELAY; NEUTRAL (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
367	RELAY; NEUTRAL AUTO CAB TILT<WV2> (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0105-
429	RELAY; POWER CUT 24V 12.5A JIDECO	8-97062-815-1	01	1	0105-0111
429	RELAY; POWER CUT 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0112-

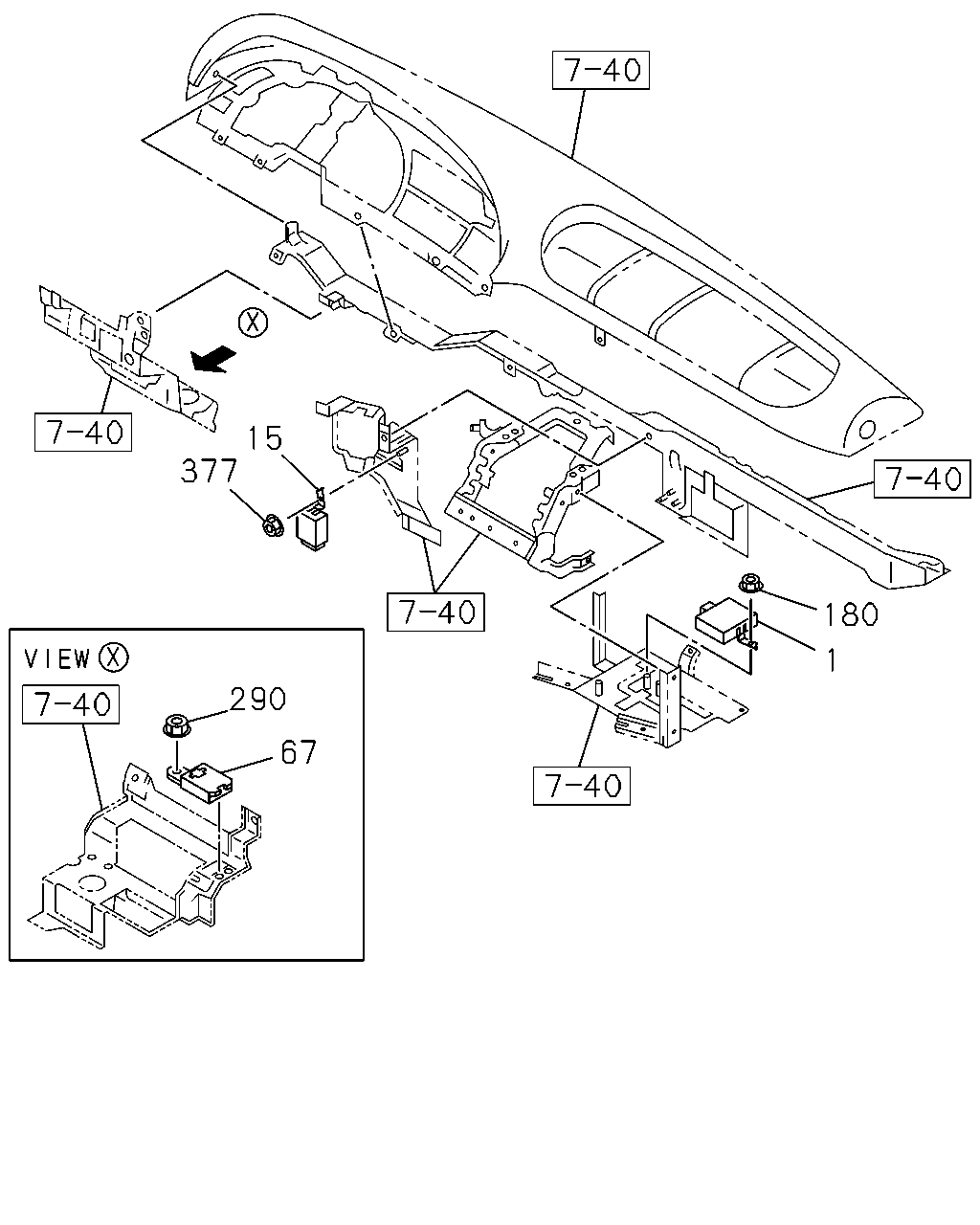

15 377 180 1 290 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-1	01	1	0105-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	0105-
67	BUZZER; ENG OVERRUN	1-83460-051-1	01	1	0105-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0105-
290	NUT M6 FLANGE	0-91150-106-0	01	1	0105-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	0105-
