Isuzu WW
▶
TRUCKS
▶
NQR
▶
51512 - NQR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#139875) — 51 parça
◀

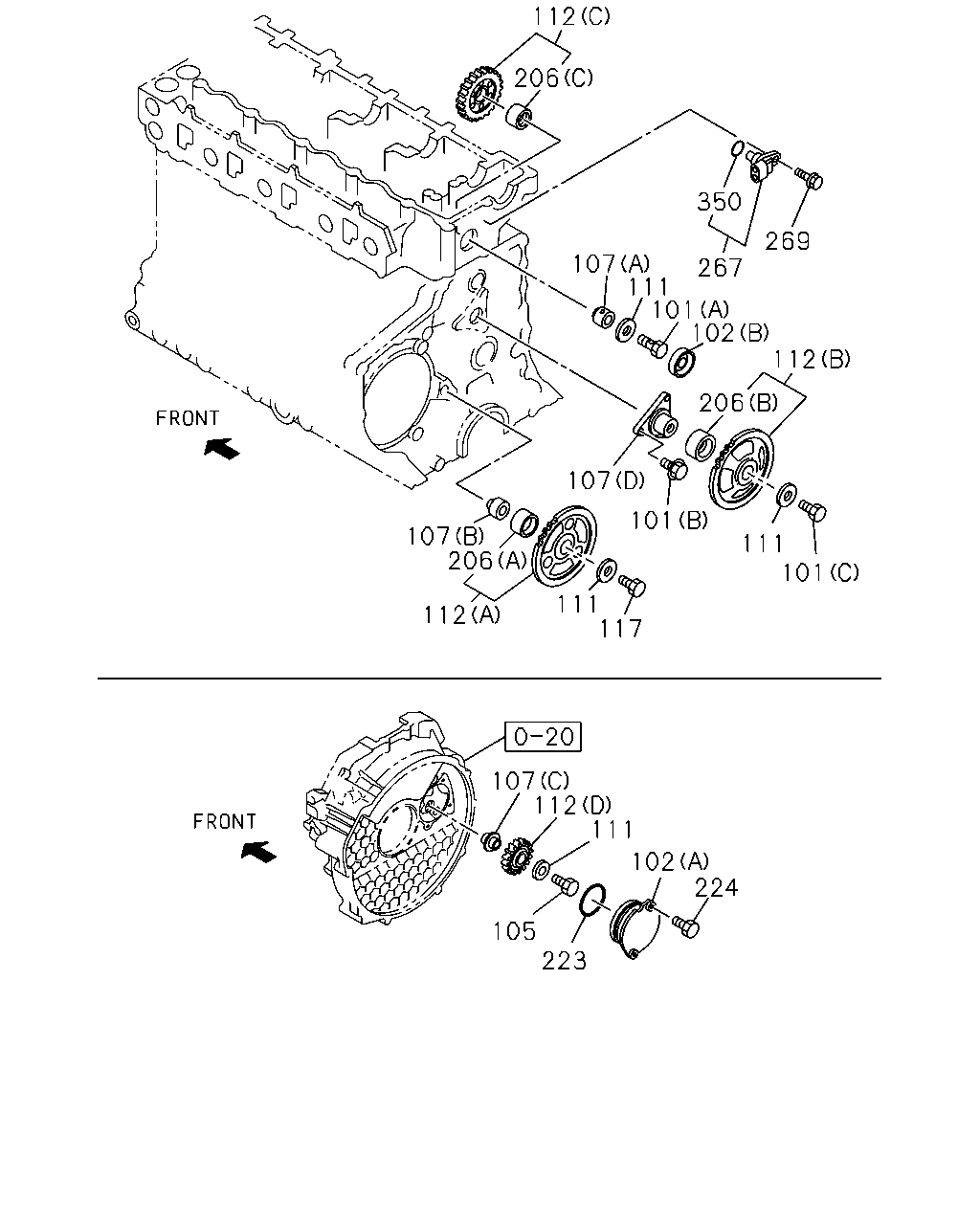

[014A] IDLE GEAR (24 parça)

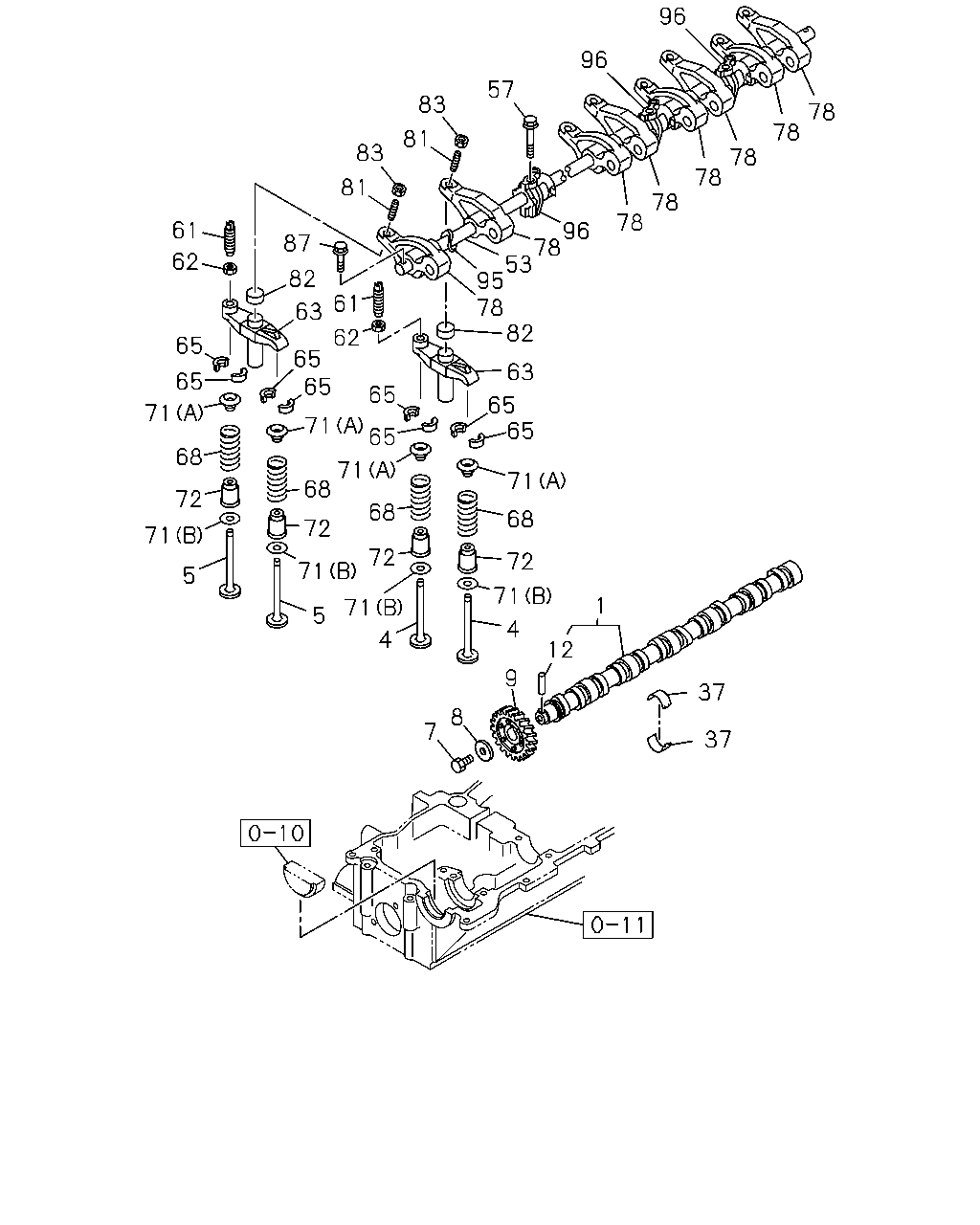

[014A] CAMSHAFT,ROCKER ARM VALVE (27 parça)
▶
112
206
269
350
107
267
111
101
102
112
206
107
101
111
101
107
206
112
111
117
107
112
111
102
224
105
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X25
0-23951-425-0
01
1
1405-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1405-
101
BOLT; THRUST COLLAR
(A) M14X36.5
8-94372-221-1
01
1
1405-
102
COVER; IDLE GEAR
(A)
8-94334-681-1
01
1
1405-
102
COVER; IDLE GEAR
(B) OD=51
8-97096-826-0
01
1
1405-
105
BOLT; IDLE GEAR SHAFT
M14X60
0-16956-460-0
01
1
1405-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1405-
107
SHAFT; IDLE GEAR
(A)
8-97186-398-1
01
1
1405-
107
SHAFT; IDLE GEAR
(D)
8-97350-021-0
01
1
1405-
107
SHAFT; IDLE GEAR
(B)
8-98060-780-0
01
1
1405-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
04
1
1405-
112
GEAR; IDLE
(A) Z=72-60-30
8-98254-970-0
01
1
1405-
112
GEAR; IDLE
(D) Z=34
8-97120-005-1
01
1
1405-
112
GEAR; IDLE
(B) Z=61
8-97606-767-0
01
1
1405-
112
GEAR; IDLE
(C) Z=41
8-97606-929-0
01
1
1405-
117
BOLT; FLANGE
M14X65 FLANGE
8-97113-167-0
01
1
1405-
206
BUSHING; IDLE GEAR
(A) AFTER PRESS FITTING, MACHINE IT.
8-98255-899-0
01
1
1405-
206
BUSHING; IDLE GEAR
(B) AFTER PRESS FITTING, MACHINE IT.
8-97606-768-0
01
1
1405-
206
BUSHING; IDLE GEAR
(C) AFTER PRESS FITTING, MACHINE IT.
8-97606-770-0
01
1
1405-
223
GASKET; COVER,IDLE GEAR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
1-09623-423-0
01
1
1405-
224
BOLT; COVER
M8X16 FLANGE MAL
0-28050-816-0
02
1
1405-
267
SENSOR; CAM ANGLE
8-98019-024-0
01
1
1405-
269
BOLT; SENSOR
M6X12 FLANGE MAL
0-28050-612-0
01
1
1405-
350
GASKET; SENSOR,CAM ANGLE
ID=14.2 OD=18.8
8-97369-404-0
01
1
1405-
65
65
62
71
65
65
71
68
72
71
4
7
8
9
12
1
37
37
4
71
72
68
71
65
65
63
82
78
95
53
78
96
78
78
78
78
78
78
96
96
57
83
81
83
81
87
82
61
63
61
62
65
65
71
68
71
72
5
72
71
5
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-97262-166-0
01
1
1405-
4
VALVE; INL
8-94395-882-2
08
1
1405-
5
VALVE; EXH
8-97209-876-4
08
1
1405-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1405-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
1405-
9
GEAR; CM/SHF
Z=35
8-98018-935-3
01
1
1405-
12
KEY; CAM GEAR SET
OD=7 L=7.5
8-94399-487-0
02
1
1405-
37
METAL; CM/SHF
B=16
8-97386-189-0
10
1
1405-
53
SHAFT; ROCKER ARM
8-97389-921-0
01
1
1405-
57
BOLT; ROCKER ARM BRKT
M10X62 FLANGE
8-94393-131-0
03
1
1405-
61
SCREW; ADJ,BRIDGE
M8X21
8-94394-803-0
08
1
1405-
62
NUT; ADJ SCREW LK BRIDGE
M8 FLANGE
9-09844-574-0
08
1
1405-
63
BRIDGE
8-94392-002-3
08
1
1405-
65
COLLAR; SPLIT
5-12565-004-0
32
1
1405-
68
SPRING; VLV
EXHAUST MARK RED
8-97210-682-0
08
1
1405-
68
SPRING; VLV
INLET MARK BLUE
8-97352-888-0
08
1
1405-
71
SEAT; SPR
(A) OD=32.8 T=12.75
8-94390-783-2
16
1
1405-
71
SEAT; SPR
(B) ID=14.3 T=1.0
8-94391-468-0
16
1
1405-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97376-720-0
16
1
1405-
78
ARM; ROCKER
INLET
8-97306-421-3
04
1
1405-
78
ARM; ROCKER
EXHAUST
8-97306-424-3
04
1
1405-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
08
1
1405-
82
CAP; ROCKER SHAFT
8-94396-015-2
08
1
1405-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
08
1
1405-
87
BOLT; ROCKER SHAFT
M8X40 FLANGE
0-28050-840-0
02
1
1405-
95
SPRING; ROCKER SHAFT
8-94392-999-0
04
1
1405-
96
BRACKET; ROCKER ARM SHAFT
8-97334-414-0
03
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
