◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#139864) — 17 parça

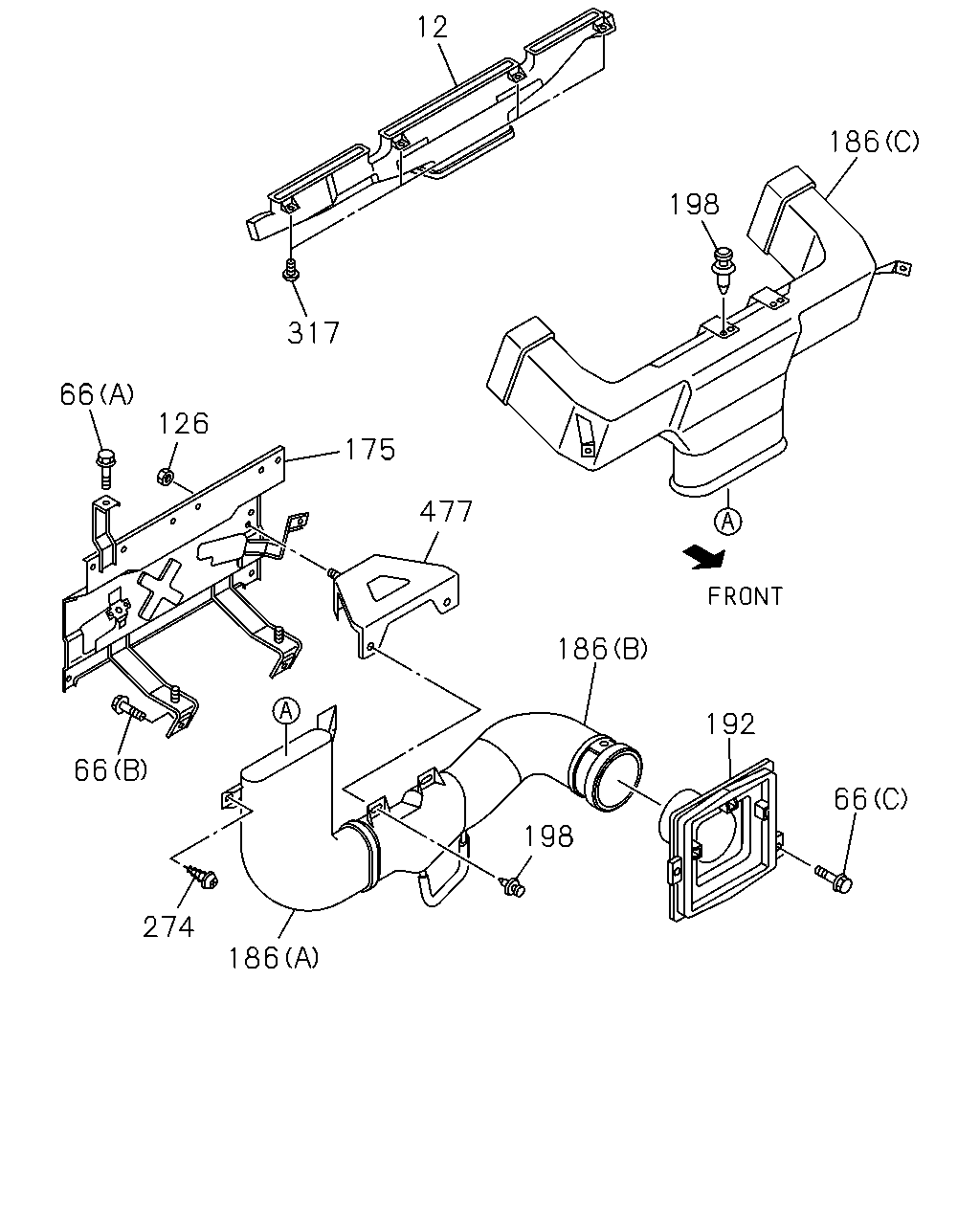

çizim 421732
12 198 186 186 186 274 66 66 317 175 126 198 192 66 477
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 8-97585-480-4 01 1 1405-
66 BOLT; DUCT
(A) M6X16 FLANGE THA 		0-28650-616-0 02 1 1405-
66 BOLT; DUCT
(C) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1405-
66 BOLT; DUCT
(B) M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1405-
126 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1405-
175 BRACKET; HTR DUCT 8-98221-688-0 01 1 1405-
186 DUCT; VENTILATOR
(C) 		8-98054-363-0 01 1 1405-
186 DUCT; VENTILATOR
(A) 		8-98054-371-0 01 1 1405-
186 DUCT; VENTILATOR
(B) 		8-98054-379-2 01 1 1405-
192 DUCT; RAM AIR 8-98054-386-4 01 1 1405-
198 CLIP; DUCT 1-09987-144-0 05 1 1405-
274 SCREW; VENT DUCT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1405-
317 SCREW; DEFROSTER NOZZLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1405-
477 BRACKET; DUCT 8-98091-304-0 01 1 1405-

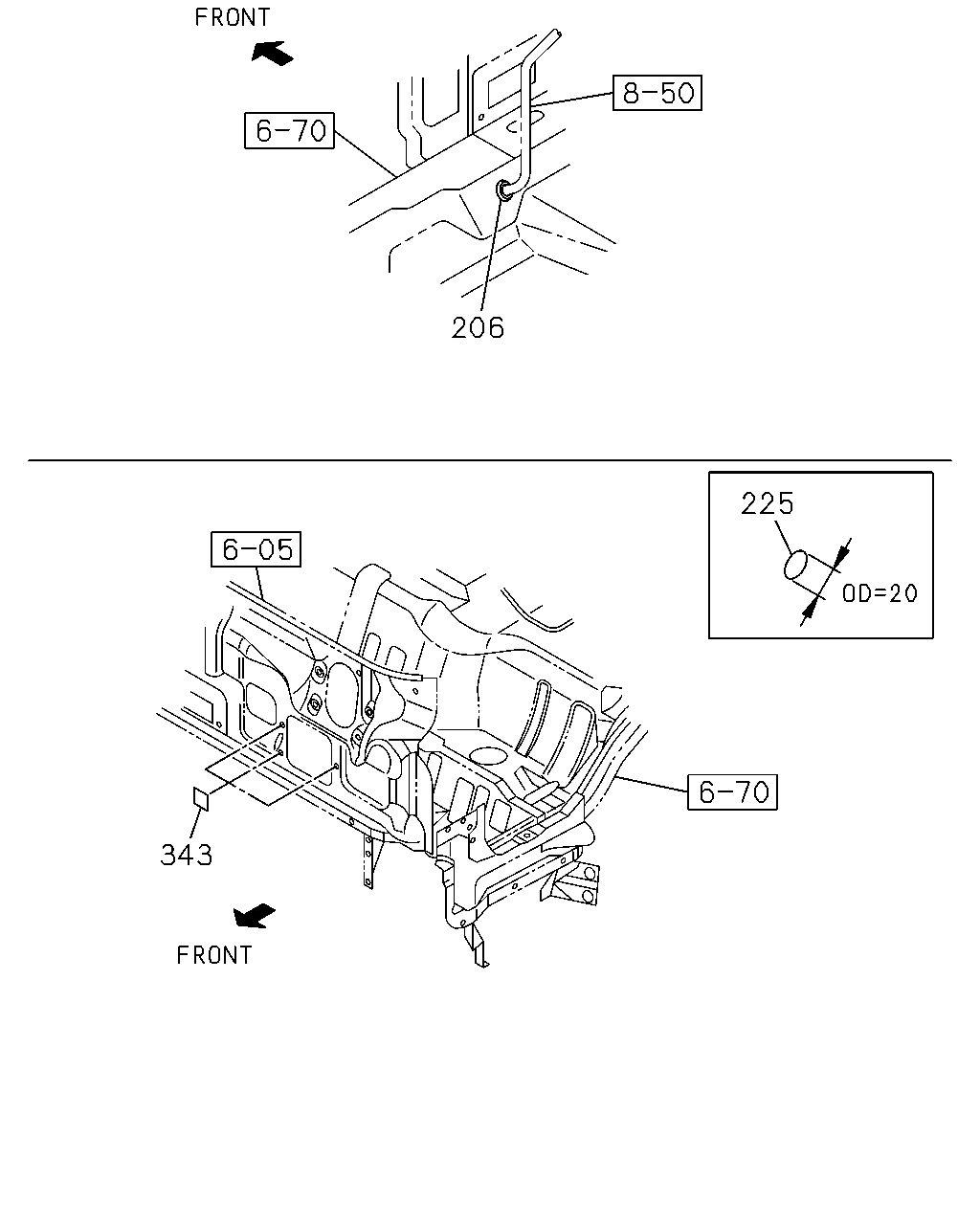

çizim 421773
206 343 225
BalonParca AdiParca NoAdetTipApplied Date
206 GROMMET; A/C PIPE TO BLOWER UNIT 8-98019-649-0 01 1 1405-
225 SEAL; WATER
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1405-
343 SEAL; AIR DUCT 8-97856-616-0 02 1 1405-
