◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#139862) — 13 parça
çizim 421219
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405-
67 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1405-
68 BOLT; BRKT
M6X12 FLANGE THA 		0-28450-612-0 01 1 1405-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1405-

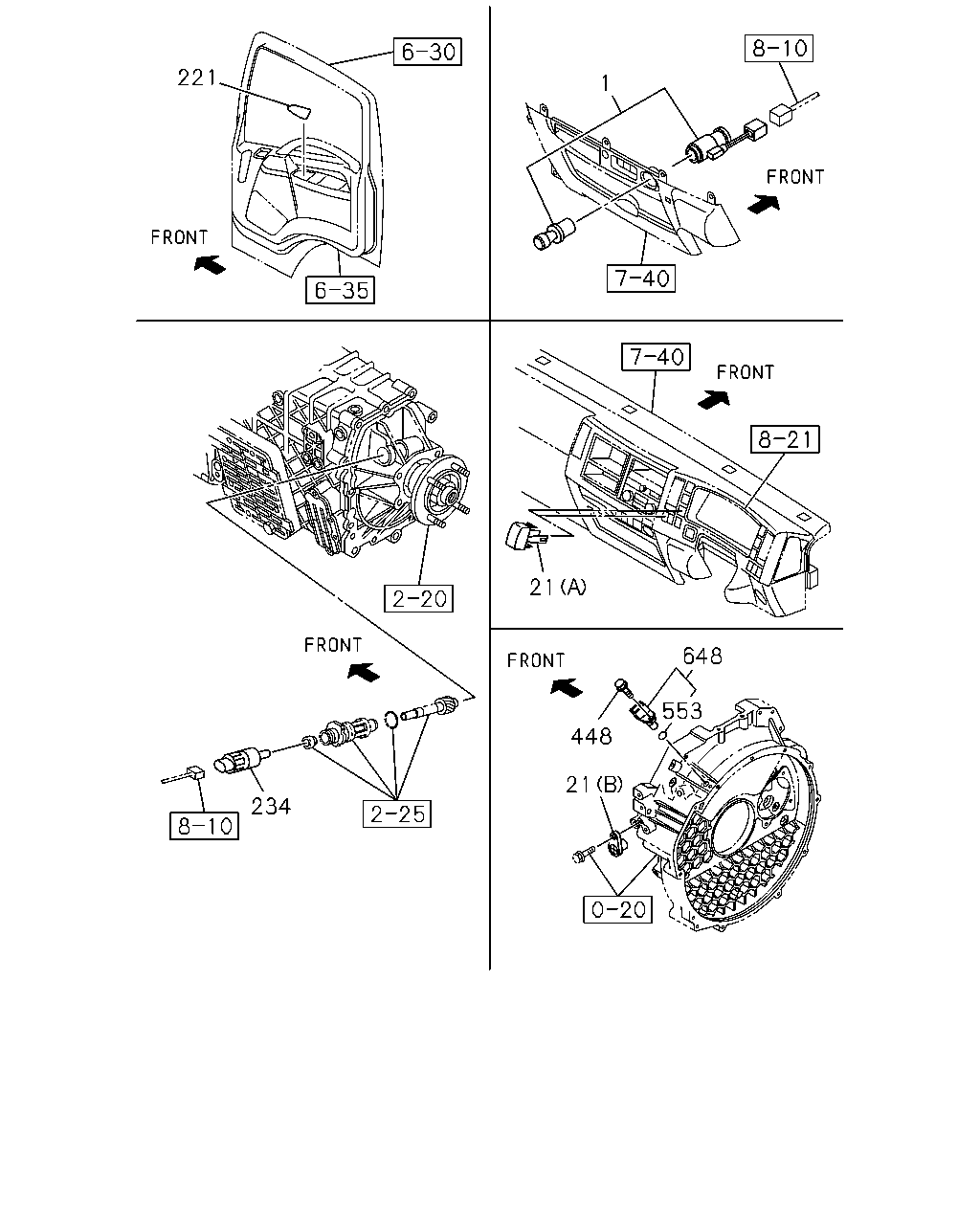

çizim 421651
221 1 21 234 648 553 448 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1405-
21 COVER; HOLE
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> (B) 		8-97101-974-0 01 1 1405-
21 COVER; HOLE
(A) 		8-98025-954-1 02 1 1405-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1405-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1405-
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1405-
448 BOLT; SENSOR
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> M6X16 FLANGE THA 		0-28050-616-0 01 1 1405-
553 GASKET
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> ID=14.2 OD=18.8 		8-97369-404-0 01 1 1405-
648 SENSOR; CRANK ANGLE
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> 		8-97606-943-0 01 1 1405-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
