Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#139858) — 55 parça
◀

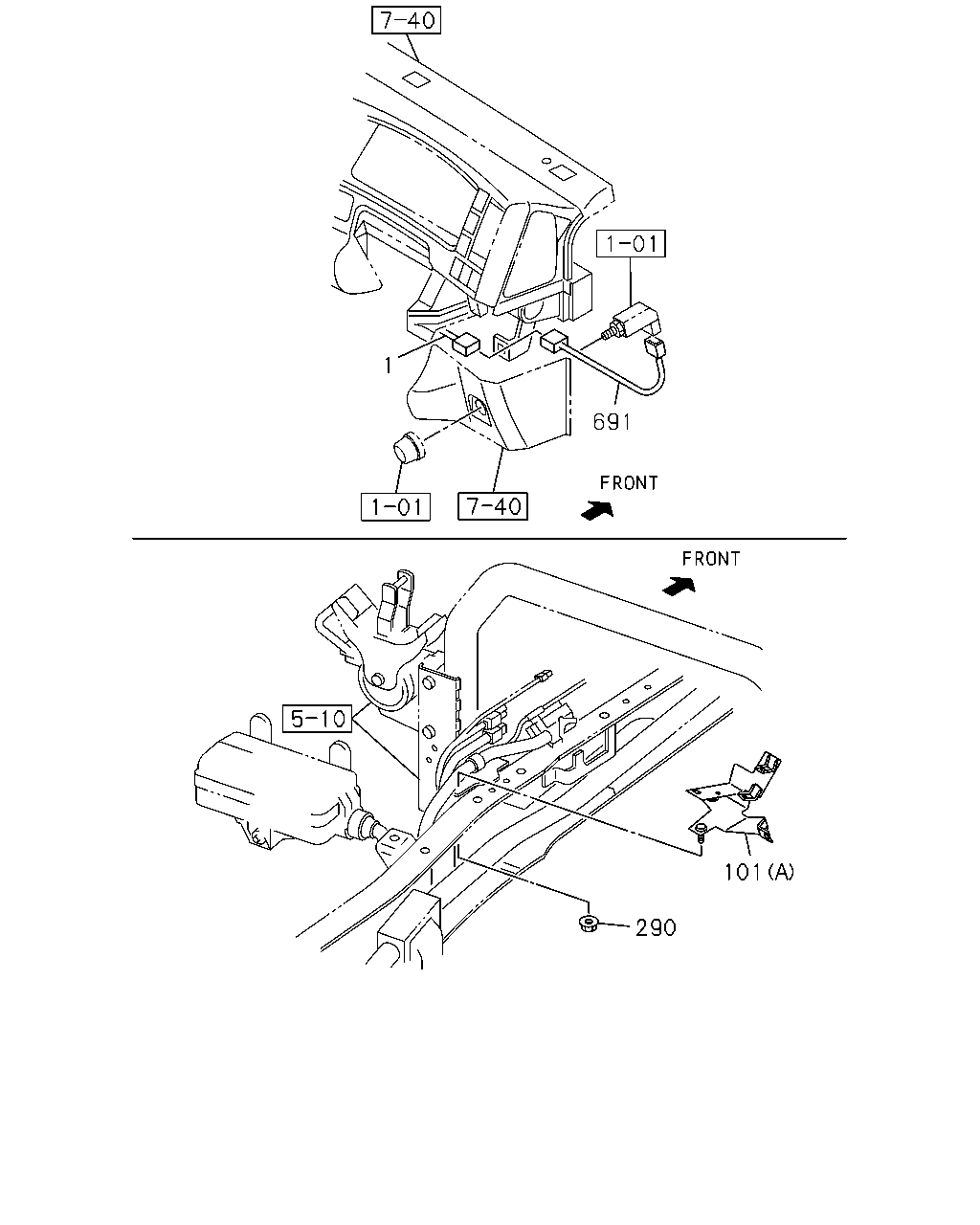

[810A] IDLE CONT HARNESS AND BRACKET (5 parça)

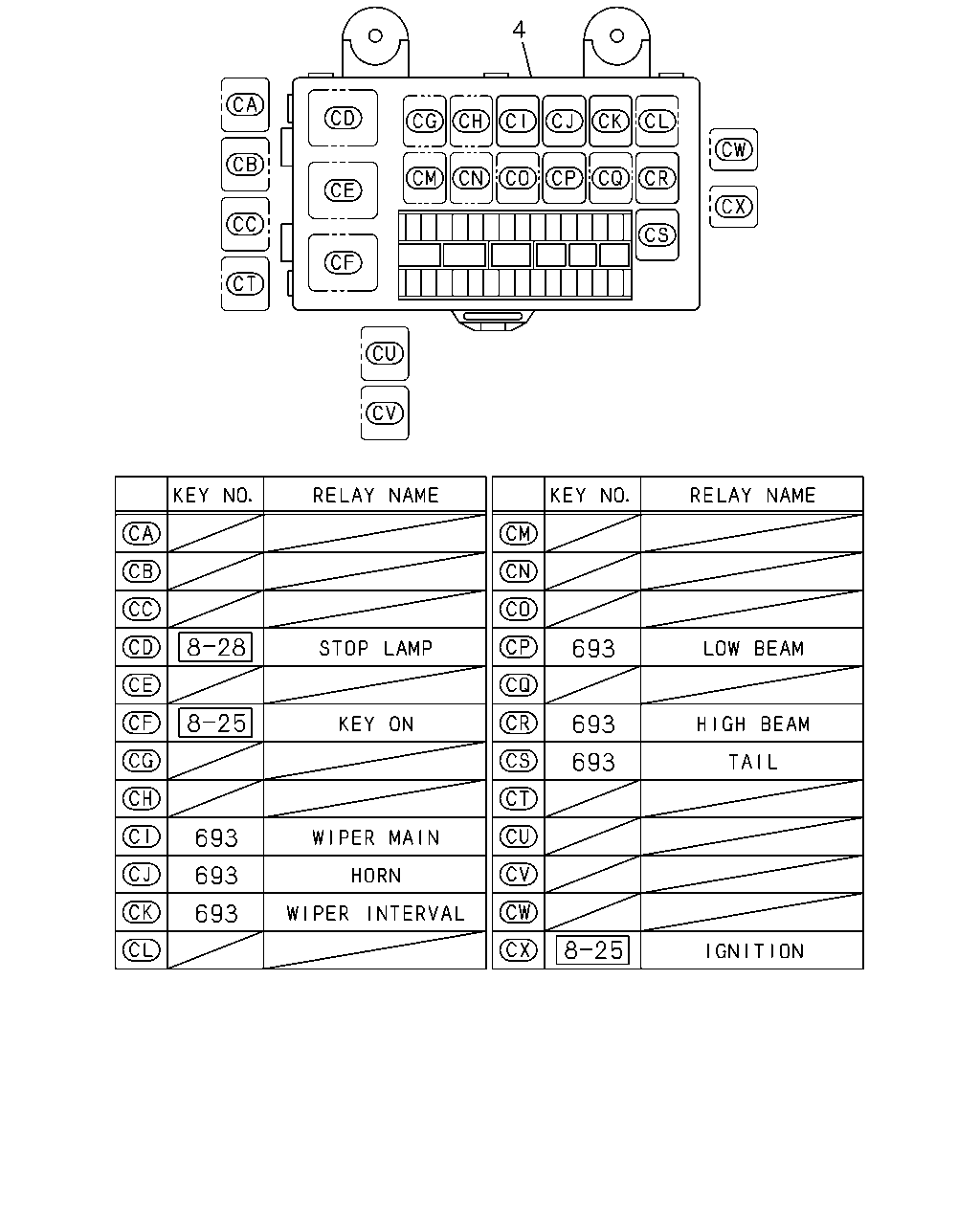

[810A] RELAY;CAB HARNESS (2 parça)

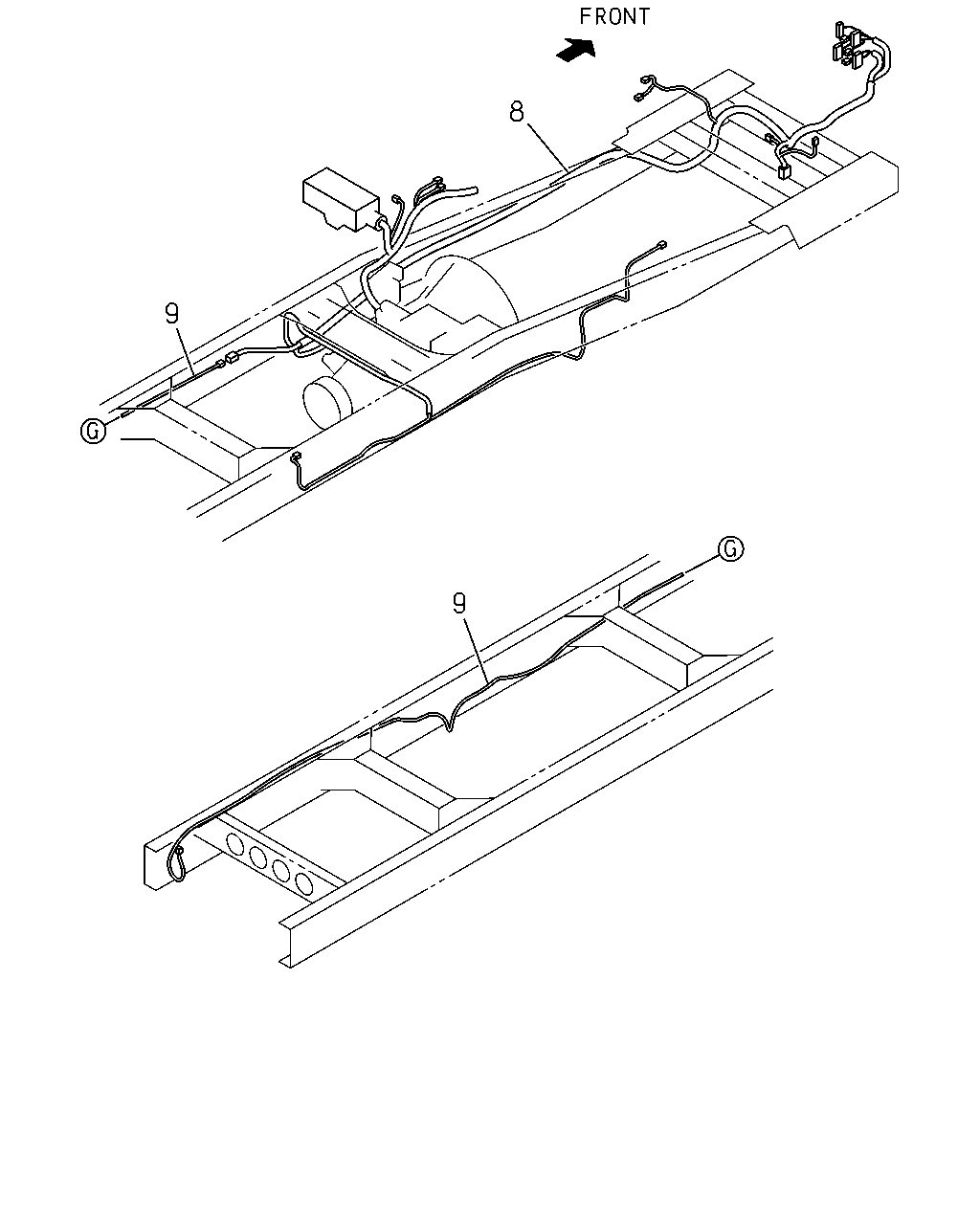

[810A] REAR FRAME HARNESS (2 parça)

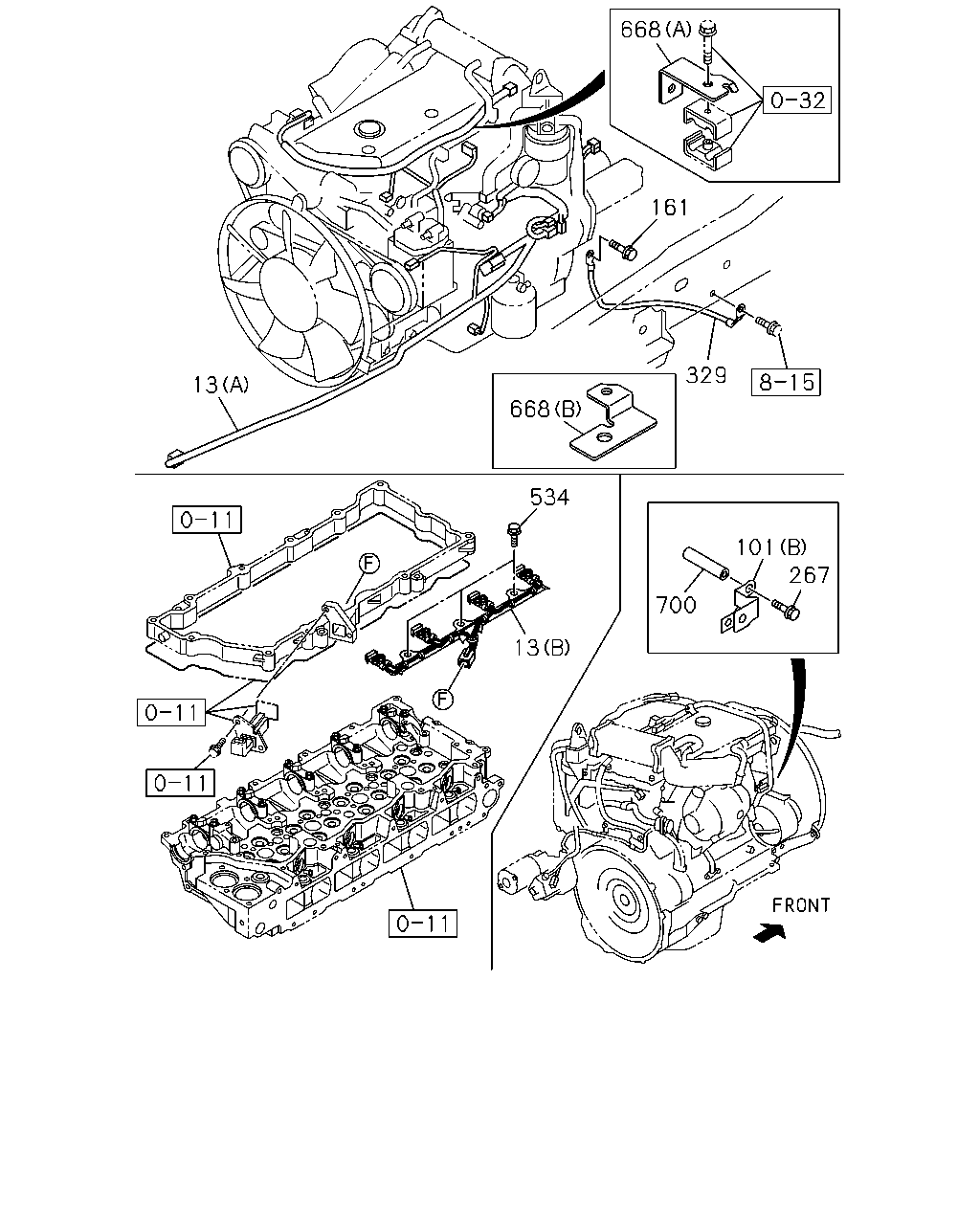

[810A] ENG HARNESS (14 parça)
[810A] FLOOR HARNESS AND PLUG (2 parça)

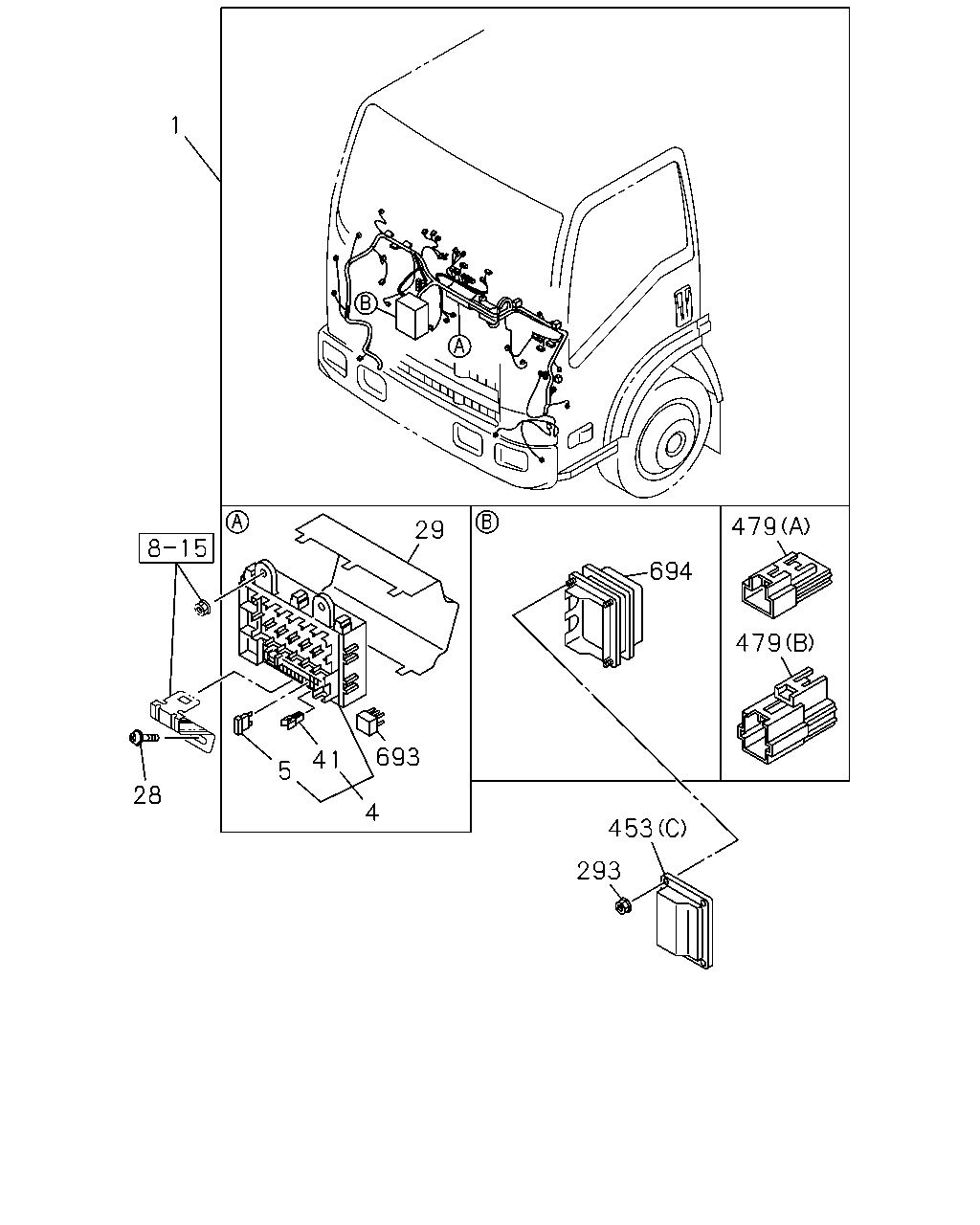

[810A] CAB HARNESS (16 parça)

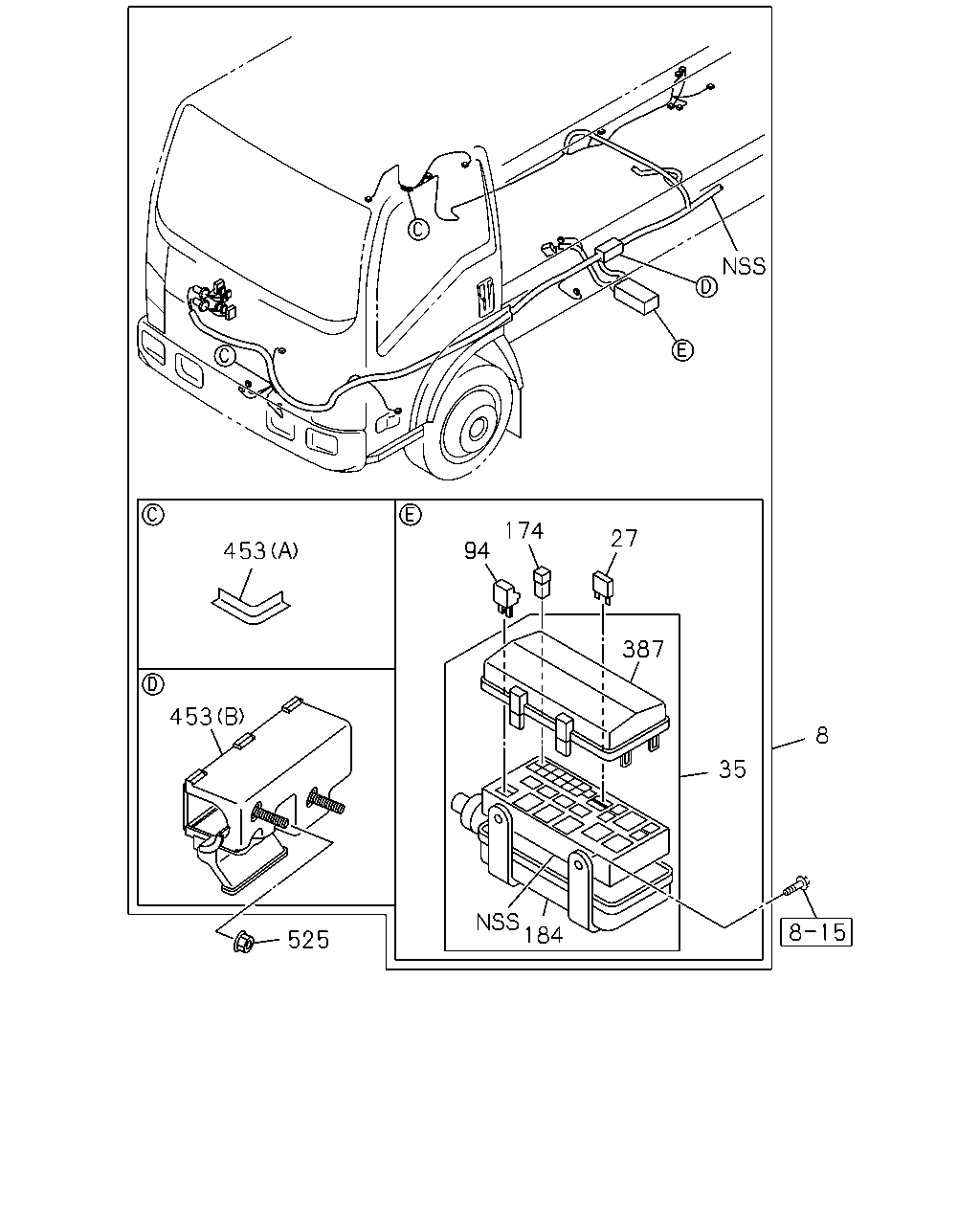

[810A] FRAME HARNESS;FRONT (14 parça)
▶
1
691
290
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2011<VZB> THA
8-97926-445-0
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (A)
8-98079-137-2
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
(B)
8-98052-805-0
01
1
1405-
290
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
1405-
691
HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> THA
8-97948-238-0
01
1
1405-
4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
VIN MODEL YEAR 2011<VZB> THA
8-98067-619-1
01
1
1405-
693
RELAY; FUSE BOX
VIN MODEL YEAR 2011<VZB> 24V 10A PANASONIC
8-97173-035-1
AR
1
1405-
9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-97924-464-0
01
1
1405-
9
HARNESS; FRAME,RR
THA
8-97923-932-1
01
1
1405-
13
534
13
700
668
161
329
101
267
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
GENERATOR 24V50A<6QN> (A)
8-98260-418-0
01
1
1405-
13
HARNESS; ENG
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> (B)
8-98171-638-0
01
1
1405-
13
HARNESS; ENG
GENERATOR 24V80A<7YN> (A)
8-98209-816-0
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (A)
8-98079-137-2
01
1
1405-
101
BRACKET; HARNESS CONNECTOR
(B)
8-98052-805-0
01
1
1405-
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1405-1409
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1405-1409
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
267
BOLT; BRKT
M10X120 FLANGE
0-28156-012-0
01
1
1405-
329
CABLE; ENG TO FRAME
THA
8-97924-248-0
01
1
1405-
534
BOLT
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> M10X55 FLANGE
8-97365-449-0
03
1
1405-
668
BRACKET; HARNESS
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> (A)
8-98001-095-0
01
1
1405-
668
BRACKET; HARNESS
GENERATOR 24V50A<6QN>,GENERATOR 24V80A<7YN> (B)
8-98205-089-0
01
1
1405-
700
TUBE; DISTANCE
8-98084-726-0
01
1
1405-
204
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
204
HARNESS; CABLE,FLOOR
THA
8-98070-787-4
01
1
1405-
374
PLUG; HARNESS CONNECTOR
OD=32 BLACK
8-98031-126-0
01
1
1405-
28
5
693
41
4
29
293
479
694
479
1
453
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2011<VZB> THA
8-97926-445-0
01
1
1405-
4
BOX ASM; FUSE,HARNESS
VIN MODEL YEAR 2011<VZB> THA
8-98067-619-1
01
1
1405-
5
FUSE; FACIA HARNESS
VIN MODEL YEAR 2011<VZB> 10A RED THA
8-98054-257-0
AR
1
1405-
5
FUSE; FACIA HARNESS
VIN MODEL YEAR 2011<VZB> 15A BLUE THA
8-98054-258-0
AR
1
1405-
5
FUSE; FACIA HARNESS
VIN MODEL YEAR 2011<VZB> 20A YELLOW THA
8-98054-259-0
AR
1
1405-
28
SCREW; FUSE BOX
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
29
COVER; FUSE BOX
VIN MODEL YEAR 2011<VZB> THA
8-98056-968-0
01
1
1405-
41
PULLER; FUSE
VIN MODEL YEAR 2011<VZB> THA
8-98054-260-0
01
1
1405-
293
NUT
M6 FLANGE THA
0-91180-106-0
04
1
1405-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1405-
453
PROTECTOR; HARNESS
(B) THA
8-98031-620-1
01
1
1405-
453
PROTECTOR; HARNESS
(C)
8-98034-039-1
01
1
1405-
479
CAP; CONNECTOR
(A)
8-98108-678-0
01
1
1405-
479
CAP; CONNECTOR
(B)
8-98108-679-0
01
1
1405-
693
RELAY; FUSE BOX
VIN MODEL YEAR 2011<VZB> 24V 10A PANASONIC
8-97173-035-1
AR
1
1405-
694
BOX ASM; CONNECTOR
VIN MODEL YEAR 2011<VZB> THA
8-98057-772-0
01
1
1405-
453
453
525
174
27
387
94
184
35
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-97924-464-0
01
1
1405-
27
FUSE UNIT
10A RED THA
8-98054-257-0
AR
1
1405-
35
BOX; RELAY & FUSE
THA
8-98030-763-0
01
1
1405-
94
DIODE; FRAME HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
AR
1
1405-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
AR
1
1405-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
AR
1
1405-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
AR
1
1405-
174
FUSE; SLOW BLOW
60A YELLOW THA
8-97219-407-0
AR
1
1405-
184
COVER; RELAY & FUSE BOX
THA
8-98030-766-0
01
1
1405-
387
COVER; RELAY BOX
8-98081-367-0
01
1
1405-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1405-
453
PROTECTOR; HARNESS
(B) THA
8-98031-620-1
01
1
1405-
453
PROTECTOR; HARNESS
(C)
8-98034-039-1
01
1
1405-
525
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1405-
