Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#139852) — 93 parça
◀

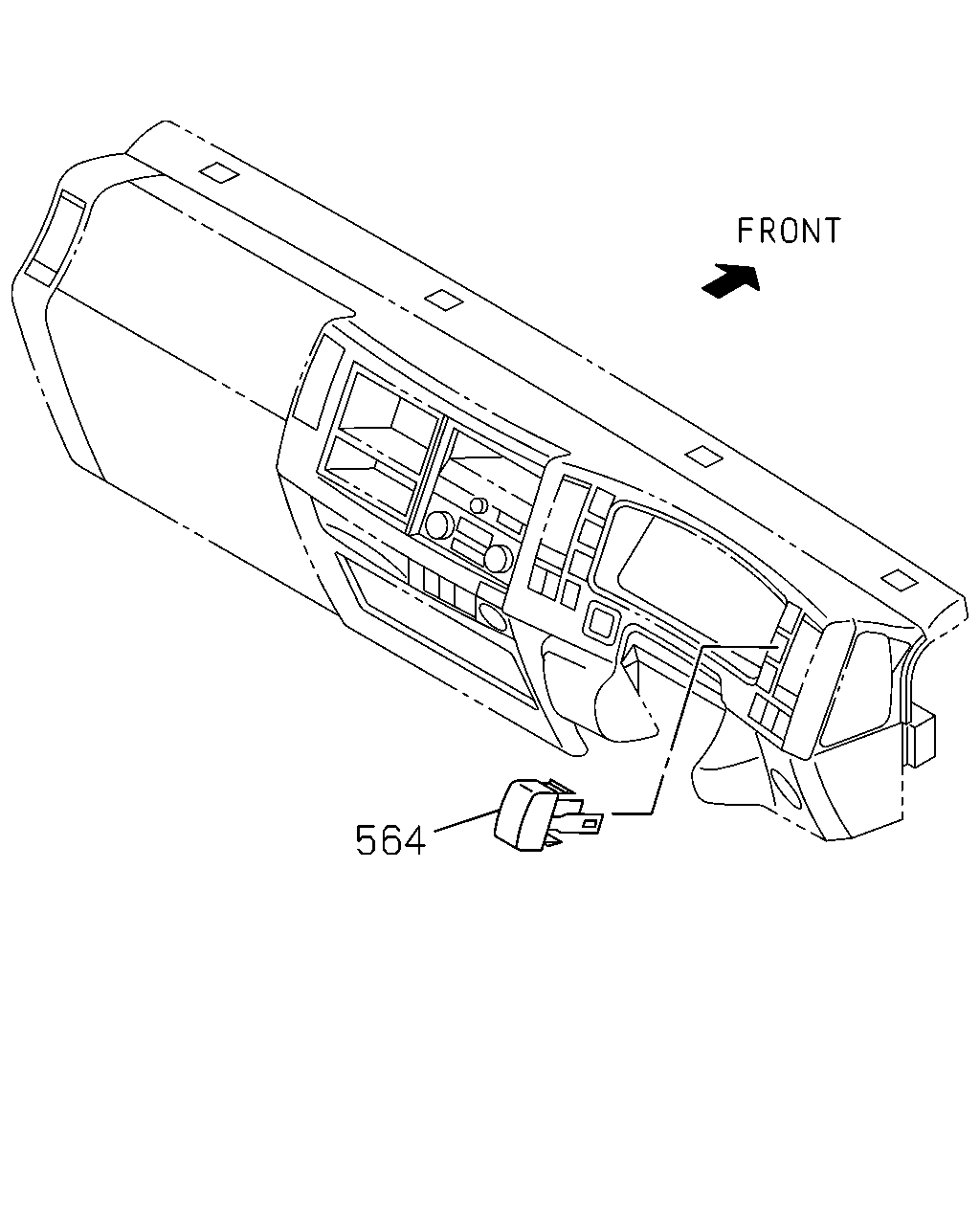

[740A] NO.3 (1 parça)

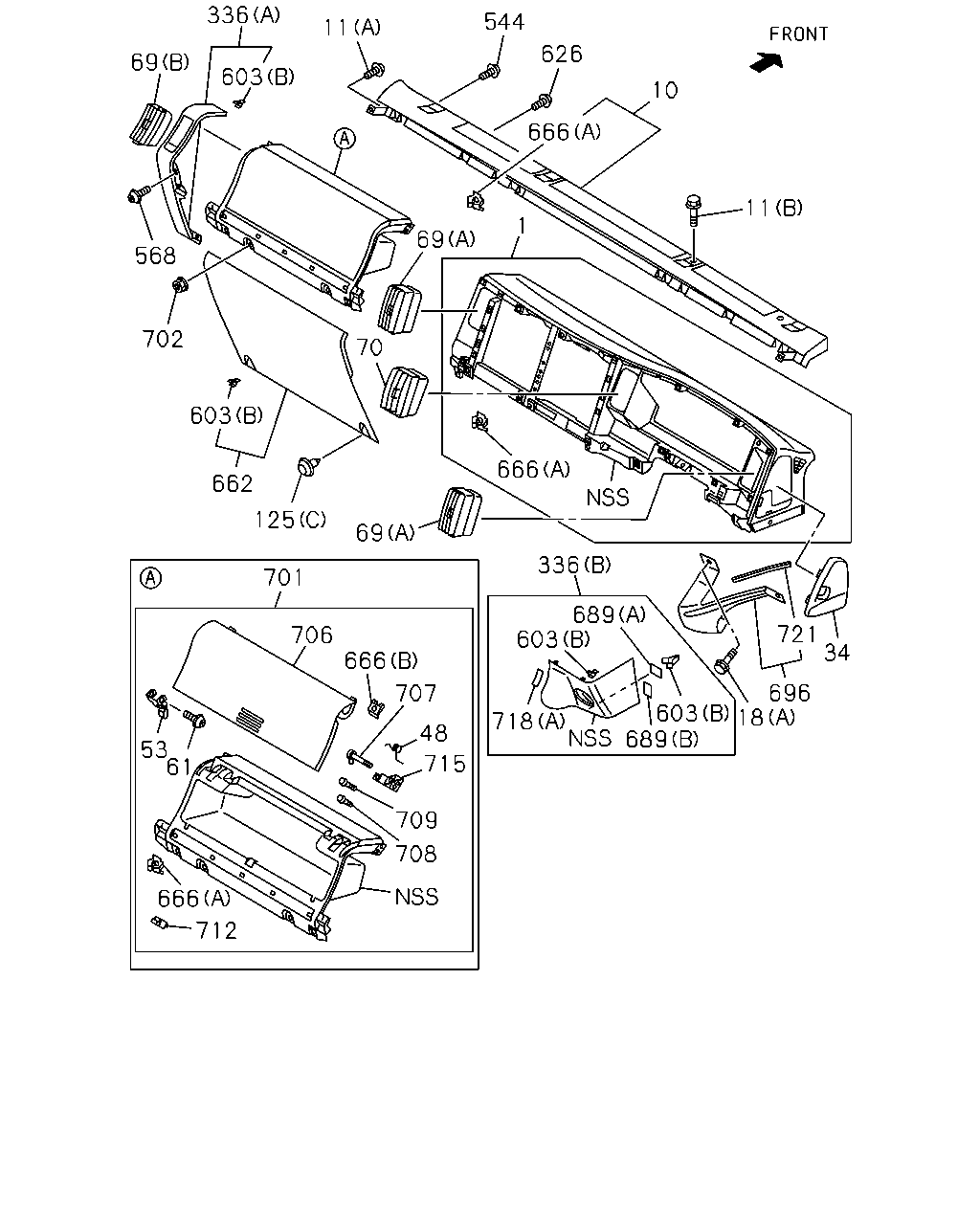

[740A] NO.1 (47 parça)

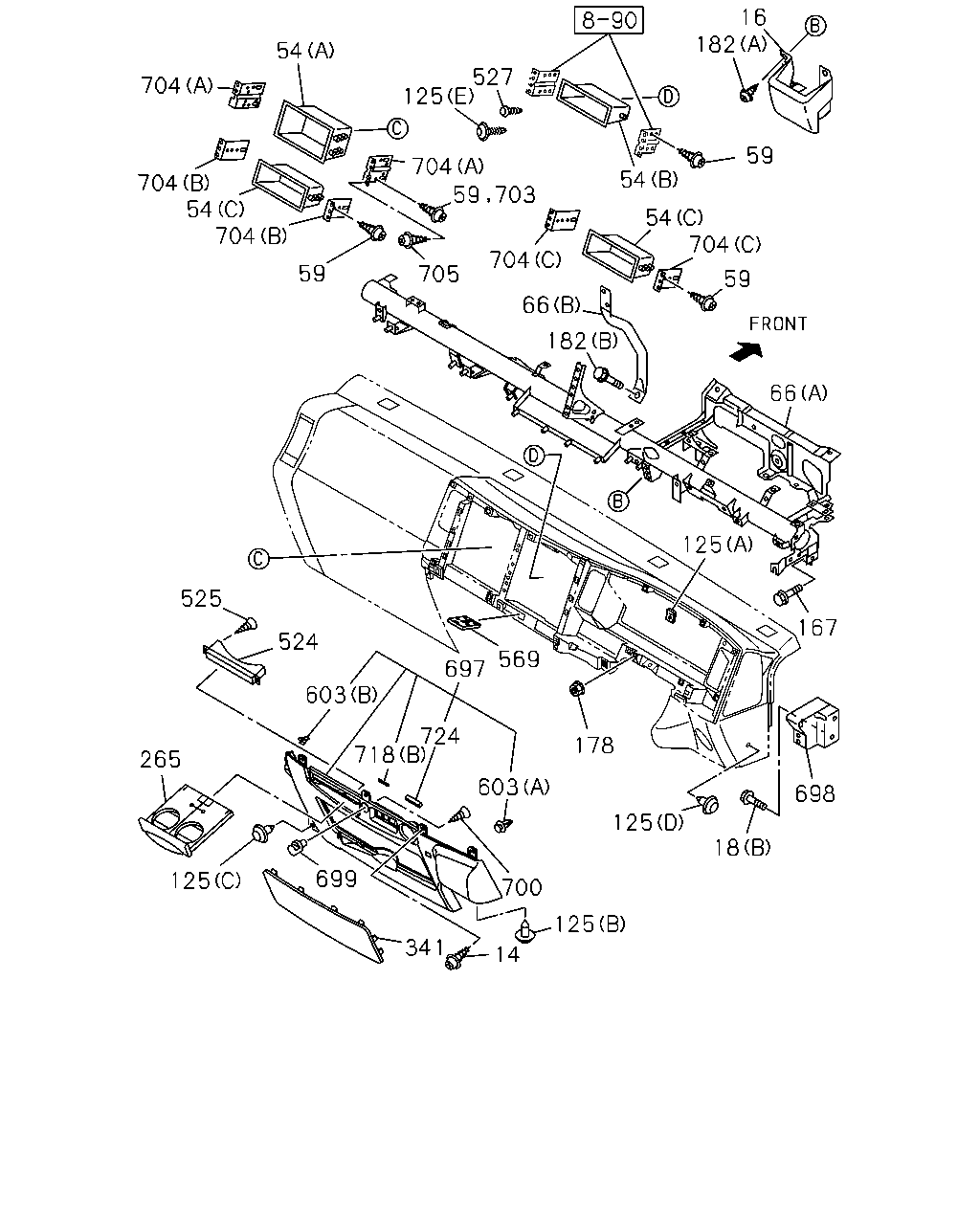

[740A] NO.2 (45 parça)
▶
564
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
564
COVER; SW
8-98025-954-1
03
1
1405-
336
69
568
702
603
662
125
11
603
544
666
626
10
11
69
1
70
69
666
336
721
34
696
18
603
689
718
603
689
701
706
666
707
48
715
709
708
666
712
53
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; INST
THA
8-97926-375-1
01
1
1405-
10
PANEL ASM; GARNISH
GRAY
8-97419-683-5
01
1
1405-
11
BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1405-
11
BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER
8-98018-440-0
04
1
1405-
18
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
04
1
1405-
18
BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1405-
34
LID; OIL TANK
GRAY
8-97405-260-1
01
1
1405-
48
SPRING; GLOVE BOX LID
THA
8-97926-410-0
01
1
1405-
48
SPRING; GLOVE BOX LID
THA
8-97926-411-0
01
1
1405-
53
STRIKER; GLOVE BOX
THA
8-97926-403-1
01
1
1405-
61
SCREW; GLOVE BOX
M4X85 THA
8-97926-404-0
01
1
1405-
69
GRILLE; SIDE,AIR OUTLET
(A)
8-98028-561-2
02
1
1405-
69
GRILLE; SIDE,AIR OUTLET
(B)
8-98028-562-2
01
1
1405-
70
GRILLE; CENTER,AIR OUTLET
8-98028-563-2
01
1
1405-
125
CLIP; INST PANEL
(A) M6 SPIRE NUT
8-97210-973-1
01
1
1405-
125
CLIP; INST PANEL
(E) GRAY
8-97405-205-0
01
1
1405-
125
CLIP; INST PANEL
(B) GRAY
8-97408-063-0
02
1
1405-
125
CLIP; INST PANEL
(D) GRAY
8-97408-817-0
02
1
1405-
125
CLIP; INST PANEL
(C) GRAY
8-97419-968-1
01
1
1405-
336
COVER; INST PANEL SIDE
(A) GRAY
8-97405-259-4
01
1
1405-
336
COVER; INST PANEL SIDE
(B) GRAY
8-97414-688-1
01
1
1405-
544
SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1405-
568
BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1405-
603
CLIP; COVER
(B)
8-98021-271-0
10
1
1405-
626
RETAINER
OD=15 BLACK
8-94279-804-0
02
1
1405-
662
COVER; LWR,INST PANEL
GRAY
8-97414-904-2
01
1
1405-
666
INSERT; INST PANEL
(A) THA
8-97926-385-0
02
1
1405-
666
INSERT; INST PANEL
(A) THA
8-97926-385-0
30
1
1405-
666
INSERT; INST PANEL
(B) M5 THA
8-97926-400-0
04
1
1405-
689
SEAL; INST
(A) 7X31
8-98061-777-0
01
1
1405-
689
SEAL; INST
(B) 18X170
8-98061-778-1
01
1
1405-
696
BRACKET; KNEE
8-98199-366-0
01
1
1405-
701
TRAY; INST
THA
8-97926-382-1
01
1
1405-
702
NUT; TRAY
M6 FLANGE THA
0-91180-106-0
02
1
1405-
706
LID; TRAY INST
THA
8-97926-402-1
01
1
1405-
707
SHAFT; TRAY INST LID
THA
8-97926-393-0
02
1
1405-
708
STOPPER; TRAY INST LID
THA
8-97926-394-0
02
1
1405-
709
SCREW; TRAY INST
M5X16 TAPPING THA
0-71040-516-0
04
1
1405-
712
LOCK; TRAY INST LID
THA
8-97926-395-0
01
1
1405-
715
SUPPORT; TRAY,HINGE
THA
8-97926-396-0
01
1
1405-
715
SUPPORT; TRAY,HINGE
THA
8-97926-397-0
01
1
1405-
718
SEAL; COVER
(A) 30X15
8-98097-696-0
01
1
1405-
718
SEAL; COVER
(B) 5X30
8-98176-199-0
01
1
1405-
718
SEAL; COVER
(B) 8X80
8-98200-040-0
01
1
1405-
718
SEAL; COVER
(B) 4X35
8-98200-041-0
01
1
1405-
721
FINISHER; BRKT,KNEE
L=75
8-98176-240-0
01
1
1405-
54
704
704
54
704
59
125
527
704
59
703
705
704
16
182
59
54
54
704
59
66
125
167
182
66
569
697
178
125
18
698
525
524
265
125
603
718
603
724
699
341
14
700
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1405-
16
BRACKET; INST PNL
8-98053-711-0
01
1
1405-
18
BOLT; BRKT
(B) M8X16 FLANGE THA
0-28050-816-0
04
1
1405-
18
BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
02
1
1405-
54
POCKET; CENTER CLUSTER
(B) THA
8-97926-414-0
01
1
1405-
54
POCKET; CENTER CLUSTER
(A) THA
8-97926-874-0
01
1
1405-
54
POCKET; CENTER CLUSTER
(C) THA
8-97926-412-0
01
1
1405-
54
POCKET; CENTER CLUSTER
(C) THA
8-97926-412-0
01
1
1405-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1405-
59
SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1405-
66
REINFORCEMENT; INST PANEL
(B)
8-97585-578-1
01
1
1405-
66
REINFORCEMENT; INST PANEL
(A)
8-98199-358-1
01
1
1405-
125
CLIP; INST PANEL
(A) M6 SPIRE NUT
8-97210-973-1
01
1
1405-
125
CLIP; INST PANEL
(E) GRAY
8-97405-205-0
01
1
1405-
125
CLIP; INST PANEL
(B) GRAY
8-97408-063-0
02
1
1405-
125
CLIP; INST PANEL
(D) GRAY
8-97408-817-0
02
1
1405-
125
CLIP; INST PANEL
(C) GRAY
8-97419-968-1
01
1
1405-
167
BOLT; REINF TO INST
M8X23 FLANGE
8-97264-766-0
04
1
1405-
178
NUT; INST PANEL
M6 FLANGE THA
0-91180-106-0
03
1
1405-
182
BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA
0-38050-612-0
03
1
1405-
182
BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER
8-97359-709-0
01
1
1405-
265
HOLDER; CUP
GRAY
8-97418-528-0
01
1
1405-
341
LID; FUSE BOX
GRAY
8-97423-658-0
01
1
1405-
524
STAND ASM; CUP,INST
8-98054-414-0
01
1
1405-
525
SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
03
1
1405-
527
CLIP; INST CLUSTER
DARK GRAY
8-97098-326-0
01
1
1405-
569
HOLDER; CARD
8-97410-276-1
01
1
1405-
603
CLIP; COVER
(A)
8-98004-025-0
01
1
1405-
603
CLIP; COVER
(B)
8-98021-271-0
10
1
1405-
697
PANEL; INST CENTER
GRAY
8-97423-656-1
01
1
1405-
698
BRACKET; INST BAR SIDE
8-98089-256-1
01
1
1405-
698
BRACKET; INST BAR SIDE
8-98089-257-1
01
1
1405-
699
HOOK; INST PANEL
GRAY
8-97408-927-0
01
1
1405-
700
BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
01
1
1405-
703
SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR
8-98058-632-0
04
1
1405-
704
BRACKET; CENTER POCKET
(B)
8-97585-616-2
02
1
1405-
704
BRACKET; CENTER POCKET
(A)
8-97585-618-2
02
1
1405-
704
BRACKET; CENTER POCKET
(C)
8-98107-549-0
02
1
1405-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
01
1
1405-
705
SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR
0-72180-520-0
08
1
1405-
718
SEAL; COVER
(A) 30X15
8-98097-696-0
01
1
1405-
718
SEAL; COVER
(B) 5X30
8-98176-199-0
01
1
1405-
718
SEAL; COVER
(B) 8X80
8-98200-040-0
01
1
1405-
718
SEAL; COVER
(B) 4X35
8-98200-041-0
01
1
1405-
724
INSULATOR; INST PANEL
8-98200-042-0
01
1
1405-
