6-76 — FLOOR EQUIPMENT AND SEALING (#139844) — 17 parça

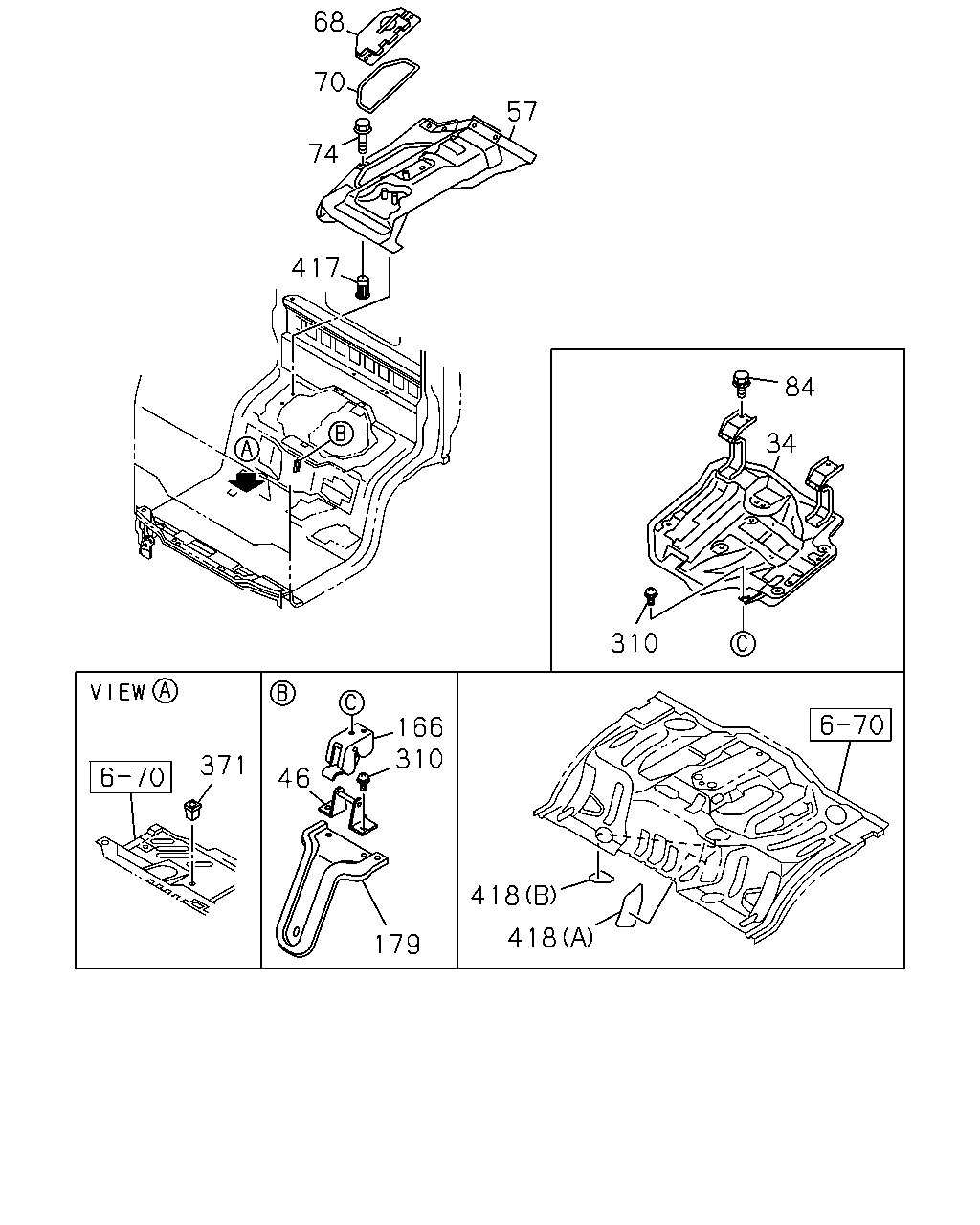

çizim 421742
68 70 57 74 417 84 310 418 418 179 310 166 46 371 34
BalonParca AdiParca NoAdetTipApplied Date
34 COVER ASM; ENG,CAB FLOOR 8-97587-395-3 01 1 1405-
46 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1405-
57 COVER ASM; SUPPORT,CAB FLOOR 8-97587-400-3 01 1 1405-
68 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1405-
70 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1405-
74 BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE THA 		0-28650-820-0 10 1 1405-
84 BOLT; ENG COVER HINGE
M8X20 FLANGE THA 		0-28650-820-0 04 1 1405-
166 LOCK; ENG COVER 8-98040-152-0 02 1 1405-
179 REINFORCEMENT; COVER 8-98048-301-1 01 1 1405-
310 SCREW; ENG COVER HOOK
M6X16 FLANGE THA 		0-28650-616-0 04 1 1405-
310 SCREW; ENG COVER HOOK
M6X16 		0-38050-616-0 05 1 1405-
371 GROMMET; LOCATION HOLE
14.5X14.5 BLACK 		8-94279-714-0 02 1 1405-
417 NUT; POP
M6 POP NUT 		8-98013-752-0 01 1 1405-
418 SEAL; PROTECTOR
(A) THA 		8-98090-191-1 01 1 1405-
418 SEAL; PROTECTOR
(A) THA 		8-98090-192-1 01 1 1405-
418 SEAL; PROTECTOR
(B) THA 		8-98138-276-1 01 1 1405-
418 SEAL; PROTECTOR
(B) THA 		8-98138-277-1 01 1 1405-
