Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

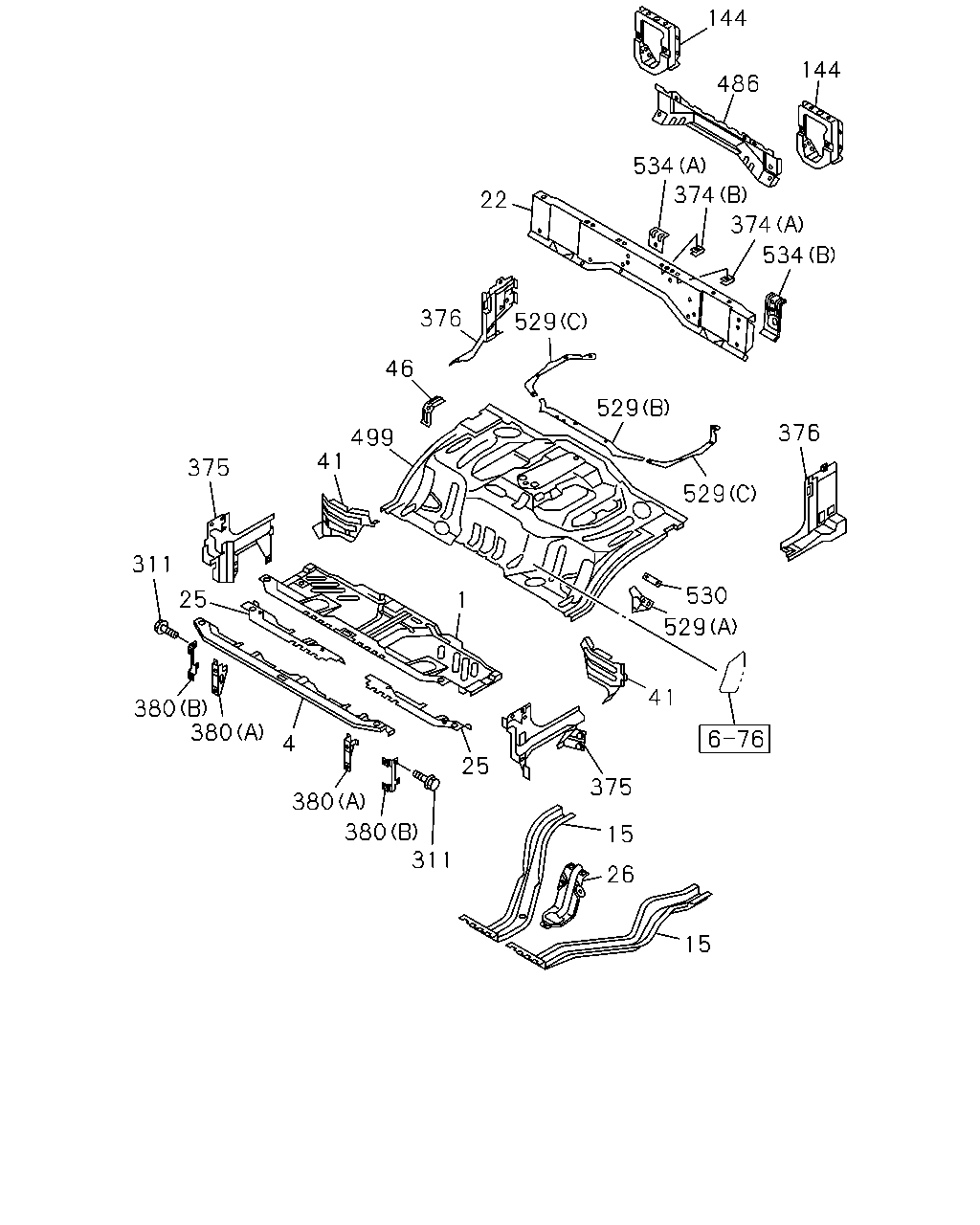

6-70 - FLOOR PANEL
▶
6-70 — FLOOR PANEL
(#139843) — 34 parça
◀
[670A] PANEL (32 parça)
[670A] GROMMET (2 parça)
▶
144
486
144
534
374
374
534
22
529
529
376
529
530
529
41
375
15
26
15
311
380
380
25
4
380
380
25
311
375
1
41
499
46
376
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; FLOOR
8-98112-870-0
01
1
1405-
4
FRAME; FLOOR,FRT
8-98107-595-0
01
1
1405-
15
FRAME; UNDER
8-98059-497-1
01
1
1405-
15
FRAME; UNDER
8-98059-498-1
01
1
1405-
22
FRAME; FLOOR REAR
8-97587-394-4
01
1
1405-
25
REINFORCEMENT; FRAME FLOOR,FRT
8-97583-823-0
01
1
1405-
25
REINFORCEMENT; FRAME FLOOR,FRT
8-98107-587-0
01
1
1405-
26
PANEL; GEAR CONT REINF
8-97589-382-1
01
1
1405-
41
SUPPORT; STEP,RR
8-97583-880-1
01
1
1405-
41
SUPPORT; STEP,RR
8-97583-881-1
01
1
1405-
46
BRACKET; FRT SEAT,RR OUTER
8-97583-834-0
01
1
1405-
144
BRACKET; MTG,RR
8-98112-244-1
02
1
1405-
311
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
04
1
1405-
374
NUT; FLOOR
(B) M6
1-09984-110-0
02
1
1405-
374
NUT; FLOOR
(A) THA
8-97948-153-0
04
1
1405-
375
CLOSING; PILLAR
8-97583-882-3
01
1
1405-
375
CLOSING; PILLAR
8-97583-883-2
01
1
1405-
376
CLOSING; PILLAR,LWR
THA
8-97583-888-2
01
1
1405-
376
CLOSING; PILLAR,LWR
THA
8-97584-618-2
01
1
1405-
380
BRACKET; HEAD LAMP
(A)
8-97589-384-4
01
1
1405-
380
BRACKET; HEAD LAMP
(A)
8-97589-385-3
01
1
1405-
380
BRACKET; HEAD LAMP
(B)
8-98029-288-0
01
1
1405-
380
BRACKET; HEAD LAMP
(B)
8-98029-289-0
01
1
1405-
486
REINFORCEMENT; FRAME FLOOR,REAR
8-98030-614-2
01
1
1405-
499
PANEL; FLOOR,RR
8-98205-116-0
01
1
1405-
529
RETAINER; FLOOR PANEL
(B)
8-97589-249-0
01
1
1405-
529
RETAINER; FLOOR PANEL
(C)
8-97589-467-1
01
1
1405-
529
RETAINER; FLOOR PANEL
(C)
8-97589-468-1
01
1
1405-
529
RETAINER; FLOOR PANEL
(A)
8-98030-358-0
01
1
1405-
530
BRACKET; COVER
8-97589-255-0
01
1
1405-
534
REINFORCEMENT; SEAT BACK
(B)
8-97583-851-3
01
1
1405-
534
REINFORCEMENT; SEAT BACK
(A)
8-98019-181-2
01
1
1405-

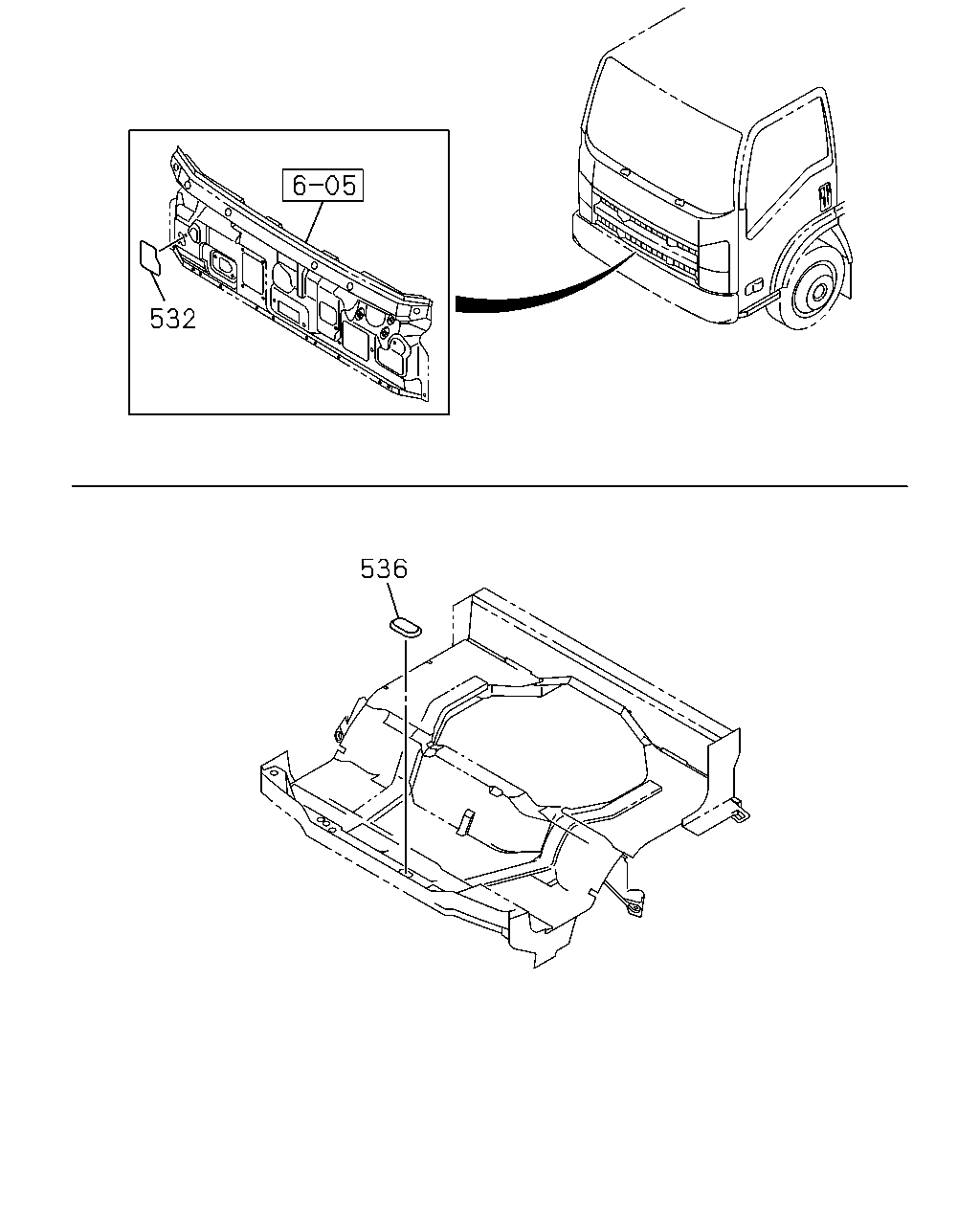

536
532
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
532
SEAL; CABLE
8-98042-432-1
01
1
1405-
536
PLUG; CABLE,PTO
8-98029-219-1
01
1
1405-
