Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#139841) — 41 parça
◀

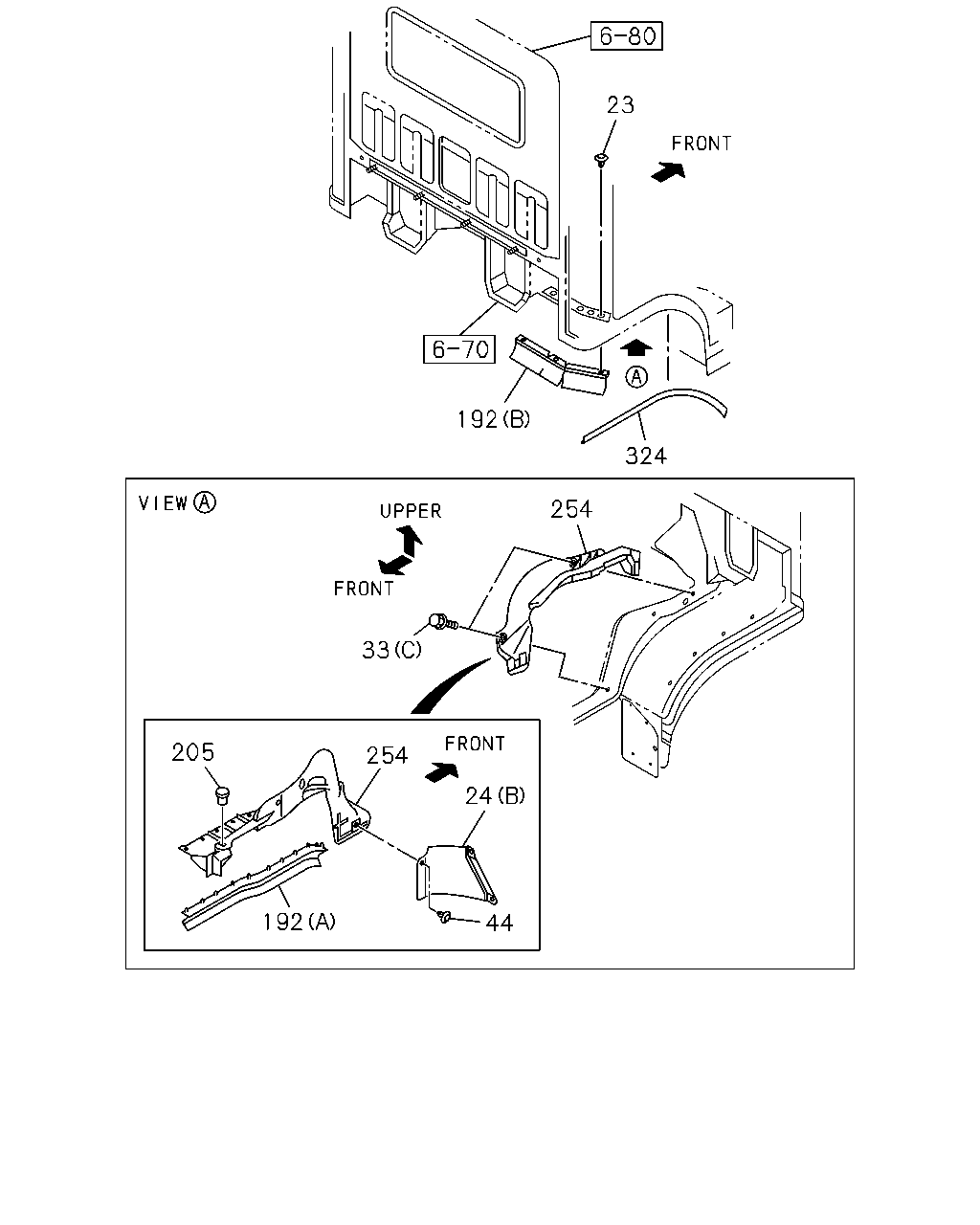

[647A] PROTECTOR AND OTHER PARTS (14 parça)

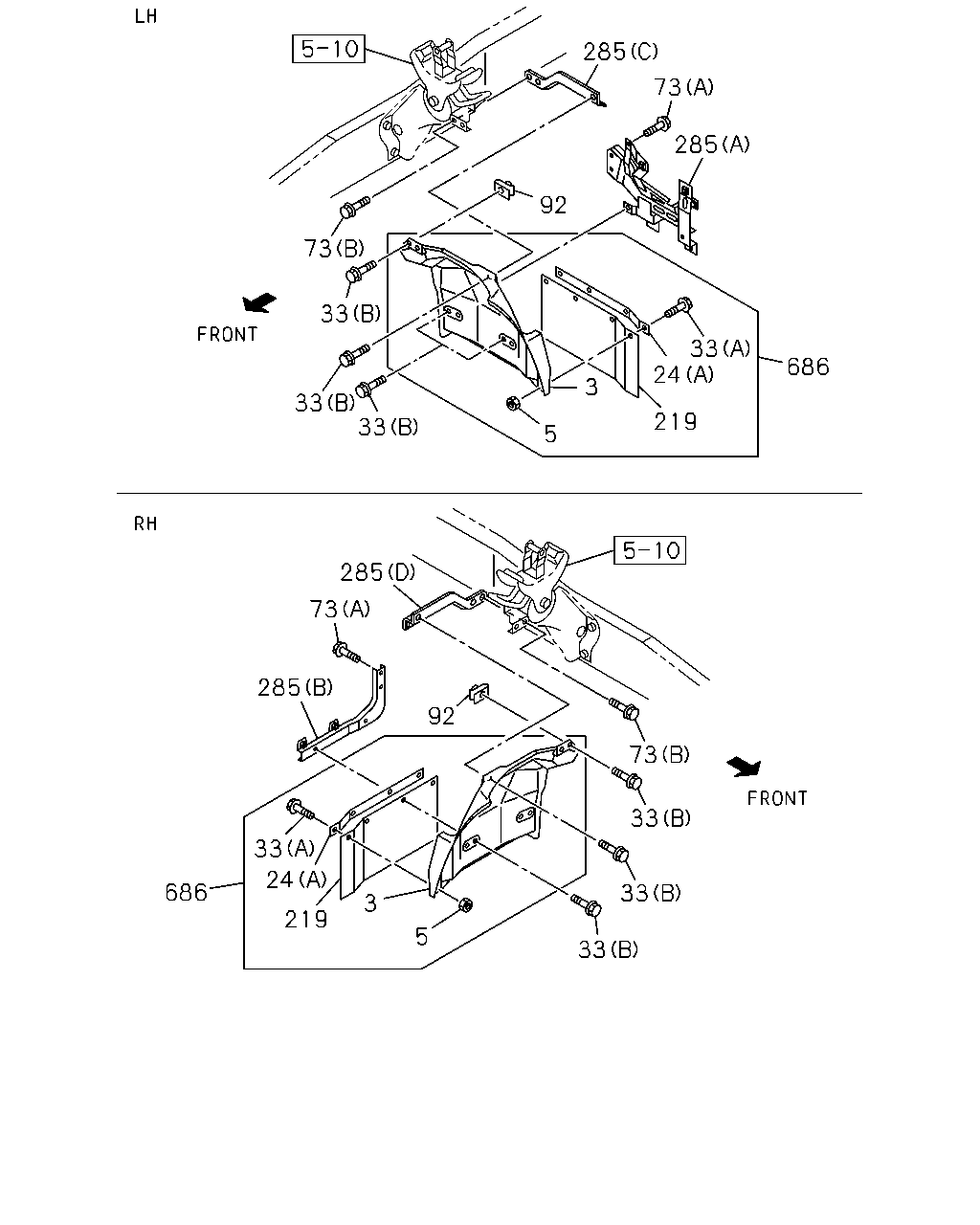

[647A] MUD GUARD (18 parça)

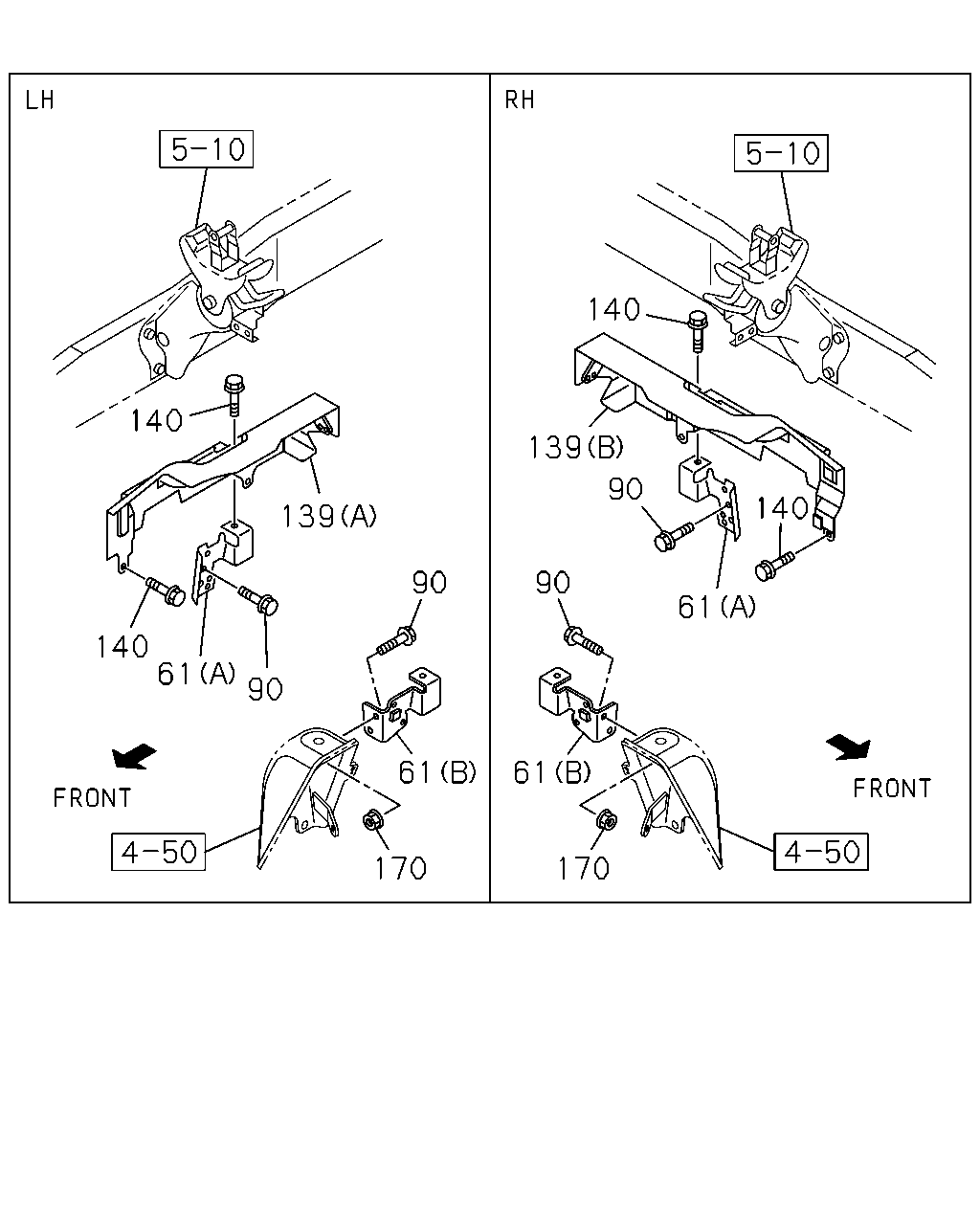

[647A] SIDE PANEL (9 parça)
▶
23
192
324
254
33
24
205
254
192
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
FASTENER; MUD COVER
OD=8.3
8-97997-832-0
06
1
1405-
24
PLATE; MUD COVER
(A)
8-98004-031-1
02
1
1405-
24
PLATE; MUD COVER
(B)
8-98154-258-0
02
1
1405-
33
BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1405-
33
BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
1405-
33
BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1405-
44
CLIP; ANCHOR
OD=16 L=11
1-76378-155-0
06
1
1405-
192
SEAL; MUD COVER
(A)
8-98022-755-1
01
1
1405-
192
SEAL; MUD COVER
(A)
8-98022-756-1
01
1
1405-
192
SEAL; MUD COVER
(B) THA
8-98022-782-3
02
1
1405-
205
FASTENER; MUD COVER
D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
1405-
254
COVER; MUD,VALANCE
8-98022-750-3
01
1
1405-
254
COVER; MUD,VALANCE
8-98022-751-3
01
1
1405-
324
PROTECTOR; FRT FENDER
THA
8-97927-007-0
02
1
1405-
33
33
33
73
285
73
285
686
219
33
24
92
3
5
285
92
285
73
73
33
33
5
3
24
33
686
219
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GUARD; MUD,RR
8-98004-029-5
01
1
1405-
3
GUARD; MUD,RR
8-98004-030-4
01
1
1405-
5
NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1405-
24
PLATE; MUD COVER
(A)
8-98004-031-1
02
1
1405-
24
PLATE; MUD COVER
(B)
8-98154-258-0
02
1
1405-
33
BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
1405-
33
BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
1405-
33
BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1405-
73
BOLT; MUD COVER BRKT
(B) M8X25 FLANGE THA
0-28650-825-0
04
1
1405-
73
BOLT; MUD COVER BRKT
(A) M10X25 FLANGE THA
0-28651-025-0
04
1
1405-
92
NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
1405-
219
FLAP; MUD GUARD
8-98004-033-1
02
1
1405-
285
BRACKET; MUD COVER
(B)
8-98001-314-2
01
1
1405-
285
BRACKET; MUD COVER
(D)
8-98001-315-2
01
1
1405-
285
BRACKET; MUD COVER
(C)
8-98001-319-2
01
1
1405-
285
BRACKET; MUD COVER
(A)
8-98001-320-3
01
1
1405-
686
FLAP ASM; MUD
8-97387-750-7
01
1
1405-
686
FLAP ASM; MUD
8-97387-751-6
01
1
1405-
140
139
90
61
170
90
61
140
140
139
90
140
61
90
61
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
BRACKET; COVER
FRONT WIDE TREAD<7GV> (B)
8-98135-993-0
01
1
1405-
61
BRACKET; COVER
FRONT WIDE TREAD<7GV> (B)
8-98135-994-0
01
1
1405-
61
BRACKET; COVER
EXC. FRONT WIDE TREAD<7GV> (A)
8-98040-465-1
01
1
1405-
61
BRACKET; COVER
EXC. FRONT WIDE TREAD<7GV> (A)
8-98040-466-1
01
1
1405-
90
BOLT; COVER
M8X25 FLANGE THA
0-28650-825-0
04
1
1405-
139
PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (B)
8-98043-920-2
01
1
1405-
139
PANEL; SIDE
FRAME STRAIGHT TYPE<7KJ> (A)
8-98115-458-0
01
1
1405-
140
BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
06
1
1405-
170
NUT; COVER
FRONT WIDE TREAD<7GV> M8 FLANGE THA
0-91180-108-0
04
1
1405-
