◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#139839) — 27 parça

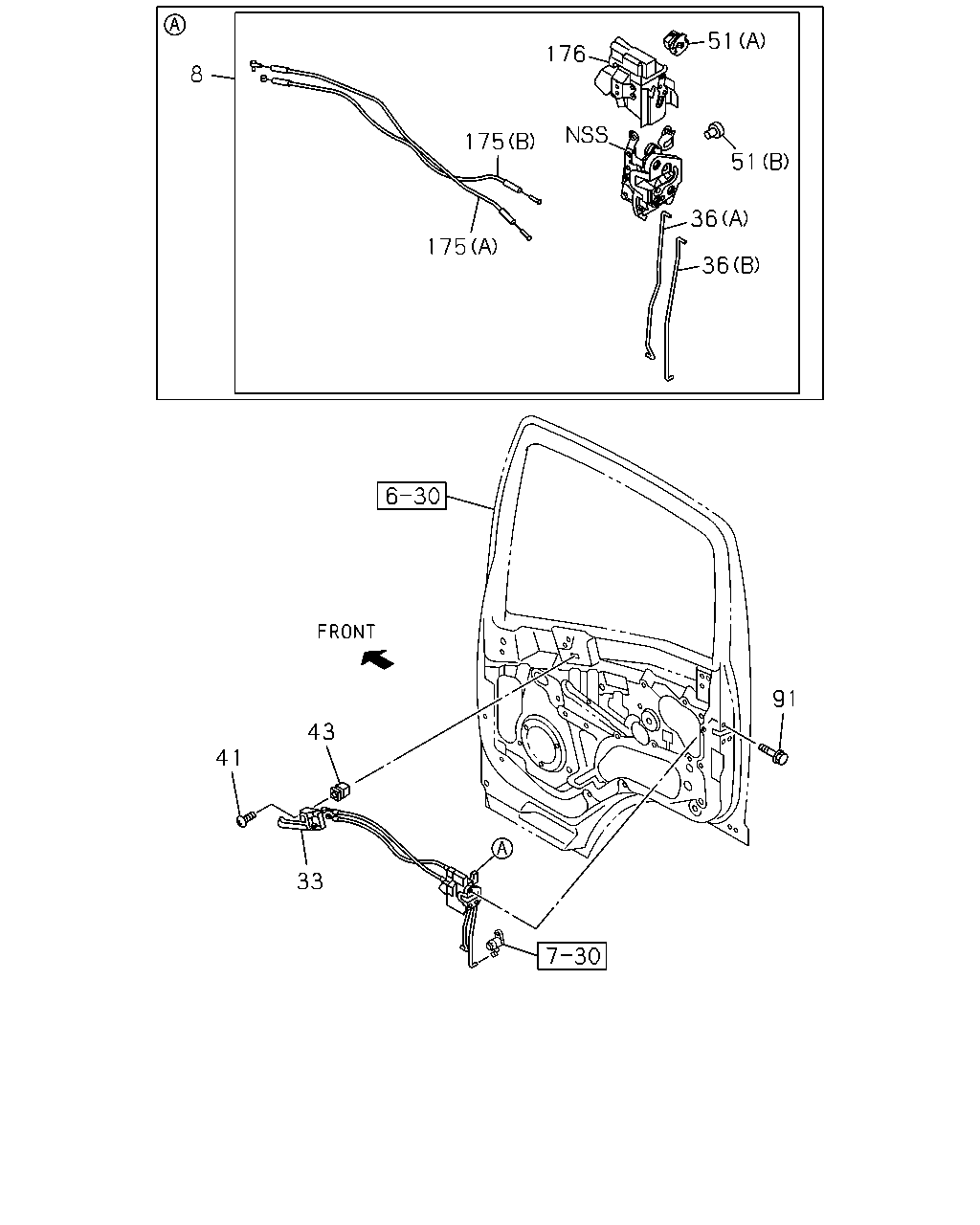

çizim 421921
8 51 51 36 36 176 175 175 91 43 41 33
BalonParca AdiParca NoAdetTipApplied Date
8 LOCK; DOOR,FRT DOOR 8-97520-627-0 01 1 1405-
8 LOCK; DOOR,FRT DOOR 8-97520-628-0 01 1 1405-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-309-1 01 1 1405-
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97405-310-1 01 1 1405-
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-97520-804-0 01 1 1405-
36 LINK; DOOR LOCK,OUTSIDE
(A) 		8-97520-805-0 01 1 1405-
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-97520-806-0 01 1 1405-
36 LINK; DOOR LOCK,OUTSIDE
(B) 		8-97520-807-0 01 1 1405-
41 SCREW; INSIDE HANDLE
T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1405-
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1405-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) NATURAL 		8-98058-226-0 02 1 1405-
51 SNAP; FRT DOOR LOCK CONT ROD
(A) BLUE 		8-98058-227-0 02 1 1405-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) BLACK 		8-98058-228-0 01 1 1405-
51 SNAP; FRT DOOR LOCK CONT ROD
(B) RED 		8-98058-229-0 01 1 1405-
91 BOLT; DOOR LOCK
M6X14.5 THA 		8-98004-342-0 06 1 1405-
175 CABLE ASM; LOCK CONTROL
(A) 		8-97520-808-0 01 1 1405-
175 CABLE ASM; LOCK CONTROL
(A) 		8-97520-809-0 01 1 1405-
175 CABLE ASM; LOCK CONTROL
(B) 		8-97520-810-0 02 1 1405-
176 COVER; DOOR LOCK 8-98058-238-0 01 1 1405-
176 COVER; DOOR LOCK 8-98058-239-0 01 1 1405-
çizim 421950
1 139 89 14 18
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-100-2 01 1 1405-
1 HANDLE; OUTSIDE,FRT DOOR 8-98037-101-2 01 1 1405-
14 STRIKER; FRT DOOR 8-98029-173-2 02 1 1405-
18 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1405-
89 BOLT; DOOR OUTSIDE HANDLE
M6X10 FLANGE THA 		0-28050-610-0 04 1 1405-
139 HOLDER; ROD,DOOR HANDLE
WHITE 		8-97333-303-0 01 1 1405-
139 HOLDER; ROD,DOOR HANDLE
BLACK 		8-98095-813-0 01 1 1405-
