Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-05 - FRONT PANEL
▶
6-05 — FRONT PANEL
(#139835) — 45 parça
◀

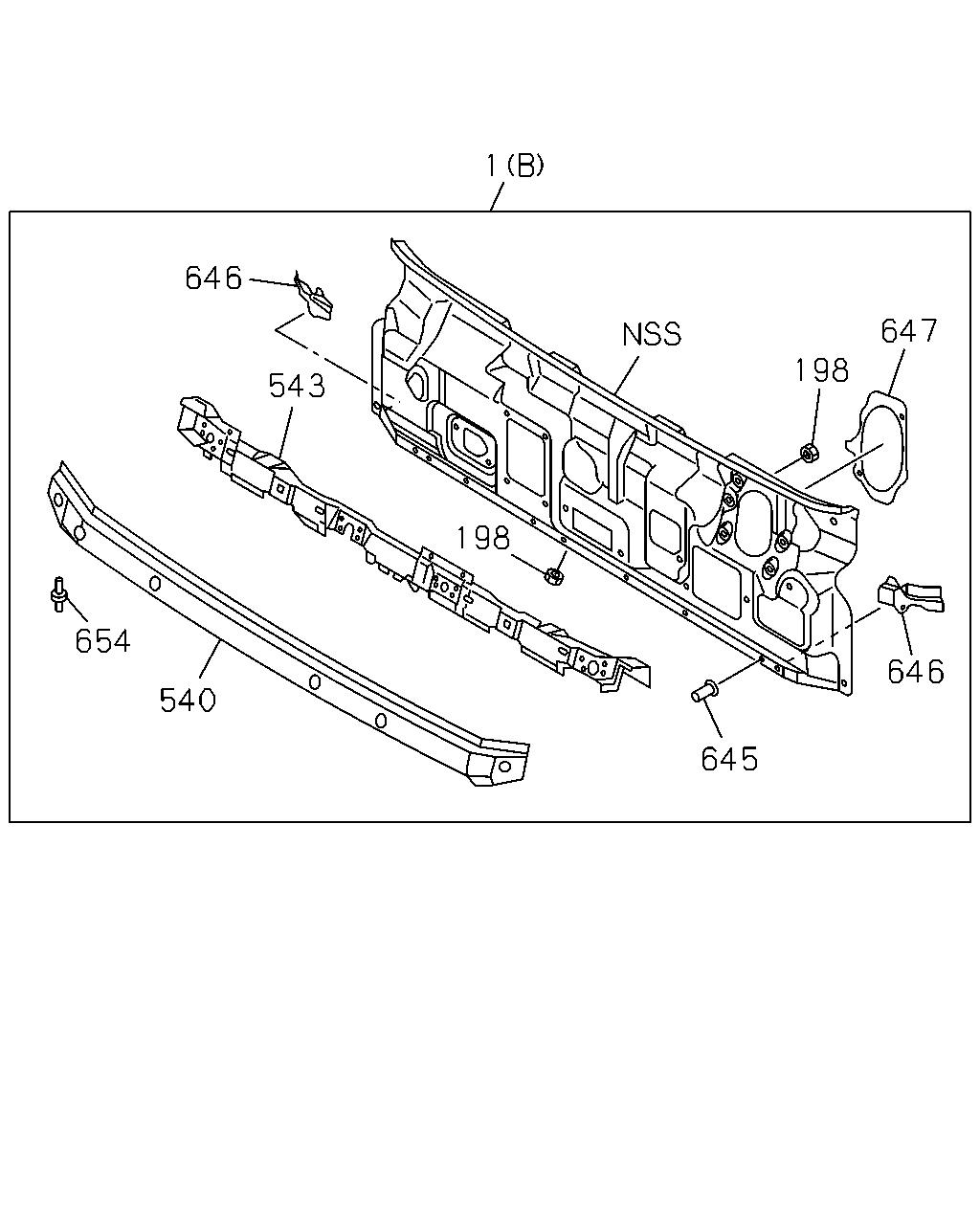

[605A] COMPONENT;PANEL (10 parça)

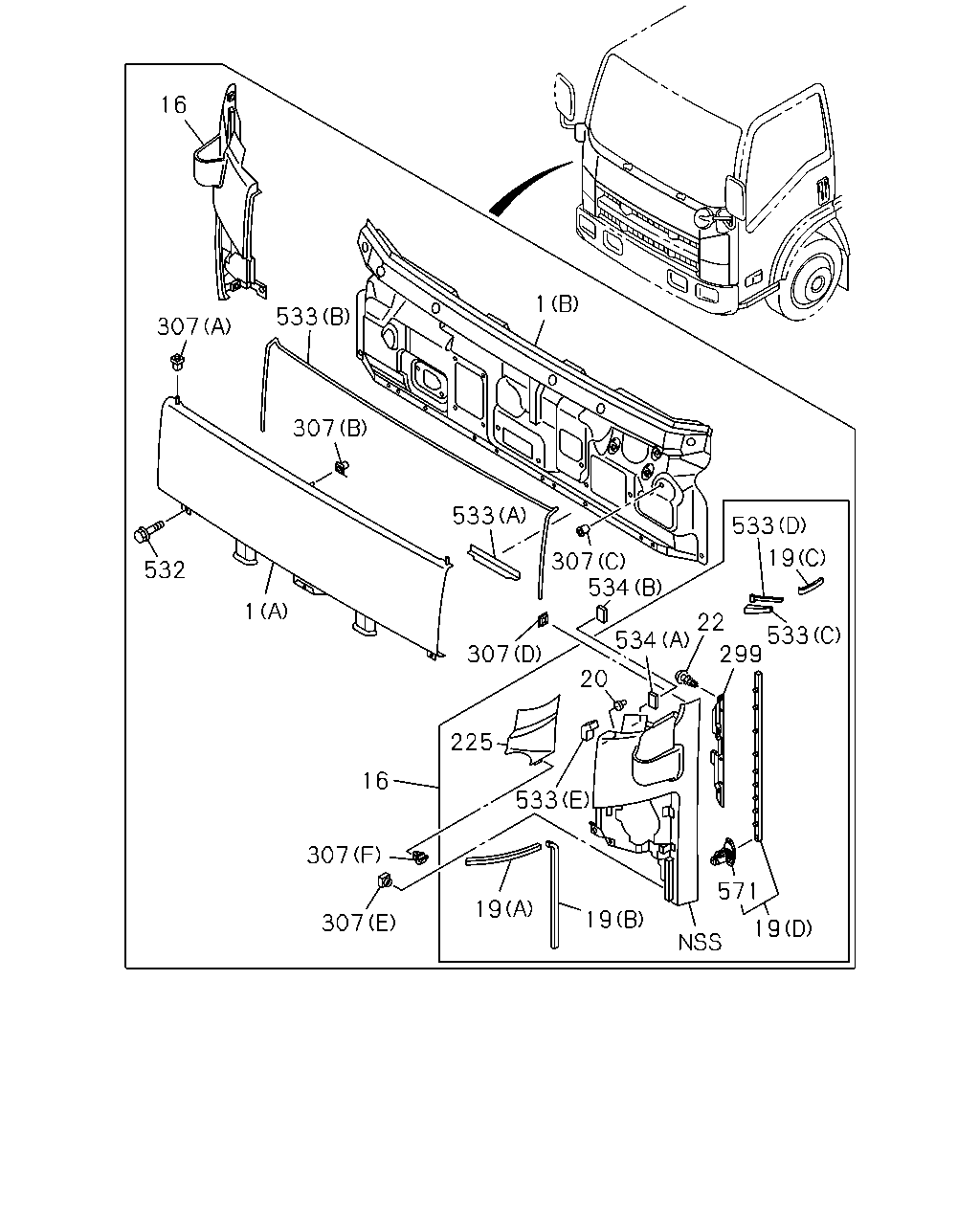

[605A] PANEL (35 parça)
▶
1
646
543
654
540
645
646
647
198
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
VIN MODEL YEAR 2011<VZB> (B) THA
8-98183-882-0
01
1
1405-
1
PANEL ASM; FRT
(A)
8-98122-695-0
01
1
1405-
198
NUT; PANEL
VIN MODEL YEAR 2011<VZB> M6 THA
9-09114-086-0
04
1
1405-
540
PANEL; FRONT,OUTER
VIN MODEL YEAR 2011<VZB>
8-97585-325-3
01
1
1405-
543
CLOSING; FRT MTG RAIL
VIN MODEL YEAR 2011<VZB>
8-97585-328-5
01
1
1405-
645
STUD; FRT PANEL
VIN MODEL YEAR 2011<VZB> M6X12
8-98013-112-0
06
1
1405-
646
REINFORCEMENT; DASH
VIN MODEL YEAR 2011<VZB>
8-98023-098-1
01
1
1405-
646
REINFORCEMENT; DASH
VIN MODEL YEAR 2011<VZB>
8-98023-099-1
01
1
1405-
647
REINFORCEMENT; WIPER MOTOR
VIN MODEL YEAR 2011<VZB>
8-98006-327-0
01
1
1405-
654
PIN; FRT PANEL
VIN MODEL YEAR 2011<VZB>
8-98021-967-2
02
1
1405-
16
307
533
307
1
533
307
1
532
307
534
534
22
299
533
533
19
20
225
533
19
307
307
16
19
571
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL ASM; FRT
VIN MODEL YEAR 2011<VZB> (B) THA
8-98183-882-0
01
1
1405-
1
PANEL ASM; FRT
(A)
8-98122-695-0
01
1
1405-
16
PANEL; FRONT,SIDE
VIN MODEL YEAR 2011<VZB> WHITE THA
8-97409-873-8
01
1
1405-
16
PANEL; FRONT,SIDE
VIN MODEL YEAR 2011<VZB> WHITE THA
8-97409-874-8
01
1
1405-
16
PANEL; FRONT,SIDE
EXC. VIN MODEL YEAR 2011<VZB> WHITE THA
8-97409-869-9
01
1
1405-
16
PANEL; FRONT,SIDE
EXC. VIN MODEL YEAR 2011<VZB> WHITE THA
8-97409-871-9
01
1
1405-
19
SEAL; FRT SIDE PANEL
(D)
8-98028-749-3
01
1
1405-
19
SEAL; FRT SIDE PANEL
(D)
8-98028-750-3
01
1
1405-
19
SEAL; FRT SIDE PANEL
(A)
8-98035-268-0
02
1
1405-
19
SEAL; FRT SIDE PANEL
(C)
8-98038-608-0
02
1
1405-
19
SEAL; FRT SIDE PANEL
(B)
8-98062-215-0
02
1
1405-
20
CLIP; FRT PANEL SIDE
8-97410-739-0
04
1
1405-
22
SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER
0-74360-410-0
06
1
1405-
225
COVER; SIDE,FRT
VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR
8-98036-520-3
01
1
1405-
225
COVER; SIDE,FRT
VIN MODEL YEAR 2011<VZB> PLEASE PAINT TO MATCH BODY COLOR
8-98036-521-3
01
1
1405-
299
COVER; FRT PANEL SIDE
8-98028-144-1
01
1
1405-
299
COVER; FRT PANEL SIDE
8-98028-145-1
01
1
1405-
307
GROMMET; FRT PANEL
VIN MODEL YEAR 2011<VZB> (F)
8-98028-743-0
02
1
1405-
307
GROMMET; FRT PANEL
(D)
8-97410-738-0
02
1
1405-
307
GROMMET; FRT PANEL
(E)
8-98021-300-1
04
1
1405-
307
GROMMET; FRT PANEL
(A)
8-98021-968-0
01
1
1405-
307
GROMMET; FRT PANEL
(A)
8-98021-969-0
01
1
1405-
307
GROMMET; FRT PANEL
(B)
8-98023-229-1
01
1
1405-
307
GROMMET; FRT PANEL
(C)
8-98034-363-1
04
1
1405-
532
BOLT; FRT PANEL
M6X16 W/LK&PL WASHER
0-52010-616-0
02
1
1405-
533
SEAL; FRT PANEL
(B) THA
8-97927-011-0
01
1
1405-
533
SEAL; FRT PANEL
(A)
8-98021-965-2
01
1
1405-
533
SEAL; FRT PANEL
(C)
8-98043-509-0
01
1
1405-
533
SEAL; FRT PANEL
(C)
8-98043-510-0
01
1
1405-
533
SEAL; FRT PANEL
(D)
8-98043-511-1
02
1
1405-
533
SEAL; FRT PANEL
(E)
8-98064-939-0
02
1
1405-
534
FASTENER
VIN MODEL YEAR 2011<VZB> (A) 20X30
8-98059-208-1
02
1
1405-
534
FASTENER
EXC. VIN MODEL YEAR 2011<VZB> (B) 40X25
8-98089-411-1
02
1
1405-
534
FASTENER
EXC. VIN MODEL YEAR 2011<VZB> (A) 40X25
8-98089-412-1
02
1
1405-
571
CLIP; SEAL
NATURAL
8-98027-457-0
20
1
1405-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
