5-10 — CAB MOUNTING; FRAME SIDE
(#139830) — 19 parça
◀
[510A] CAB MTG BRKT REAR (10 parça)

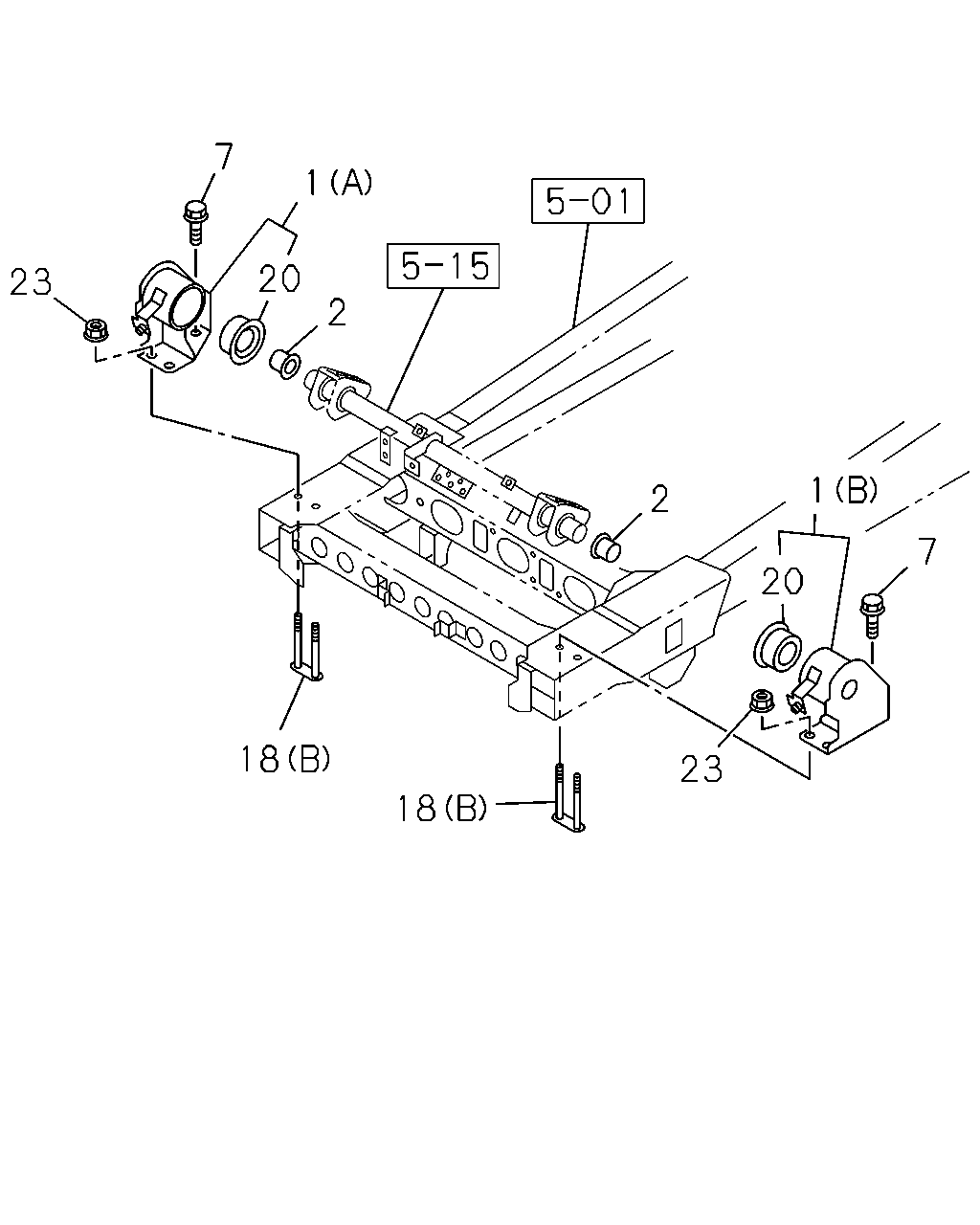

[510A] CAB MTG BRKT FRONT (9 parça)
▶
156
300
151
199
149
156
300
149
199
151
191
191
18
199
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1405-
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1405-
149
RUBBER; MTG,CAB,UPR RR
8-98038-868-0
02
1
1405-
151
WASHER; CAB MTG,RR UPR
ID=16.5 OD=58
8-97359-040-1
02
1
1405-
156
NUT; CAB MTG RR
M14 FLANGE THA
0-91180-114-0
02
1
1405-
191
BOLT; BRKT FIX
M12X40 FLANGE
0-28651-240-0
08
1
1405-
192
NUT; BRKT FIX
M12 FLANGE THA
0-91180-112-0
08
1
1405-
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ>
8-98024-772-2
01
1
1405-
199
BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ>
8-98024-778-1
01
1
1405-
300
BOLT; MTG RUBBER
M10X20 FLANGE THA
0-28651-020-0
08
1
1405-
7
23
20
1
2
18
18
23
2
1
20
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
(A)
8-98074-798-2
01
1
1405-
1
BRACKET; CAB MTG
(B)
8-98074-800-2
01
1
1405-
2
BUSHING; TORSION BAR
8-97061-514-0
02
1
1405-
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1405-
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1405-
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1405-
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
01
1
1405-
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1405-
