◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#13983) — 438 parça

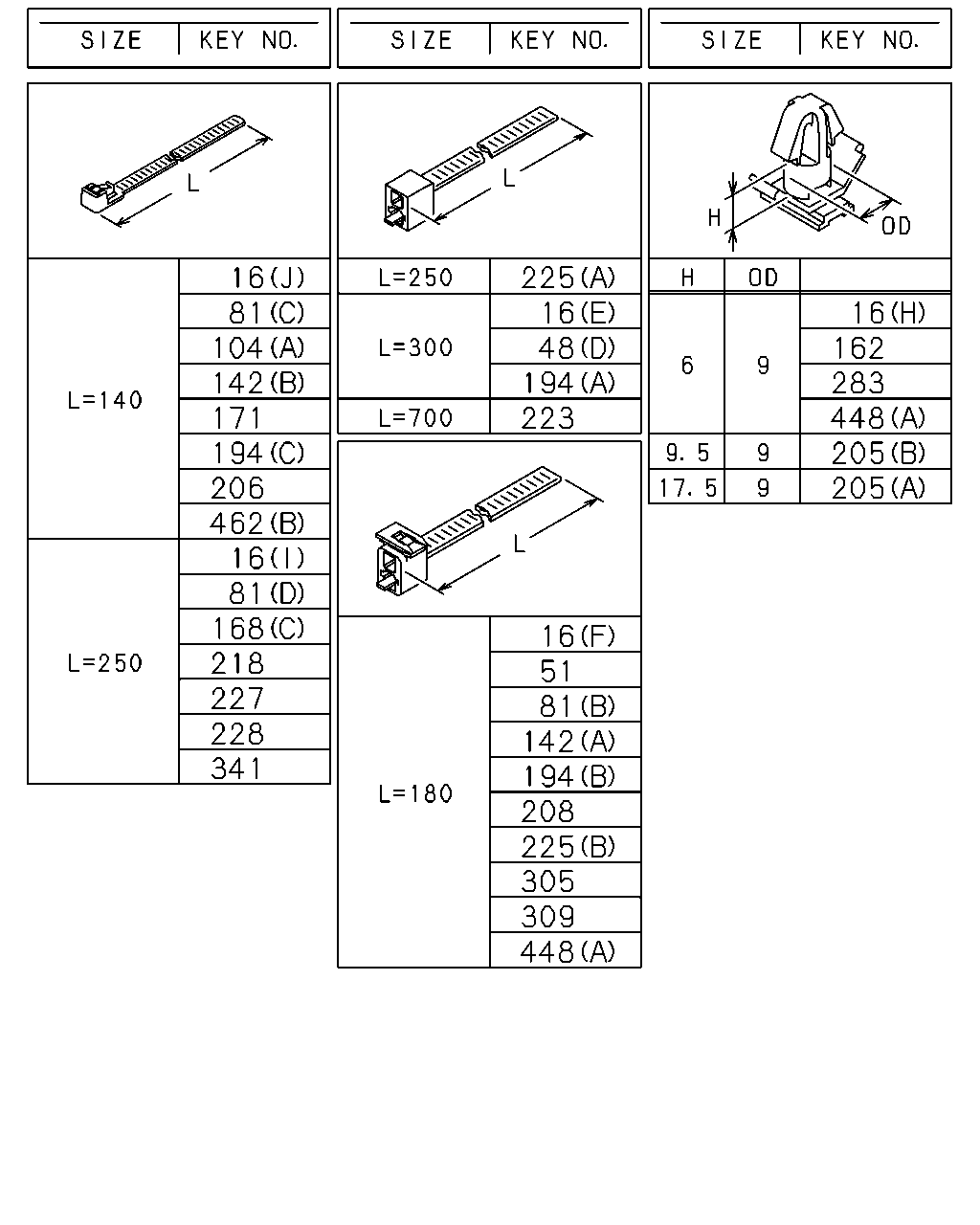

çizim 22324
16 81 104 142 171 194 206 462 16 81 168 218 227 228 341 225 16 48 194 223 16 162 283 448 205 205 16 51 81 142 194 208 225 305 309 448
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (W) ID=11 L=61 		1-09700-484-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 02 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=11 L=41 		1-09700-403-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 02 1 0303-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0212-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (L) ID=14 L=44 		9-09917-427-0 03 1 0201-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(Y) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(D) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 07 1 0105-0106
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(O) 		8-94403-348-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (H) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (M) ID=20 L=50 		9-09917-430-0 03 1 0201-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (M) ID=20 L=50 		9-09917-430-0 03 1 0303-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=70 		1-09700-485-0 03 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (R) ID=20 H=23 L=27 		1-09700-861-0 02 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 10 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 07 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0107-0107
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0105-0106
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0107-0302
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0303-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4> (C) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0105-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0105-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0105-0106
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0305
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0105-0305
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0306-
205 CLIP; BACK LAMP HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) OD=9 H=17.5 		1-09709-181-0 01 1 0105-
205 CLIP; BACK LAMP HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>, CHINA-SOUTHERNECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208-
223 CLIP; AIR TANK HARNESS
L=700 		1-09707-190-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 03 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> L=250 		5-09707-030-1 01 1 0210-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0105-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
çizim 80288
38 38 242 38 313 242 255 358 239 38 88 133 133 119 64 38 242 242 38 313 38 38 133 515 423 524 219 294 340 219 294 516
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M6X8 		0-20800-608-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(F) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0107
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0108-0205
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0108
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0105-0108
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0403
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0404-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28080-825-0 01 1 0109-
38 BOLT; CLIP,HARNESS
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0109-
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (A) M8X20 FLANGE 		0-28080-820-0 06 1 0105-
38 BOLT; CLIP,HARNESS
WHEEL BASE 6300MM(63W) (B) M8X30 FLANGE 		0-28680-830-0 11 1 0105-
38 BOLT; CLIP,HARNESS
WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0302
38 BOLT; CLIP,HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (B) M8X30 FLANGE 		0-28680-830-0 07 1 0303-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0105-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0111-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0206-
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0105-0106
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0107-
219 NUT
(B) M10X1.25 FLANGE 		0-91150-210-0 01 1 0107-
219 NUT
(B) M10X1.5 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
WHEEL BASE 6300MM(63W) (A) M8 FLANGE 		0-91150-108-0 11 1 0105-
219 NUT
WHEEL BASE 6600MM(66W) (A) M8 FLANGE 		0-91150-108-0 07 1 0107-0302
219 NUT
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (A) M8 FLANGE 		0-91150-108-0 07 1 0303-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X18 FLANGE 		0-28080-818-0 04 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X18 FLANGE 		0-28080-818-0 04 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(D) M10X20 FLANGE 		0-28681-020-0 02 1 0105-
255 SCREW; TAP CLIP
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-
294 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0106-
294 NUT
(B) M10 FLANGE 		0-91150-210-0 01 1 0107-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0211
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28080-820-0 02 1 0212-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M10 		9-09110-510-0 02 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0105-
çizim 80899
53 53 53 53 334 312 312 312 342 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(D) 		1-82699-239-0 02 1 0105-
53 BRACKET; HARNESS
(A) 		1-82699-592-2 01 1 0105-
53 BRACKET; HARNESS
(C) 		1-82699-826-0 01 1 0105-
53 BRACKET; HARNESS
(B) 		1-82699-916-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(A) 		1-47477-156-2 01 1 0105-0109
312 BRACKET; CLIP HARNESS
(A) 		1-47479-342-0 01 1 0110-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
(C) 		1-82699-425-0 01 1 0107-
334 BRACKET 1-53458-709-1 01 1 0105-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0105-
çizim 81169
5 530 178 503 185 1 510 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50 		5-09360-835-0 01 1 0212-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0105-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 02 1 0105-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
510 GROMMET; SCREW
D=9X9 L=8 M6 		8-94222-314-0 02 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 04 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0105-

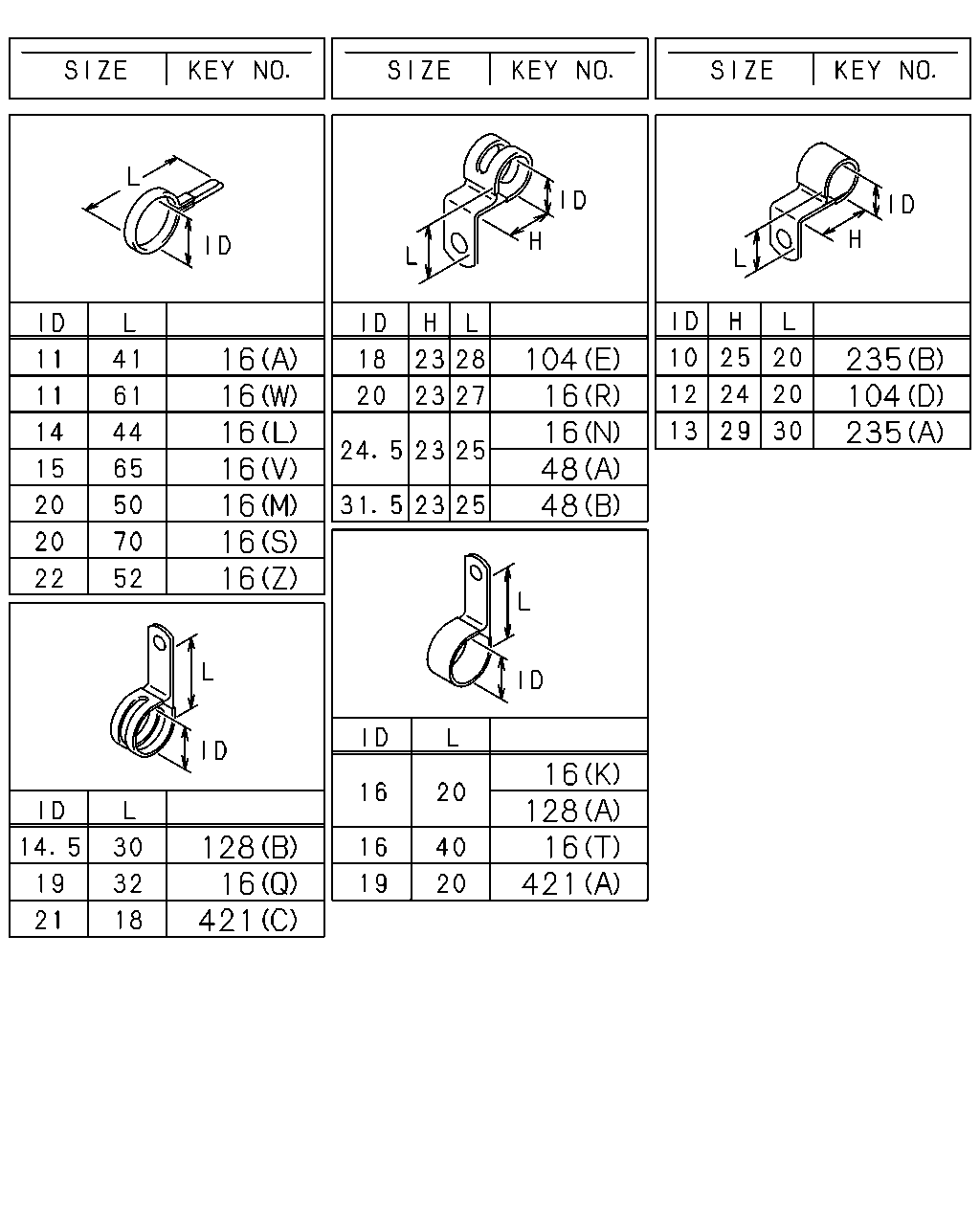

çizim 81238
16 16 16 16 16 16 16 104 16 16 48 48 235 104 235 16 128 16 421 128 16 421
BalonParca AdiParca NoAdetTipApplied Date

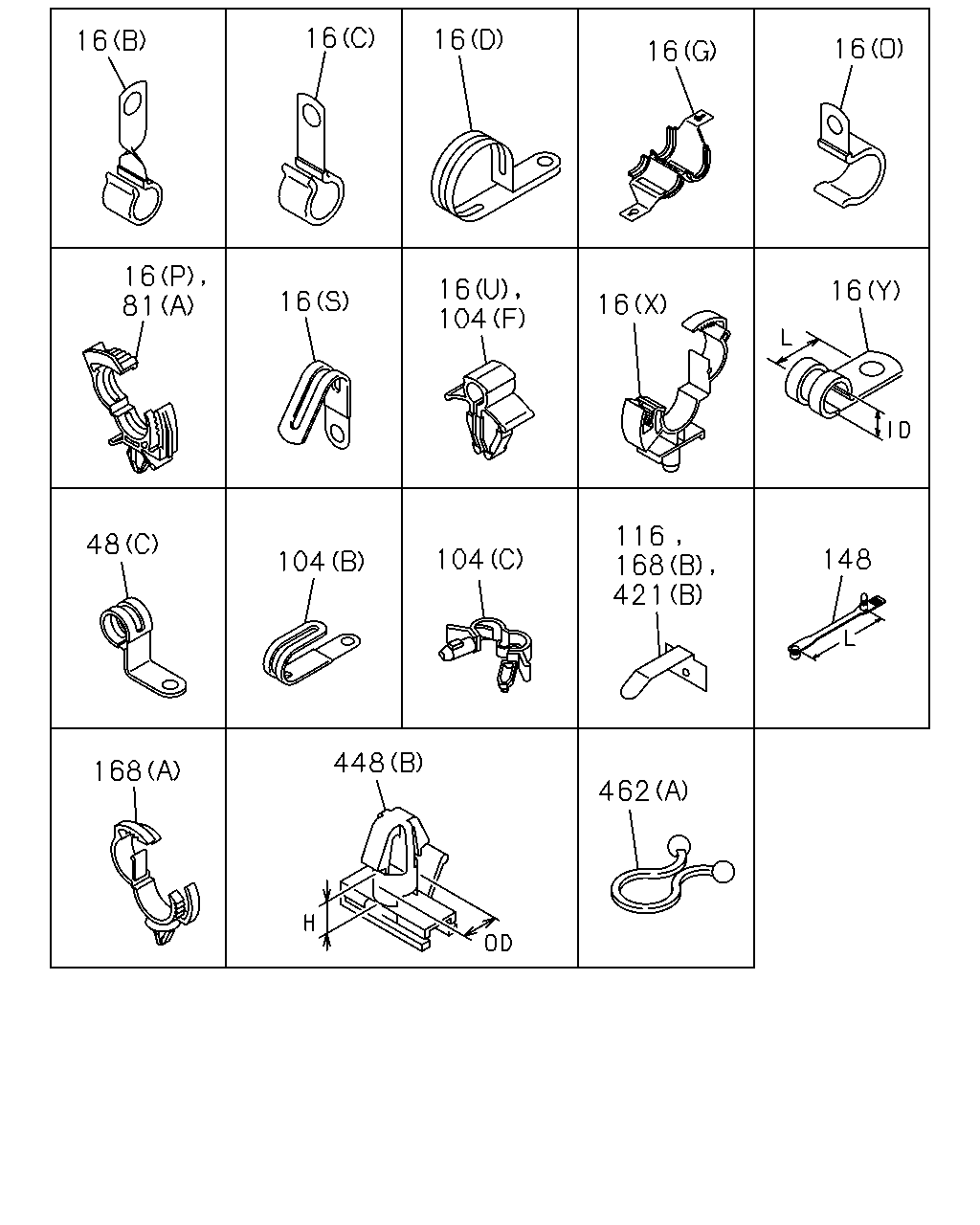

16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (W) ID=11 L=61 		1-09700-484-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 02 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=11 L=41 		1-09700-403-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 02 1 0303-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0212-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (L) ID=14 L=44 		9-09917-427-0 03 1 0201-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(Y) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(D) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 07 1 0105-0106
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(O) 		8-94403-348-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (H) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (M) ID=20 L=50 		9-09917-430-0 03 1 0201-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (M) ID=20 L=50 		9-09917-430-0 03 1 0303-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=70 		1-09700-485-0 03 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (R) ID=20 H=23 L=27 		1-09700-861-0 02 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 10 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 07 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0107-0107
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0105-0106
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0107-0302
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0303-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
çizim 84847
16 16 16 16 16 16 81 16 104 16 16 16 116 168 421 48 148 104 104 448 168 462
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 0304-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (W) ID=11 L=61 		1-09700-484-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 02 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) ID=11 L=41 		1-09700-403-0 11 1 0303-
16 CLIP; HARNESS
WHEEL BASE 7700MM(77W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 02 1 0303-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0212-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0206-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (L) ID=14 L=44 		9-09917-427-0 03 1 0201-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(Y) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 05 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(D) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(R) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0106
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 05 1 0107-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (U) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(Q) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 07 1 0105-0106
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 0107-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(S) L=36 		8-94224-891-1 01 1 0105-
16 CLIP; HARNESS
(O) 		8-94403-348-0 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (H) OD=9 H=6 		1-09709-178-0 04 1 0107-
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 0105-
16 CLIP; HARNESS
(T) ID=16 L=40 		9-09525-576-0 01 1 0105-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0107-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0107-0211
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (M) ID=20 L=50 		9-09917-430-0 01 1 0212-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 0105-0112
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (M) ID=20 L=50 		9-09917-430-0 03 1 0201-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (M) ID=20 L=50 		9-09917-430-0 03 1 0303-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 05 1 0105-0106
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 0107-0109
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 0110-0211
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 04 1 0212-
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0107-0112
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0201-
16 CLIP; HARNESS
EXC. AUTO CAB TILT<WV2> (A) ID=11 L=41 		1-09700-403-0 01 1 0107-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
FRAME EQUIPMENT HEAVY DUTY<F03> (V) ID=15 L=65 		1-09700-466-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (S) ID=20 L=70 		1-09700-485-0 03 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (R) ID=20 H=23 L=27 		1-09700-861-0 02 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 10 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 01 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> (S) ID=20 L=70 		1-09700-485-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (M) ID=20 L=50 		9-09917-430-0 13 1 0105-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (W) ID=11 L=61 		1-09700-484-0 07 1 0105-0106
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0107-0107
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0108-0302
16 CLIP; HARNESS
(Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W),WHEEL BASE 7700MM(77W) (Z) ID=22 L=52 		9-09917-431-0 01 1 0303-
48 CLIP; FRAME HARNESS
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 02 1 0105-
48 CLIP; FRAME HARNESS
(D) L=300 		1-09707-001-1 06 1 0105-
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0105-0106
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0107-0302
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 0303-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4> (C) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULL FLOATING CAB(W16) (C) L=250 		5-09707-030-1 01 1 0109-0109
421 CLIP; FLOOR HARNESS
(B) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
(A) ID=19 L=20 		9-09525-832-0 02 1 0105-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 0105-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
