5-01 — FRAME AND OTHER PARTS
(#139829) — 60 parça
◀
[501A] CROSS MEMBER AND BRACKET(NO.4) (8 parça)
[501A] FRAME ASM (1 parça)
[501A] RIVET,BOLT,NUT (16 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (9 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (11 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (15 parça)
▶
325
201
130
132
201
325
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
MEMBER; CROSS,END
THA
8-97913-618-0
01
1
1405-
131
BOLT; END C/MBR
M10X25 FLANGE THA
0-28661-025-0
08
1
1405-
132
NUT; END C/MBR
M10 FLANGE THA
0-91180-110-0
08
1
1405-
201
GUSSET; C/MBR
THA
8-97914-747-0
02
1
1405-
325
EXTENSION; FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98073-344-1
01
1
1405-
325
EXTENSION; FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98073-345-0
01
1
1405-
325
EXTENSION; FRAME
(B) THA
8-97912-457-3
01
1
1405-
325
EXTENSION; FRAME
(B) THA
8-97912-458-1
01
1
1405-
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME ASM
FRAME STRAIGHT TYPE<7KJ> THA
8-98067-706-3
01
1
1405-
376
376
376
376
376
376
376
376
376
376
376
221
176
296
222
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
NUT; C/MBR
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE THA
0-91180-210-0
17
1
1405-
176
BOLT; C/MBR,ENG MTG
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE
0-28051-030-0
08
1
1405-
221
BOLT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE THA
0-28650-825-0
02
1
1405-
222
NUT; RAD MTG BRKT,FRAME
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-208-0
02
1
1405-
296
BOLT; 3RD C/MBR
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE THA
0-28651-030-0
16
1
1405-
376
RIVET; FRAME
(A) D8X24 TAPER END
9-06750-824-0
AR
1
1405-
376
RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
1405-
376
RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
1405-
376
RIVET; FRAME
(D) D10X28 TAPER END
9-06751-028-0
AR
1
1405-
376
RIVET; FRAME
(E) D10X32 TAPER END
9-06751-032-0
AR
1
1405-
376
RIVET; FRAME
(F) D10X36 TAPER END
9-06751-036-0
AR
1
1405-
376
RIVET; FRAME
(G) D11X26 TAPER END
9-06751-126-0
AR
1
1405-
376
RIVET; FRAME
(H) D11X30 TAPER END
9-06751-130-0
AR
1
1405-
376
RIVET; FRAME
(I) D12X30 TAPER END
9-06751-230-0
AR
1
1405-
376
RIVET; FRAME
(J) D12X36 TAPER END
9-06751-236-0
AR
1
1405-
376
RIVET; FRAME
(K) D12X40 TAPER END
9-06751-240-0
AR
1
1405-
140
217
196
139
198
198
344
74
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
GUSSET; 4TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER
8-98000-583-0
02
1
1405-
74
GUSSET; 4TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER
8-98000-584-0
02
1
1405-
139
MEMBER; CROSS,6TH
FRAME STRAIGHT TYPE<7KJ>
8-97326-394-0
01
1
1405-
140
BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (A)
8-97080-884-1
02
1
1405-
140
BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-97302-511-0
02
1
1405-
196
BRACKET; STAB TO FRAME
FRAME STRAIGHT TYPE<7KJ>
8-98033-523-0
04
1
1405-
198
GUSSET; 6TH C/MBR
FRAME STRAIGHT TYPE<7KJ>
8-98014-079-1
02
1
1405-
217
BRACKET; HELPER RUBBER,RR SPRING
FRAME STRAIGHT TYPE<7KJ> THA
8-97202-417-0
02
1
1405-
344
MEMBER; CROSS,4TH
FRAME STRAIGHT TYPE<7KJ>
8-97175-993-3
01
1
1405-
51
42
51
423
423
31
31
39
103
141
141
140
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; FRT SPR,FRT
FRAME STRAIGHT TYPE<7KJ>
8-98015-274-0
02
1
1405-
31
BUSHING; FRT SPR,RR
FRAME STRAIGHT TYPE<7KJ> THA
8-97184-699-1
04
1
1405-
39
BRACKET; FRT SPR,RR
FRAME STRAIGHT TYPE<7KJ>
8-98014-125-0
02
1
1405-
42
MEMBER; CROSS,ENG MTG
FRAME STRAIGHT TYPE<7KJ>
8-98032-389-0
01
1
1405-
51
BRACKET; ENG SUPPORT,OUTER
FRAME STRAIGHT TYPE<7KJ>
8-98034-961-0
02
1
1405-
103
STOPPER; SUB SPR
FRAME STRAIGHT TYPE<7KJ>
8-97079-659-1
02
1
1405-
140
BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (A)
8-97080-884-1
02
1
1405-
140
BRACKET; S/ABS,RR
FRAME STRAIGHT TYPE<7KJ> (B) THA
8-97302-511-0
02
1
1405-
141
STIFFENER
FRAME STRAIGHT TYPE<7KJ>
8-98064-354-2
01
1
1405-
141
STIFFENER
FRAME STRAIGHT TYPE<7KJ>
8-98064-355-2
01
1
1405-
423
PATCH
FRAME STRAIGHT TYPE<7KJ> THA
8-98092-636-0
02
1
1405-

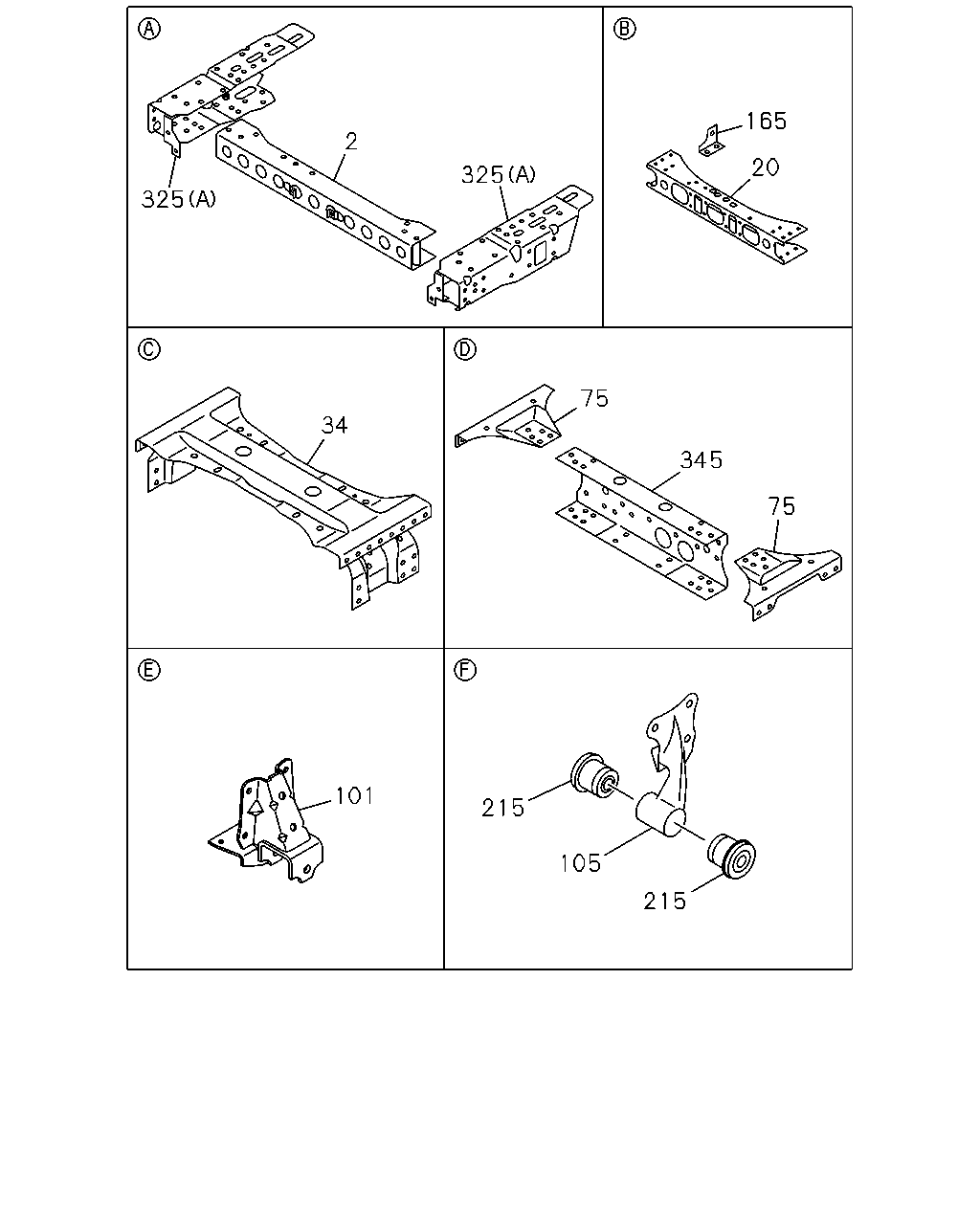

75
75
345
325
2
325
34
101
215
105
215
20
165
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
FRAME STRAIGHT TYPE<7KJ> THA
8-97387-866-5
01
1
1405-
20
MEMBER; CROSS,2ND
FRAME STRAIGHT TYPE<7KJ> THA
8-98014-074-7
01
1
1405-
34
MEMBER; CROSS,3RD
FRAME STRAIGHT TYPE<7KJ> THA
8-98072-038-1
01
1
1405-
75
GUSSET; 5TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-UPPER,LH-LOWER
8-98000-583-0
02
1
1405-
75
GUSSET; 5TH C/MBR
FRAME STRAIGHT TYPE<7KJ> RH-LOWER,LH-UPPER
8-98000-584-0
02
1
1405-
101
BRACKET; RR SPR,FRT
FRAME STRAIGHT TYPE<7KJ>
8-97042-245-1
02
1
1405-
105
BRACKET; RR SPR,RR
FRAME STRAIGHT TYPE<7KJ>
8-98032-488-0
01
1
1405-
105
BRACKET; RR SPR,RR
FRAME STRAIGHT TYPE<7KJ>
8-98032-489-0
01
1
1405-
165
BRACKET; RAD STAY
FRAME STRAIGHT TYPE<7KJ>
8-98000-886-0
01
1
1405-
215
BUSHING; BRKT,RR SPRING
FRAME STRAIGHT TYPE<7KJ> THA
8-97184-699-1
04
1
1405-
325
EXTENSION; FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98073-344-1
01
1
1405-
325
EXTENSION; FRAME
FRAME STRAIGHT TYPE<7KJ> (A)
8-98073-345-0
01
1
1405-
325
EXTENSION; FRAME
(B) THA
8-97912-457-3
01
1
1405-
325
EXTENSION; FRAME
(B) THA
8-97912-458-1
01
1
1405-
345
MEMBER; CROSS,5TH
FRAME STRAIGHT TYPE<7KJ>
8-97175-993-3
01
1
1405-
