Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

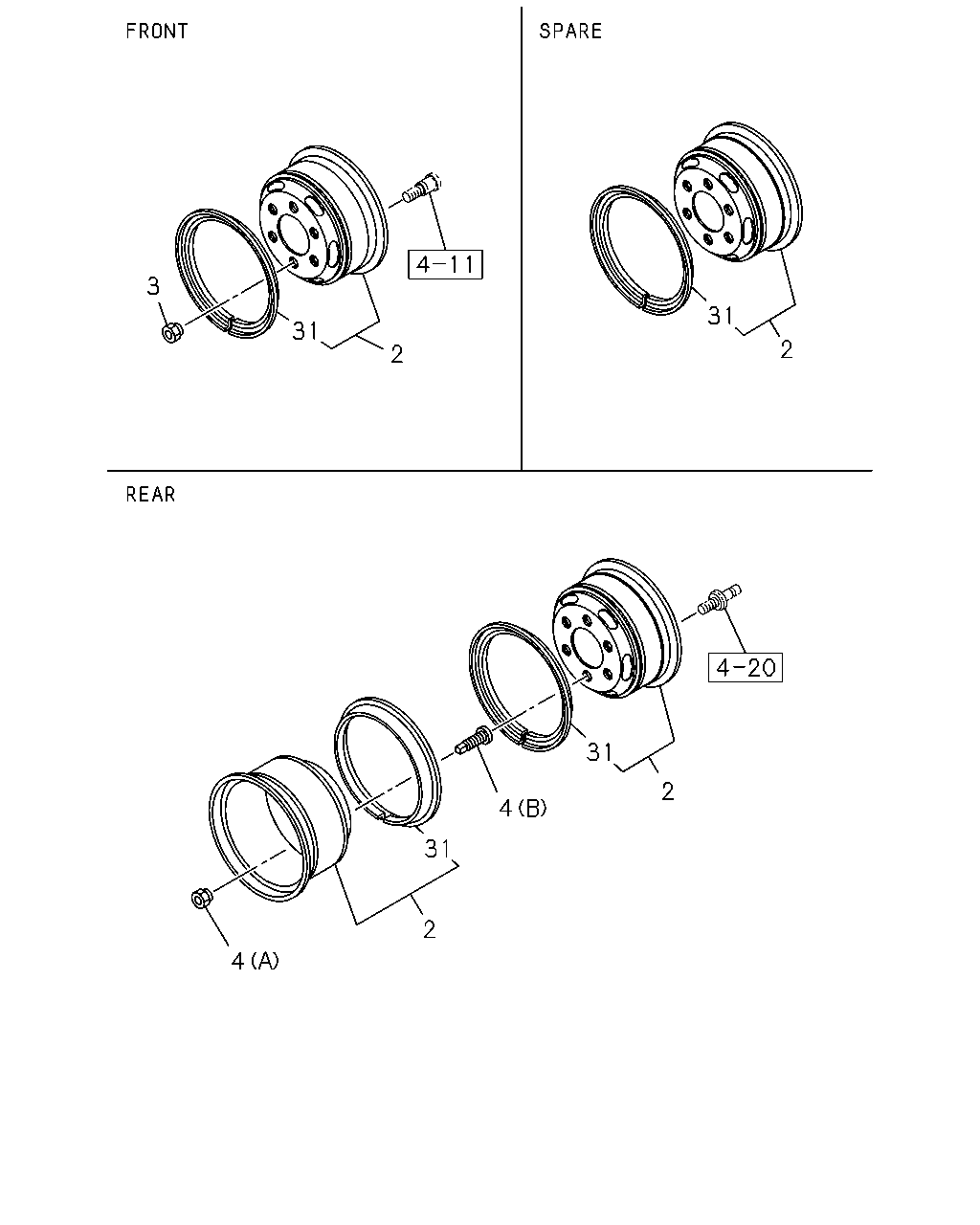

4-80 — ROAD WHEEL
(#139828) — 10 parça
3
31
2
31
2
4
2
31
4
31
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
01
1
1405-
2
WHEEL; DISC
FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA
8-97915-604-0
06
1
1405-
3
NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
1405-
3
NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
1405-
4
NUT; WHEEL,RR AXLE
(B) OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
06
1
1405-
4
NUT; WHEEL,RR AXLE
(A) M30 THA
8-97916-066-0
06
1
1405-
4
NUT; WHEEL,RR AXLE
(A) M30 LH THREAD THA
8-97916-121-0
06
1
1405-
4
NUT; WHEEL,RR AXLE
(B) OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
06
1
1405-
31
RING; SIDE,DISC WHEEL
SPARE 16X6.00GS STAMP, BLACK THA
8-97916-942-0
01
1
1405-
31
RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK THA
8-97916-942-0
06
1
1405-
