◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#139824) — 38 parça

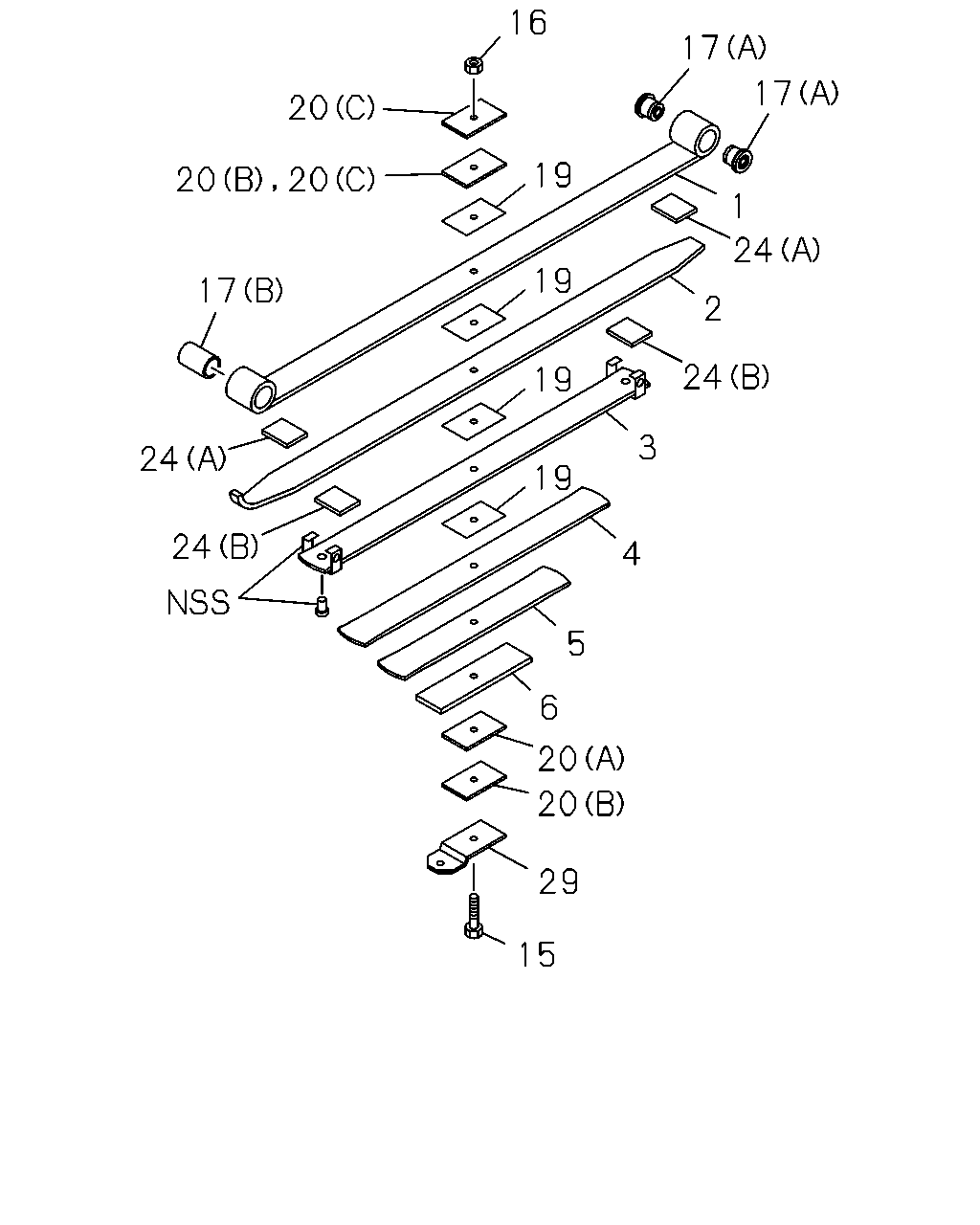

çizim 421475
16 20 20 20 17 24 24 19 19 19 19 17 17 1 24 2 24 3 4 5 6 20 20 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: D = 8-98190-546-0 		8-98193-072-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-100-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-107-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-98190-545-0 		8-98193-128-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: D = 8-98190-546-0 		8-98193-073-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-101-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-108-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-98190-545-0 		8-98193-129-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: D = 8-98190-546-0 		8-98193-074-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-102-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-109-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-98190-545-0 		8-98193-130-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: D = 8-98190-546-0 		8-98193-075-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-103-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-110-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-98190-545-0 		8-98193-131-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: D = 8-98190-546-0 		8-98193-076-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-104-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-111-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-98190-545-0 		8-98193-132-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: D = 8-98190-546-0 		8-98193-077-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: A = 8-98190-541-0 		8-98193-105-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
THA ASM PART: B = 8-98190-542-0 		8-98193-112-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-98190-545-0 		8-98193-133-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=110, THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0 		8-98081-376-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=115 ASM PART: C = 8-98190-545-0, D = 8-98190-546-0 		8-98152-295-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M10, THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		1-09400-055-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=40 L=43.7 ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		8-94118-588-1 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		8-94130-354-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1, THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		8-97084-845-0 04 1 -
20 SEAT; LEAF SPR,FRT
(B), THA ASM PART: C = 8-98190-545-0, D = 8-98190-546-0 		8-98041-368-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0 		8-98041-368-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0 		8-98077-684-0 01 1 -
20 SEAT; LEAF SPR,FRT
(C), THA ASM PART: C = 8-98190-545-0, D = 8-98190-546-0 		8-98094-959-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(A), THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		8-97084-848-0 02 1 -
24 LINER; LEAF SPR,FWD FRT
(B), THA ASM PART: A = 8-98190-541-0, B = 8-98190-542-0, C = 8-98190-545-0, D = 8-98190-546-0 		8-98193-187-0 02 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98190-541-0, B = 8-98190-542-0 		8-94342-292-1 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: C = 8-98190-545-0, D = 8-98190-546-0 		8-98152-826-0 01 1 -
