◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10883 - CXH LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#13982) — 128 parça

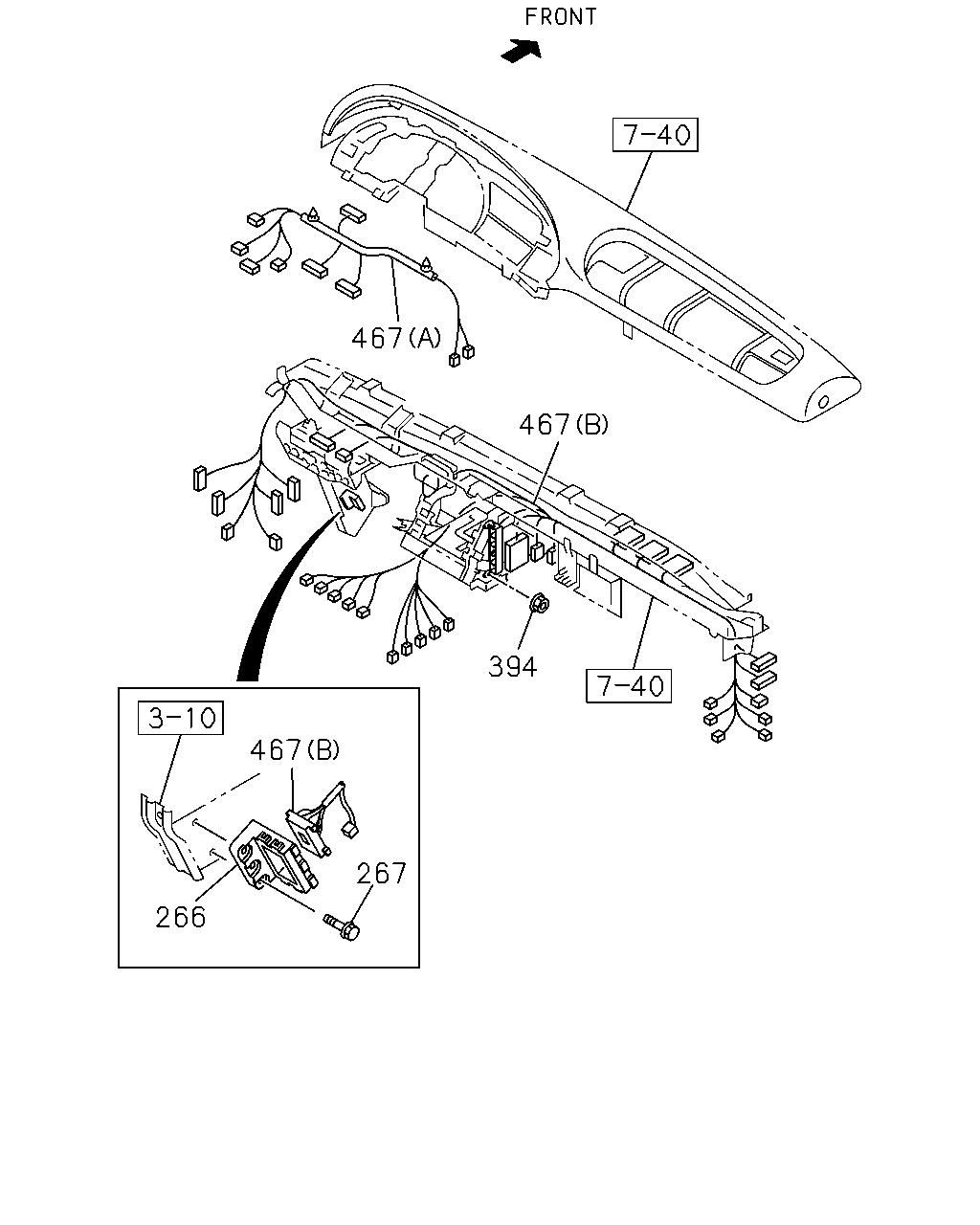

çizim 25629
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0105-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0105-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91150-106-0 01 1 0401-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> DELUXE CAB(W14) (B) 		1-82662-584-0 01 1 0409-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. DELUXE CAB(W14) (B) 		1-82662-585-0 01 1 0409-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-437-3 01 1 0105-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) (B) 		1-82660-434-3 01 1 0105-0408
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (B) 		1-82660-434-3 01 1 0409-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. DELUXE CAB(W14) (B) 		1-82660-435-3 01 1 0105-0408
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,DELUXE CAB(W14) (B) 		1-82660-435-4 01 1 0409-
467 HARNESS; FACIA
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,DELUXE CAB(W14) (B) 		1-82660-438-4 01 1 0105-

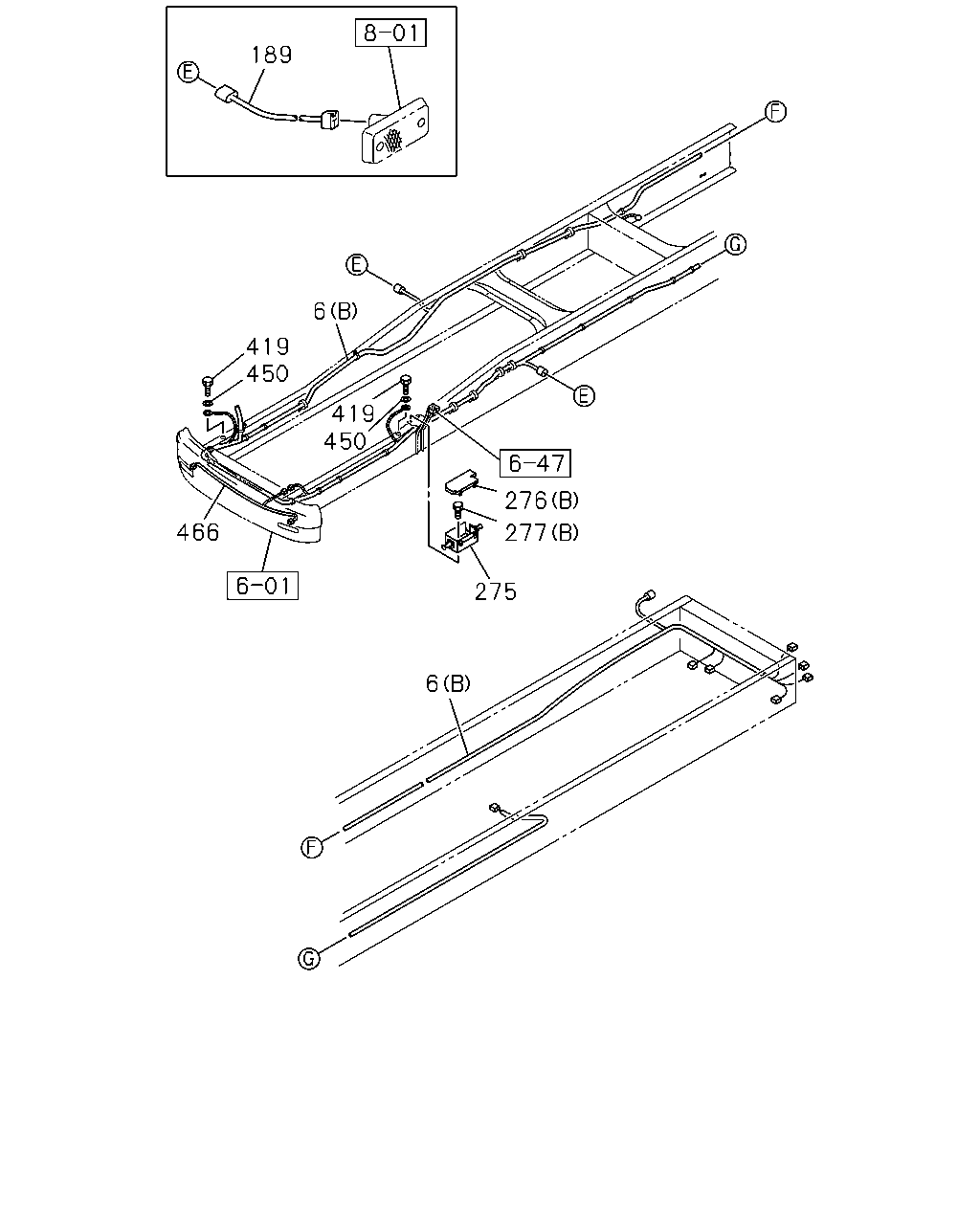

çizim 80900
189 6 419 450 419 450 276 466 277 275 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82677-226-1 01 1 0303-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) 		1-82674-833-2 01 1 0105-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) 		1-82674-832-2 01 1 0105-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) 		1-82674-831-2 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-874-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-873-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-876-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-875-1 01 1 0105-
189 HARNESS; EXT
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-82673-735-0 08 1 0105-
275 BOX ASM; FRAME HARNESS 1-82699-474-1 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105-
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
466 HARNESS; BUMPER
HEADLAMPS RECTANGULAR<TR4> 		1-82639-227-3 01 1 0105-
466 HARNESS; BUMPER
EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82639-281-0 01 1 0105-

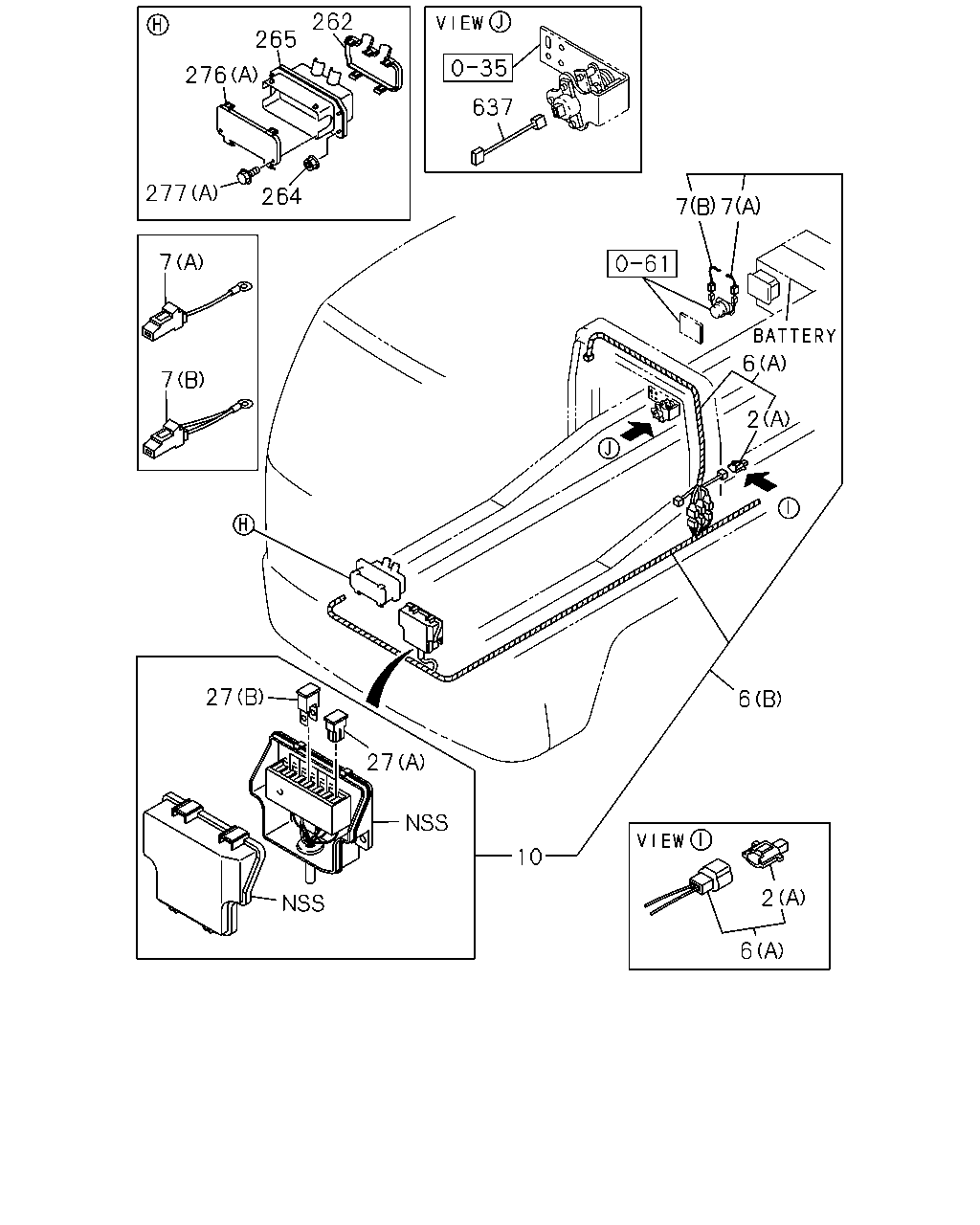

çizim 81149
262 265 276 637 277 264 7 7 7 6 7 2 27 6 27 10 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-0105
6 HARNESS; FRAME
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82677-226-1 01 1 0303-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) 		1-82674-833-2 01 1 0105-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) 		1-82674-832-2 01 1 0105-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) 		1-82674-831-2 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-874-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-873-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-876-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-875-1 01 1 0105-
7 LINK ASM; FUSIBLE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 60A BLUE 		1-82659-119-0 02 1 0105-0302
7 LINK ASM; FUSIBLE
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (A) 60A BLUE 		1-82659-119-0 02 1 0303-
7 LINK ASM; FUSIBLE
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 60A BLUE 		1-82659-119-0 02 1 0303-
7 LINK ASM; FUSIBLE
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82669-085-0 02 1 0105-0302
7 LINK ASM; FUSIBLE
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82669-085-0 02 1 0303-
7 LINK ASM; FUSIBLE
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82669-085-0 02 1 0303-
10 BOX; FUSE,HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82510-466-0 01 1 0105-0302
10 BOX; FUSE,HARNESS
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) 		1-82510-466-0 01 1 0303-
10 BOX; FUSE,HARNESS
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> 		1-82510-466-0 01 1 0303-
27 FUSE UNIT
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 40A GREEN 		8-94468-662-0 05 1 0105-0302
27 FUSE UNIT
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (A) 40A GREEN 		8-94468-662-0 05 1 0303-
27 FUSE UNIT
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (A) 40A GREEN 		8-94468-662-0 05 1 0303-
27 FUSE UNIT
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 80A BLACK 		8-94468-671-0 01 1 0105-0302
27 FUSE UNIT
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 80A BLACK 		8-94468-671-0 01 1 0303-
27 FUSE UNIT
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 80A BLACK 		8-94468-671-0 01 1 0303-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0105-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0105-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0105-
277 BOLT; BOX ASM FIX
(A) M6X35 W/LK&PL WASHER 		0-50140-635-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0105-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0207-

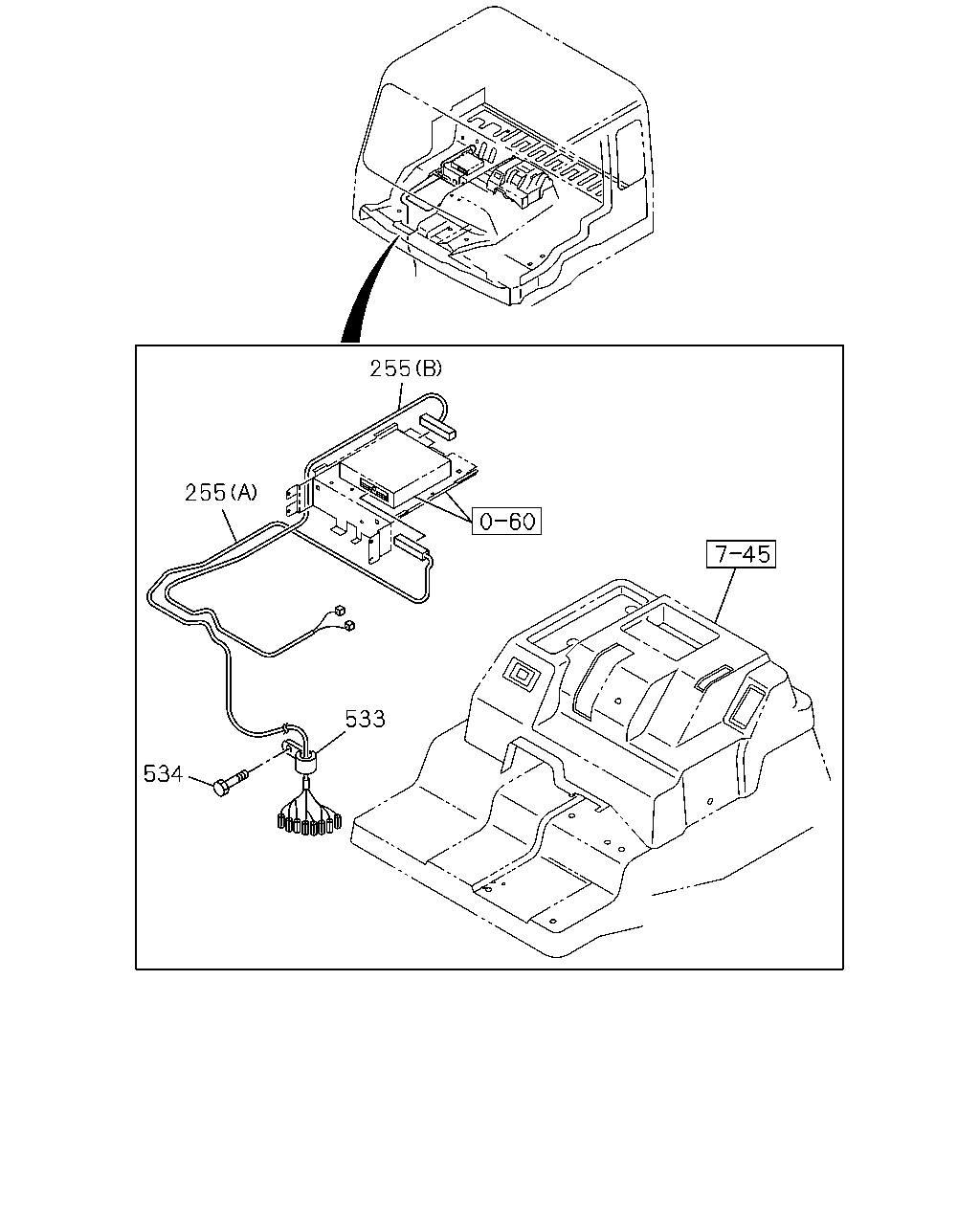

çizim 81729
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		1-82660-374-2 01 1 0105-
255 HARNESS; ELEC GOV
(B) 		1-82660-381-2 01 1 0105-
533 CLIP
ID=19 L=32 		1-09701-235-0 02 1 0105-0109
533 CLIP
ID=21 L=24 		8-94176-807-1 02 1 0110-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-

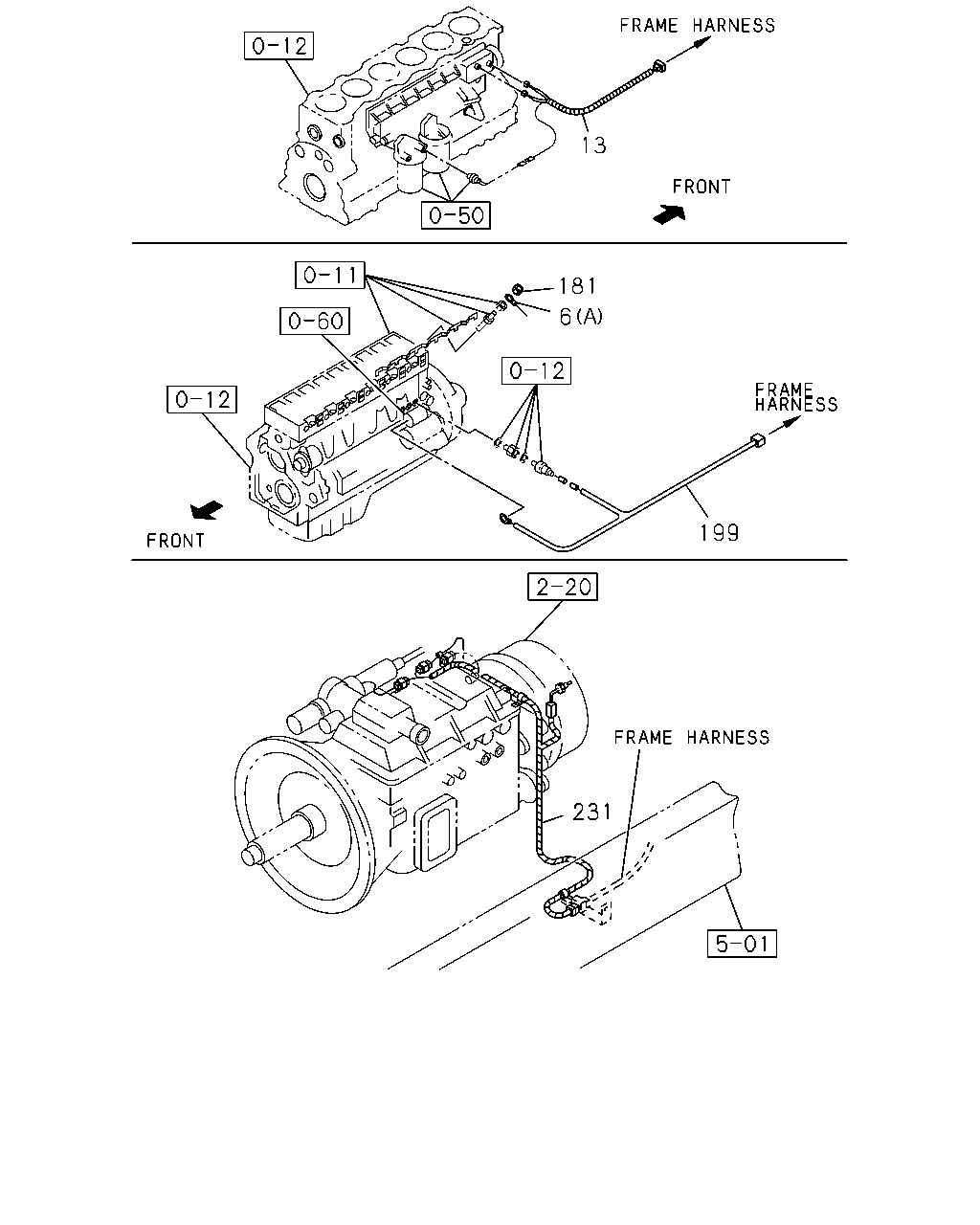

çizim 82911
13 181 6 199 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 7700MM(77W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82677-226-1 01 1 0303-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> FULL FLOATING CAB(W16) (A) 		1-82674-833-2 01 1 0105-
6 HARNESS; FRAME
AUTO CAB TILT<WV2> EXC. FULL FLOATING CAB(W16) (A) 		1-82674-832-2 01 1 0105-
6 HARNESS; FRAME
EXC. AUTO CAB TILT<WV2>,FULL FLOATING CAB(W16) (A) 		1-82674-831-2 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-874-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6300MM(63W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-873-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FULL FLOATING CAB(W16) (B) 		1-82674-876-1 01 1 0105-
6 HARNESS; FRAME
WHEEL BASE 6600MM(66W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (B) 		1-82674-875-1 01 1 0105-
13 HARNESS; ENG 1-82640-553-4 01 1 0105-
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE 		5-09440-007-0 01 1 0105-
199 HARNESS; STARTER 1-82640-734-1 01 1 0105-
231 HARNESS; TRANS 1-82674-849-1 01 1 0105-

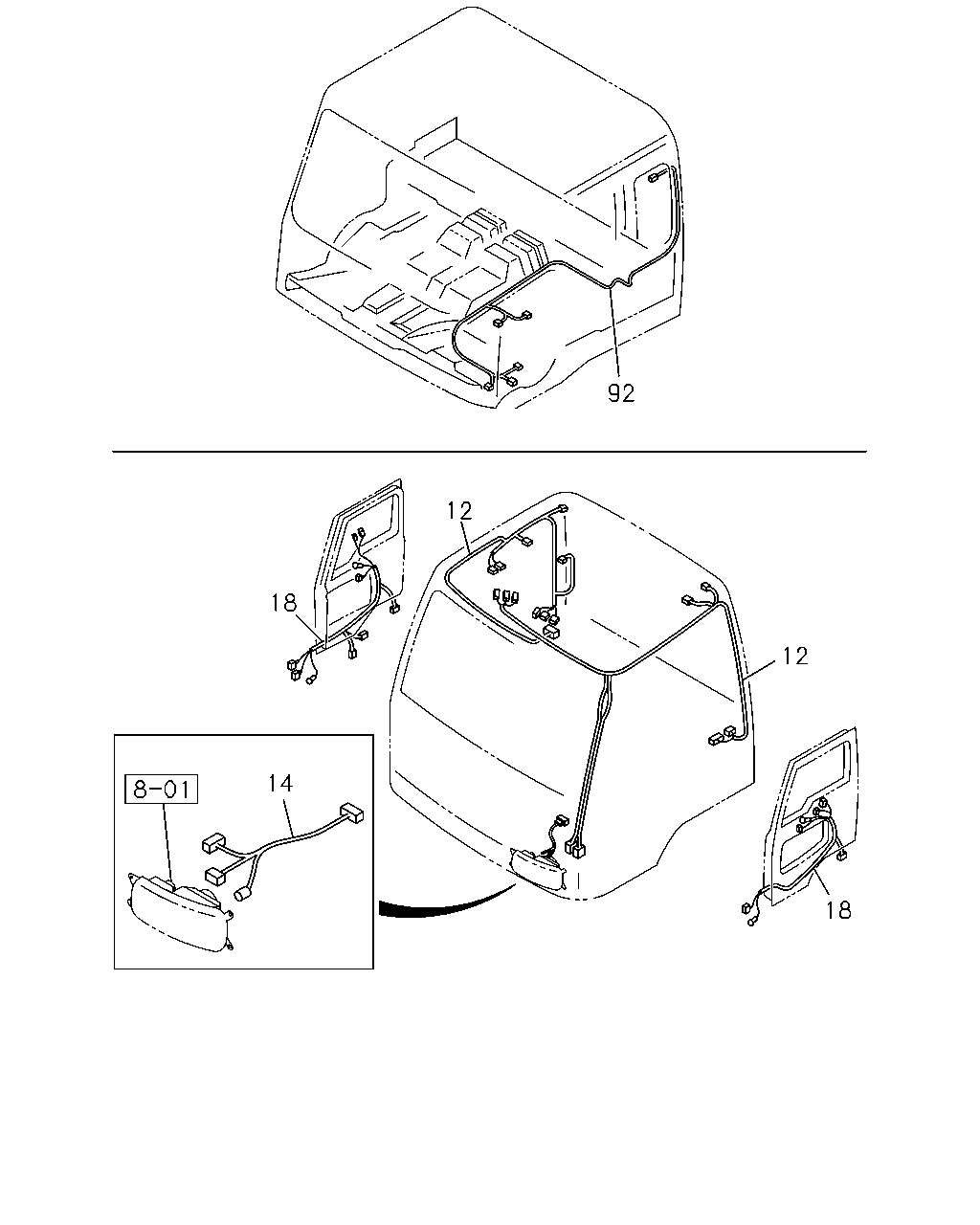

çizim 82977
92 12 18 12 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		1-82629-921-2 01 1 0105-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		1-82629-920-2 01 1 0105-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> 		1-82628-107-0 01 1 0105-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> 		1-82670-022-2 02 1 0105-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS RECTANGULAR<TR4> 		1-82625-150-2 02 1 0105-
14 HARNESS; HEADLAMP
HEADLAMPS RECTANGULAR<TR4> 		1-82639-226-2 02 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-584-0 01 1 0105-
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-582-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 0105-
92 HARNESS; FLOOR 1-82660-394-2 01 1 0105-

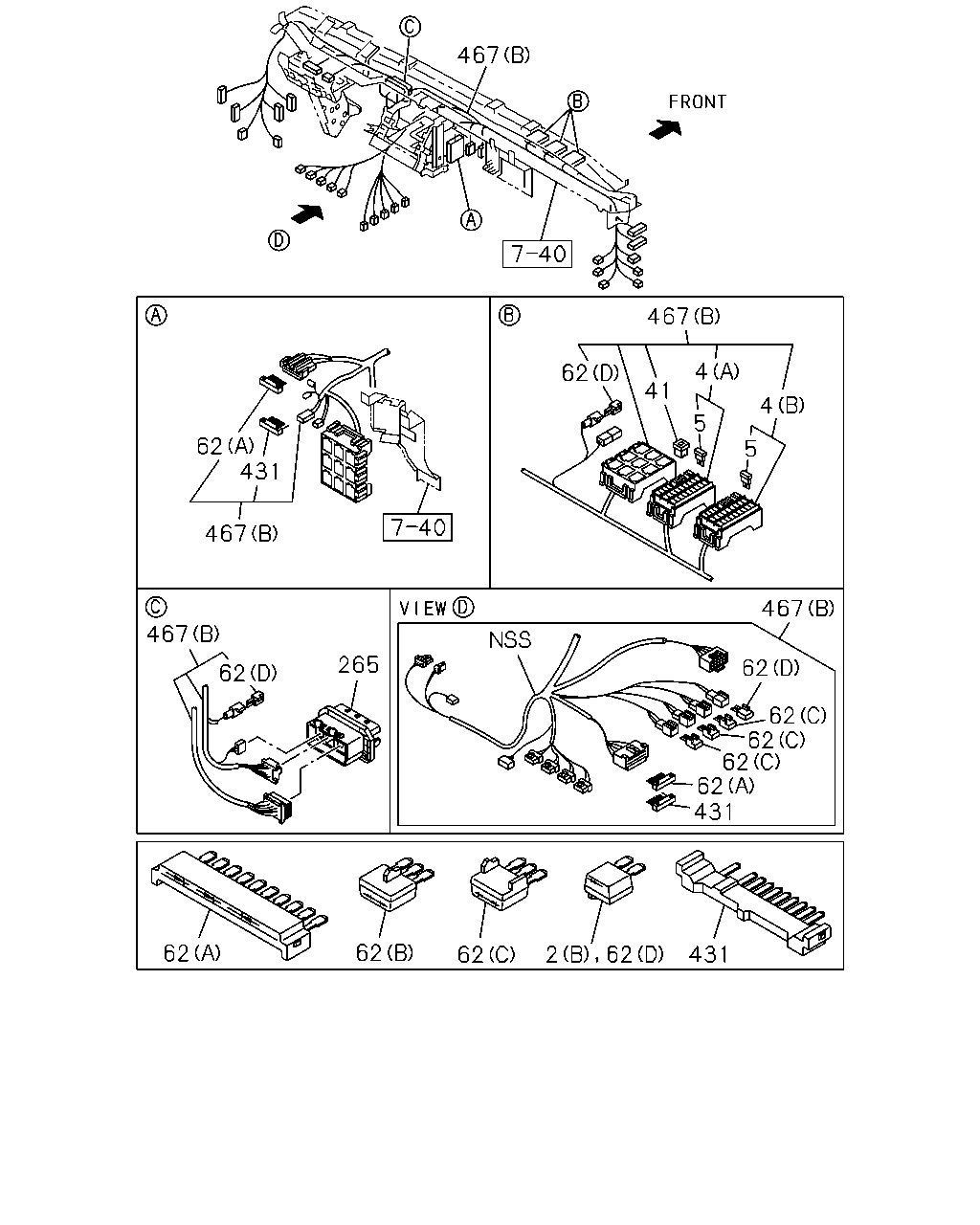

çizim 83003
467 467 4 62 41 4 5 62 431 5 467 467 467 265 62 62 62 62 62 62 431 62 62 431 62 2 62
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 0105-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0105-0105
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX24 10AX2 		1-82510-473-0 01 1 0105-
4 BOX ASM; FUSE,HARNESS
(B) 15AX20 25AX2 		1-82510-520-0 01 1 0105-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 02 1 0105-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 20 1 0105-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0105-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 24 1 0105-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0105-
62 DIODE; HARNESS
DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0409-
62 DIODE; HARNESS
DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0409-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0105-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 0105-
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0105-0402
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 06 1 0403-0408
62 DIODE; HARNESS
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,DELUXE CAB(W14) (D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> (D) BLACK 2P-1.5A 		8-94422-639-1 07 1 0409-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0105-0408
62 DIODE; HARNESS
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 03 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,DELUXE CAB(W14) (B) BLACK 3P-1.5A 		8-94422-640-1 03 1 0409-
62 DIODE; HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> (B) BLACK 3P-1.5A 		8-94422-640-1 03 1 0409-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0105-
431 CONNECTOR; JOINT
BROWN 10P 		1-82699-601-0 02 1 0105-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> DELUXE CAB(W14) (B) 		1-82662-584-0 01 1 0409-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FOOT BRAKE W/EXHAUST BRAKE<SJB> EXC. DELUXE CAB(W14) (B) 		1-82662-585-0 01 1 0409-
467 HARNESS; FACIA
(A) 		1-82629-927-1 01 1 0105-
467 HARNESS; FACIA
DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-437-3 01 1 0105-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) (B) 		1-82660-434-3 01 1 0105-0408
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB> (B) 		1-82660-434-3 01 1 0409-
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. DELUXE CAB(W14) (B) 		1-82660-435-3 01 1 0105-0408
467 HARNESS; FACIA
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FOOT BRAKE W/EXHAUST BRAKE<SJB>,DELUXE CAB(W14) (B) 		1-82660-435-4 01 1 0409-
467 HARNESS; FACIA
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,DELUXE CAB(W14) (B) 		1-82660-438-4 01 1 0105-
