Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶
4-31 — STEERING COLUMN AND SHAFT
(#139817) — 30 parça
◀

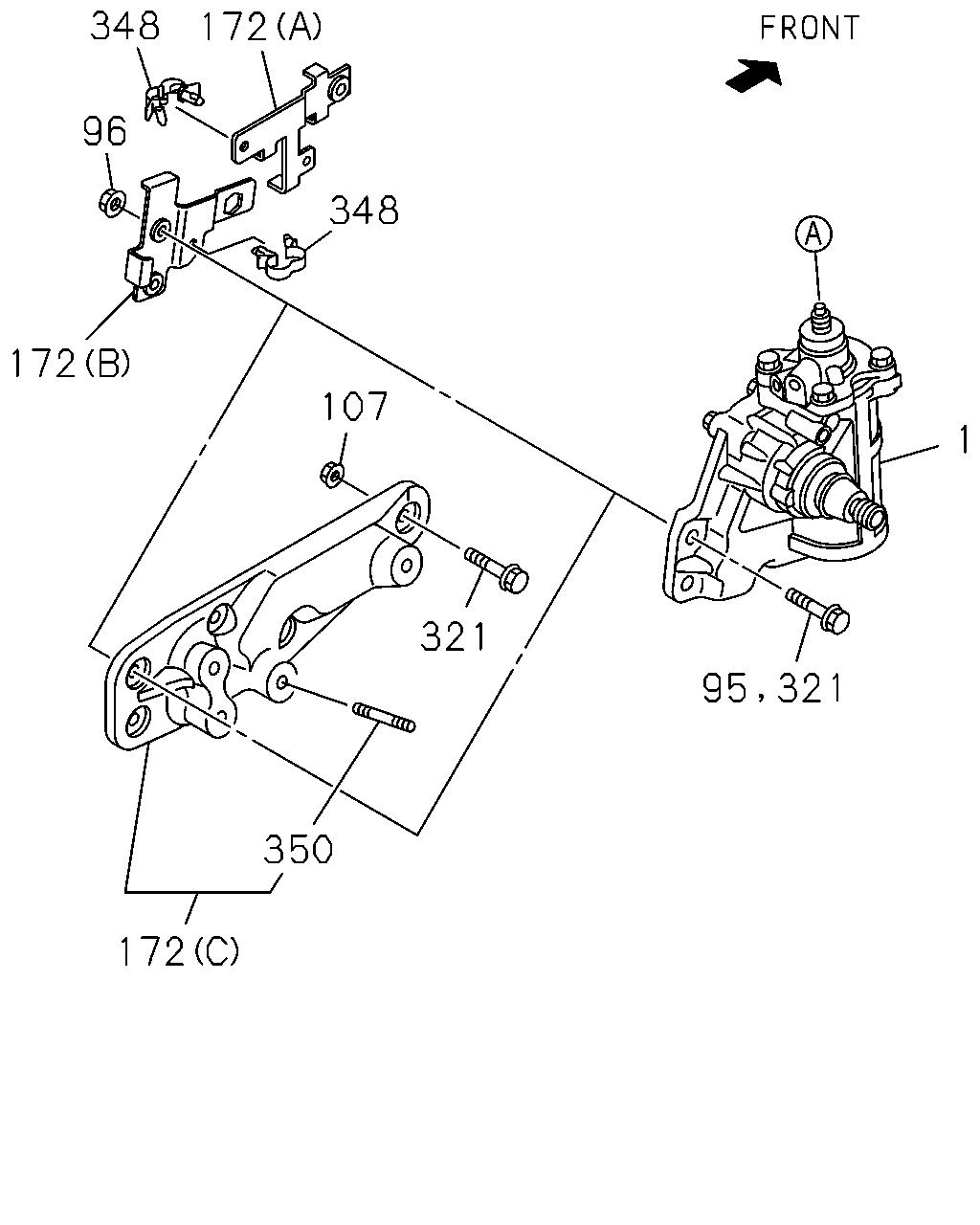

[431A] NO.2 (11 parça)
[431A] NO.1 (19 parça)
▶
348
172
96
348
172
107
321
350
172
95
321
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
8-98110-219-5
01
1
1405-
95
BOLT; STRG UNIT
FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
03
1
1405-
95
BOLT; STRG UNIT
EXC. FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
04
1
1405-
96
NUT; STRG UNIT
M12 FLANGE
8-97359-618-0
01
1
1405-
107
NUT; BRKT
FRONT WIDE TREAD<7GV> M12 FLANGE
8-97359-618-0
03
1
1405-
172
BRACKET; STRG
FRONT WIDE TREAD<7GV> (C)
8-98196-129-0
01
1
1405-
172
BRACKET; STRG
(A)
8-98055-256-1
01
1
1405-
172
BRACKET; STRG
(B)
8-98081-033-0
01
1
1405-
321
BOLT; BRKT,STRG
FRONT WIDE TREAD<7GV> M12X47 FLANGE
8-98055-055-0
06
1
1405-
348
CLIP; BRKT,STRG
ID=5-12 L=22
1-09709-288-0
02
1
1405-
350
STUD; BRACKET
FRONT WIDE TREAD<7GV>
8-98196-098-0
01
1
1405-
103
102
66
105
148
2
104
35
33
148
66
203
251
79
291
231
291
66
296
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SHAFT ASM; STRG
BLACK
8-97406-375-7
01
1
1405-
20
COVER; STRG SHAFT
BLACK
8-97405-159-0
01
1
1405-
33
BOLT; STRG SHAFT TO UNIT
M8X30
8-97359-615-0
01
1
1405-
35
WASHER; LK,STRG SHAFT
ID=8.2 THA
0-91510-808-0
01
1
1405-
66
BOLT; STRG COLUMN
(B) M8X20 FLANGE THA
0-28650-820-0
02
1
1405-
66
BOLT; STRG COLUMN
(A) M5X18 TAPPING
0-72180-518-0
04
1
1405-
66
BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER
8-98051-939-0
02
1
1405-
79
CLIP; STRG COLUMN COVER
L=19 BLACK
8-94363-776-0
02
1
1405-
102
LOCK ASM; STRG
THA
8-97948-271-0
01
1
1405-
103
SWITCH; IGNITION
THA
8-98045-349-0
01
1
1405-
104
BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT
8-97321-385-0
02
1
1405-
105
SCREW; IGN SW
THA
8-98045-346-0
02
1
1405-
148
NUT; COLUMN TO BRKT
M8 W/DISHED WASHER
8-97329-625-0
03
1
1405-
203
BOOT; STRG COLUMN LWR
8-98137-331-0
01
1
1405-
231
SEAL; RUBBER,STRG COLUMN
8-98137-329-0
01
1
1405-
251
COVER; LWR
BLACK
8-97417-049-0
01
1
1405-
291
GROMMET; STRG SHAFT COVER
(A) H=15
8-94463-268-1
04
1
1405-
291
GROMMET; STRG SHAFT COVER
(B)
8-98029-442-1
02
1
1405-
296
CLIP; COVER
BLACK
8-97868-409-0
01
1
1405-
