Isuzu WW
▶
TRUCKS
▶
NPR
▶
51511 - NPR BUS CHAS(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-10 - FRONT AXLE
▶
4-10 — FRONT AXLE
(#139812) — 54 parça
◀

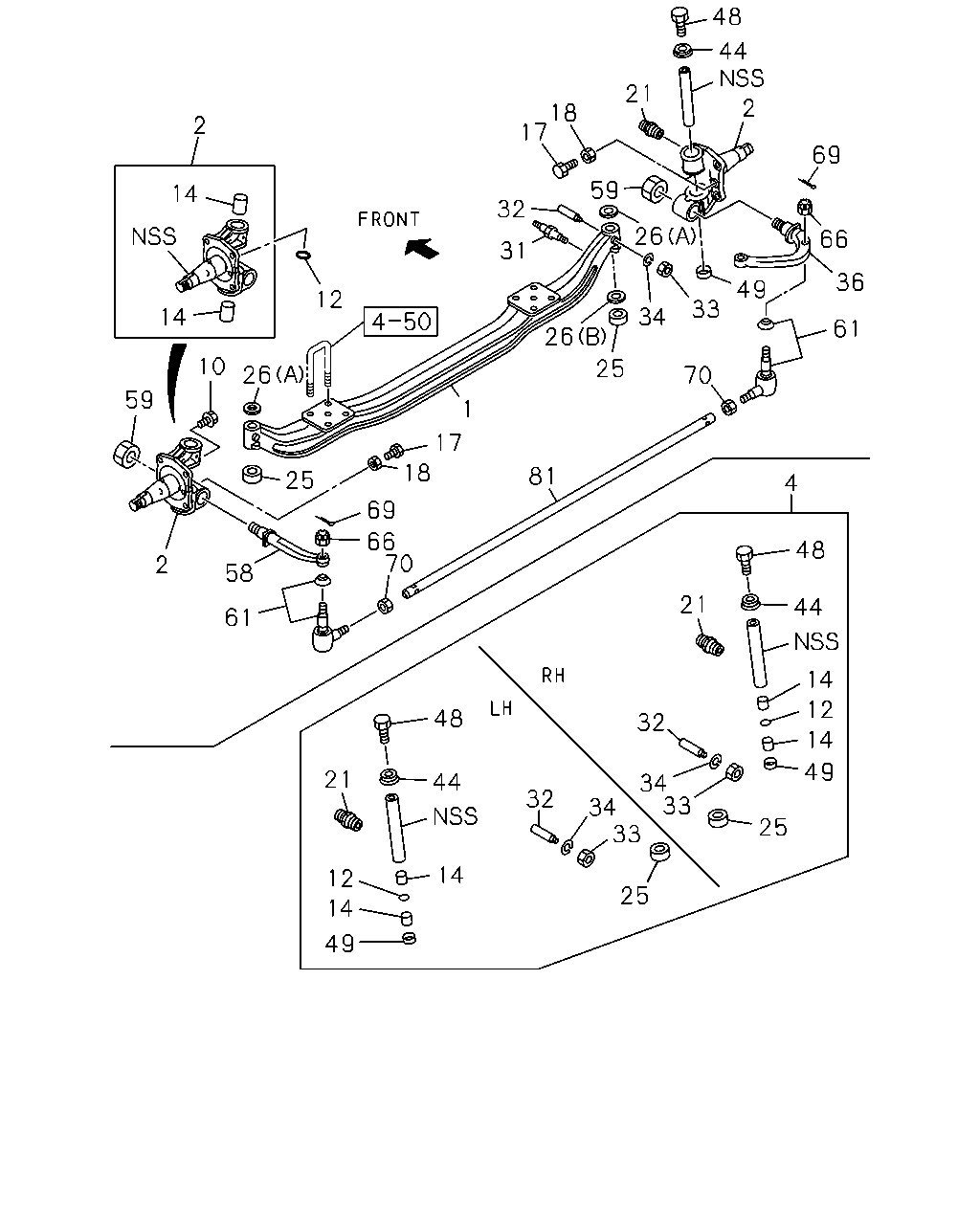

[410A] FRONT AXLE (40 parça)

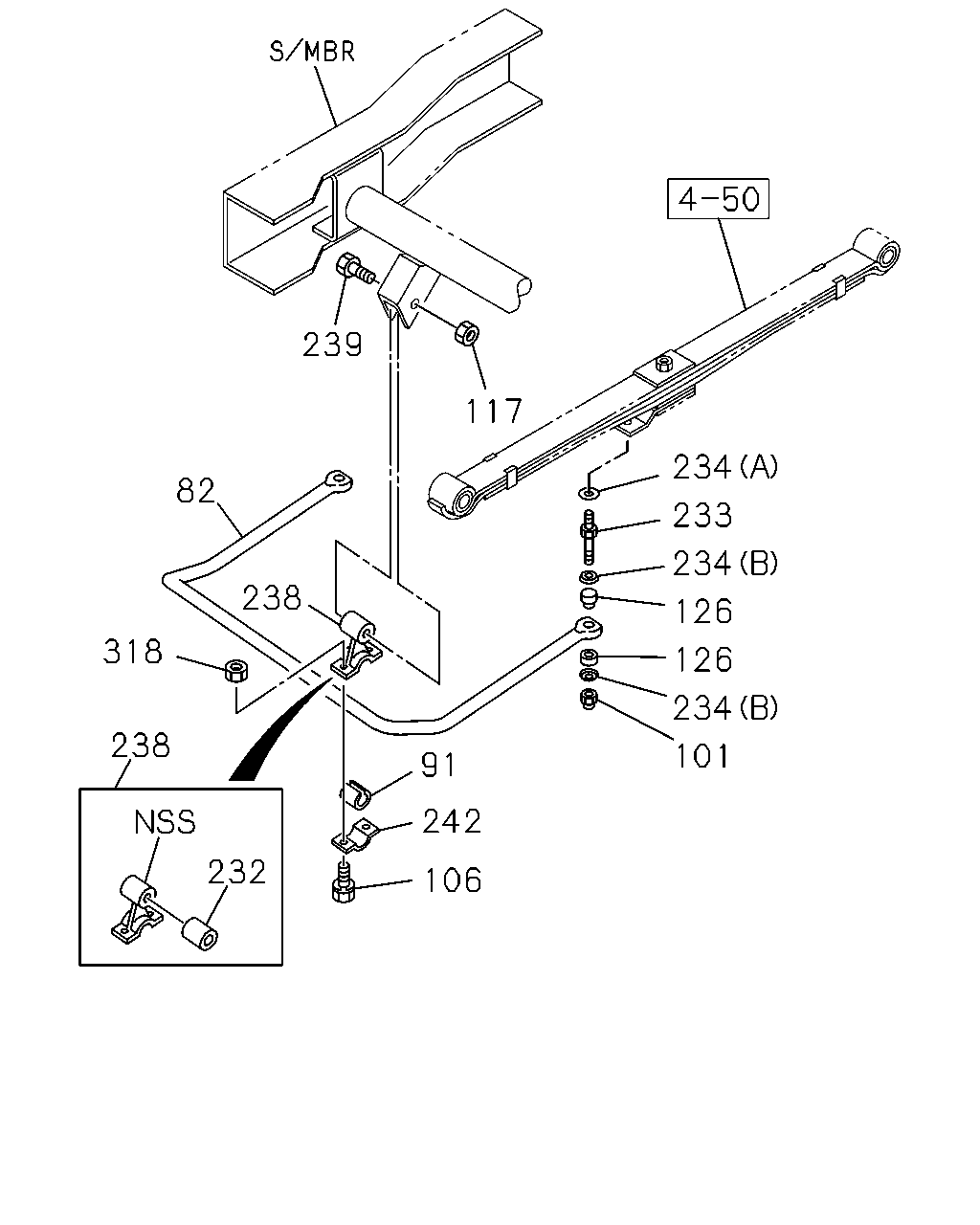

[410A] FRONT STABILIZER (14 parça)
▶
2
14
14
12
26
10
59
2
61
58
25
18
17
1
69
66
70
17
32
31
59
18
21
48
44
69
66
36
61
49
26
34
33
26
70
25
21
12
14
49
14
44
48
32
34
33
25
33
34
32
21
4
48
44
14
12
14
49
25
81
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
AXLE; FRT
FRONT WIDE TREAD<7GV>
8-98141-521-1
01
1
1405-
1
AXLE; FRT
EXC. FRONT WIDE TREAD<7GV>
8-98038-384-3
01
1
1405-
2
KNUCKLE; FRT AXLE
8-97261-549-1
01
1
1405-
2
KNUCKLE; FRT AXLE
8-97261-550-1
01
1
1405-
4
KING PIN KIT
5-87832-220-2
01
1
1405-
10
PLUG; PLATE,KNUCKLE
8-97360-117-0
01
1
1405-
12
GASKET; KNUCKLE
8-98084-500-0
02
1
1405-
14
BUSHING; KING PIN
DAIDO WO/NOTCH
8-94107-672-3
04
1
1405-
17
BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT
8-97360-059-0
03
1
1405-
18
NUT; STOPPER BOLT,KNUCKLE
M12
0-91111-512-0
03
1
1405-
21
NIPPLE; GREASE,KING PIN
M6 STRAIGHT THA
0-90301-406-0
04
1
1405-
25
BEARING; THRUST,KING PIN
8-94248-883-2
01
1
1405-
25
BEARING; THRUST,KING PIN
8-97141-943-0
01
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.50
8-94162-574-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.55
8-94162-575-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.60
8-94162-576-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.65
8-94162-577-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(B) T=1.95
8-94168-490-0
01
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.70
8-94174-352-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.80
8-94174-354-0
AR
1
1405-
26
SHIM; KING PIN,BRG
(A) T=0.90
8-94174-356-0
AR
1
1405-
31
PIN; S/ABS,LWR
EXC. FRONT WIDE TREAD<7GV>
8-97145-460-0
02
1
1405-
32
BOLT; KEY,KING PIN
8-97141-945-1
02
1
1405-
33
NUT; KEY BOLT
M10 THA
0-91110-510-0
02
1
1405-
34
WASHER; LK,KEY BOLT
ID=10.2
0-91510-510-0
02
1
1405-
36
ARM; KNUCKLE
FRONT WIDE TREAD<7GV>
8-98135-281-1
01
1
1405-
36
ARM; KNUCKLE
EXC. FRONT WIDE TREAD<7GV>
8-97202-776-4
01
1
1405-
44
COVER; KING PIN
OD=36
8-97360-023-0
02
1
1405-
48
BOLT; COVER
M10X12 FLANGE
0-28051-012-0
02
1
1405-
49
CAP; KNUCKLE
8-97360-024-0
02
1
1405-
58
ARM; TIE ROD
8-97138-304-1
01
1
1405-
59
NUT; TIE ROD ARM
8-97360-123-0
02
1
1405-
61
ROD END; TIE ROD
8-97107-348-2
01
1
1405-
61
ROD END; TIE ROD
8-97107-349-2
01
1
1405-
66
NUT; TIE ROD END
M16 SLOTTED
8-98049-689-0
02
1
1405-
69
PIN; SPLIT,TIE ROD END
OD=3.7 L=20
0-81124-020-0
02
1
1405-
70
NUT; TIE ROD END
M20 LH THREAD
8-94254-726-0
01
1
1405-
70
NUT; TIE ROD END
M20
8-98043-530-0
01
1
1405-
81
ROD; TIE
FRONT WIDE TREAD<7GV>
8-98137-615-0
01
1
1405-
81
ROD; TIE
EXC. FRONT WIDE TREAD<7GV>
8-97061-869-0
01
1
1405-
239
82
238
318
238
232
91
242
106
101
234
126
126
234
233
234
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
82
BAR; STAB,FRT SUSP
8-98006-957-0
01
1
1405-
91
BUSHING; RUBBER,STAB BAR
8-94342-187-0
02
1
1405-
101
NUT; STAB BAR
M12 LOCK NUT
0-91370-012-0
02
1
1405-
106
BOLT; CAP FIX
M10X25 FLANGE THA
0-28651-025-0
04
1
1405-
117
NUT; STAB BAR BUSHING
M14 FLANGE
8-97360-124-0
02
1
1405-
126
RUBBER; MTG,STAB BAR
8-94342-083-0
04
1
1405-
232
BUSHING; LINK ROD
8-97239-911-0
02
1
1405-
233
STUD; STABILIZER
8-97360-120-0
02
1
1405-
234
WASHER; STAB
(A) ID=14.2
0-91510-514-0
02
1
1405-
234
WASHER; STAB
(B)
8-97360-055-0
04
1
1405-
238
ROD LINK ASM; STABILIZER,FRT
8-97239-907-0
02
1
1405-
239
BOLT; LINK ROD
M14X70 FLANGE
0-28851-470-0
02
1
1405-
242
CAP; LINK ROD
8-94178-430-2
02
1
1405-
318
NUT; CAP FIX
M10 FLANGE THA
0-91180-210-0
04
1
1405-
