◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51511 - NPR BUS CHAS(THAI) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#139810) — 22 parça

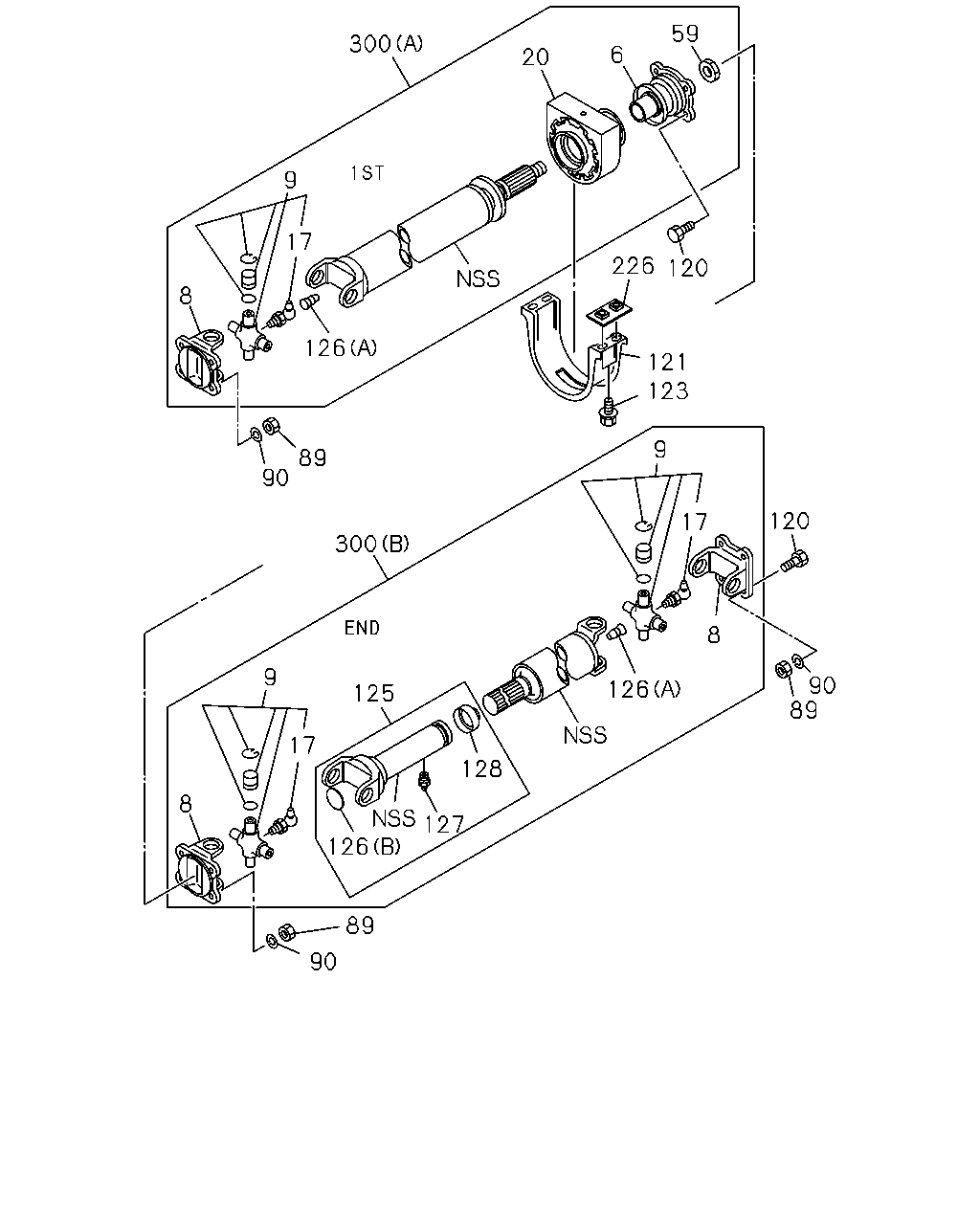

çizim 421584
300 9 17 8 126 90 89 20 6 59 226 120 121 123 9 120 17 90 89 8 126 300 9 8 17 126 127 128 89 90 125
BalonParca AdiParca NoAdetTipApplied Date
6 COUPLING ASM; DRIVER,PROP SHAFT
THA 		8-98020-796-0 01 1 1405-
8 YOKE; FLANGE,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> D=80 THA 		1-37211-037-4 02 1 1405-
8 YOKE; FLANGE,PROP SHAFT
D=80 THA 		1-37211-037-4 01 1 1405-
9 JOURNAL ASM; PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> THA 		8-98020-789-1 02 1 1405-
9 JOURNAL ASM; PROP SHAFT
THA 		8-98020-789-1 01 1 1405-
17 NIPPLE; GREASE,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> PT1/8 ELBOW 		0-90301-610-0 02 1 1405-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1405-
20 BEARING ASM; CTR,PROP SHAFT
THA 		8-98020-880-0 01 1 1405-
59 NUT; RET TO SUPPORT
M30 THA 		8-97160-857-0 01 1 1405-
89 NUT; YOKE TO RR AXLE
M12 		8-97365-450-1 12 1 1405-
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 		0-91510-812-0 12 1 1405-
120 BOLT; YOKE TO RR AXLE
M12X35 		8-97365-451-1 08 1 1405-
121 RETAINER; CUSHION RUBBER 8-97035-623-1 01 1 1405-
123 BOLT; RET
M10X25 W/LK&PL WASHER 		0-50641-025-0 04 1 1405-
125 YOKE ASM; SPLINED,PROP SHAFT
FRAME STRAIGHT TYPE<7KJ> L=224 THA 		8-98044-229-0 01 1 1405-
126 PLUG; SPLINED YOKE
FRAME STRAIGHT TYPE<7KJ> (B) THA 		8-94366-900-0 01 1 1405-
126 PLUG; SPLINED YOKE
(A) THA 		1-09600-023-0 01 1 1405-
127 NIPPLE; GREASE,SPLINED YOKE
FRAME STRAIGHT TYPE<7KJ> M6 STRAIGHT THA 		0-90301-406-0 01 1 1405-
128 SEAL; SLEEVE
FRAME STRAIGHT TYPE<7KJ> THA 		8-97145-746-0 01 1 1405-
226 PLATE; LK,CENTER BRG 8-97371-572-0 02 1 1405-
300 SHAFT ASM; PROP,RR
FRAME STRAIGHT TYPE<7KJ> (B) L=1252 THA 		8-98063-805-1 01 1 1405-
300 SHAFT ASM; PROP,RR
(A) L=1127 THA 		8-98040-793-1 01 1 1405-
